Snapper SPX 42 Inch Deck Belt Diagram for Maintenance and Repair

If you’re replacing or adjusting the belt on your Snapper SPX 42-inch mower deck, having a clear diagram is crucial. The diagram shows the exact routing of the deck belt, ensuring that it runs smoothly and avoids premature wear. The first step is to locate the tension pulley and idler arm, as these components play a vital role in the belt’s tensioning system.

Understanding the belt’s route around the pulleys is key to preventing operational issues. Begin by checking that the belt loops over the spindle pulleys and is correctly positioned around the tensioning pulley. The routing diagram will indicate the precise placement of each section of the belt, helping you avoid misalignment, which can lead to reduced performance or even damage.

Keep an eye on the belt’s condition while performing the replacement. Over time, belts stretch or crack, impacting their efficiency. A fresh belt, installed properly according to the diagram, can ensure your mower runs at peak efficiency. Additionally, be sure to check the idler pulleys for wear, as they can affect the belt’s performance if not properly maintained.

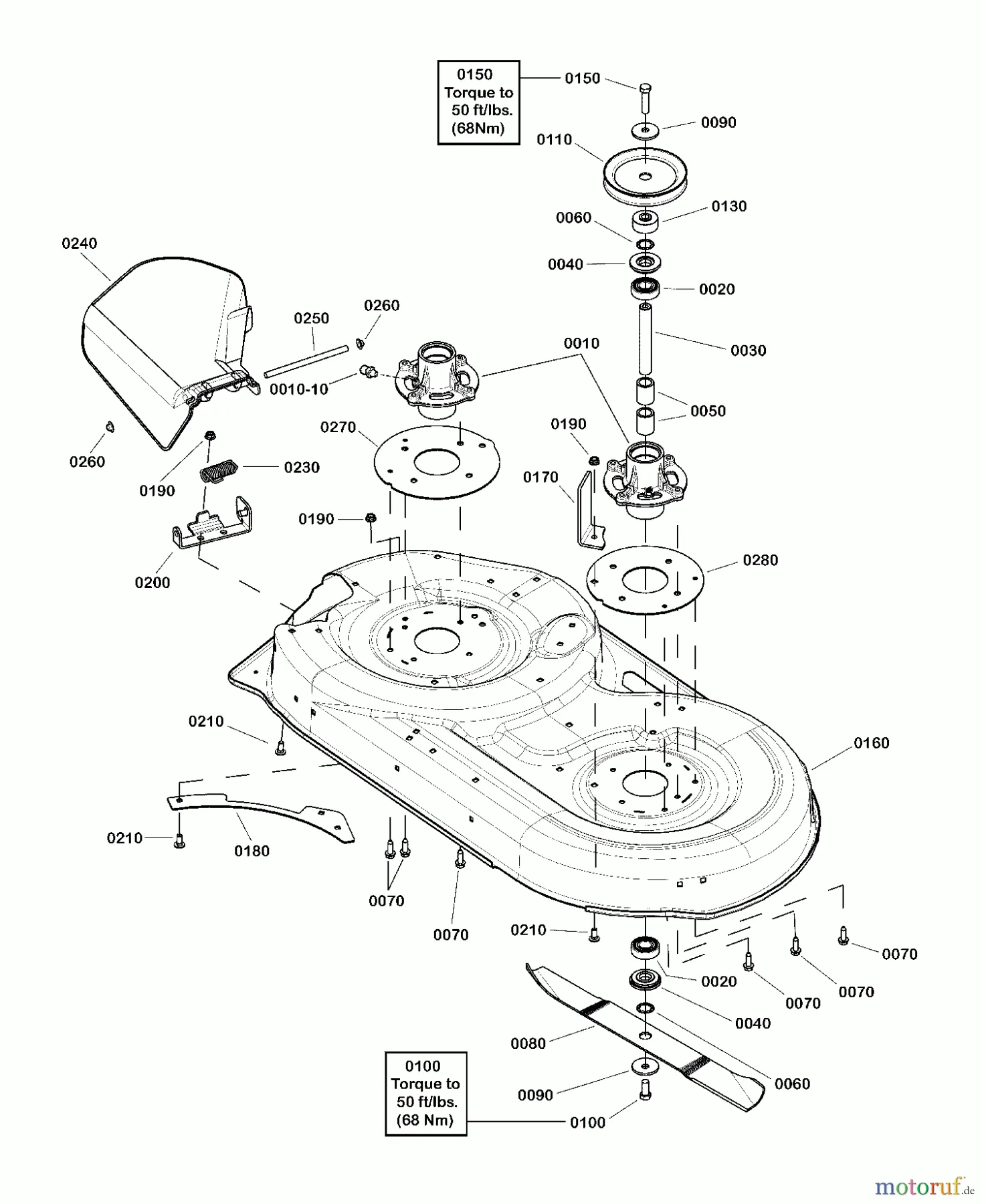

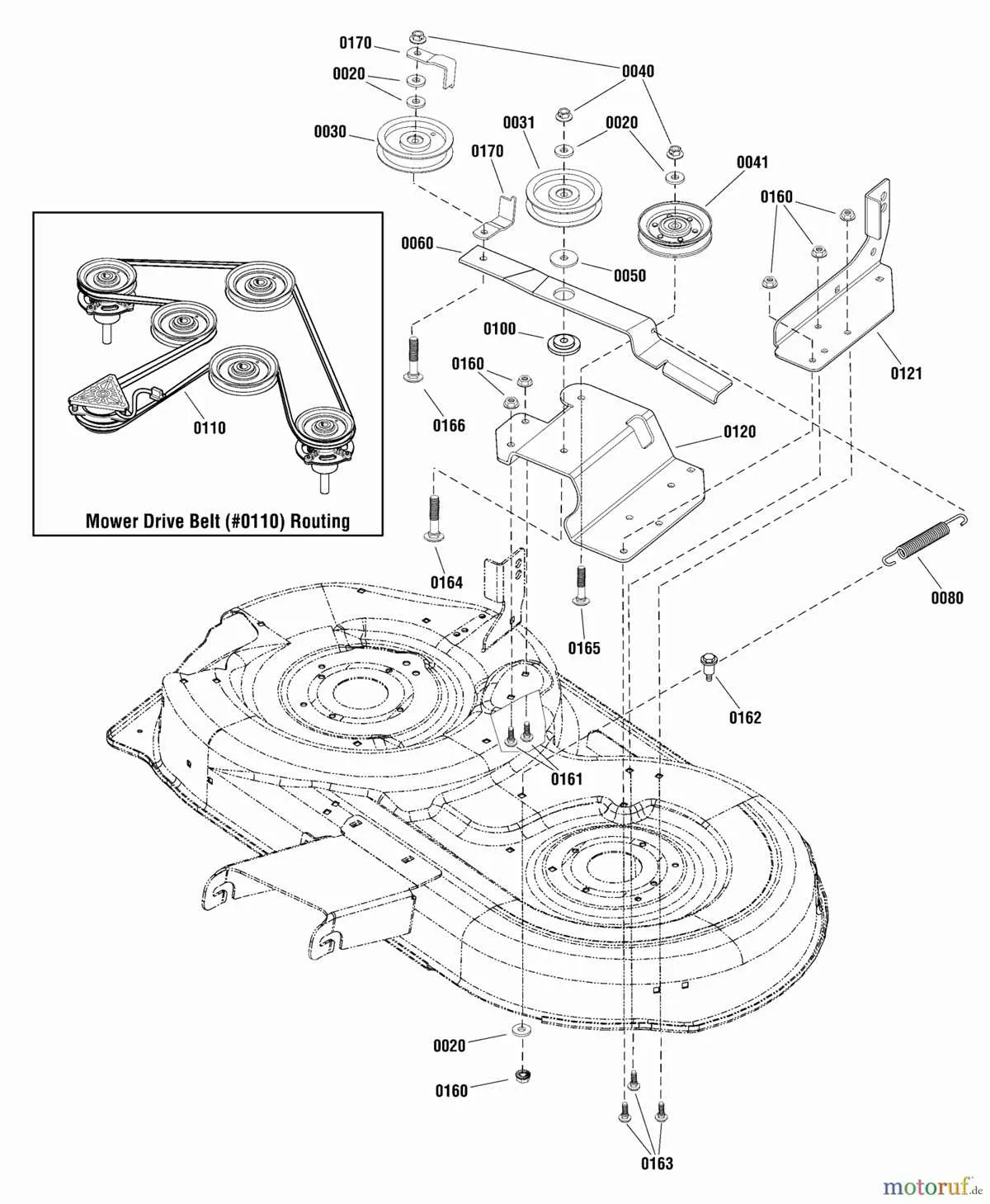

Snapper SPX 42 Inch Deck Belt Diagram

To replace or adjust the deck belt on a Snapper SPX 42-inch mower, follow this clear belt routing diagram. Ensure you have the correct replacement belt for your model, as different versions may require slightly varied routing paths.

The deck belt should pass over the engine pulley, around the deck pulleys, and loop through the idler pulley system. First, detach the old belt by releasing tension on the idler pulleys and noting the direction of the belt as it comes off. This helps when installing the new belt.

Begin by threading the new belt around the engine pulley. Then, route the belt through the left and right deck pulleys, ensuring it is properly aligned. Make sure the belt fits snugly but is not overstretched. Follow the diagram closely to ensure all pulleys align correctly, preventing belt slippage and wear.

Finally, adjust the tension on the idler pulley to ensure the belt is tight but not excessively stretched. If the belt is too loose, it may slip and cause poor performance. If it’s too tight, it could wear out prematurely.

After completing the installation, check the belt’s movement manually to verify the routing is correct. Test the mower on a low setting to ensure smooth operation.

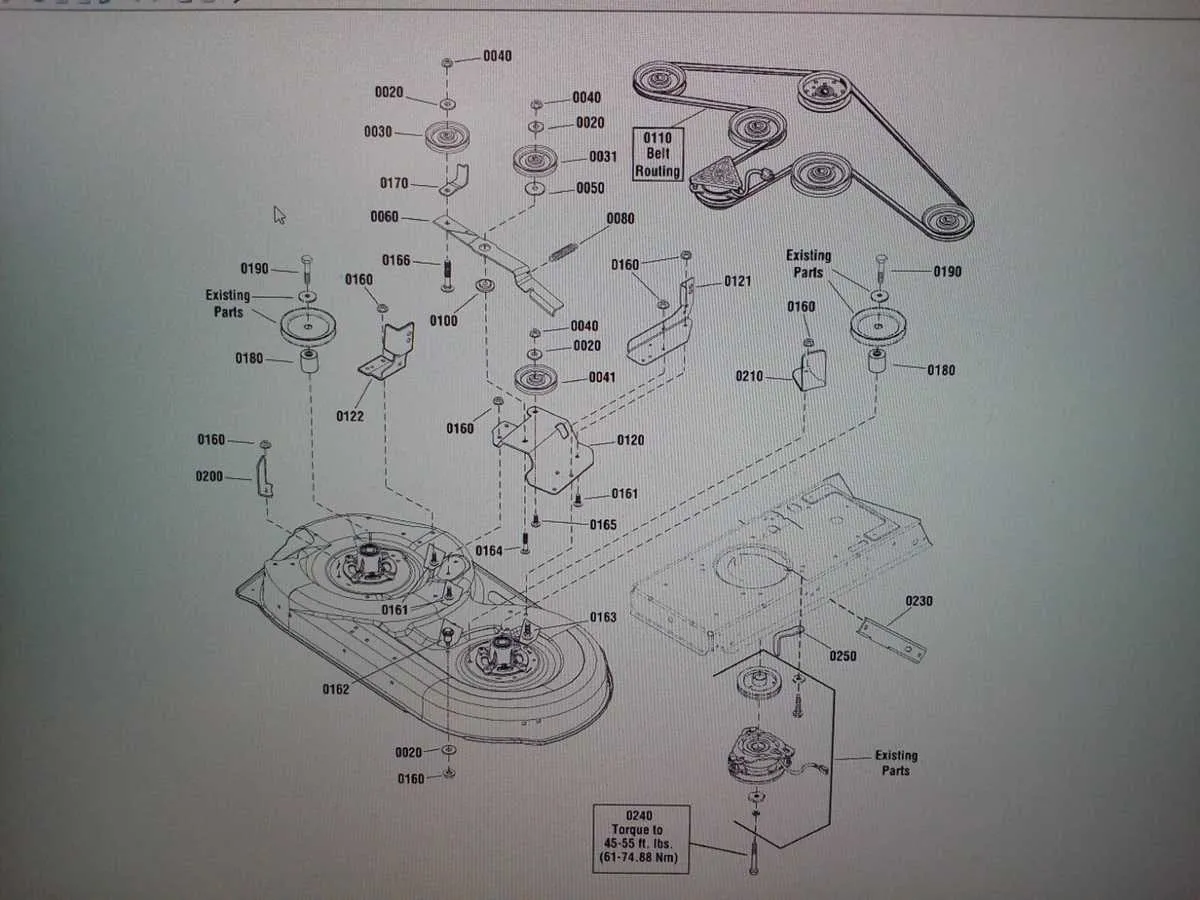

Understanding the Belt Routing for Snapper SPX 42 Inch Deck

When replacing or adjusting the belt on your Snapper SPX 42-inch deck, correct routing is key for optimal performance. The drive belt needs to follow a precise path to ensure proper engagement and smooth operation of the mower’s cutting system. Misrouted belts can cause excessive wear, loss of power, or even premature failure.

Start by ensuring the belt is properly threaded around the engine pulley, ensuring it runs smoothly without being too tight or loose. The belt should pass over the idler pulley before reaching the deck pulleys. Make sure the belt is positioned between the tensioner arms, which will keep it under the correct tension. Verify that it runs across the deck pulleys without any twists.

The spindle pulleys are critical in the system. The belt should be looped over these pulleys in a way that allows the blades to rotate freely when the mower is powered on. Double-check that the belt aligns properly with the grooves of each pulley. The tensioner spring must be installed on the right side, ensuring the tensioner is pushed against the belt to keep it taut.

For proper belt routing, it’s best to follow the diagram included in your user manual or online resources for your specific model. This ensures that the belt moves freely without any interference. Regular inspection and adjustment of the belt and pulleys are recommended to keep everything functioning smoothly and to avoid unnecessary repairs.

How to Properly Replace the Deck Belt on Your Snapper SPX

First, disconnect the battery to ensure safety during the replacement process. Raise the front of the mower and secure it with a jack or lifting device. This will provide you with better access to the deck belt.

Next, locate the deck belt on the mower. For the Snapper SPX, the deck belt runs around the pulleys and is connected to the blades. Carefully remove any covers that might obstruct your access to the belt.

Using a wrench or socket, loosen the tension on the belt by adjusting the idler pulley. This will relieve the pressure and allow you to remove the belt more easily. Be sure to take note of the belt routing to ensure the new belt is installed correctly.

Remove the old belt from the pulleys, and check for any signs of wear or damage in the pulleys themselves. If you notice any issues, it’s a good idea to replace them before installing the new belt.

Install the new deck belt, starting from the largest pulley and working your way around the smaller ones. Follow the original routing pattern exactly, making sure the belt is properly seated in each groove of the pulleys.

Once the new belt is in place, use the wrench or socket to re-tension the idler pulley. Double-check the alignment of the belt to ensure it’s running smoothly along the pulleys.

Finally, lower the mower, reconnect the battery, and test the mower by starting it up and engaging the blades. Verify that the deck belt runs properly and that the blades rotate as expected.

Common Issues with Deck Belt and How to Diagnose Them

If your Snapper SPX 42-inch deck belt isn’t working properly, it could be due to a few common issues. Let’s break down how to identify and fix them.

• Belt Slipping or Coming Off

If the deck belt keeps slipping or coming off, the most likely cause is a worn-out or loose belt. Check the belt tension to ensure it is properly adjusted. If the belt is frayed or cracked, replace it. Also, inspect the pulleys for any signs of damage or misalignment that could cause the belt to jump off.

• Uneven Cutting

Uneven cutting can indicate an issue with the deck belt’s tension. If the belt is too loose, it may fail to rotate the blades at the correct speed, leading to uneven grass cutting. Check the belt for wear and ensure it’s tightened to the manufacturer’s specifications. Also, verify the condition of the blades and pulleys, as they can affect cutting performance.

• Noise from the Deck

Unusual noises, such as squealing or grinding, often point to a misaligned or damaged belt. Inspect the deck belt to see if it’s rubbing against other components. Check the pulleys and idlers for any signs of wear or debris. A noisy belt may need lubrication or replacement.

• Belt Breakage

A snapped deck belt is usually caused by overuse, improper installation, or contact with a foreign object. If the belt has broken, inspect the deck for any sharp edges or objects that might have caused damage. Replace the belt and ensure it is installed according to the manufacturer’s instructions.

• Deck Belt is Too Tight

If the belt is too tight, it may cause excessive wear on the pulleys and engine components. Check the belt tension and adjust it to the recommended setting. Over-tightening the belt can also cause strain on the engine, leading to more severe damage in the long run.
