Snapper LT200 Deck Belt Diagram and Installation Guide

For maintaining or repairing your Snapper LT200, the deck belt diagram is a key resource. It provides a clear layout of how the belt should be routed for proper functioning. The belt is integral to the operation of the mower’s deck, ensuring smooth and efficient power transfer from the engine to the cutting blades.

To find the correct diagram: refer to your mower’s manual or look for online resources that specifically cater to Snapper LT200 models. The belt routing diagram typically includes step-by-step instructions, often with detailed illustrations. This ensures you know exactly where each section of the belt should be positioned, preventing unnecessary wear and misalignment.

Replacing the belt: Before replacing the deck belt, ensure the mower is turned off and the spark plug is disconnected. Remove any obstacles and parts blocking access to the deck. Once you have access, use the diagram as a reference to correctly install the new belt, making sure it aligns with the pulleys and tensioners as shown.

Having a proper diagram will save you time and reduce the risk of incorrect assembly, ensuring that your Snapper LT200 performs optimally and lasts longer. Always double-check the routing before reassembling and testing the mower.

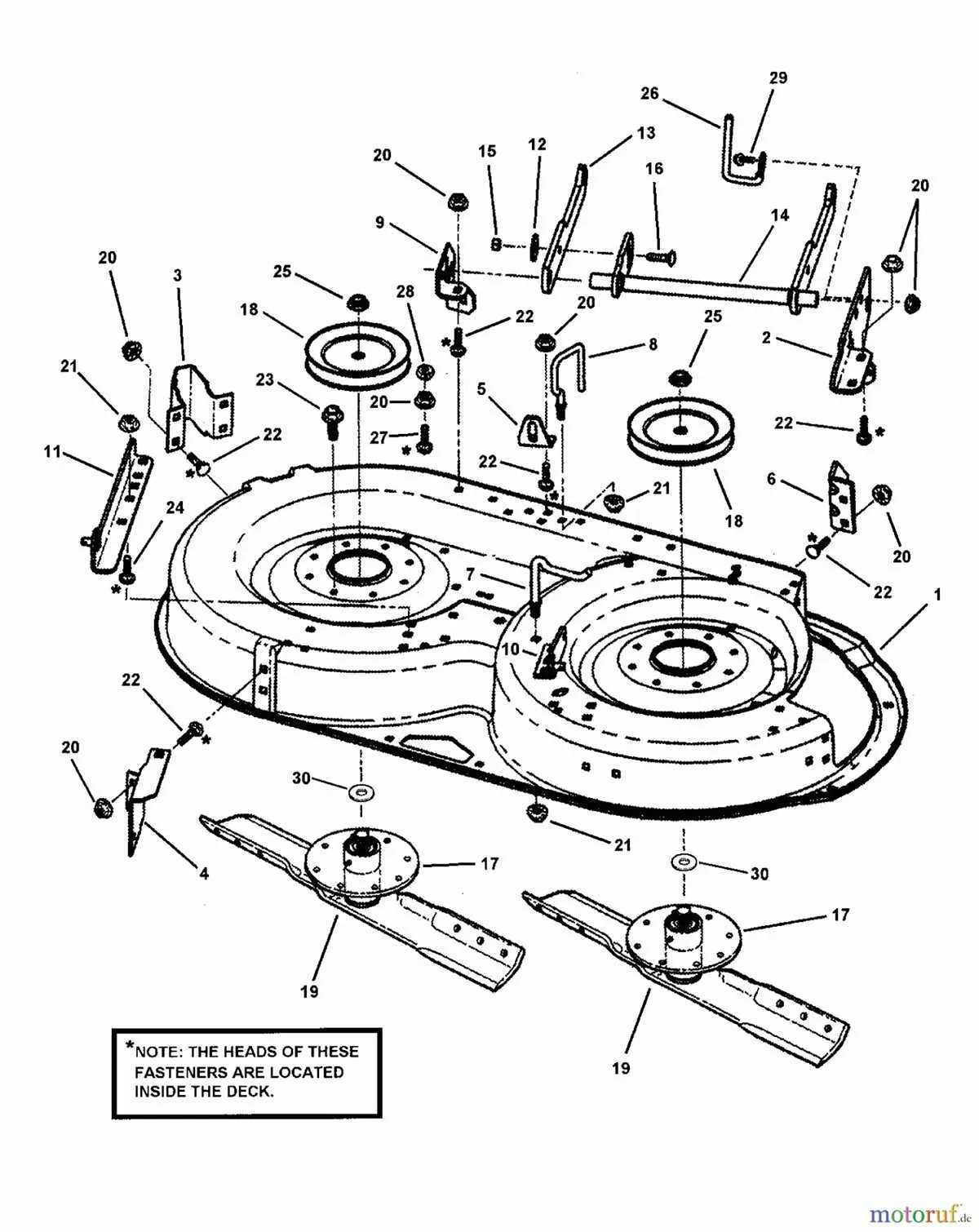

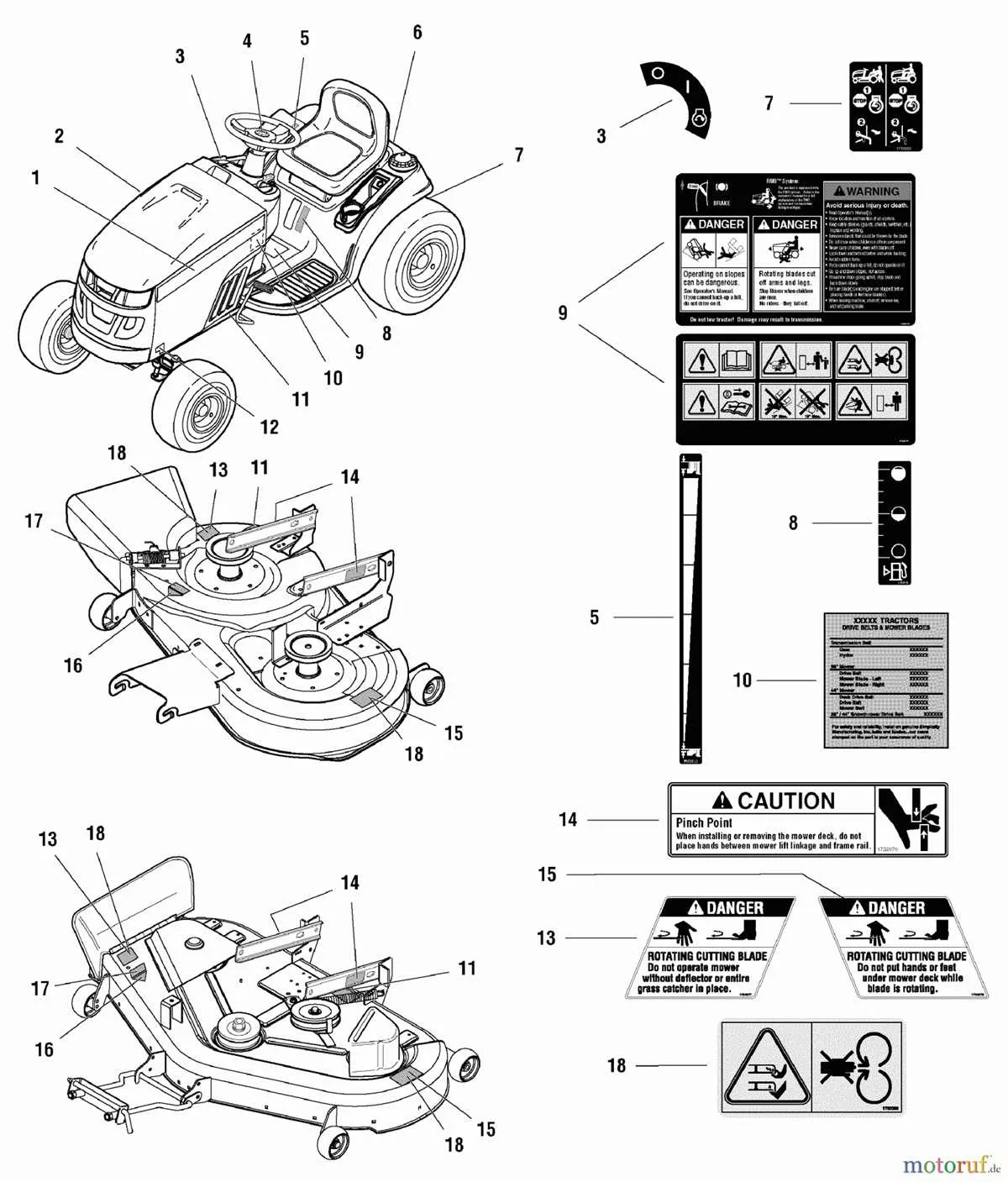

Snapper LT200 Deck Belt Diagram

To replace or repair the deck belt on the Snapper LT200, refer to the following steps and diagram for accurate installation.

• First, remove the mower deck from the tractor. This will give you easy access to the belt and pulleys.
• Take note of the routing path for the deck belt before removing it. The belt must run through several pulleys, including the spindle pulleys and the idler pulley.
• Consult the diagram for the correct positioning of each component. Ensure the belt is routed in the direction shown, as any misplacement can cause improper tension and damage.
• After removing the worn-out belt, check all pulleys for wear or damage. Replace any parts that show signs of wear before installing the new belt.
• Install the new belt by following the diagram step-by-step, ensuring the belt sits correctly in each pulley groove.

Once the belt is in place, reassemble the mower deck and check for proper operation. Make sure the belt has the correct tension, which should allow for smooth operation without slipping or becoming too tight.

Diagram Overview

The diagram clearly indicates the path the belt should follow, from the engine pulley through the idler pulley to the spindle pulleys. Double-check the belt’s position after installation to ensure everything is aligned properly.

For the LT200 model, the deck belt should be checked regularly for wear. Replace it if you notice cracks, fraying, or if it slips during operation.

How to Properly Install the Deck Belt on a Snapper LT200

Start by disconnecting the spark plug wire to avoid accidental starts. Raise the mower deck to its highest position using the height adjustment lever. Next, remove any debris or grass from the deck area for a clean workspace. You’ll need to release the tension on the old deck belt by loosening the tension spring and removing any fasteners that hold the belt in place.

Once the belt is loose, carefully remove it from the pulleys. Take note of the belt routing; it’s crucial to follow the exact pattern when installing the new one. Refer to the Snapper LT200 deck belt diagram to ensure correct positioning. The belt should loop around the deck pulleys and the engine pulley, with the idler pulley applying tension.

Install the new belt by sliding it over the engine pulley and routing it through the idler pulleys and the deck. Make sure the belt is properly seated in the grooves of each pulley to prevent slipping. Tighten the tension spring back into place to apply proper tension to the belt.

Before reattaching the spark plug wire, manually rotate the blades to check the belt’s alignment and tension. The belt should move smoothly without slipping or binding. If everything is in place, start the mower to test the functionality of the new belt.

Always double-check the belt routing and tension to ensure safe and effective operation of your Snapper LT200 mower.

Common Issues with the Snapper LT200 Deck Belt and How to Fix Them

If the deck belt on your Snapper LT200 starts slipping or breaking frequently, check for these common issues:

1. Belt Tension Problems

A loose or improperly adjusted belt can lead to slipping and poor performance. To fix this, adjust the tension by tightening the spring on the belt idler. Refer to the owner’s manual for the correct tension specifications. A belt that is too tight can also wear prematurely, so ensure it’s just right.

2. Worn or Damaged Belt

Frequent use can cause the belt to wear out, especially if it is made of lower-quality material. Inspect the belt for visible signs of fraying or cracks. Replacing the belt with a genuine Snapper LT200 replacement will restore optimal function.

3. Misalignment of Pulleys

If the pulleys are misaligned, the belt can be forced off track, leading to wear and possible breakage. Check that all pulleys are aligned properly. If they are not, adjust them accordingly or replace worn-out pulleys that may be causing the misalignment.

4. Debris on the Belt or Pulleys

Grass, dirt, or other debris can get caught in the belt and pulleys, reducing efficiency. Clean both the belt and the pulleys regularly to avoid build-up. This will improve performance and prevent unnecessary wear.

5. Damaged Idler Pulley or Tensioner

If the idler pulley or tensioner is worn out or damaged, it won’t apply the correct pressure on the belt. Inspect these components and replace them if needed. A damaged pulley can also make noise and cause the belt to slip.

6. Incorrect Belt Size

Using the wrong size belt can cause it to slip or become damaged faster. Always double-check the specifications and ensure you’re using the correct belt for your Snapper LT200 model.

Understanding the Snapper LT200 Deck Belt Routing Diagram

Start by ensuring the engine is off and the mower is on a flat, stable surface. Examine the diagram for the belt routing, which shows how the deck belt loops around various pulleys. Pay close attention to the placement of the belt on the engine pulley, as this is where most tension is applied. The belt should move smoothly along the path indicated, with the grooves facing the pulleys for optimal performance.

Check the position of the tensioner pulley. It plays a key role in maintaining the right amount of tension on the belt. If the tension is too loose or tight, the mower may not operate correctly or could cause premature wear on the belt. Adjust the tensioner accordingly based on the diagram’s guidance.

The belt should run over the idler pulley, which helps guide it around the deck. Make sure the belt is routed through any guides or brackets shown in the diagram, keeping it in the correct alignment. Misalignment can cause the belt to slip off during operation, leading to further issues.

If replacing the belt, verify its size matches the one listed in the owner’s manual. A mismatch could affect the performance and longevity of the mower. Once the belt is properly routed, rotate the deck by hand to check for smooth movement before starting the engine.
