Snapper 46 Inch Deck Belt Diagram and Maintenance Guide

For maintaining your Snapper 46-inch mower, understanding the deck belt diagram is a key part of troubleshooting and repairs. Start by identifying the components of the deck belt system, ensuring the belt is correctly routed and tensioned. A misaligned belt can cause premature wear or inefficient mowing performance.

Check the belt for any signs of wear, such as fraying or cracking. If these issues are present, replacing the belt is necessary. Make sure you consult the specific diagram for your Snapper model, as different versions might have slight variations in routing or tension settings.

Follow the diagram closely when reinstalling the belt. Proper belt tension is vital; too loose, and the belt may slip; too tight, and it may wear down faster. Inspect all pulleys and idlers for smooth operation, as any resistance could damage the belt or reduce mower efficiency.

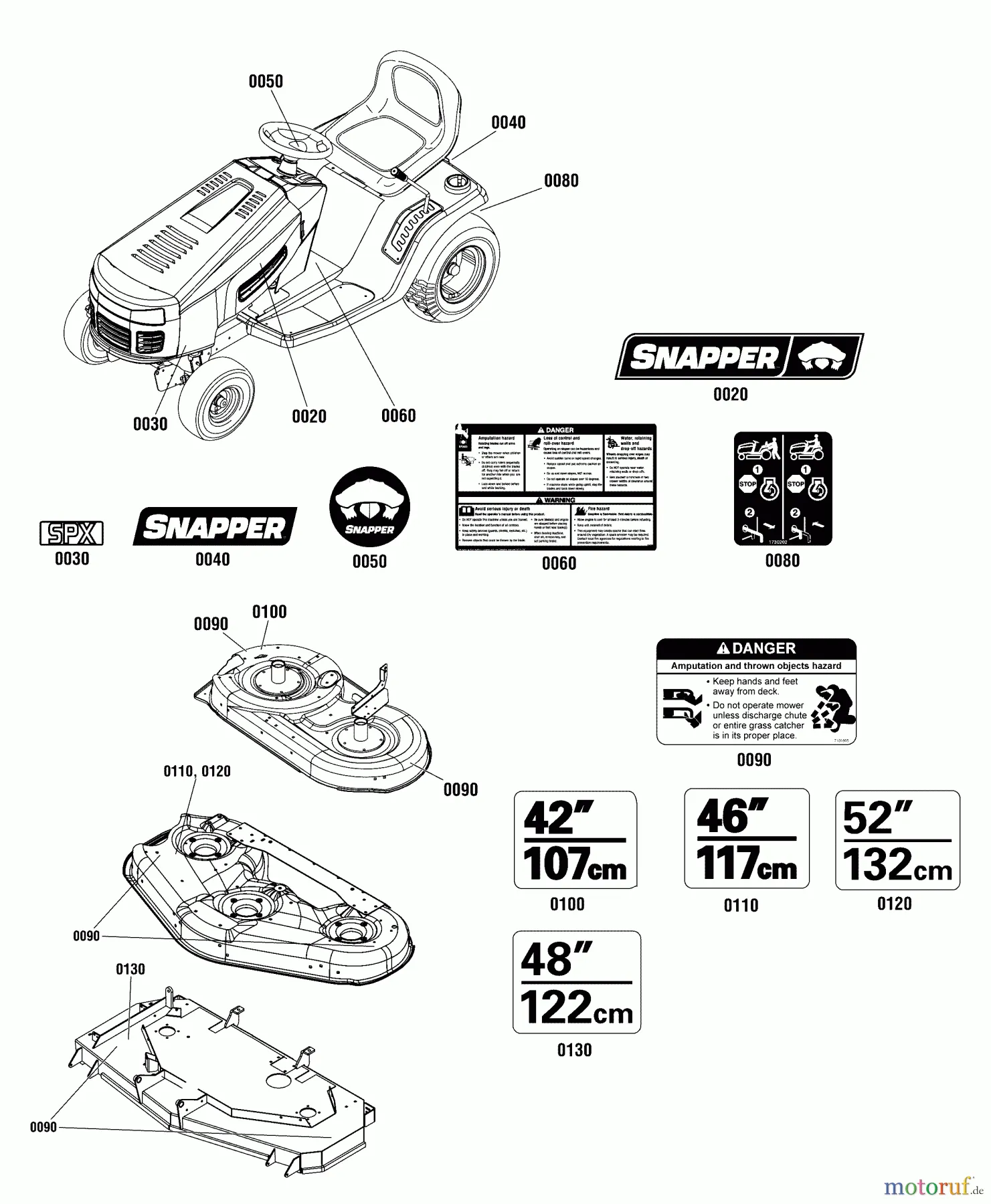

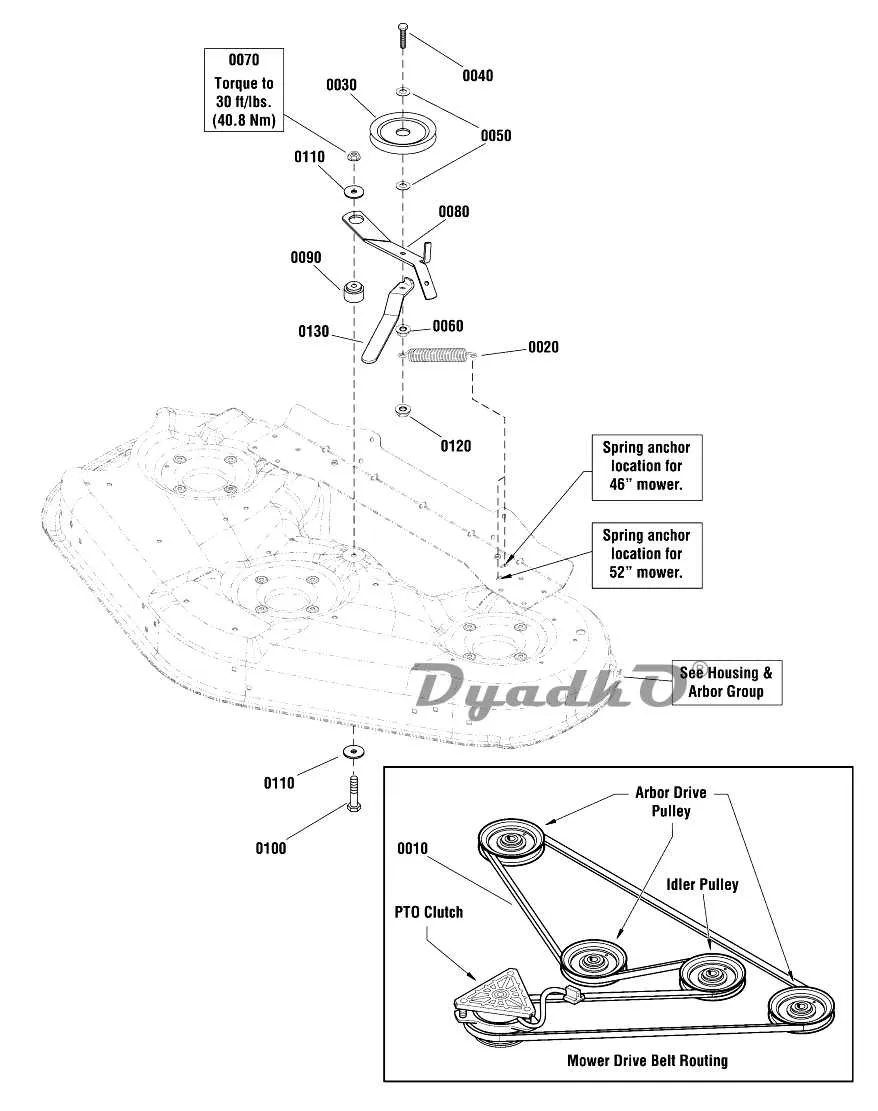

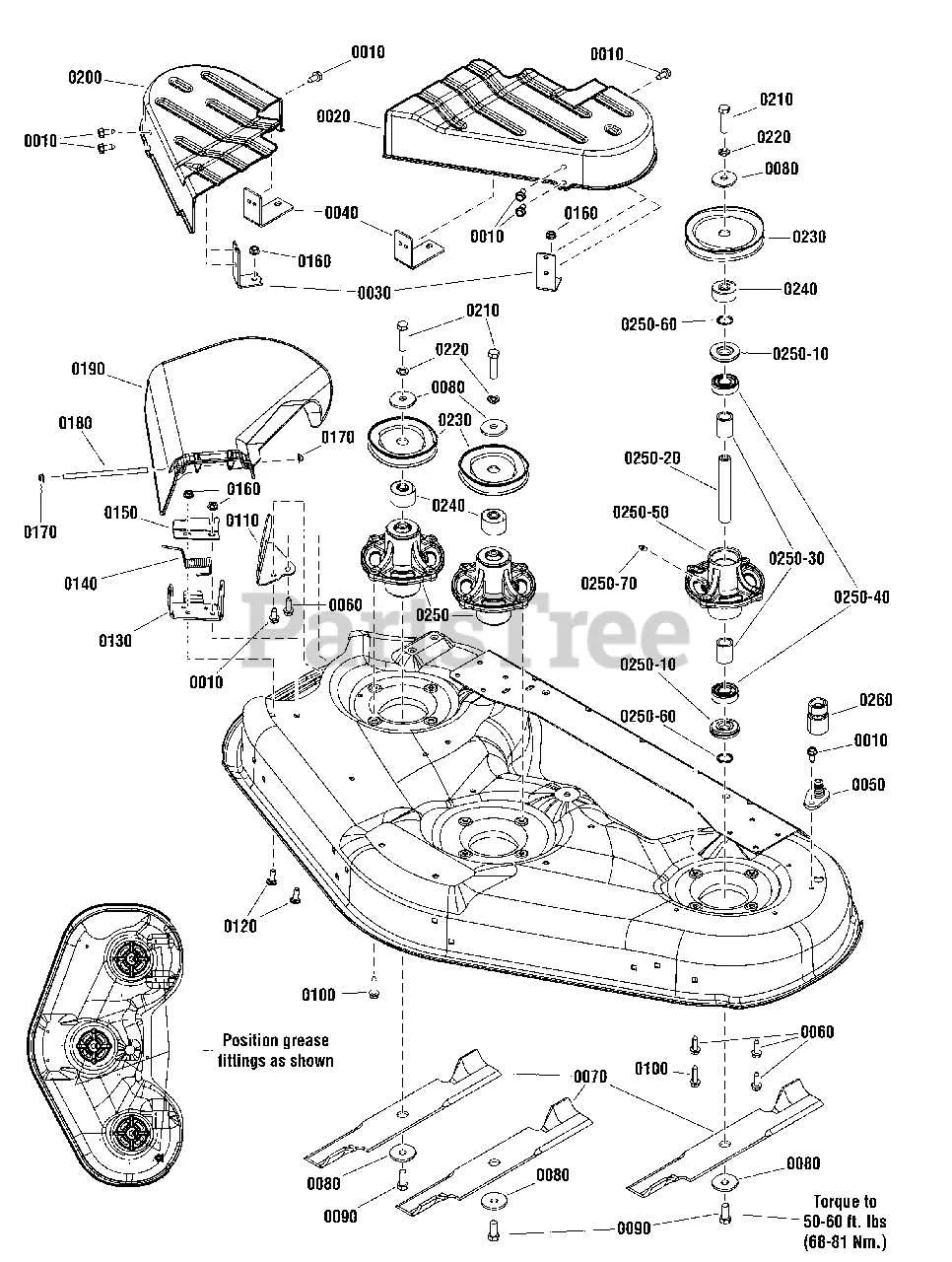

Snapper 46 Inch Deck Belt Diagram

To replace or adjust the deck belt on your Snapper 46-inch mower, begin by ensuring the mower is powered off and parked on a flat surface. Disconnect the battery to avoid accidental start-up. The deck belt connects the engine to the cutting deck, enabling the blades to spin and cut the grass effectively.

Start by locating the belt tensioner. It’s usually positioned near the engine and serves to keep the belt under proper tension during operation. You’ll need to relieve the tension before removing the belt. You can do this by either loosening the bolt that holds the tensioner or moving it manually, depending on your model.

Next, remove the belt from the pulleys on the engine and cutting deck. Be mindful of the pulley arrangement. Note the routing of the belt, as it passes over various pulleys that control the blade speed and deck engagement. It’s important to install the new belt in the exact same configuration. If you’re unsure, refer to the diagram on the mower’s deck or consult the user manual for a clear belt routing guide.

After installing the new belt, check the tension. If the belt is too loose, it may slip and fail to engage properly. If it’s too tight, it could cause excessive wear on the pulleys or the engine. Adjust the tensioner as needed to maintain optimal belt tension.

Finally, test the mower by starting it up and engaging the cutting deck. Listen for any unusual sounds, which could indicate misalignment or improper tension. If the mower runs smoothly and the deck engages correctly, the replacement is successful.

How to Identify and Replace the Snapper 46 Inch Deck Belt

To identify if the Snapper 46-inch deck belt needs replacement, start by inspecting the belt for signs of wear such as cracks, fraying, or excessive slack. If the belt appears damaged or worn, it should be replaced to prevent further issues.

1. Lift the Deck: Use the mower’s lift mechanism to raise the deck to its highest position. This gives you easier access to the belt and surrounding components.

2. Locate the Deck Belt: Find the belt on the mower deck. It runs around the pulleys, including the drive pulley and blade pulleys. Take note of the belt’s routing to avoid mistakes when reinstalling the new one.

3. Remove the Old Belt: Loosen the tension on the belt by releasing the tension spring or using the belt removal system. Slide the old belt off the pulleys and remove it from the deck.

4. Install the New Belt: Position the new belt along the same path as the old one. Make sure it aligns properly with all pulleys and guides. If necessary, refer to the Snapper 46-inch deck belt diagram for precise routing instructions.

5. Check Belt Tension: Ensure the belt has the right amount of tension. The belt should not be too tight or too loose. If you notice any slack, adjust the tension to ensure the belt works smoothly during operation.

6. Test the Mower: Start the mower and test the new belt’s functionality. Listen for any unusual noises and check if the deck blades engage properly. If everything functions as expected, the replacement is complete.

Common Issues with the Snapper 46 Inch Deck Belt and Troubleshooting Tips

If the Snapper 46-inch deck belt is malfunctioning, the most likely causes are wear, improper tension, or incorrect routing. Here are the key issues and how to address them:

• Excessive Wear: Inspect the belt for cracks, fraying, or visible damage. Worn belts should be replaced immediately to prevent further damage to the mower’s components.
• Poor Tension: If the belt is loose or slipping, check the tension adjustment. A loose belt can cause poor cutting performance or even stop the mower from running. Adjust the tension as needed according to the manufacturer’s specifications.
• Incorrect Routing: A common issue is incorrect belt routing. Follow the Snapper 46-inch deck belt diagram to ensure the belt is routed correctly around all pulleys and components. Incorrect routing can lead to premature wear or operational failure.
• Debris Build-Up: Grass clippings and dirt can accumulate around the belt and pulleys, causing friction or blocking movement. Clean the belt and pulleys regularly to maintain smooth operation.
• Misaligned Pulleys: Check the alignment of the pulleys. Misalignment can cause the belt to wear unevenly or slip. If pulleys are out of alignment, they may need to be adjusted or replaced.
• Overheating: If the mower runs too hot, the belt may be exposed to excessive friction, causing it to wear faster. Ensure the engine cooling system is functioning properly and that the belt isn’t being overworked by heavy cutting.

To troubleshoot effectively, start by diagnosing the issue based on the symptoms. Replace damaged belts promptly, adjust the tension correctly, and always follow the manufacturer’s routing guide for the best performance.

Proper Routing and Installation of the Snapper 46 Inch Deck Belt

To install the Snapper 46-inch deck belt correctly, begin by ensuring the deck is raised to its highest position. This will provide enough room for the belt to move freely during installation. Start by routing the belt over the engine pulley, making sure it fits snugly in the groove without slipping off. The belt should then be routed around the idler pulley, which will help maintain tension.

Next, pass the belt over the blade pulleys. Be sure to follow the specific path as outlined in the Snapper manual or belt diagram to avoid incorrect routing. The belt must pass through the tensioner system to ensure proper tension is applied. Double-check that the belt sits securely on all pulleys and doesn’t have slack or twists.

Once the belt is properly routed, check the tensioner for proper alignment and adjustment. If necessary, adjust the tensioner to apply the right amount of tension. Test the installation by manually rotating the pulleys to ensure smooth movement. Any resistance or misalignment should be corrected before operating the mower.

Finally, carefully lower the deck and perform a test run to verify the belt is functioning as expected. Watch for any signs of slippage or misalignment during operation. If everything runs smoothly, the installation is complete.
