2012 Ram 6.7 Diesel Engine Belt Diagram and Component Layout Guide

Check the belt routing before performing any maintenance to prevent misalignment and avoid damage to the engine accessories. Use the factory diagram to verify each pulley position and ensure proper tension.

Inspect the serpentine belt for wear patterns such as cracks, fraying, or glazing. Replacing the belt at the first sign of damage helps maintain alternator, water pump, and power steering performance.

Follow torque specifications for tensioners and idlers when adjusting or replacing components. Proper tension prevents slippage, reduces noise, and extends belt life.

Keep the diagram accessible during belt installation. Cross-check each loop around pulleys step by step to avoid mistakes and maintain consistent engine operation under load.

Consider component replacement in pairs if pulleys or tensioners show excessive wear. Aligning new and old parts ensures smooth rotation and reduces premature belt failure.

2012 Ram 6.7 Cummins Serpentine Belt Routing and Maintenance Guide

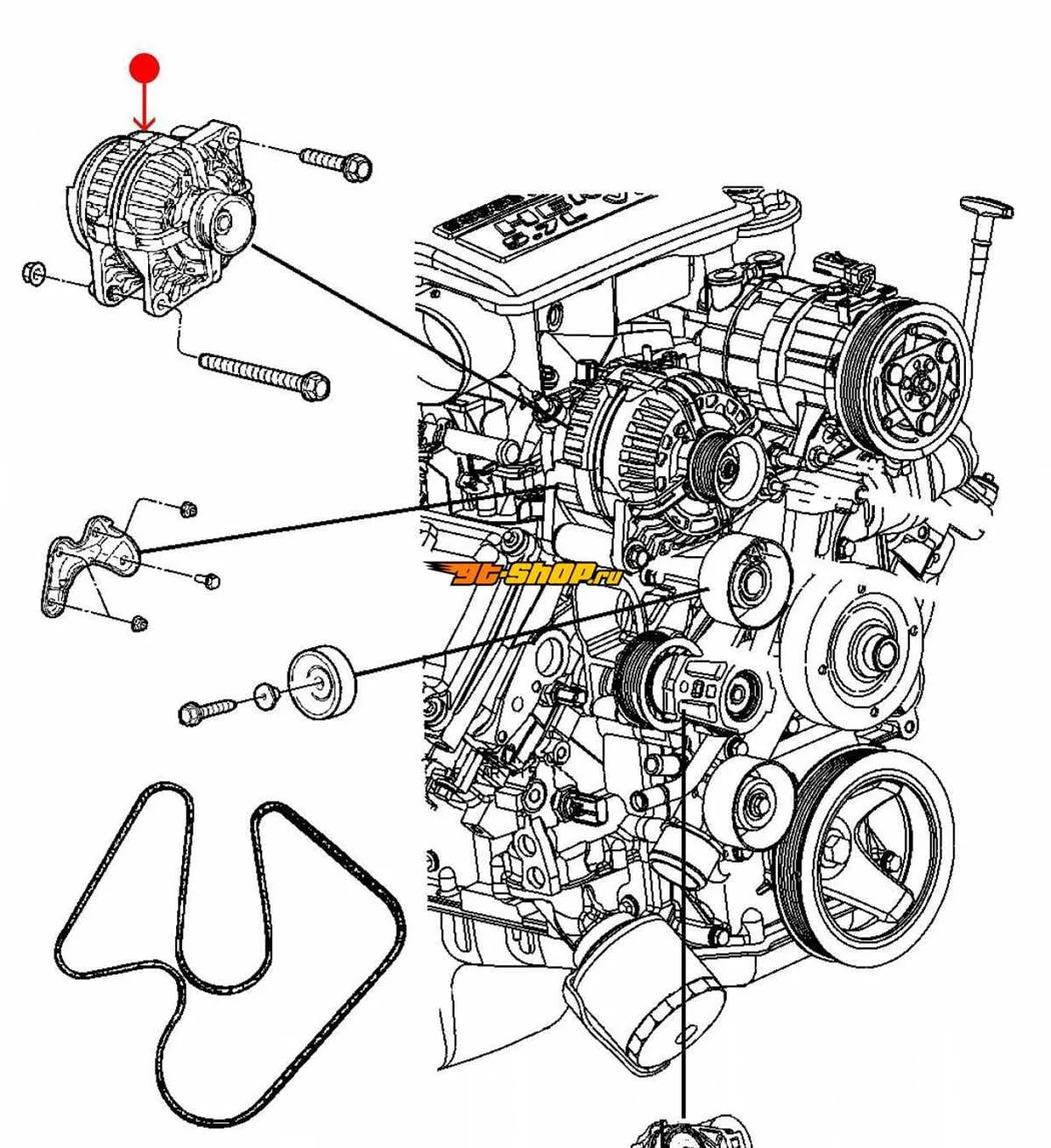

Position the serpentine belt carefully around the pulleys following the factory routing diagram. Start with the crankshaft pulley, then route the belt over the alternator, water pump, power steering pump, and air conditioning compressor as indicated. Ensure the belt sits fully in the pulley grooves to prevent slipping or misalignment.

Inspect the belt for cracks, fraying, or glazing every 15,000 miles. Replace immediately if any damage is detected. Check pulley alignment using a straight edge; misaligned pulleys increase wear and reduce belt life. Rotate tensioners to confirm smooth movement and maintain proper tension.

Clean pulleys with a non-abrasive cloth to remove debris and oil residue. Avoid using solvents that may degrade the belt material. After installation, run the engine briefly to verify correct routing and tension, listening for squealing or irregular noises. Recheck tension after a short drive to ensure the belt remains secure and aligned.

For replacement, use a high-quality OEM or equivalent belt matching the exact length and rib pattern. Document the routing path with a photo or diagram before removal to simplify reinstallation. Regular inspection and adherence to the recommended routing prevent premature belt failure and maintain reliable operation of all engine accessories.

Understanding the 2012 Ram 6.7 Serpentine Belt Layout

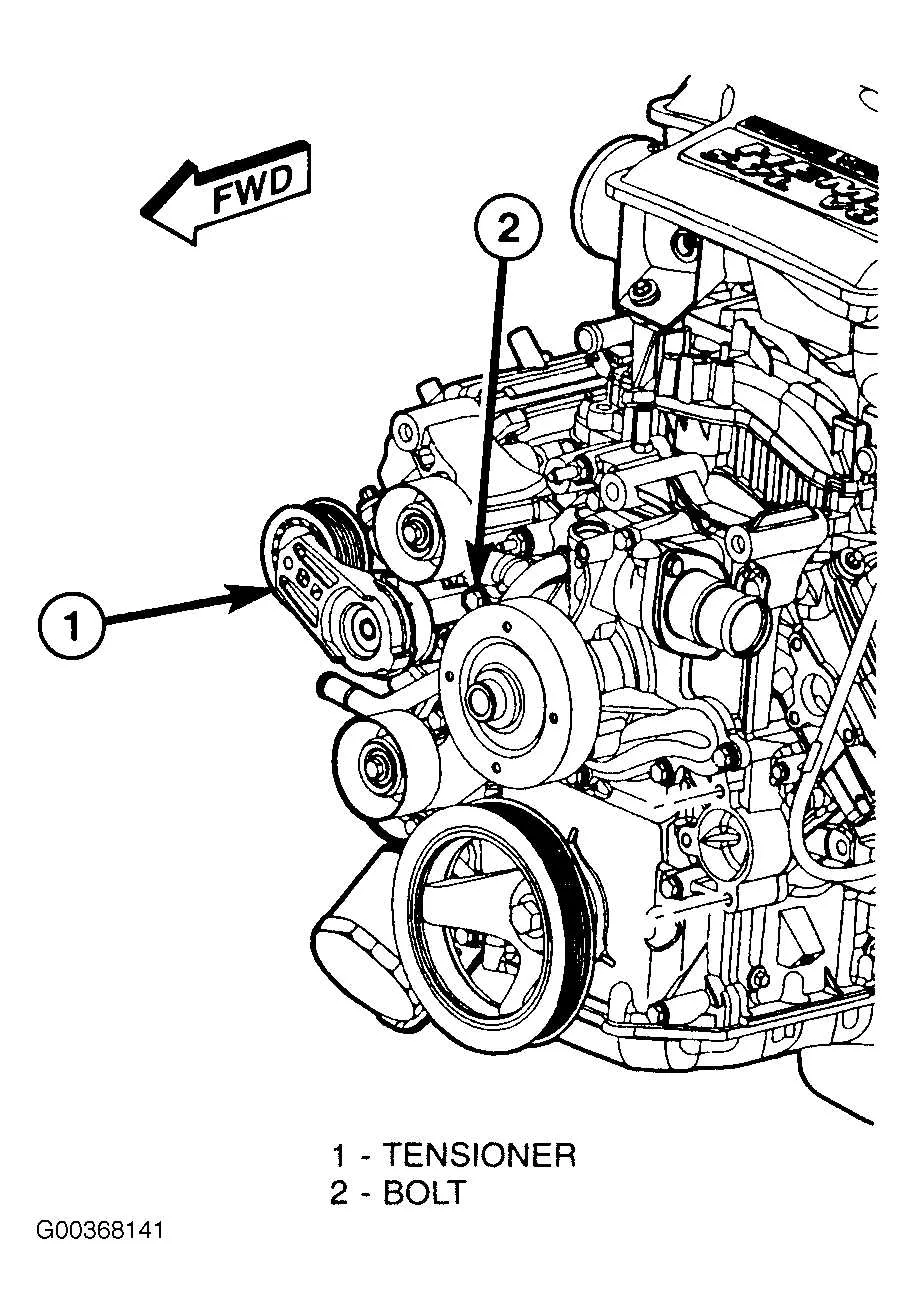

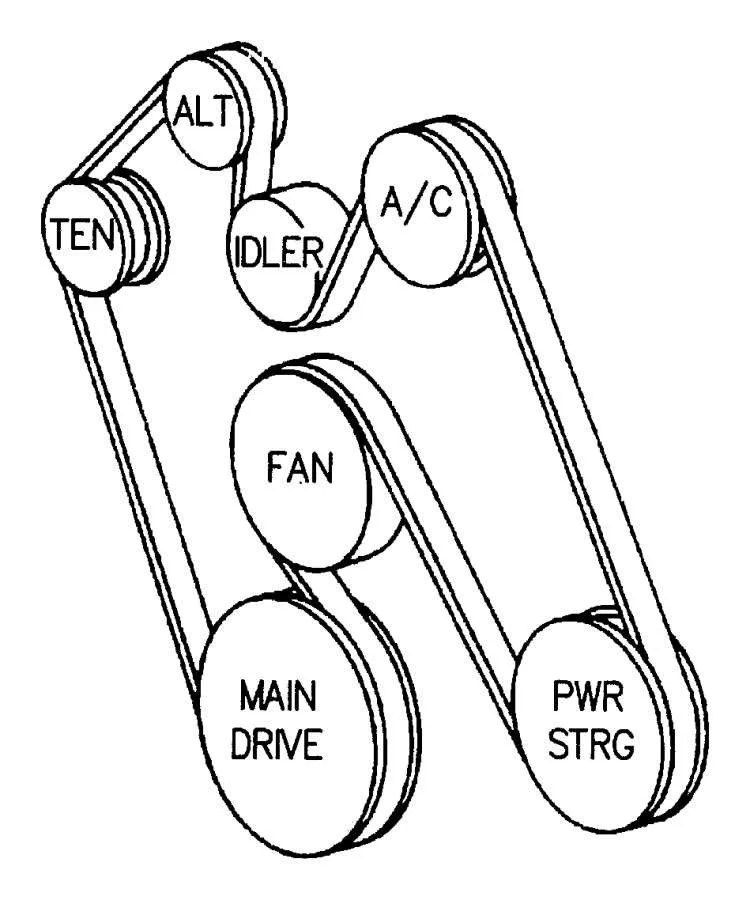

Locate the belt tensioner at the front of the engine; release it using a 3/8-inch ratchet to relieve tension before removing the belt. The serpentine belt routes around the crankshaft pulley, alternator, water pump, power steering pump, and air conditioning compressor in a precise path.

Follow the belt routing diagram stamped on the engine cover or the service manual to ensure correct alignment. The belt wraps around the crankshaft pulley first, then moves upward to the alternator, curves around the tensioner pulley, descends to the air conditioning compressor, and finally loops around the power steering pump before returning to the crankshaft.

Check each pulley for smooth rotation and absence of wear. Replace any pulley showing rough movement or wobbling to prevent premature belt failure. Maintain proper belt tension using the tensioner; a belt that is too loose will slip, while excessive tension can damage bearings.

Inspect the belt for cracks, fraying, or glazing on the ribbed side. Replace the belt at the first signs of significant wear. Always route a new belt following the exact path, ensuring ribs sit securely in each pulley groove for optimal performance.

Step-by-Step Belt Replacement and Installation Instructions

Loosen the serpentine belt tensioner using a 3/8-inch ratchet or breaker bar to relieve tension on the belt. Rotate the tensioner clockwise to free the belt from the pulleys.

Carefully remove the old belt, noting the routing around the alternator, water pump, air conditioning compressor, and crankshaft pulley. If necessary, refer to the belt diagram for exact placement.

Inspect all pulleys for wear or misalignment and clean any debris or buildup that could affect the new belt’s performance. Check the tensioner for smooth operation and replace if it shows signs of sticking or excessive play.

Compare the new belt with the old one to ensure proper length and rib configuration. Begin installation by looping the belt around the crankshaft pulley, then route it around the other accessories following the diagram.

Leave the tensioner pulley for last. Rotate the tensioner again to allow the belt to slide over it smoothly. Release the tensioner slowly to apply proper tension to the belt.

Verify that the belt sits correctly in all pulley grooves and matches the diagram precisely. Rotate the engine manually two full turns to confirm smooth movement and proper alignment.

Start the engine and observe the belt for any misalignment, squealing, or slipping. Recheck tension and pulley engagement after the engine reaches normal operating temperature.

Identifying Common Wear, Tension, and Alignment Issues

Check the serpentine belt for cracks, fraying, or missing chunks along the ribbed surface. Any visible damage indicates that replacement is necessary.

Measure belt tension using a tension gauge or apply firm finger pressure at the midpoint of the longest span. The belt should deflect approximately 1/2 inch under moderate pressure. Excessive slack can cause slipping, while over-tightening stresses bearings and pulleys.

Inspect pulley alignment by visually tracing the belt path across all pulleys. Misaligned pulleys often produce uneven wear, edge fraying, or a squealing noise during engine operation.

• Look for shiny, glazed areas on the belt, which suggest slipping against pulleys.
• Check for rib separation or curling along the edges, signaling belt fatigue.
• Observe pulley grooves for debris, corrosion, or wear that could impair belt tracking.
• Spin each pulley by hand to detect wobbling or resistance, which may indicate worn bearings.

Replace the belt immediately if any combination of cracks, glazing, rib separation, or misalignment is present. Maintaining correct tension and alignment extends belt life and prevents accessory damage.
