Detailed Guide to Simplicity Zero Turn Drive Belt Layout and Pulley Configuration
Check belt routing before starting any adjustments to avoid improper tension that can damage pulleys or reduce cutting performance. Identify each pulley by size and position according to the diagram to ensure correct alignment.
Inspect the belt for cracks, fraying, or glazing before installation. A worn belt should be replaced to maintain consistent traction and prevent slippage during operation. Compare the belt length with the diagram measurements to confirm compatibility with your mower model.
Follow the tension specifications in the diagram for both drive and idler pulleys. Use a tension gauge or apply recommended manual pressure to verify correct setup. Proper alignment minimizes wear and prolongs the service life of the belt system.
Keep the area around pulleys clean from debris and grass clippings. Dirt buildup can change the belt path and reduce contact with pulleys, affecting performance. Regularly check alignment and tension as part of routine maintenance, referencing the diagram for visual confirmation.
Practical Guide to Simplicity Zero Turn Drive Belt Diagram for Maintenance and Replacement
Check belt tension regularly using a gauge or manual deflection. Proper tension prevents slippage and extends belt life.
Locate the drive belt routing using the diagram provided in the operator’s manual. Identify the engine pulley, idler pulleys, and transmission pulleys for accurate installation.
- Engage parking brake and disconnect spark plug to prevent accidental start.
- Remove deck and any obstructions to access the drive belt.
- Release belt tension by moving the tensioner away from the belt.
- Slide the old belt off the pulleys, noting the routing for reinstallation.
- Install the new belt following the exact path on the diagram, ensuring it sits fully in each pulley groove.
- Reapply tension using the tensioner, checking for proper deflection (typically ½ inch on center span).
- Rotate the pulleys by hand to verify smooth movement and correct alignment.
- Reinstall deck and reconnect spark plug before testing the mower under low speed.
Inspect pulleys for wear or damage; replace any with chipped edges or excessive wobble. Lubricate pivot points of idler arms to maintain smooth operation.
Check belt alignment visually from multiple angles; misaligned belts reduce lifespan and cause uneven drive performance.
Schedule belt replacement according to hours of operation or visible wear. A belt with cracks, fraying, or glazing should be replaced immediately to prevent sudden failure.
Maintain a clean environment around pulleys and belt surfaces; debris can accelerate wear and reduce traction.
Identifying Key Pulleys and Belt Routing on Simplicity Zero Turn Mowers

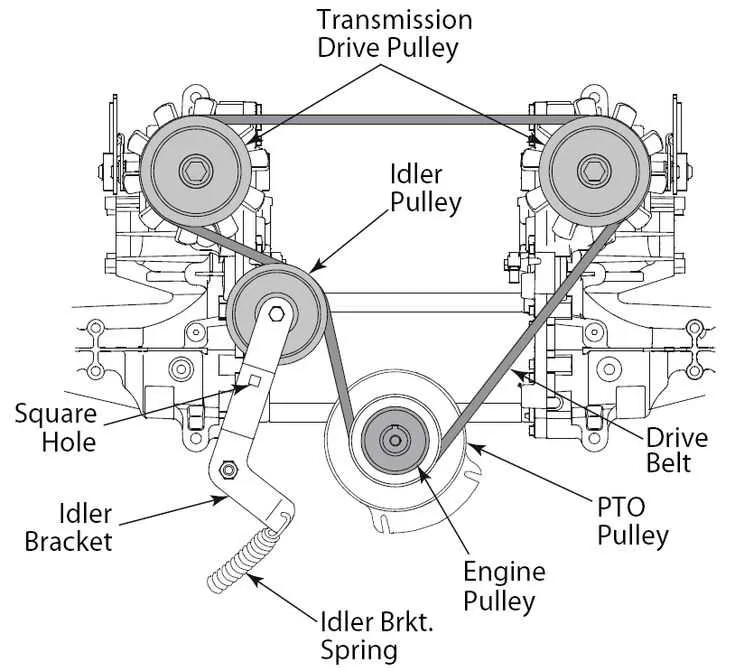

Locate the engine pulley first, as it drives the main belt system connecting to the transmission pulleys. The engine pulley is typically mounted directly on the engine crankshaft and has a flat or ribbed surface depending on the belt type.
Next, identify the idler pulleys. These maintain proper tension and guide the belt along its path. They are usually spring-loaded and positioned near the center of the mower deck or along the frame to prevent slack.
Locate the transmission pulleys on the left and right sides. Each transmission pulley receives power from the main belt and controls the corresponding drive wheel. Ensure the belt sits in the correct grooves on these pulleys to maintain smooth rotation.

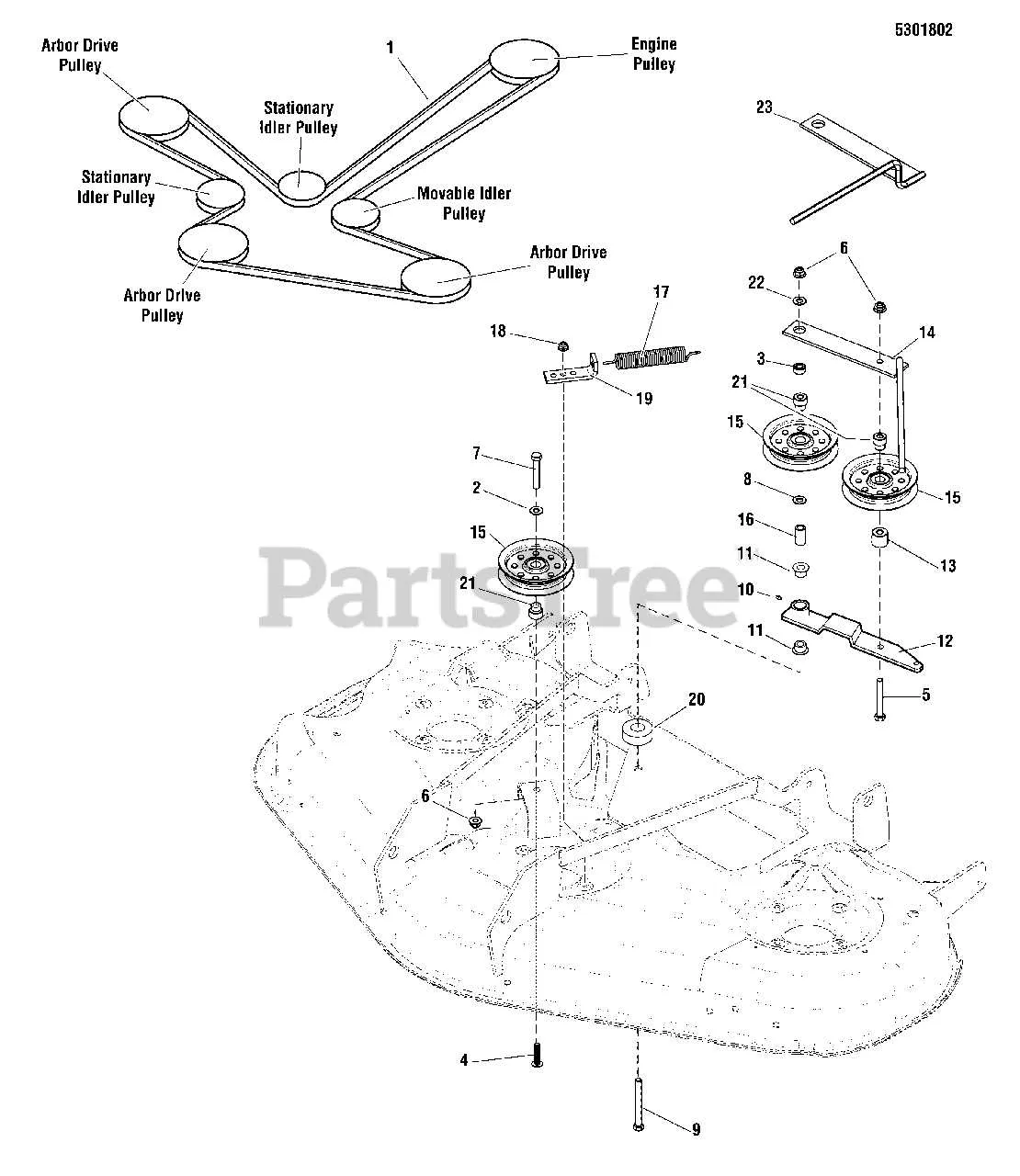

Check the deck pulleys if your model includes a mower deck drive belt. These pulleys redirect the belt to power the blades and are mounted on the deck brackets. Follow the belt path carefully, making sure it wraps around the pulleys in the correct sequence.
Trace the belt routing visually from the engine to the transmission and deck pulleys. Confirm the belt contacts each pulley fully and sits evenly in the grooves. Misalignment can cause slipping or uneven wear.
Inspect tensioners for correct spring pressure. Adjust the idler arms to maintain firm contact without over-tensioning, which can damage bearings or the belt. Rotate the pulleys manually to verify smooth movement along the entire path.
Mark the routing or take a reference photo before removal to ensure proper reinstallation. Correct identification of each pulley and accurate belt placement will secure reliable mower operation and consistent drive performance.
Step-by-Step Process for Removing and Installing the Drive Belt
Begin by securing the mower: Engage the parking brake and disconnect the spark plug wire to prevent accidental starts. Raise the mower deck to its highest position for easier access to the belt and pulleys.
Release belt tension: Locate the idler pulley controlling the drive belt tension. Use a wrench to rotate the tensioner arm and relieve pressure on the belt. Carefully slide the belt off the pulleys, noting the routing path.
Remove the old belt: Slide the belt off the engine pulley first, then maneuver it around the drive and deck pulleys. Inspect all pulleys for wear, debris, or damage and clean them before installing the new belt.
Position the new belt: Place the new drive belt around the engine pulley first, following the original routing diagram. Route the belt through the drive pulleys and around the mower deck pulleys, ensuring it sits fully in the pulley grooves without twists.
Reapply tension: Rotate the idler pulley or tensioner arm back into position to apply tension to the new belt. Verify the belt has correct tension by pressing down midway between pulleys; it should flex slightly but remain snug.
Check alignment: Rotate the mower’s wheels manually to confirm the belt moves smoothly over all pulleys. Make final adjustments to ensure the belt tracks correctly without slipping or rubbing against frame components.
Finalize installation: Reconnect the spark plug wire and lower the mower deck. Run the mower briefly at low speed to confirm proper belt operation and listen for unusual noises indicating misalignment or tension issues.
Troubleshooting Common Belt Alignment and Tension Problems
Check the belt path for any misalignment across the drive and deck pulleys. Ensure each pulley sits squarely on its shaft and spins freely without wobble. Misaligned pulleys can cause premature wear or belt slippage.
Inspect belt tension by pressing down at the midpoint of the longest span. A properly tensioned belt should deflect approximately 1/2 inch under moderate pressure. Overly tight belts strain bearings, while loose belts slip and reduce power transfer.
Examine the idler pulleys and tensioner spring. Replace any pulley showing wear, cracking, or rough rotation. Verify the tensioner moves smoothly and maintains consistent pressure on the belt.
Look for belt glazing, fraying, or missing chunks. A worn belt may track incorrectly even if tension and alignment appear correct. Replace the belt immediately if any damage is present.
Ensure the deck and drive system components are clean from debris, grass buildup, or rust. Foreign material between the belt and pulleys can alter tracking and tension. Remove buildup and lubricate pivot points where specified.
After adjustments, run the mower briefly to confirm the belt tracks evenly on all pulleys. Recheck tension and alignment after the initial operation to maintain stable performance and reduce wear.
