2015 Dodge Journey 3.6 Serpentine Belt Routing Diagram and Instructions
To replace or inspect the serpentine belt on a 2015 Dodge Journey 3.6, it’s crucial to understand the exact routing of the belt. Follow this diagram carefully to ensure smooth operation of all engine accessories. The serpentine belt powers vital components like the alternator, power steering pump, and air conditioning compressor.
Start by locating the belt tensioner. This will allow you to release tension from the belt before removal. Use a suitable tool, like a wrench, to rotate the tensioner and relieve the pressure on the belt. Once tension is off, carefully remove the belt and compare it with the new one for any visible differences.
When installing the new serpentine belt, refer to the diagram to guide you through the proper routing around the pulleys. Make sure the belt is snug against the pulleys and has the correct amount of tension. Double-check that it’s seated properly to prevent slipping or damage during engine operation.
If you’re unsure about the belt’s alignment, using the diagram will help you avoid common installation errors that could lead to unnecessary repairs. Keeping your serpentine belt in good condition prevents wear on key engine components and ensures your 2015 Dodge Journey runs smoothly.

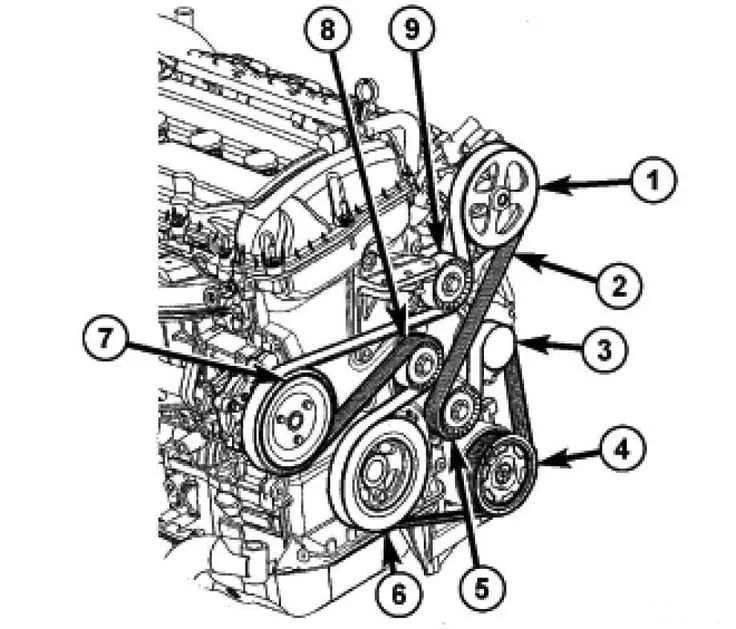

2015 Dodge Journey 3.6 Serpentine Belt Diagram
The serpentine belt on a 2015 Dodge Journey 3.6 should be routed precisely to ensure proper engine operation. Here’s the correct layout for this specific model:
The belt starts from the crankshaft pulley, looping around the A/C compressor, power steering pump, alternator, and the tensioner. The idler pulley keeps the belt in place, and the tensioner provides the necessary tension. Ensure the belt is aligned with each pulley groove to prevent slippage or damage.
Use a belt tool to relieve tension from the tensioner when installing or removing the belt. Double-check that the belt runs smoothly along all pulleys and has no twists.
If the belt shows any signs of wear or damage, replacing it immediately is necessary. It’s recommended to inspect the serpentine belt every 30,000 to 50,000 miles to avoid unexpected failures.
Always refer to the specific service manual for detailed illustrations or seek professional assistance if you’re unsure about the belt’s installation.
How to Read the Serpentine Belt Diagram for 2015 Dodge Journey 3.6
To read the serpentine belt diagram for a 2015 Dodge Journey 3.6, follow these steps:
- Locate the diagram, usually found on the engine compartment or in the owner’s manual.
- Identify the main components shown in the diagram: alternator, power steering pump, air conditioning compressor, and tensioner.
- Note the direction of the belt’s movement, indicated by arrows. The diagram will show how the belt should loop around each pulley.
- Pay attention to the tensioner pulley, which is usually spring-loaded and will allow the belt to be tightened or loosened.
- Check for the correct routing, ensuring the belt follows the exact path shown in the diagram.
- If replacing the belt, remember the order of the components the belt loops around, especially the tensioner and idler pulleys.
It’s important to ensure the belt is routed properly to prevent slippage or excessive wear on the pulleys.
If unsure about any part of the diagram, consult a professional to avoid damage to your engine components.
Common Issues with Serpentine Belt on 2015 Dodge Journey 3.6
The serpentine belt on the 2015 Dodge Journey 3.6 is prone to wear over time. One common issue is belt cracking, which occurs due to exposure to heat, debris, or age. Cracks can lead to belt failure and may cause the engine’s accessories to stop functioning, such as the alternator or power steering.
Squealing noises are another sign of a worn-out serpentine belt. This typically happens when the belt is slipping on the pulleys, often due to improper tension or wear. Check the tensioner and pulleys for any signs of damage or wear that could contribute to the noise.
Misalignment of the belt is another issue. This can be caused by a faulty pulley, misaligned components, or a worn-out belt tensioner. A misaligned belt will wear unevenly and might lead to further damage to the belt and surrounding parts.
Slipping of the serpentine belt often happens when it becomes too loose. This reduces its ability to transfer power to the engine accessories, leading to poor engine performance or even failure to operate essential systems like the air conditioning or charging system. Keep the tensioner in check and replace it if needed.
If the serpentine belt is frequently slipping or has visible wear marks, it’s a good idea to inspect the entire system, including pulleys and the tensioner. A worn-out tensioner is one of the most common reasons for belt problems, as it can fail to maintain proper belt tension.
Lastly, check for signs of oil or coolant leaks near the serpentine belt. Fluids from leaking components can weaken the belt material, leading to premature failure. Addressing leaks early can prevent further damage to the serpentine belt and the engine components it drives.
Steps to Replace the Serpentine Belt on 2015 Dodge Journey 3.6
Lift the vehicle using a jack and secure it with jack stands. Make sure you have enough clearance to work underneath the car.
Locate the serpentine belt tensioner on the engine. Use a socket wrench to turn the tensioner counterclockwise to relieve tension on the belt. Remove the belt from the pulleys, noting the routing of the belt for reinstallation.
Inspect the new serpentine belt and make sure it matches the old one in length and width. If necessary, compare the part number or check the manufacturer’s recommendations.
Route the new belt around the pulleys following the same pattern as the old belt. Ensure that it sits properly on each pulley, especially the grooves on the tensioner and idler pulleys.
Use the wrench to rotate the tensioner again and slide the new belt into place. Make sure the tensioner fully re-engages the belt.
Double-check that the belt is correctly aligned and securely seated on all pulleys. Start the engine and observe the belt’s operation, ensuring it runs smoothly without slipping or making unusual noises.
If everything looks good, lower the vehicle and dispose of the old belt properly. Test drive the car to ensure everything functions properly.
