N54 Serpentine Belt Diagram and Routing Guide
To replace the serpentine belt on an N54 engine, begin by examining the belt routing. The diagram provides the exact path the belt follows, showing how it interacts with components such as the alternator, water pump, and power steering pump. A clear understanding of the belt routing will save time and ensure that the belt is installed correctly.
Next, locate the tensioner pulley. The tensioner is responsible for keeping the belt tight, and understanding how it functions within the diagram is critical. The belt tension can be adjusted by rotating the tensioner pulley, which will give you enough slack to remove the old belt or install a new one.
Lastly, double-check the belt’s alignment with the pulleys after installation. If the belt does not align properly, it can slip off or cause wear to the components it drives. Ensure that the belt is routed exactly as shown in the diagram and that it moves smoothly across all pulleys.

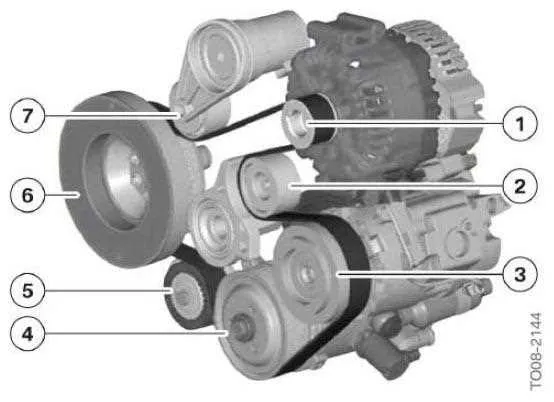

N54 Serpentine Belt Diagram
The N54 engine uses a serpentine belt to drive several components, including the alternator, power steering pump, water pump, and air conditioning compressor. Understanding the belt routing and diagram can help with repairs or replacements.
Refer to the N54 serpentine belt diagram to ensure correct installation. The belt should be routed around the pulleys and tensioner with proper alignment. Start by locating the tensioner, which keeps the belt tight. Pull it back to remove or install the belt. Make sure the belt is positioned correctly on each pulley to avoid slipping or misalignment.
If the belt shows signs of wear, such as cracks, fraying, or squealing, it needs to be replaced. Check the diagram to identify the correct length and routing for your specific N54 model. Using the wrong size belt or improper routing can lead to premature wear or damage to engine components.
When replacing the serpentine belt, inspect the pulleys and tensioner for damage. Replace any worn-out parts to ensure smooth operation. Properly routed belts improve engine efficiency and prevent unnecessary strain on accessories.
How to Read the N54 Serpentine Belt Diagram
First, identify the key components shown in the diagram: the serpentine belt, pulleys, tensioner, and various engine accessories. The diagram will indicate the correct routing of the belt around these components.
Start by locating the belt tensioner, which applies the necessary tension to the belt. This is typically shown with an arrow or a specific marking. Follow the arrows in the diagram to see the direction of the belt’s path around the pulleys and accessories.
Next, understand the role of each pulley. Some pulleys are fixed, while others are idler pulleys or driven by engine accessories. In the N54 engine, common components driven by the serpentine belt include the alternator, power steering pump, and air conditioning compressor.
Look for any instructions in the diagram regarding belt tension or installation. The tensioner pulley is often spring-loaded and needs to be moved manually during installation. Some diagrams also show the specific number of grooves on the belt to match the pulleys.
Finally, check for any notes about the alignment of the belt. Misalignment can lead to premature wear or damage. Ensure the belt is routed exactly as indicated, with no twists or gaps.
Steps to Replace the Serpentine Belt on the N54 Engine
Start by disconnecting the negative terminal of the battery to prevent any electrical issues while working on the engine.
Locate the serpentine belt tensioner. Use a wrench or socket to rotate the tensioner counterclockwise. This will relieve tension on the belt, allowing you to remove it easily.
Carefully remove the serpentine belt from the pulleys. Make note of the belt’s routing to ensure correct installation of the new belt.
Inspect the condition of the pulleys and tensioner while the belt is off. Look for any signs of wear or damage, such as rough movement or excessive friction.
Install the new serpentine belt by following the same routing as the old belt. Ensure the belt sits correctly on each pulley, without twisting or misaligning.
Use the wrench or socket to rotate the tensioner again, allowing the new belt to fit under the tensioner. Make sure the belt is tight and properly aligned on all pulleys.
Reconnect the battery and start the engine to verify that the belt is functioning properly. Listen for any unusual noises that could indicate improper installation.
Common Issues with N54 Serpentine Belt and Troubleshooting Tips
If your N54 serpentine belt is slipping, check the belt tension. A loose belt can cause poor performance and unusual noises. Inspect the tensioner for wear. If it’s faulty, replace it to maintain proper tension and avoid further damage.
Another common issue is belt wear. Inspect the belt for visible cracks, fraying, or glazing. These signs indicate the belt is due for replacement. If the belt has significant wear, replace it immediately to prevent it from snapping during operation.
Strange noises, such as squealing or chirping, often stem from a misaligned belt or pulleys. Check the alignment of all pulleys and the condition of the pulleys themselves. Misalignment can cause uneven belt wear and lead to premature failure. Ensure the pulleys are smooth and aligned correctly.
If the serpentine belt is constantly coming off, examine the belt routing. A belt routed incorrectly can easily slip off during engine operation. Refer to the N54 serpentine belt diagram to ensure it’s properly aligned and installed.
In some cases, the alternator or other driven components may be responsible for excessive strain on the belt. Check these components for any signs of malfunction or resistance that could put undue stress on the belt.
