2010 Audi A4 Serpentine Belt Routing Diagram and Installation Guide

For the 2010 Audi A4, the serpentine belt plays a critical role in powering several important components of the engine, including the alternator, power steering pump, and air conditioning compressor. Knowing the correct belt routing can save you time and effort during maintenance. Here’s a clear guide to the serpentine belt diagram to make the replacement process easier and more accurate.

Serpentine Belt Routing

The serpentine belt in the 2010 Audi A4 typically follows a specific path around various pulleys. To ensure smooth operation and avoid damage, it’s important to follow the exact diagram. The belt should pass over the crankshaft pulley, the power steering pump, the alternator, and the AC compressor in a specific order. Misplacing the belt can cause overheating or failure of the connected components, leading to expensive repairs.

Tools You’ll Need

Before starting, gather the tools you’ll need: a serpentine belt tool or a socket wrench, and a new belt that matches the specifications for your 2010 Audi A4. The belt length and width should be exact to ensure a proper fit and correct function of all the systems it powers.

How to Install the Serpentine Belt

Start by releasing the tension from the tensioner pulley, which holds the serpentine belt in place. Carefully remove the old belt and inspect the pulleys for wear or damage. Install the new belt according to the diagram, making sure it’s correctly aligned with all the pulleys. Once in place, release the tensioner to secure the belt.

By following the correct routing and using the appropriate tools, you can replace the serpentine belt yourself, saving on labor costs and ensuring your Audi A4 runs smoothly.

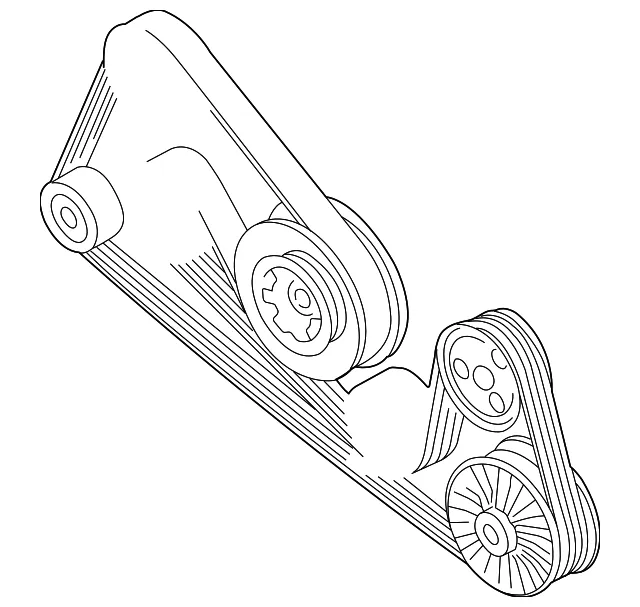

2010 Audi A4 Serpentine Belt Diagram

The serpentine belt in the 2010 Audi A4 plays a key role in driving multiple engine components, such as the alternator, power steering pump, and air conditioning compressor. It’s important to inspect the belt regularly for wear and proper tension. Below is the routing diagram for the serpentine belt on the 2010 Audi A4 2.0T engine.

To replace or check the serpentine belt, locate the tensioner pulley on the engine. Using a suitable tool, relieve the tension from the belt, then remove it from the pulleys. Carefully follow the belt routing path to ensure correct installation of the new belt. The routing should match the diagram shown below:

Serpentine Belt Routing:

• The belt loops around the crankshaft pulley first.
• It then moves toward the alternator pulley.
• The belt wraps around the power steering pump pulley.
• The belt passes over the water pump pulley.
• It continues to the air conditioning compressor pulley.
• Finally, it loops back to the tensioner pulley, ensuring tightness.

Ensure that the belt follows this precise path to avoid damage to engine components. Incorrect installation can lead to premature wear or failure of the belt, resulting in loss of power to essential components. Keep the belt in good condition to maintain the smooth operation of your Audi A4.

How to Locate the Serpentine Belt in a 2010 Audi A4

To locate the serpentine belt in a 2010 Audi A4, open the hood and stand in front of the engine bay. The serpentine belt is positioned at the front of the engine, typically running across the alternator, power steering pump, air conditioning compressor, and other accessories. You will see it looping around multiple pulleys on the front of the engine block.

Look for the belt on the passenger side of the engine, near the timing cover. It is usually clearly visible, although some components, like the air intake, may partially obscure the view. Use a flashlight if needed to get a clearer look.

To get a better understanding of the belt’s path, refer to the serpentine belt diagram, often found on a label near the front of the engine or in the owner’s manual. This diagram will show the exact routing and pulley positions.

When inspecting the belt, check for any signs of wear, cracks, or fraying along its length. If the belt looks damaged, it’s important to replace it to avoid engine issues.

Step-by-Step Guide to Inspecting the Serpentine Belt Condition

Start by turning off the engine and allowing it to cool down. Open the hood and locate the serpentine belt. It should be easy to find, as it’s usually visible on the front of the engine, running across several pulleys.

Check for visible signs of wear, such as cracks, frays, or glazing. Cracks on the ribbed side of the belt indicate aging, while frays suggest that the belt has been slipping or misaligned. A shiny or glossy surface means the belt has been overheated and could be slipping.

Next, inspect the tension of the serpentine belt. Press on the belt with your thumb, ideally in the center of the longest span between pulleys. If it deflects more than half an inch, the belt may be too loose and needs tightening or replacement.

Look at the pulleys. They should be aligned and free of damage. A misaligned pulley can cause the belt to wear unevenly. Spin each pulley by hand to check for any unusual resistance or noise. A stiff or noisy pulley could be a sign of a bearing problem that may affect the belt’s performance.

Inspect the belt for proper tracking. Ensure that the belt is running straight and not slipping off any pulleys. If the belt is off-center, it may be misaligned or stretched, requiring adjustment or replacement.

If you notice any of these issues, consider replacing the serpentine belt. If the belt looks in good condition but is more than 60,000 miles old, it’s wise to replace it as a preventive measure.

Understanding the Function of Each Component in the Serpentine Belt System

The serpentine belt system in a 2010 Audi A4 includes several key components, each performing a specific role to keep your engine running smoothly. The serpentine belt itself is a long, continuous loop that drives multiple accessories. Let’s break down the key parts and their functions:

Serpentine Belt: The main component, this rubber belt transfers power from the engine’s crankshaft pulley to various accessories. It ensures these parts operate in sync, including the alternator, power steering pump, and air conditioning compressor.

Crankshaft Pulley: Located at the front of the engine, the crankshaft pulley serves as the starting point for the belt’s motion. It is directly connected to the engine’s crankshaft, converting the engine’s rotational force into mechanical energy that powers the accessories.

Idler Pulley: The idler pulley helps maintain the belt’s proper tension. It supports the belt’s route and ensures it stays securely in place while allowing it to move freely without too much slack or excess tightness.

Tensioner Pulley: The tensioner is responsible for maintaining correct belt tension. It applies constant pressure to the belt to prevent it from slipping or becoming too loose. If the tension is incorrect, it can lead to belt wear or even failure of accessories.

Alternator Pulley: The alternator pulley ensures the alternator remains powered. The alternator generates electricity to recharge the battery and supply power to electrical components like lights, wipers, and the radio.

Power Steering Pulley: This pulley drives the power steering pump. The power steering system makes it easier to turn the steering wheel, especially at low speeds or when parking.

Air Conditioning Pulley: The air conditioning pulley drives the compressor, enabling the cooling system to function. It helps circulate refrigerant, allowing the vehicle’s A/C system to cool the cabin air.

Water Pump Pulley: This pulley helps the water pump circulate coolant throughout the engine. Proper circulation is necessary for regulating engine temperature and preventing overheating.

Each of these components works together to ensure that the engine’s accessories are powered and function correctly. Regular inspection of the serpentine belt system can help you avoid costly repairs and maintain the smooth operation of your vehicle.
