Mercedes Benz Serpentine Belt Diagram for Various Models
Understand the layout of the serpentine belt system in your Mercedes-Benz. The diagram provides a clear overview of the belt’s routing and its components. By referencing this diagram, you can easily identify the path the belt takes through various engine components, such as the alternator, power steering pump, and air conditioning compressor.
Check for common issues like belt misalignment, wear, or damage. The serpentine belt should be free of cracks and frays. If the belt is damaged or slips off its pulleys, it can cause serious engine malfunctions. Inspecting the diagram and the belt regularly ensures early identification of any potential problems.
Follow the diagram closely when replacing the serpentine belt. The diagram shows the exact path to follow, making it easier to remove and install a new belt without confusion. Make sure to align the belt correctly with all pulleys to avoid improper tension, which could lead to premature wear.

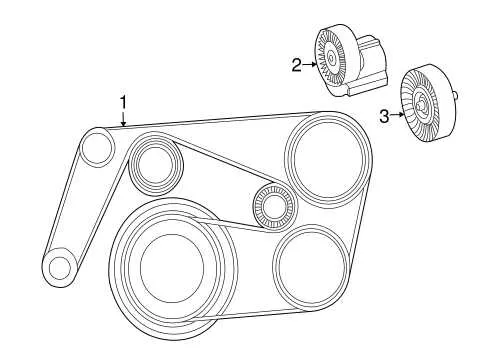

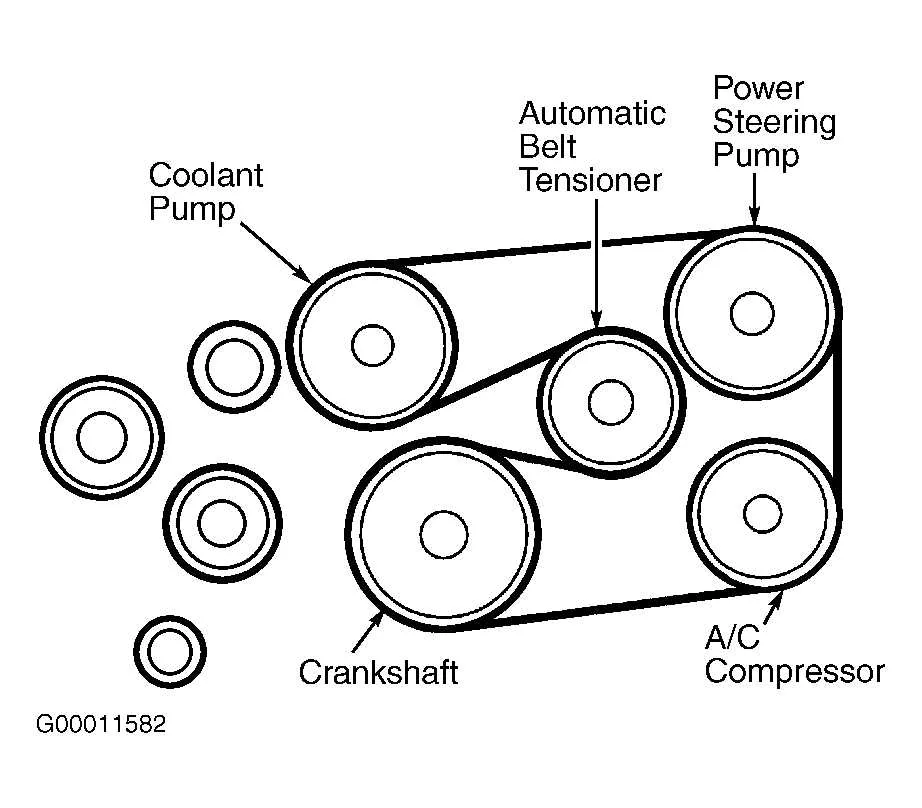

Mercedes Benz Serpentine Belt Diagram
The serpentine belt in a Mercedes Benz vehicle plays a key role in driving various engine components like the alternator, water pump, power steering pump, and air conditioning compressor. This diagram provides the necessary visual representation to help you understand the correct routing of the belt in your vehicle.
Before replacing or inspecting the serpentine belt, refer to the diagram specific to your model. Ensure that the belt is properly routed to avoid misalignment, which can cause premature wear or even failure. A well-maintained serpentine belt is crucial for smooth engine operation.
Key Components in the Diagram
- Alternator – Supplies electrical power to the vehicle’s systems.
- Water Pump – Circulates coolant through the engine to maintain optimal temperature.
- Power Steering Pump – Helps with steering control.
- Air Conditioning Compressor – Powers the air conditioning system.
- Idler Pulley – Maintains belt tension for proper operation.
- Tensioner Pulley – Keeps the belt tight to prevent slippage.
Steps for Correct Serpentine Belt Installation
- Verify the specific diagram for your vehicle model.
- Inspect all pulleys for damage or wear before installing a new belt.
- Ensure the belt is routed according to the diagram without twists.
- Check that the belt is properly tensioned using the tensioner pulley.
- Perform a final check to ensure all components move freely without resistance.
If you encounter any issues during installation, it’s recommended to consult the vehicle’s service manual or seek professional assistance to avoid damaging engine components.
How to Identify the Components of the Serpentine Belt System
The serpentine belt system in a Mercedes-Benz vehicle consists of several key components. Identifying these parts ensures proper maintenance and functionality of the engine’s accessory systems. The main components include the serpentine belt itself, pulleys, tensioner, and idler pulleys.
The serpentine belt is the long, continuous rubber belt that drives multiple engine accessories such as the alternator, power steering pump, water pump, and air conditioning compressor. Inspect the belt for cracks, fraying, or glazing, as these indicate wear or potential failure.
The pulleys are the metal wheels that the serpentine belt loops around. Common pulleys in this system include the crankshaft pulley, alternator pulley, and power steering pump pulley. Ensure that all pulleys rotate smoothly without wobbling or unusual resistance, which could signal damage or misalignment.
The tensioner maintains the correct tension on the serpentine belt, ensuring it operates effectively. It usually has an automatic spring-loaded mechanism. Check the tensioner’s movement; a stiff or loose tensioner will affect belt performance and can lead to premature wear.
Idler pulleys guide the serpentine belt around the system and help maintain the proper path. Inspect them for signs of wear such as noise or rough spinning. Any irregularities can affect the belt’s alignment and overall efficiency.
Finally, check the belt routing diagram specific to your Mercedes-Benz model to confirm that all components are correctly aligned. Misalignment of the components can lead to belt failure and damage to engine accessories.
Steps for Proper Serpentine Belt Installation on Mercedes Benz
Begin by locating the tensioner pulley and loosening it using a suitable wrench or tool. Rotate the tensioner counterclockwise to release tension on the serpentine belt.
Remove the old belt from the pulleys, carefully noting the routing pattern for the new belt. Ensure you follow the specific diagram for your Mercedes Benz model to avoid errors.
Install the new serpentine belt by aligning it with the pulleys. Start at the tensioner pulley and work your way around the other pulleys, ensuring the belt is properly seated in each groove.
Once the belt is in place, rotate the tensioner back into position to apply tension to the belt. Make sure the belt is tight and properly aligned with all pulleys.
Inspect the installation to ensure the belt is correctly positioned and secure. Double-check the routing to confirm accuracy.
Start the engine and monitor the belt’s operation. Listen for any unusual sounds or vibrations and check the belt’s alignment while the engine is running. If everything functions smoothly, the installation is complete.
Common Issues with the Serpentine Belt and How to Fix Them
Squeaking or Squealing Noise: If you hear a squeaking noise when starting your Mercedes, the serpentine belt might be worn out or misaligned. Inspect the belt for cracks, fraying, or other signs of wear. If the belt is in good condition, check the tensioner and pulleys for issues. Tighten or replace the tensioner if necessary. If the belt shows significant damage, replace it immediately.
Belt Slippage: If the serpentine belt is slipping, it might not be tight enough, or the pulleys may be worn. Check the tensioner and adjust the belt’s tension. If the tensioner is faulty, replace it. If the pulleys are misaligned, re-align them or replace the worn-out components.
Frequent Belt Breakage: Frequent belt breakage is often caused by a worn-out or misaligned pulley. Inspect each pulley for smooth operation and replace any damaged parts. Also, ensure that the serpentine belt routing is correct according to the manufacturer’s specifications.
Cracks or Fraying: Over time, the serpentine belt can develop cracks or fray at the edges. This is a sign of aging and wear. If you notice visible damage, replace the belt before it completely breaks. Ensure that the belt is routed properly to avoid any unnecessary stress.
Overheating: An overheating serpentine belt could indicate that the engine’s pulleys are misaligned or the belt is too tight. Inspect the alignment of all components. If the belt is too tight, adjust the tension to factory specifications. Misaligned pulleys should be adjusted or replaced to restore proper function.
Worn Out Tensioner: If the serpentine belt keeps slipping, it might be due to a worn-out tensioner. Check the tensioner’s spring-loaded mechanism. If it’s not keeping proper tension, replace the tensioner to prevent further damage to the belt and pulleys.
