2013 Malibu Serpentine Belt Diagram and Routing Guide

When replacing or inspecting the serpentine belt on your 2013 Malibu, it’s crucial to know the exact routing and configuration. The serpentine belt is responsible for powering several engine components, including the alternator, power steering pump, and air conditioning compressor. A properly installed belt ensures smooth engine performance and prevents unnecessary wear on critical systems.

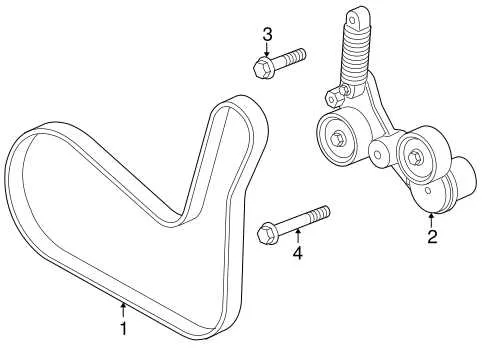

To help with this task, refer to the official diagram that outlines the precise path the belt follows around the pulleys. The diagram typically indicates the tensioner and the correct direction for the belt. Incorrect installation can lead to premature wear or even complete system failure, which is why following the diagram is critical.

If you’re planning to replace the serpentine belt yourself, make sure to inspect the pulleys and tensioner for any signs of damage. It’s also advisable to check the belt for wear, cracks, or fraying before installation. Having the correct diagram and tools will simplify the process, reducing the risk of mistakes and saving time.

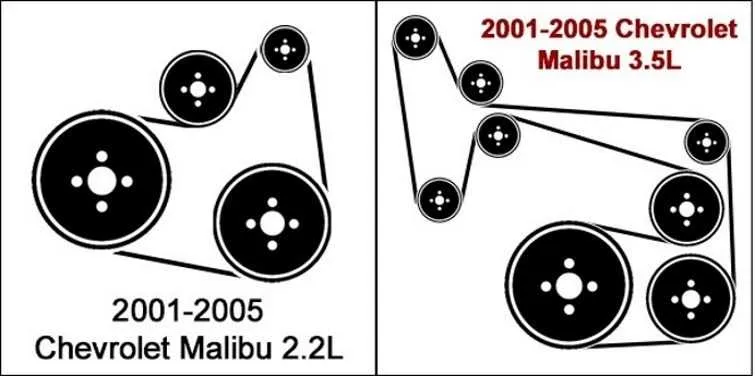

2013 Malibu Serpentine Belt Diagram

To replace the serpentine belt on a 2013 Malibu, it’s important to first identify the correct routing and tensioning. The serpentine belt powers several critical components like the alternator, power steering pump, and air conditioning compressor. An incorrect routing can lead to inefficient operation or belt failure.

Start by locating the belt routing diagram, which is typically found on a sticker near the radiator or the underside of the hood. The diagram shows the path the belt follows through various pulleys and tensioners. It’s crucial to double-check this diagram before starting the installation to avoid misrouting.

For the 2013 Malibu, the serpentine belt runs through multiple pulleys: the crankshaft pulley, water pump, power steering pump, alternator, and air conditioning compressor. The tensioner pulley is used to keep the belt tight. Ensure that the belt fits snugly into each groove of the pulleys without being too tight or too loose.

After ensuring the correct path and installation, check the belt for proper tension using a belt tension gauge. If the belt appears worn or damaged during inspection, it’s recommended to replace it immediately to avoid any performance issues or sudden failures.

How to Identify the Serpentine Belt Routing in 2013 Malibu

To identify the serpentine belt routing in a 2013 Malibu, start by locating the belt routing diagram, which is typically found on a sticker near the front of the engine bay. This diagram shows the precise path the serpentine belt should follow around the various pulleys and components.

Next, check the positioning of the belt tensioner. It plays a key role in maintaining the correct tension and ensuring the belt stays in place. The tensioner should be adjusted or replaced if it’s not holding the belt properly.

Once the diagram is in hand, visually compare it to the routing of the current serpentine belt. Ensure the belt runs in the correct direction across the pulleys and around all necessary components, such as the alternator, power steering pump, water pump, and air conditioning compressor.

If the routing diagram isn’t visible, refer to the vehicle’s owner manual or consult a repair guide for the correct routing details. The 2013 Malibu uses a specific configuration that must be followed precisely for the belt to function correctly.

After confirming the routing, check the belt for wear or damage. A damaged belt may not align properly with the routing diagram, which can cause functional issues with the engine components it powers.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2013 Malibu

To replace the serpentine belt on your 2013 Malibu, first, gather the necessary tools: a socket wrench set, a belt tensioner tool, and a new serpentine belt. Ensure the engine is off and cool before starting the process.

1. Locate the serpentine belt. It runs across the front of the engine, connecting the alternator, power steering pump, water pump, and other accessories.

2. Find the belt tensioner. This is a spring-loaded component designed to keep tension on the belt. Use a socket wrench to rotate the tensioner counterclockwise to release the belt tension. You may need a belt tensioner tool to make the job easier.

3. Once the tension is relieved, carefully remove the old serpentine belt from the pulleys. Note the belt routing. If needed, take a photo or refer to the diagram found on the engine bay for reference.

4. Install the new serpentine belt by following the routing pattern. Begin by placing it on the pulleys, ensuring it fits snugly into the grooves.

5. Rotate the belt tensioner once again to release it, allowing the new belt to settle into place. Check the belt’s alignment across the pulleys to ensure it sits properly.

6. Double-check the tensioner. It should maintain enough tension on the belt. If the belt is too loose or too tight, adjust the tensioner accordingly.

7. Start the engine to verify that the belt is operating smoothly. Listen for any unusual noises or signs of slipping. If everything looks good, the job is complete.

Common Issues with the Serpentine Belt in 2013 Malibu and How to Fix Them

The serpentine belt on a 2013 Malibu can face several common issues that affect its performance. Identifying and fixing these problems early can save you time and money on repairs.

• Worn-out or Cracked Belt: Over time, the serpentine belt can crack or wear down due to friction and heat. Inspect the belt for visible signs of cracking, fraying, or glazing. Replace the belt immediately to prevent it from snapping and causing more damage.
• Misalignment: If the serpentine belt is misaligned, it can slip off the pulleys. This issue is often caused by a faulty tensioner or pulley. To fix this, inspect the pulleys for wear and replace any damaged parts. Re-align the belt to ensure proper operation.
• Squealing Noise: A high-pitched squeal when starting the engine or during acceleration usually indicates that the belt is slipping. This can be caused by worn pulleys or a weak tensioner. Tighten the tensioner or replace it if necessary. If the belt shows signs of wear, replace it as well.
• Broken Tensioner: The tensioner is responsible for maintaining the proper tension on the serpentine belt. If it fails, the belt may become loose or too tight, leading to poor performance. Replace a damaged tensioner to restore proper belt tension and prevent further issues.
• Damaged Pulley: A damaged or failing pulley can cause the belt to skip, leading to inefficient power transfer to the engine components. Inspect the pulleys for signs of damage or wear. Replace any damaged pulleys and ensure they are aligned properly before installing a new belt.

By addressing these common issues early, you can avoid more costly repairs and ensure the serpentine belt on your 2013 Malibu operates smoothly.
