2008 Cadillac DTS Serpentine Belt Routing and Diagram Guide

Locate the serpentine belt routing diagram in your engine bay or service manual before removing the old belt. For the 2008 Cadillac DTS, the belt wraps around the crankshaft pulley, alternator, power steering pump, A/C compressor, and tensioner. Following the correct path prevents misalignment and potential damage to accessories.

Use a serpentine belt tool or a suitable wrench to release tension from the idler pulley. Rotate the tensioner clockwise to free the belt, then carefully slide it off the pulleys. Keep the routing diagram visible to ensure proper installation of the new belt.

Inspect all pulleys and the tensioner for wear while the belt is off. Check for cracks, glazing, or wobbling on the pulleys. Replace any component showing signs of wear, as a worn pulley can quickly damage a new belt and affect engine performance.

Install the replacement belt following the diagram step by step. Begin at the crankshaft pulley, route around each accessory pulley, and finish at the tensioner. Apply tension by carefully releasing the tensioner and ensure the belt sits evenly in all grooves before starting the engine.

Verify belt alignment and operation after installation. Start the engine briefly and watch for any slipping or misalignment. Correct installation ensures smooth operation of the alternator, power steering, and A/C system, avoiding costly repairs and maintaining reliable performance.

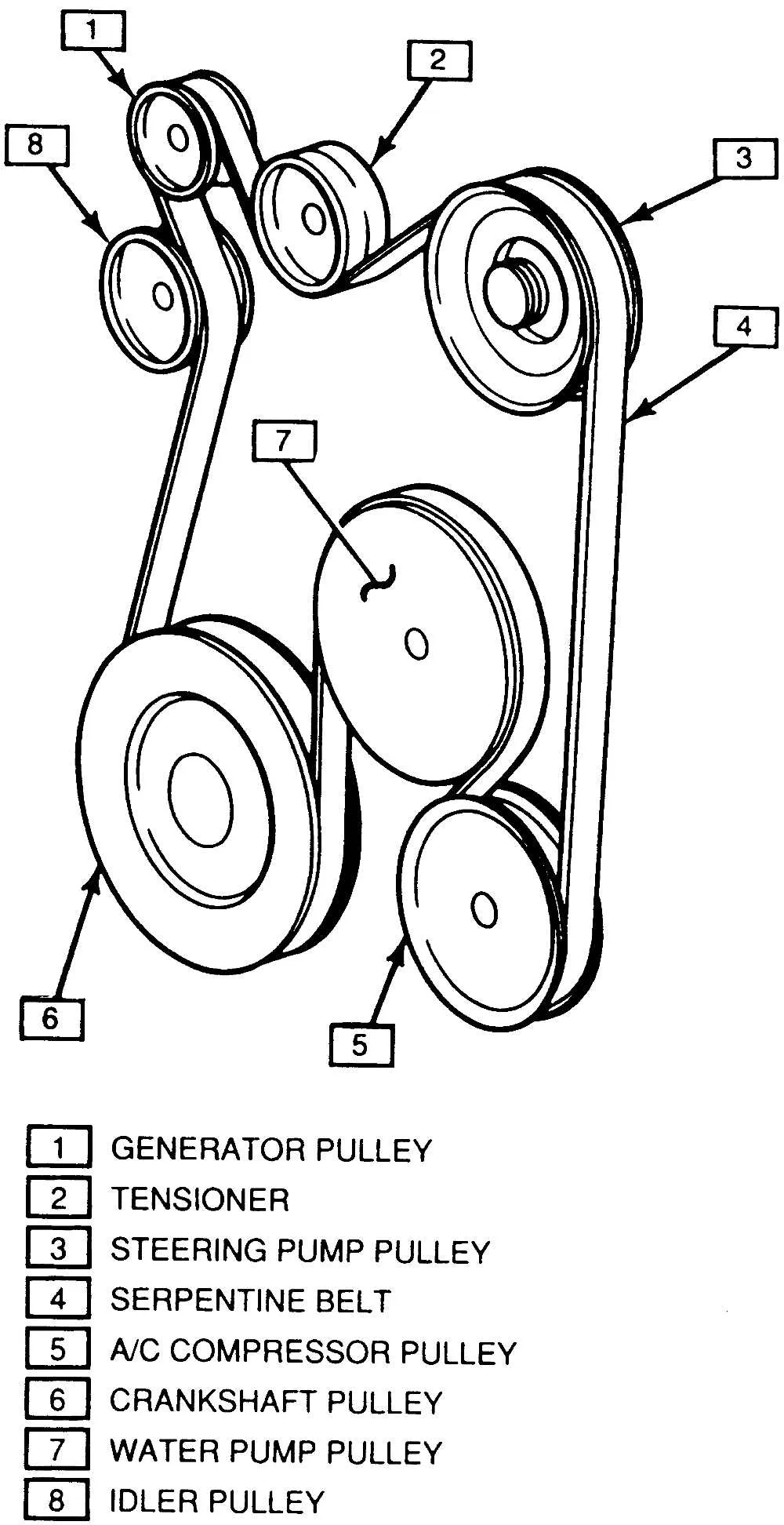

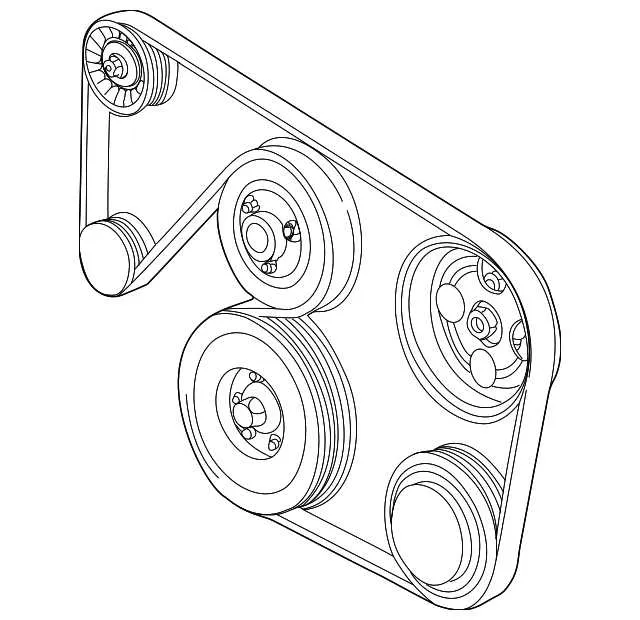

2008 Cadillac DTS Serpentine Belt Diagram

Install the serpentine belt on the 2008 Cadillac DTS by following the specific routing shown in the diagram. Begin at the crankshaft pulley and loop the belt around the alternator, power steering pump, A/C compressor, and tensioner exactly as indicated. Ensure the belt sits fully in each pulley groove to prevent slipping and premature wear.

Check the tensioner for smooth movement before finalizing installation. Use a wrench on the tensioner bolt to relieve tension, slide the belt into place, and then release the tensioner gradually to apply proper tension. Inspect alignment after installation to confirm the belt tracks correctly on all pulleys.

Replace the belt if it shows cracks, fraying, or glazing. Maintain the correct belt size, typically 6-rib for the DTS, to match the diagram accurately. Recheck all accessory pulleys for secure mounting and smooth rotation, as misalignment can cause belt noise or failure.

For maintenance, follow the diagram whenever removing or reinstalling the belt to avoid mistakes that could damage engine components. Keep the diagram accessible for future reference to simplify belt replacements and ensure consistent performance.

Locating the Serpentine Belt Routing on a 2008 Cadillac DTS

Check the front of the engine, near the radiator, to identify the serpentine belt path. The belt wraps around the crankshaft pulley at the bottom, then moves clockwise over the alternator, tensioner, and A/C compressor. Follow the belt from the crankshaft to the power steering pump on the upper left side, then down to the water pump. Inspect the idler pulleys along the route to ensure correct alignment.

Use the diagram on the underside of the hood if available, or the diagram printed in the owner’s manual, as they show exact pulley positions and belt direction. Mark the belt path with chalk or a marker before removal to prevent misrouting. Ensure the tensioner is fully retracted using a wrench to slip the belt over the pulleys smoothly.

Verify that the belt sits in all pulley grooves correctly and that the routing matches the diagram. Check for proper tension by pressing the belt at its longest span; it should deflect about half an inch under moderate pressure. Confirm that the alternator, A/C, and power steering pulleys rotate freely without rubbing or misalignment.

Step-by-Step Replacement Process for the Serpentine Belt

Park your 2008 Cadillac DTS on a flat surface and engage the parking brake. Disconnect the negative battery terminal to prevent accidental electrical contact.

Locate the serpentine belt routing diagram on the engine compartment or keep a printed copy. This ensures correct installation of the new belt.

Use a wrench or serpentine belt tool to rotate the tensioner pulley clockwise and relieve tension on the belt. Carefully slide the belt off the pulleys, noting the path for reference.

Inspect all pulleys and tensioner for wear, cracks, or misalignment. Replace any damaged components before installing the new belt to prevent premature failure.

Route the new serpentine belt according to the diagram, starting with the crankshaft pulley and working around the accessories. Keep the belt seated in the pulley grooves.

Apply pressure on the tensioner and slip the belt over the final pulley. Slowly release the tensioner, allowing it to secure the belt firmly in place.

Double-check the belt alignment on all pulleys. Ensure it sits evenly in the grooves without twists or slack.

Reconnect the negative battery terminal and start the engine. Observe the belt in motion to confirm smooth operation and absence of unusual noises.

Proper tension and alignment guarantee longer belt life and stable accessory performance.

Troubleshooting Common Serpentine Belt Issues on a 2008 Cadillac DTS

Inspect the serpentine belt immediately if you notice squealing, vibration, or accessory malfunctions. Start with a visual check for cracks, fraying, or glazing along the belt surface. The 2008 Cadillac DTS uses a single serpentine belt routing multiple accessories including the alternator, power steering pump, and air conditioning compressor.

• Check belt tension by pressing on the longest span between pulleys. A properly tensioned belt should deflect about 1/2 inch with moderate pressure. Excessive slack indicates a worn tensioner or belt.
• Look for misalignment by spinning each pulley manually. Any wobbling or uneven rotation can cause premature wear and noise.
• Listen for high-pitched squeals at startup or during acceleration. A squeal that disappears after warming may indicate a glazed belt surface, which requires replacement.
• Inspect the belt edges. Fraying along the ribs or separation of layers signals that replacement is necessary immediately.
• Check the tensioner and idler pulleys. Worn bearings can produce rattling sounds or rough rotation. Replace pulleys showing play or noise.

Follow the serpentine belt diagram specific to the 2008 Cadillac DTS to ensure proper routing during installation. Incorrect routing can damage accessories or cause the belt to slip. Use a serpentine belt tool or ratchet to relieve tension on the tensioner, then slide the old belt off and route the new belt along the diagram. Double-check alignment and tension before starting the engine.

Replace the belt every 60,000 miles or sooner if wear is visible. Regular inspection every 10,000 miles reduces the risk of sudden failure and keeps engine accessories operating smoothly.
