2012 VW Passat Serpentine Belt Diagram and Routing Guide
To maintain your 2012 VW Passat, understanding the serpentine belt layout is key. The belt powers crucial components like the alternator, power steering pump, and air conditioning compressor. Refer to the diagram for accurate routing and tension specifications to avoid misalignment or premature wear.
Inspecting the serpentine belt regularly helps prevent unexpected breakdowns. If you notice squeaking noises or power loss in specific systems, it could indicate a worn or loose belt. Using the correct diagram ensures that you install or replace the belt accurately.
Be sure to replace the serpentine belt at regular intervals, as failure to do so can cause damage to connected components. Check the belt for signs of wear such as cracks or fraying before reaching the recommended replacement mileage. A worn belt will affect the overall performance of your Passat’s engine.

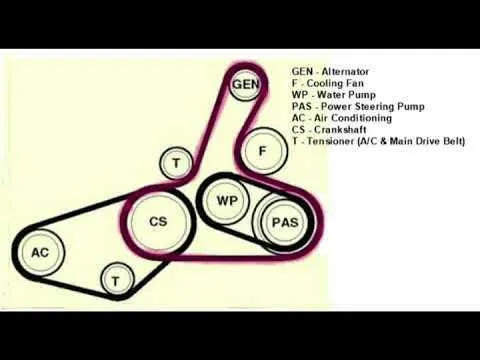

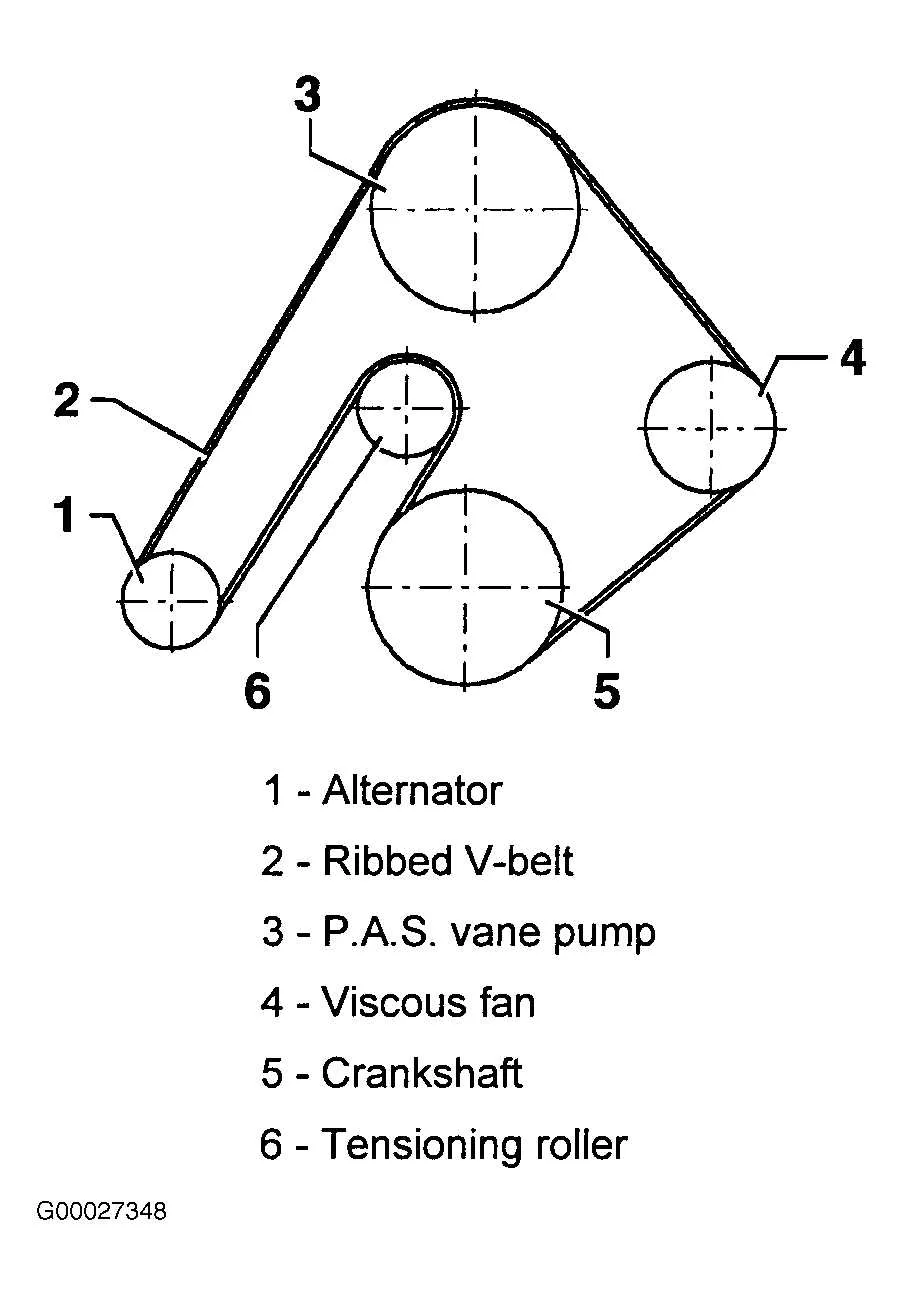

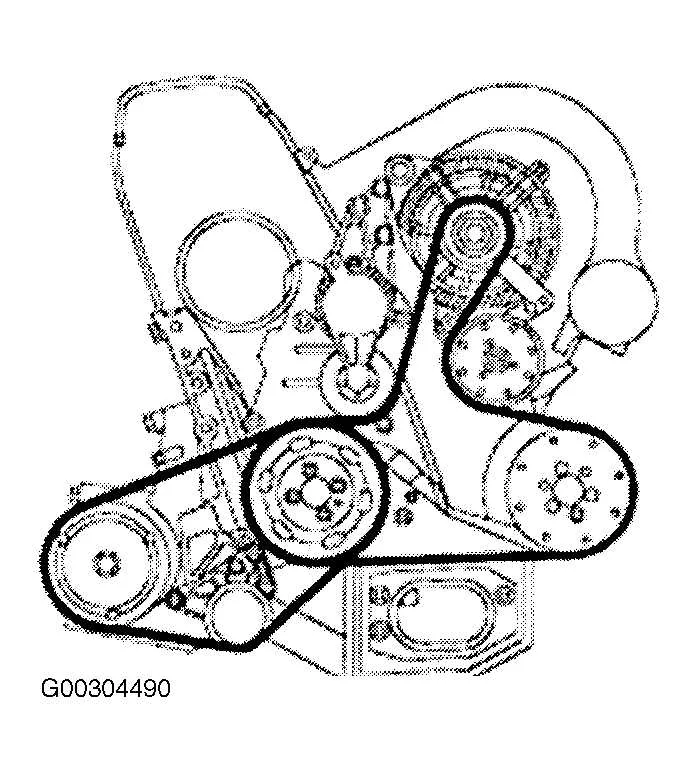

2012 VW Passat Serpentine Belt Diagram
The serpentine belt in the 2012 VW Passat plays a vital role in powering various engine components. A properly functioning belt ensures the alternator, power steering pump, air conditioning compressor, and water pump are all driven correctly. To maintain engine performance, it’s important to inspect and replace the serpentine belt when necessary.
For accurate belt routing, refer to the diagram specific to the 2012 VW Passat. The diagram typically shows the positioning of the belt around the engine pulleys. Pay attention to the tensioner pulley, which adjusts the belt’s tightness. A loose or worn-out belt can lead to issues with engine components, affecting both performance and safety.
To locate the serpentine belt diagram in your 2012 VW Passat, check the engine compartment, usually on the radiator support or near the front of the engine bay. This visual guide will help ensure proper belt alignment during installation or replacement.
If replacing the serpentine belt yourself, make sure to use the correct belt size and tension. Incorrect installation or a misaligned belt can cause premature wear or damage to engine components. It’s also recommended to check the condition of the pulleys and the belt tensioner while performing this maintenance.
Identifying the Correct Belt Routing for 2012 VW Passat
To properly route the serpentine belt on a 2012 VW Passat, start by ensuring you have the correct belt size and type. Refer to the vehicle’s manual for the specifications. The belt should pass through each component in the proper sequence to prevent slippage and ensure optimal performance.
Begin with the crankshaft pulley, as it is the main driving point. From there, loop the belt around the alternator pulley, followed by the power steering pump pulley, and the air conditioning compressor. Make sure the tensioner pulley is properly aligned and under tension, which will help maintain the right amount of slack in the belt.
Ensure that the belt aligns correctly with each pulley groove. Misalignment could lead to premature wear or even cause the belt to slip off during operation. Tighten the belt according to manufacturer recommendations, but avoid over-tightening, as this can strain the components.
After installation, rotate the engine manually to check the belt’s movement. If it runs smoothly without deviation or squealing noises, the routing is correct. Always check the belt’s condition and routing periodically to avoid unnecessary repairs.
Steps for Replacing the Serpentine Belt on a 2012 VW Passat
To replace the serpentine belt on a 2012 VW Passat, start by locating the belt tensioner. Use a ratchet and socket to rotate the tensioner clockwise to release tension from the belt.
Once the tension is released, remove the old belt from the pulleys. Take note of the routing pattern to ensure the new belt is installed correctly. It’s recommended to take a picture of the routing before removal if needed.
Place the new serpentine belt around the pulleys, following the routing diagram. Make sure the belt is aligned with each pulley groove. Rotate the tensioner once again to allow the belt to slip into position.
Check the belt for proper alignment and tension. Ensure it’s seated properly in all pulleys. Spin the crankshaft pulley by hand to verify the belt moves smoothly without slipping or misaligning.
After confirming the belt is properly installed and aligned, reassemble any components you removed to access the belt. Start the engine and observe the belt in operation to make sure it’s functioning smoothly without noise or issues.
Troubleshooting Common Serpentine Belt Issues in 2012 VW Passat
If you notice strange noises or a drop in engine performance, the serpentine belt may be the cause. Here’s how to identify and address common issues:
- Broken or Cracked Belt: A worn-out serpentine belt can snap or crack over time. Inspect the belt for visible damage like cracks or fraying. Replace it immediately if damage is found.
- Slipping Belt: A slipping belt can cause screeching noises or erratic behavior in engine components like the alternator or air conditioning. Check the belt tension and replace it if it’s too loose or damaged.
- Misalignment: A misaligned serpentine belt can wear unevenly and lead to premature failure. Examine the pulleys and tensioner to ensure proper alignment. Misalignment may also cause the belt to slip.
- Squealing Noise: Squealing sounds often signal a worn-out or loose belt. Check for proper tension. If the tension is adequate, the belt may need to be replaced.
- Power Loss: If you experience a sudden loss of power or notice electrical system failures, the serpentine belt could be malfunctioning. Inspect the belt and components to ensure everything is running smoothly.
Addressing these issues promptly can prevent further damage to your vehicle’s engine and accessories.
