2003 GMC Sierra Belt Diagram for Maintenance and Repair

For proper engine performance, accurately following the belt routing diagram is critical. The 2003 GMC Sierra uses a serpentine belt system that powers various components such as the alternator, power steering pump, and air conditioning compressor. Referencing the belt diagram ensures proper installation and reduces the risk of belt slippage or failure.

To replace or inspect the serpentine belt, first identify the correct path based on the engine configuration. The diagram for the 2003 GMC Sierra provides a clear layout of how the belt should be routed around pulleys. Ensure that the belt is routed over the correct pulleys and tensioner to maintain optimal function.

If the belt is worn or damaged, replacing it as soon as possible will prevent more serious issues. It’s recommended to follow the manufacturer’s guidelines for belt replacement intervals to ensure longevity and reliability. Using the correct belt size and type is also key to proper operation.

For visual reference, always consult the belt diagram specific to your vehicle’s engine variant, whether it’s the 4.3L V6 or 5.3L V8. Misrouting the belt or using an incorrect belt can cause poor performance or engine damage. Regular checks on the belt’s condition can help prevent unexpected failures on the road.

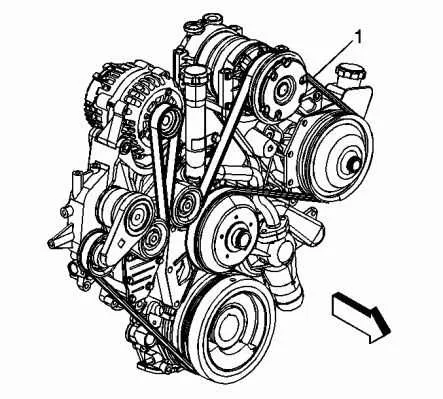

2003 GMC Sierra Belt Diagram

To replace or inspect the serpentine belt on a 2003 GMC Sierra, follow the diagram carefully. The belt routes through several components, including the alternator, power steering pump, and air conditioning compressor. Begin by locating the tensioner pulley and releasing the tension using a suitable tool, such as a ratchet wrench. This will allow you to remove the old belt and install the new one with ease.

Ensure the new belt matches the original configuration, as any deviation can cause issues with the vehicle’s operation. Carefully route the belt through the pulleys according to the diagram, checking each component for smooth rotation. Once in place, apply tension and double-check the belt’s alignment before starting the engine.

If any pulley or component seems worn or damaged during the inspection, consider replacing it to avoid future issues. Replacing the serpentine belt on time helps prevent engine damage and ensures smooth performance of the vehicle’s accessory systems.

How to Identify the Correct Belt for 2003 GMC Sierra

To find the right belt for your 2003 GMC Sierra, check the following details:

• Vehicle Model and Engine Type: Ensure you know your truck’s specific engine model (e.g., 4.3L V6, 5.3L V8, etc.). Different engine configurations may require different serpentine belts.
• Belt Length and Width: Measure the belt length and width. Most serpentine belts have specific measurements based on the number of pulleys they pass over.
• Part Number: Check the part number on your old belt or refer to the vehicle’s manual. This can help identify the exact specifications needed for replacement.
• Check for Accessories: Additional accessories such as air conditioning, power steering, or alternators may affect the belt you need. Some models require longer or shorter belts depending on these factors.

For more accurate results, visit an automotive store and provide the vehicle’s VIN (Vehicle Identification Number) to ensure compatibility with your engine model.

Step-by-Step Guide for Replacing the Serpentine Belt

First, lift the front of the truck using a jack and secure it with jack stands. Ensure the vehicle is off, with the keys removed from the ignition.

Locate the serpentine belt. It runs across multiple pulleys, including the alternator, power steering pump, and air conditioning compressor. Refer to the 2003 GMC Sierra belt diagram to identify the correct routing.

Use a socket wrench to release tension from the tensioner pulley. Rotate the pulley counterclockwise to loosen the belt. Once the tension is released, carefully remove the belt from the pulleys.

Inspect the belt for wear, cracking, or damage. If the old belt is in poor condition, it must be replaced with a new one of the same size and type, ensuring it matches the specifications listed for your 2003 GMC Sierra.

Position the new serpentine belt over the pulleys according to the diagram. Ensure the belt is seated properly and follows the correct path around all pulleys.

Rotate the tensioner pulley again to allow the belt to slip into place. Double-check the routing to ensure it is correct and that the belt is tight enough without excessive slack.

Start the engine and let it run for a few minutes. Listen for any unusual sounds and check for any belt slippage or squealing. If the new belt runs smoothly, lower the vehicle and tighten the jack stands.

Common Issues and Troubleshooting Tips for the Belt System

If you notice squealing noises or a loss of power steering, check the serpentine belt for wear or damage. A common issue with the 2003 GMC Sierra belt system is belt slippage, often caused by worn-out tensioners or misalignment. Inspect the tensioner for proper movement. If the belt is loose or the tensioner feels stiff, replace both components to restore functionality.

A common problem is the belt breaking due to accumulated dirt or debris, which can cause excessive friction. Regularly clean the pulleys to prevent this. If the belt shows signs of cracking, it should be replaced immediately to avoid further damage to the system.

If the alternator light or battery warning light comes on, the belt may not be turning the alternator properly. Check the alignment of the alternator pulley and ensure the belt is properly tensioned. A misaligned pulley could be causing excessive wear on the belt.

In case the belt is wearing unevenly, inspect the pulleys for damage or misalignment. Misaligned pulleys or a damaged idler pulley can cause the belt to wear in patches. Replacing any damaged pulleys and ensuring proper alignment will solve this issue.
