2010 Cadillac SRX Serpentine Belt Diagram and Routing Guide

Understanding the serpentine belt routing on your 2010 Cadillac SRX is crucial for maintaining proper engine function. This diagram provides clear guidance on how the serpentine belt should be positioned across various pulleys to ensure smooth operation of components like the alternator, power steering pump, and air conditioning compressor. Follow the diagram precisely to avoid potential damage or inefficiency in your vehicle’s systems.

Start by locating the tensioner pulley, as this is the most critical component for adjusting belt tension. When replacing or inspecting the belt, check for signs of wear, such as cracking or fraying. If the belt shows signs of damage, replace it promptly to prevent engine performance issues.

Make sure to route the belt correctly as per the diagram to ensure the pulleys align properly. Incorrect routing may cause the belt to slip, leading to power loss or even serious engine damage. Refer to the diagram frequently while working on the vehicle to guarantee a correct installation.

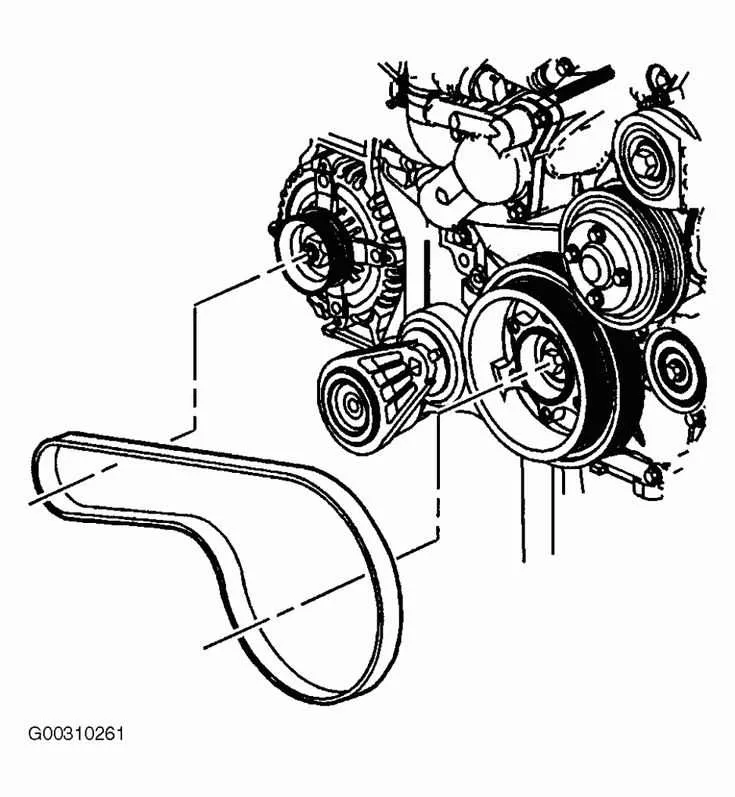

2010 Cadillac SRX Serpentine Belt Diagram

The serpentine belt in the 2010 Cadillac SRX is responsible for powering essential engine components such as the alternator, power steering pump, air conditioning compressor, and water pump. Knowing the correct routing of the serpentine belt is crucial for maintaining optimal engine performance and preventing potential damage to the engine’s accessories.

To identify the correct serpentine belt routing, refer to the vehicle’s belt diagram, typically located near the engine bay, on the front of the engine. If the diagram is missing, use the following steps to manually confirm the belt routing: Start by ensuring the belt wraps around the crankshaft pulley, then loop it over the alternator, followed by the power steering pump, air conditioning compressor, and water pump, before returning to the tensioner pulley.

It’s important to replace the serpentine belt at recommended intervals, typically every 60,000 to 100,000 miles, depending on the condition and wear. If you notice any squealing sounds or difficulty in steering, it could be an indication of belt wear or misalignment. In such cases, inspect the belt for cracks, fraying, or any visible damage, and replace it immediately to avoid further issues.

For proper installation, always follow the exact belt routing shown in the diagram, ensuring that the belt sits snugly in all pulley grooves. Incorrect installation can cause premature wear or even damage to the belt or pulleys. Keep a spare belt in your vehicle to avoid being stranded in case of unexpected failure.

How to Identify the Correct Serpentine Belt Routing for 2010 Cadillac SRX

To identify the correct serpentine belt routing for your 2010 Cadillac SRX, start by locating the routing diagram, typically found on a label near the engine bay or inside the hood. If this diagram is missing or unclear, you can refer to the vehicle’s service manual or online resources for an accurate diagram.

Examine the position of each pulley: the serpentine belt should loop over the crankshaft pulley, the alternator, the power steering pump, and the AC compressor, among others. Ensure the belt follows the correct sequence and tension across all pulleys. The belt must be routed in a specific pattern to prevent slipping or excessive wear.

Use a belt tensioner tool to ensure the belt is installed with the correct amount of tension. Incorrect tension can cause premature wear or failure. Check the routing against the diagram to verify that it aligns with the recommended path.

After routing, double-check the belt’s position on each pulley. If it looks misaligned or if it’s difficult to move the belt into place, adjust accordingly. Once the routing is verified, test the system by turning on the engine and listening for unusual sounds, which could indicate improper routing or tension.

Common Issues with the Serpentine Belt on 2010 Cadillac SRX

One of the main issues with the serpentine belt on the 2010 Cadillac SRX is wear and tear. Over time, the belt can develop cracks, fraying, or stretching, which reduces its efficiency. Regular inspection is crucial to catch any signs of damage before it leads to more serious problems.

Another common issue is misalignment of the serpentine belt. If the belt is not aligned correctly, it can cause uneven wear and increase the risk of slipping, especially in high-demand situations like engine starts. Misalignment can occur due to worn-out pulleys or tensioner issues.

The tensioner is another frequent source of problems. If the tensioner fails, the serpentine belt can either become too loose or too tight. Both conditions affect performance, with a loose belt potentially slipping off and a tight one putting excessive pressure on the pulleys and accessories.

• Cracks and Fraying: Regular inspection can prevent sudden failures.
• Misalignment: Caused by worn pulleys or incorrect belt routing.
• Tensioner Problems: A malfunctioning tensioner can lead to improper tension, affecting belt lifespan.

Lastly, contamination from oil or coolant leaks can degrade the serpentine belt material, causing premature failure. It’s crucial to check for leaks regularly and address them quickly to avoid damage to the belt.

To prevent these issues, ensure the serpentine belt is replaced as part of regular maintenance, especially if signs of damage or wear appear. Using OEM parts can help prevent compatibility issues and ensure better belt performance.

Step-by-Step Guide to Replacing the Serpentine Belt on 2010 Cadillac SRX

1. Gather Necessary Tools and Parts

Before starting, make sure you have the new serpentine belt, a socket wrench set, belt tensioner tool, and a breaker bar. You’ll also need a floor jack and jack stands for safety.

2. Lift the Vehicle

Use the floor jack to raise the front of the vehicle. Secure it with jack stands to ensure stability. Make sure the car is on a flat surface before proceeding.

3. Locate the Serpentine Belt

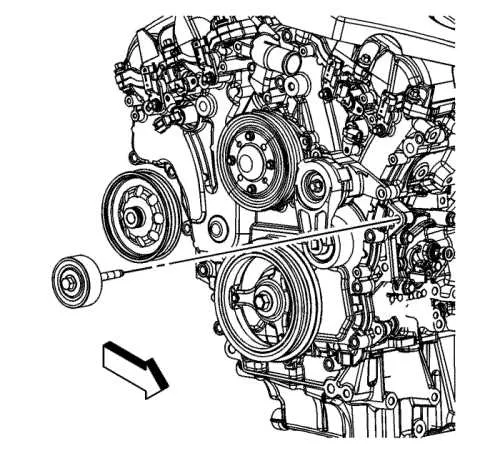

The serpentine belt is located at the front of the engine, looping around the various pulleys. Refer to the 2010 Cadillac SRX serpentine belt diagram for precise routing and pulley locations.

4. Relieve Tension on the Belt

Use a belt tensioner tool or a socket wrench to rotate the tensioner pulley. This will loosen the tension on the serpentine belt. Once the tension is relieved, remove the belt from the pulleys carefully.

5. Inspect the Belt and Pulleys

Before installing the new belt, check the pulleys for any signs of damage or wear. If any pulley is damaged, replace it before proceeding with the new belt.

6. Install the New Serpentine Belt

Refer to the belt routing diagram again to ensure the new belt is installed in the correct path. Slide the belt over each pulley, ensuring it fits into the grooves securely. Leave the tensioner pulley for last.

7. Apply Tension to the New Belt

Once the belt is in place, rotate the tensioner pulley to apply tension to the new belt. Ensure the belt is snug but not over-tightened. The belt should sit properly on all pulleys without slipping off.

8. Lower the Vehicle

Once the belt is properly installed, lower the vehicle carefully by releasing the jack stands and using the floor jack. Ensure the car is completely lowered before starting the engine.

9. Test the New Belt

Start the engine and let it idle for a few minutes. Observe the belt while the engine is running to ensure it is operating smoothly. Listen for any unusual sounds that could indicate an issue with the installation.

10. Final Check

Turn off the engine and inspect the belt once more. Make sure it’s properly aligned and seated on all pulleys. If everything looks good, you’ve successfully replaced the serpentine belt.
