Toro Grandstand Belt Diagram Guide for Proper Installation and Maintenance
Check belt alignment immediately to prevent uneven wear and reduce the risk of slipping. Each pulley has a designated path, and even a slight misalignment can affect cutting performance and strain the engine. Inspect the diagram carefully before removing any belt.

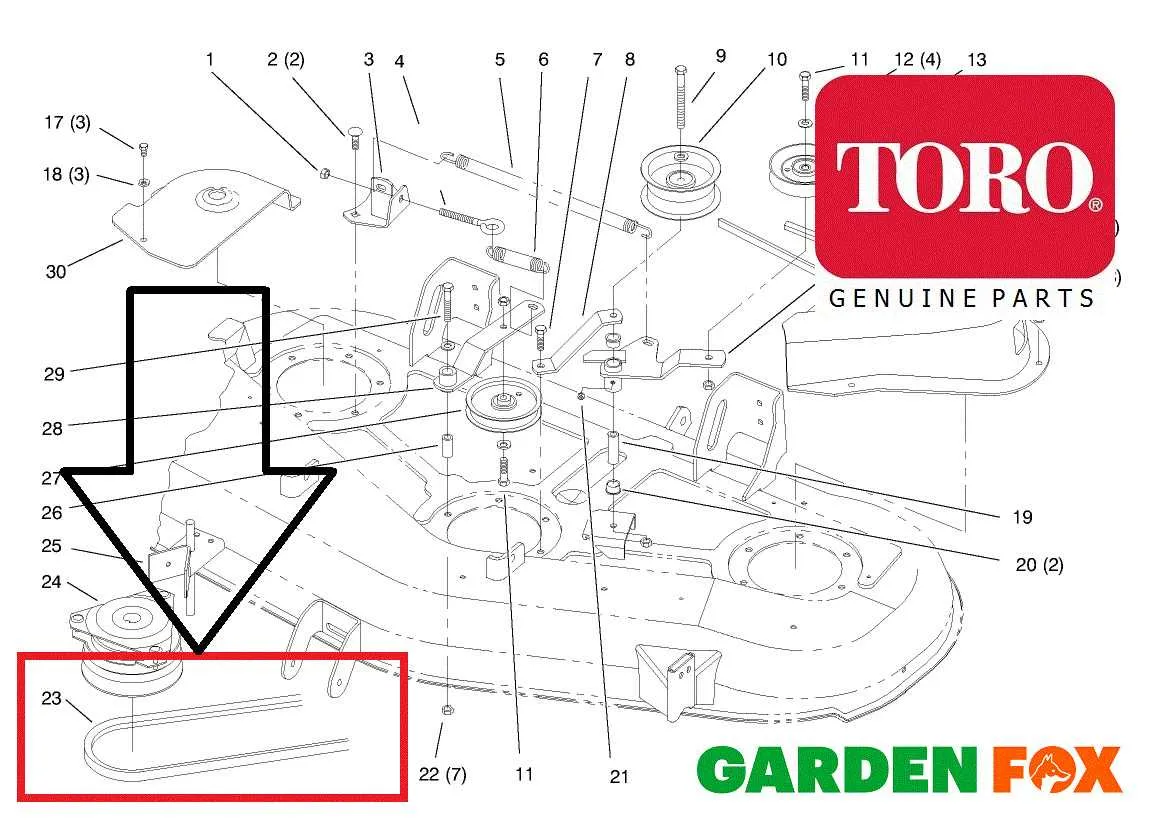

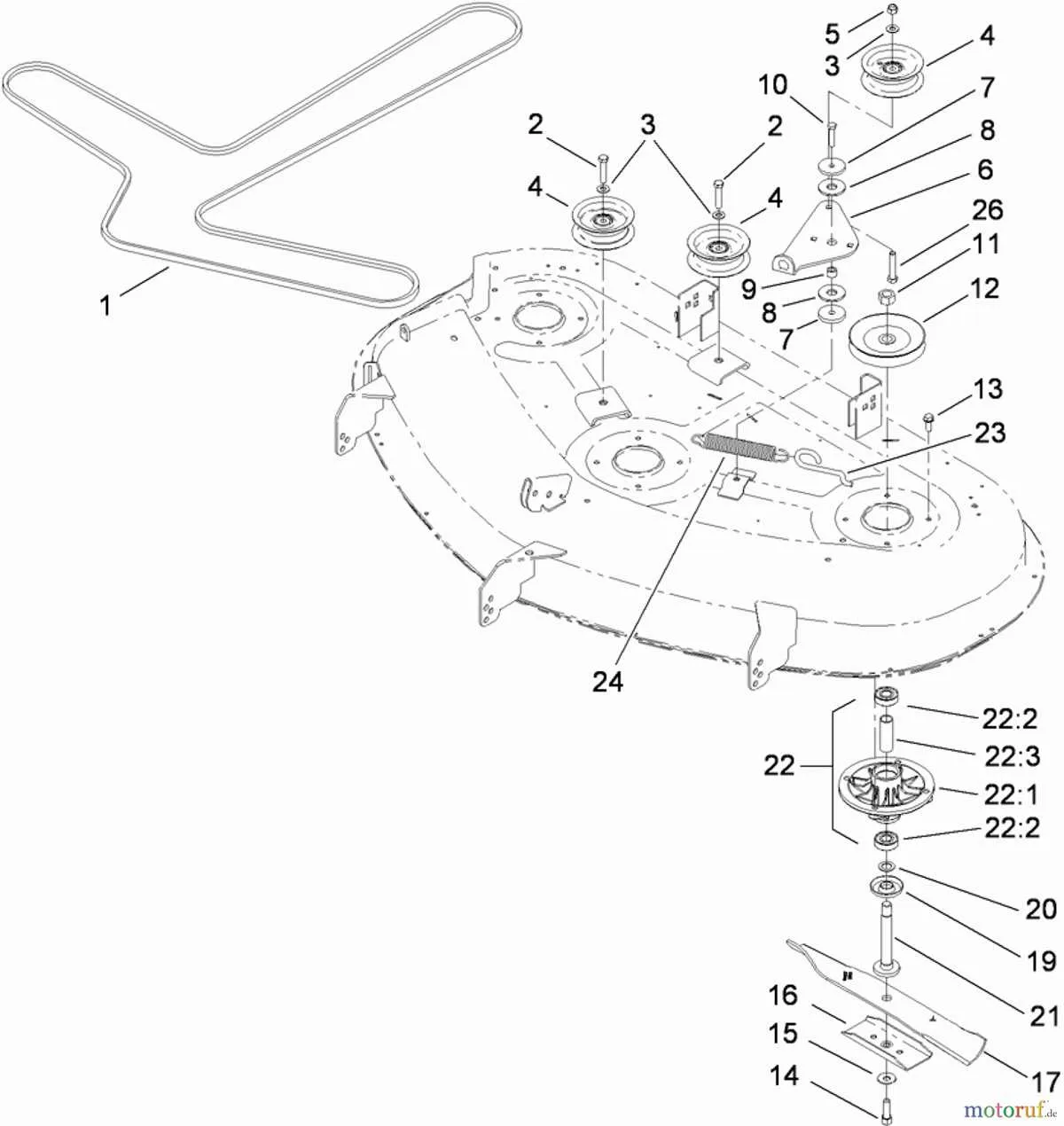

Identify each belt type and routing using the Toro grandstand belt diagram. The mower typically uses a primary drive belt connecting the engine to the transmission, along with deck belts for blade operation. Follow the labeled paths and note the tension points for smoother installation.
Maintain proper belt tension by adjusting the tensioner pulleys as indicated in the diagram. Over-tightened belts can damage bearings, while loose belts reduce cutting efficiency. Regularly check for cracks or fraying and replace belts immediately if any damage is visible.
Use the diagram for step-by-step removal and installation to avoid confusion with overlapping belts. Start from the engine pulley and proceed to the deck and idler pulleys. This ensures correct routing and prevents operational issues after reassembly.
Document belt positions before disassembly by marking the paths with tape or taking a photo. This reference reduces errors during reinstallation and ensures optimal mower performance, extending belt and deck life.
Toro Grandstand Belt Diagram Guide for Accurate Maintenance and Replacement
Refer directly to the Toro Grandstand belt diagram before performing any maintenance or replacement tasks. Identify each belt, pulley, and tensioner on the diagram to ensure correct routing and alignment. Misrouting can cause slipping, uneven wear, or damage to the mower’s drive system.
Inspect the belt for cracks, fraying, or glazing. If any damage appears, replace the belt immediately. Measure belt tension using a gauge or by applying moderate pressure on the midpoint; the belt should flex according to Toro specifications without excessive looseness or stiffness.
When removing a worn belt, release the tensioner fully and note the exact routing from the diagram. Label pulleys or take a photo to prevent errors during installation. Install the new belt by following the diagram carefully, looping it around each pulley in the correct order, and slowly re-engaging the tensioner to avoid twisting or pinching.
After installation, run the mower at low speed without engaging the blades. Observe the belt’s movement across all pulleys to confirm proper tracking. Adjust the tensioner if necessary to maintain correct alignment and prevent premature wear.
Regularly clean the pulleys and remove debris that can interfere with belt performance. Lubricate tensioner pivots according to Toro guidelines to maintain smooth operation. Following the diagram and these steps ensures reliable performance and extends the lifespan of both belts and mower components.
Identifying Each Belt and Pulley on the Toro Grandstand
Begin by locating the main drive belt, which runs from the engine pulley to the transaxle pulley. This belt is wider than the others and is responsible for powering the mower’s movement. Check for alignment marks on both pulleys to ensure proper tracking.
The deck belt connects the engine pulley to the mower deck spindles. It is narrower and often has a distinct ribbed surface. Follow the path from the engine to each spindle, noting any idler pulleys that guide and maintain tension on the belt.
Idler pulleys are smaller and usually mounted on spring-loaded arms. Identify each by tracing the belt routing: the front idler keeps the deck belt tight, while the rear idler supports the main drive belt. Confirm that each idler spins freely and is properly lubricated.
Tensioner pulleys adjust automatically or manually to maintain correct belt tension. Locate the tensioner arm attached to a spring or adjustable bolt. Observe the belt’s position on the tensioner and ensure it moves smoothly without slipping or rubbing against adjacent components.
Cross-reference the belt routing with the diagram on the mower deck or in the operator’s manual. Each pulley should correspond to a labeled point in the diagram. Mark or photograph the belt paths before removing any belt to simplify reassembly.
Inspect every pulley for wear, cracks, or misalignment. Replace damaged pulleys immediately, as even a small imperfection can cause premature belt failure. Rotate each pulley by hand to check for wobble or resistance, ensuring the system operates smoothly.
Step-by-Step Instructions for Removing and Replacing the Belt
Begin by disengaging the mower’s parking brake and removing the key to ensure safety. Position the mower on a flat surface and raise the deck to its highest setting for better access to the belt area.
Locate the belt routing path using the Toro Grandstand belt diagram. Note the position of each pulley and belt configuration before removal. Take a photo if necessary for reference.
Release tension on the idler pulley by using a wrench to move the tension spring away from the belt. Carefully slide the belt off the drive pulley, ensuring it does not snap back.
Remove the belt from all remaining pulleys, paying attention to the mower deck spindles. Check each pulley for debris, damage, or wear while the belt is removed.
Position the new belt according to the diagram. Start by looping it around the drive pulley, then guide it through each spindle pulley and idler, following the correct routing path.
Reapply tension to the idler pulley by slowly releasing the wrench, allowing the spring to secure the belt. Confirm the belt sits properly in all pulley grooves without twisting or slipping.
Manually rotate the pulleys to ensure smooth movement and correct alignment. Lower the deck, start the mower, and engage the blades to verify the belt operates quietly and efficiently without slipping.
Troubleshooting Common Belt Problems and Adjusting Tension
Inspect the belt for visible cracks, fraying, or glazing. Replace any belt that shows significant wear to prevent slippage or breakage.
Check belt alignment on all pulleys. Misaligned belts can cause uneven wear and reduce performance. Adjust pulleys to ensure the belt tracks straight across all surfaces.
- Look for signs of slipping, such as squealing or uneven mower speed.
- Ensure the idler pulley spins freely without wobble or excessive noise.
- Verify that all pulleys are clean and free of debris that could interfere with belt movement.
To adjust belt tension, locate the tensioner arm. Loosen the mounting bolt slightly, then move the tensioner to increase or decrease tension.
The correct belt tension allows approximately 1/2 inch of deflection at the midpoint between pulleys. Excessive tension can stress bearings, while too little tension causes slippage.
- Loosen the tensioner mounting bolt.
- Adjust the tensioner arm to achieve proper belt deflection.
- Tighten the bolt and recheck belt tension and alignment.
Run the mower briefly after adjustment to confirm the belt operates smoothly. Listen for unusual noises and inspect for proper tracking across pulleys.
Regularly clean pulleys and check belt condition every 25 hours of operation to maintain optimal performance and reduce the risk of unexpected failures.
