2009 Saturn Vue 3.6 Serpentine Belt Diagram and Routing Guide

To replace the serpentine belt on a 2009 Saturn Vue 3.6, refer to the belt diagram for the correct routing path. This ensures smooth operation of the engine’s accessories, including the alternator, power steering pump, and air conditioning compressor. If the belt is worn or damaged, it may cause issues like power loss or overheating, so it is crucial to inspect the belt regularly.

Step 1: Locate the tensioner pulley. This pulley is used to adjust the belt’s tension. Use a wrench to relieve the tension, then remove the old belt carefully.

Step 2: Install the new serpentine belt according to the diagram. Make sure the belt is properly seated in all the pulleys. Check the alignment to avoid premature wear.

Step 3: After installation, rotate the tensioner to apply pressure to the belt, ensuring it is tight. Turn the engine on to confirm the belt is running smoothly without any slipping or squealing.

Note: Always replace the belt if you notice signs of cracking or fraying. Regular maintenance helps prevent costly repairs.

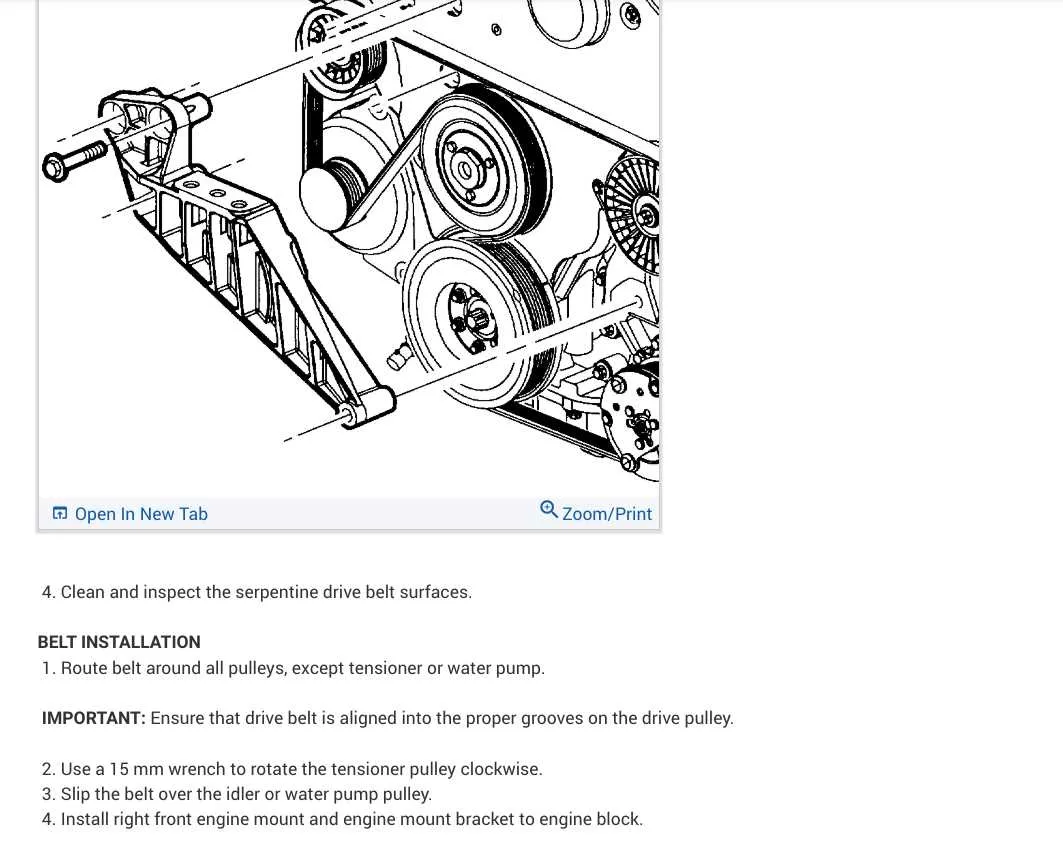

2009 Saturn Vue 3.6 Serpentine Belt Diagram

The 2009 Saturn Vue 3.6 serpentine belt system is designed to power multiple components, such as the alternator, power steering pump, and air conditioning compressor. Proper belt alignment and tension are crucial for smooth operation. Use the diagram to confirm the correct routing and tension of the serpentine belt to avoid issues like belt slippage or premature wear.

Begin by identifying the proper placement of the tensioner pulley, which plays a key role in maintaining the correct belt tension. Check the direction of the belt relative to the pulleys, ensuring each component is powered efficiently. If the belt shows signs of wear, cracks, or fraying, it’s advisable to replace it immediately to prevent further damage to the engine components.

For belt replacement, first, relieve the tension on the serpentine belt using a ratchet tool to move the tensioner pulley. Carefully remove the old belt, inspecting each pulley for wear or damage. Once the new belt is in place, double-check its alignment with the diagram and ensure the tension is set properly.

How to Identify the Correct Serpentine Belt Routing for the 2009 Saturn Vue 3.6

Start by locating the diagram on the engine bay of your 2009 Saturn Vue 3.6. It is usually affixed to the radiator support or near the front of the engine. This diagram shows the correct routing path for the serpentine belt, making it the most reliable reference.

If the diagram is missing or unclear, follow these steps to correctly route the belt:

1. Identify the components the serpentine belt drives. This includes the alternator, power steering pump, air conditioning compressor, and the water pump.
2. Ensure the belt has the correct size. The 2009 Saturn Vue 3.6 typically uses a 6-rib serpentine belt. Cross-check the part number with the manufacturer’s specifications to confirm you have the correct replacement belt.
3. Starting from the tensioner, route the belt over the alternator pulley, around the power steering pump, and over the air conditioning compressor pulley.
4. Make sure the belt fits snugly on the pulleys without crossing over or slipping. It should remain centered in each pulley groove.
5. Check the tension of the belt after installation. The tensioner should apply enough pressure to keep the belt from slipping, but not too much to strain the components.

Double-check the routing against the diagram to ensure everything is in place. If you’re still unsure, it’s worth comparing the belt’s position with a working vehicle of the same model for reference.

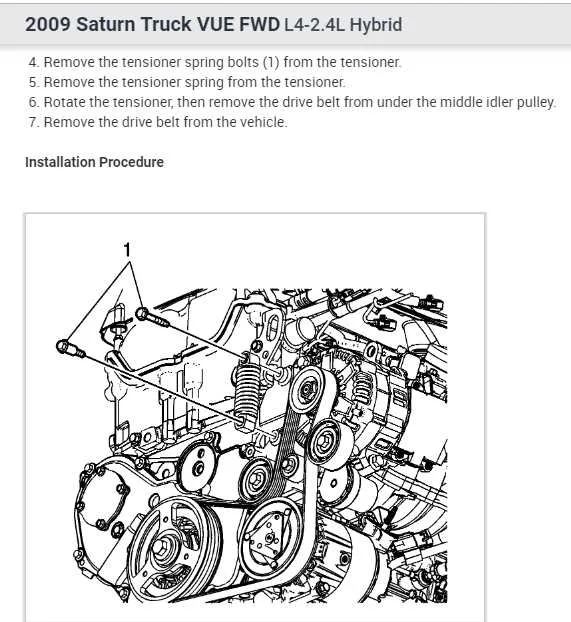

Steps for Replacing the Serpentine Belt on the 2009 Saturn Vue 3.6

Begin by disconnecting the vehicle’s battery to prevent any electrical issues. Locate the serpentine belt tensioner, which is positioned near the alternator on the 2009 Saturn Vue 3.6. Use a wrench or socket to rotate the tensioner pulley counterclockwise, relieving tension from the belt.

Once the belt is loosened, remove it from the pulleys. Take note of the belt’s routing to ensure proper installation of the new one. You can use the belt diagram located in the engine compartment for reference. If necessary, use a flashlight to inspect any damage to the pulleys or belt components while the belt is removed.

Install the new serpentine belt by following the correct routing path. Ensure the belt fits snugly around all pulleys and aligns properly with each pulley groove. Rotate the tensioner pulley again to allow space for the belt and slide it into place. Double-check that the belt is securely positioned on all pulleys.

After the new belt is installed, rotate the tensioner pulley one more time to apply tension to the belt. Reconnect the battery, start the engine, and observe the belt in motion to confirm there are no unusual noises or misalignments. If everything operates smoothly, the replacement is complete.

Troubleshooting Common Serpentine Belt Issues on the 2009 Saturn Vue 3.6

If the serpentine belt on your 2009 Saturn Vue 3.6 starts making noise or shows signs of wear, it’s time to act. A slipping or damaged serpentine belt can lead to overheating, poor power steering, or even engine damage. Start by inspecting the belt for visible cracks or fraying, which can indicate that it’s reaching the end of its lifespan.

Next, check the tension of the belt. A loose serpentine belt can cause poor performance in the alternator, power steering, and air conditioning systems. You may notice your car’s electrical system struggling, or hear whining noises from the power steering pump. Tighten or replace the tensioner if necessary.

If your serpentine belt is squealing when you start the engine, it’s likely due to belt slippage, often caused by a worn-out pulley or an improperly adjusted tensioner. Examine all pulleys for wear, and ensure that they are aligned correctly. If misalignment is detected, the pulleys may need to be adjusted or replaced to prevent further damage.

Finally, check for any signs of oil or coolant contamination on the serpentine belt. These fluids can cause the belt to deteriorate quickly. If contamination is present, locate the source of the leak and fix it before replacing the belt. A clean and properly functioning serpentine belt will improve overall vehicle performance and extend the life of the engine components.
