Craftsman ZTS 6000 Belt Diagram and Maintenance Guide

If you’re troubleshooting your Craftsman ZTS 6000, a detailed belt diagram is a must. The diagram simplifies the process of understanding how each belt is routed, helping you avoid unnecessary confusion during maintenance. Start by identifying the primary drive belt and its path, which is critical for smooth operation.

The belt routing on the ZTS 6000 is designed for durability and efficiency, but improper installation can lead to wear and tear. Follow the diagram step-by-step to ensure each belt is placed correctly, from the engine pulley to the mower deck. Make sure to double-check tension adjustments once everything is in place for optimal performance.

One common mistake when replacing belts is neglecting to inspect the pulleys. Before you begin reassembling, check for any wear on the pulleys that could cause the new belt to slip or fray prematurely. A quick visual inspection can save you from future issues.

By following the Craftsman ZTS 6000 belt diagram accurately, you’ll extend the lifespan of your equipment and ensure it runs at peak efficiency. Keep the diagram handy for future belt replacements and maintenance sessions to make the job easier next time.

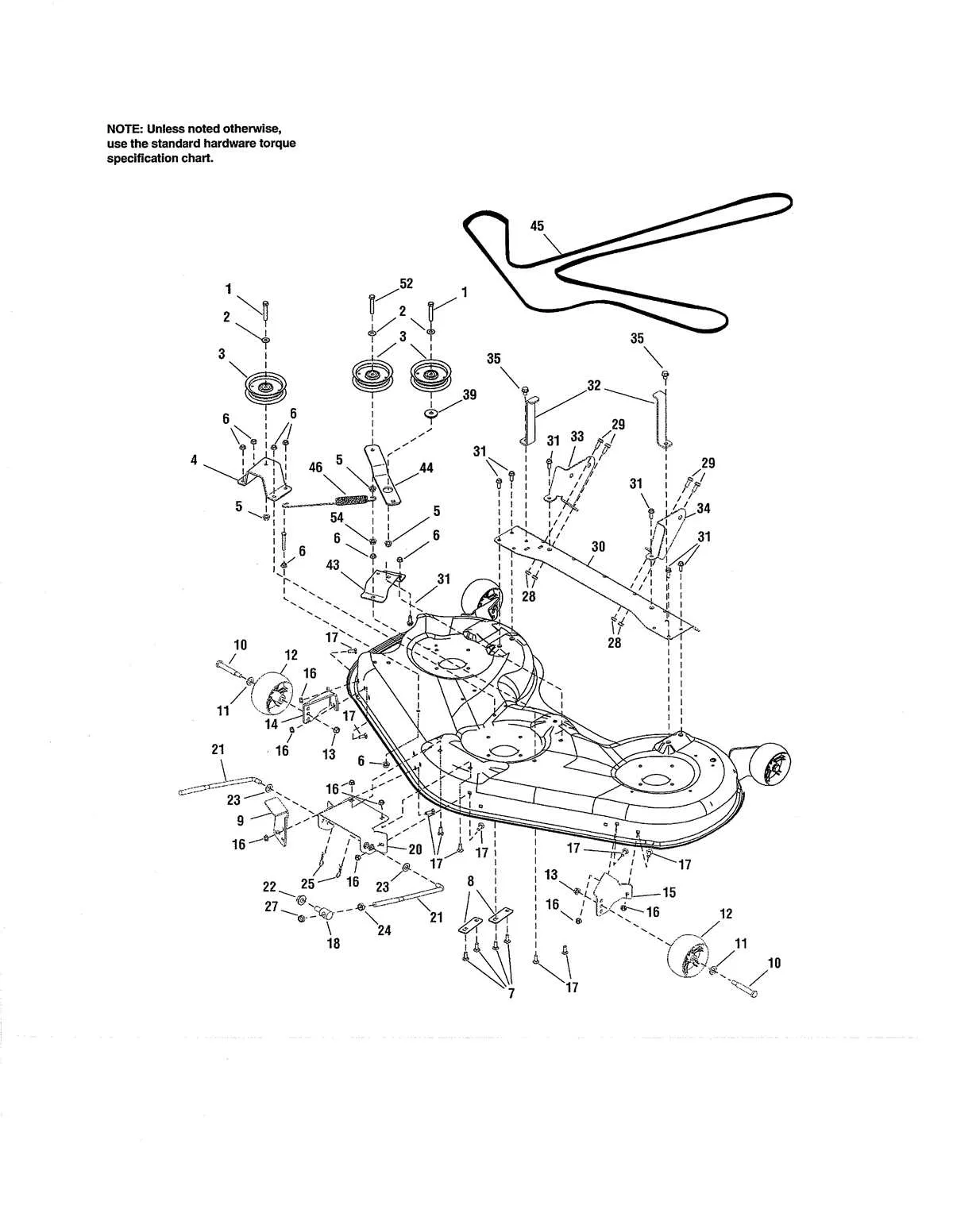

Craftsman ZTS 6000 Belt Diagram

For proper operation of the Craftsman ZTS 6000, refer to the belt diagram to ensure correct installation and function of the drive belts. The diagram outlines the specific path for each belt, which connects the engine, transaxle, and various pulleys.

The main drive belt connects the engine to the transaxle, while smaller belts link the engine to the mower deck. Pay close attention to the tension of each belt. An incorrectly installed or loose belt can cause slipping, reducing performance or causing damage over time.

When replacing belts, follow the diagram step by step. Start with the engine drive belt, ensuring it’s routed properly around the pulleys. Then, check the deck belts and their routing. Make sure all pulleys are aligned and that the belts are not twisted or out of place.

Regular inspection is key. Check belts for wear and tear, particularly for cracks or fraying along the edges. Replace any damaged belts to avoid further complications.

If you’re unsure about installation or replacement, using the diagram as a reference ensures that all components are properly aligned, improving the lifespan and functionality of your Craftsman ZTS 6000.

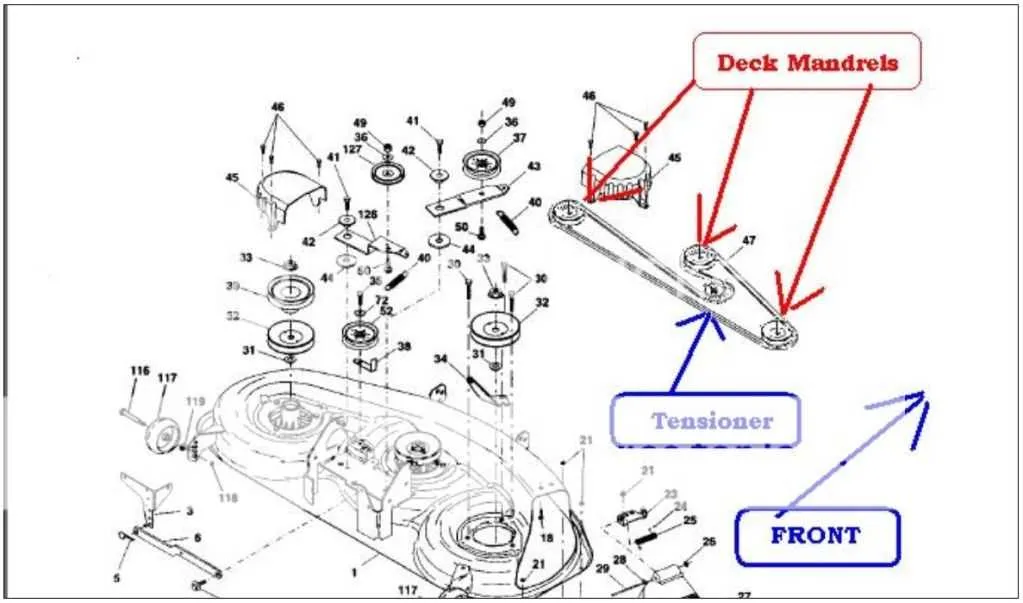

Understanding the Belt Routing on Craftsman ZTS 6000

The Craftsman ZTS 6000’s belt routing plays a critical role in ensuring smooth operation. The key to proper maintenance and repair starts with understanding how the belts interact within the system. If you are experiencing issues with performance, the belt routing diagram is an important reference to troubleshoot and ensure everything is correctly aligned.

Start by locating the belt diagram, usually found on the mower deck or within the user manual. This diagram will provide a clear map of how the belts should be routed around pulleys and other components.

Here are some quick steps to guide you through the belt routing process:

• Ensure the mower is powered off and the engine is cool.
• Remove any covers or guards that may be obstructing access to the belts.
• Check the condition of the belts before re-routing. Replace any worn-out or damaged belts.
• Referring to the diagram, carefully follow the path for both the drive and deck belts.
• Align the belt over each pulley. Double-check that the belt is correctly positioned within the grooves of each pulley and tensioner.

The Craftsman ZTS 6000 utilizes a complex system of pulleys, so paying attention to belt tension is crucial. Too much slack can cause the belt to slip, while excessive tension can lead to premature wear. Always ensure the tension is just right according to the manufacturer’s specifications.

By regularly inspecting the belt routing and ensuring it follows the diagram accurately, you can prevent most common belt-related issues. A well-maintained belt system contributes significantly to the mower’s longevity and performance.

How to Properly Replace the Belts in Craftsman ZTS 6000

Begin by parking the mower on a flat surface and disengaging the spark plug to prevent accidental starts. Ensure the ignition is off. Position the mower so that you can easily access the underside of the deck.

Next, locate the belt covers. These are typically secured with bolts or clips, which you’ll need to remove. Use a wrench or screwdriver to detach them. With the covers removed, you’ll have access to the belts and pulleys.

Inspect the belts for any visible damage before proceeding. If the belts are worn, cracked, or frayed, they must be replaced. Note the belt routing on the mower, either by taking a photo or referring to the diagram in the user manual.

To remove the old belts, loosen the tension on the belt by adjusting the idler pulleys. You may need to remove a spring or use a wrench to release tension. Once loosened, slide the belt off the pulleys. Be mindful of any components that may also need to be removed, such as guards or brackets, to clear the belts.

Install the new belt by first positioning it over the pulleys as per the routing diagram. Ensure the belt sits properly in the grooves of the pulleys. Carefully adjust the tension on the idler pulleys, making sure the belt is taut but not overly tight. Reattach any parts you removed during disassembly.

Before reattaching the belt covers, manually rotate the pulleys to verify the belt moves smoothly and there are no obstructions. Once satisfied, reattach the covers and tighten the bolts or clips.

Lastly, reconnect the spark plug, start the mower, and test the belts by engaging the blades to ensure they are functioning correctly. Listen for any unusual noises that might indicate incorrect installation or misalignment.

Troubleshooting Common Belt Issues in Craftsman ZTS 6000

If the Craftsman ZTS 6000’s belt is slipping or not functioning correctly, inspect it immediately. First, check the tension. A loose belt can cause it to slip or even disengage during operation. Adjust the tension by turning the tensioning bolt to achieve a firm, but not overly tight, fit.

Examine the belt for signs of wear or damage. Cracks, frays, or breaks mean the belt should be replaced. When installing a new belt, ensure it’s the correct size and model for the ZTS 6000, as an incorrect fit can lead to additional issues.

If the belt continues to squeal or make noise, verify that the pulleys are aligned properly. Misaligned pulleys can cause the belt to wear unevenly and slip. Adjust the pulleys to restore proper alignment, ensuring they spin freely without obstruction.

In some cases, debris or dirt can accumulate in the belt area, causing interference. Clean out the area thoroughly and remove any debris that could obstruct the belt’s movement.

Lastly, inspect the idler pulley and spring. A faulty idler pulley or spring can cause improper tension, leading to belt issues. If these components are damaged, replace them to restore proper functionality.
