2008 VW Jetta 2.5 Serpentine Belt Routing Diagram and Installation Guide

If you’re looking for a detailed serpentine belt diagram for your 2008 VW Jetta 2.5, you’re in the right place. The serpentine belt plays a key role in powering essential components like the alternator, power steering pump, air conditioning compressor, and water pump. A correct diagram ensures that you route the belt properly during replacement, preventing unnecessary wear and maintaining engine efficiency.

To replace the serpentine belt, start by locating the belt tensioner. You’ll need to relieve tension on the belt before removing it. Once the tension is off, note the exact routing of the belt around the various pulleys. Refer to the diagram for a precise layout, and ensure the belt sits snugly without twists or misalignment. The diagram will help you visualize the path for installation, ensuring all components are properly driven.

Pay attention to the belt condition as well. If you’re replacing the serpentine belt, check for any signs of cracking, fraying, or glazing. A new belt should run smoothly across the pulleys, with no signs of slippage. Ensure the tensioner is functioning properly to maintain the correct belt tension over time.

2008 VW Jetta 2.5 Serpentine Belt Diagram

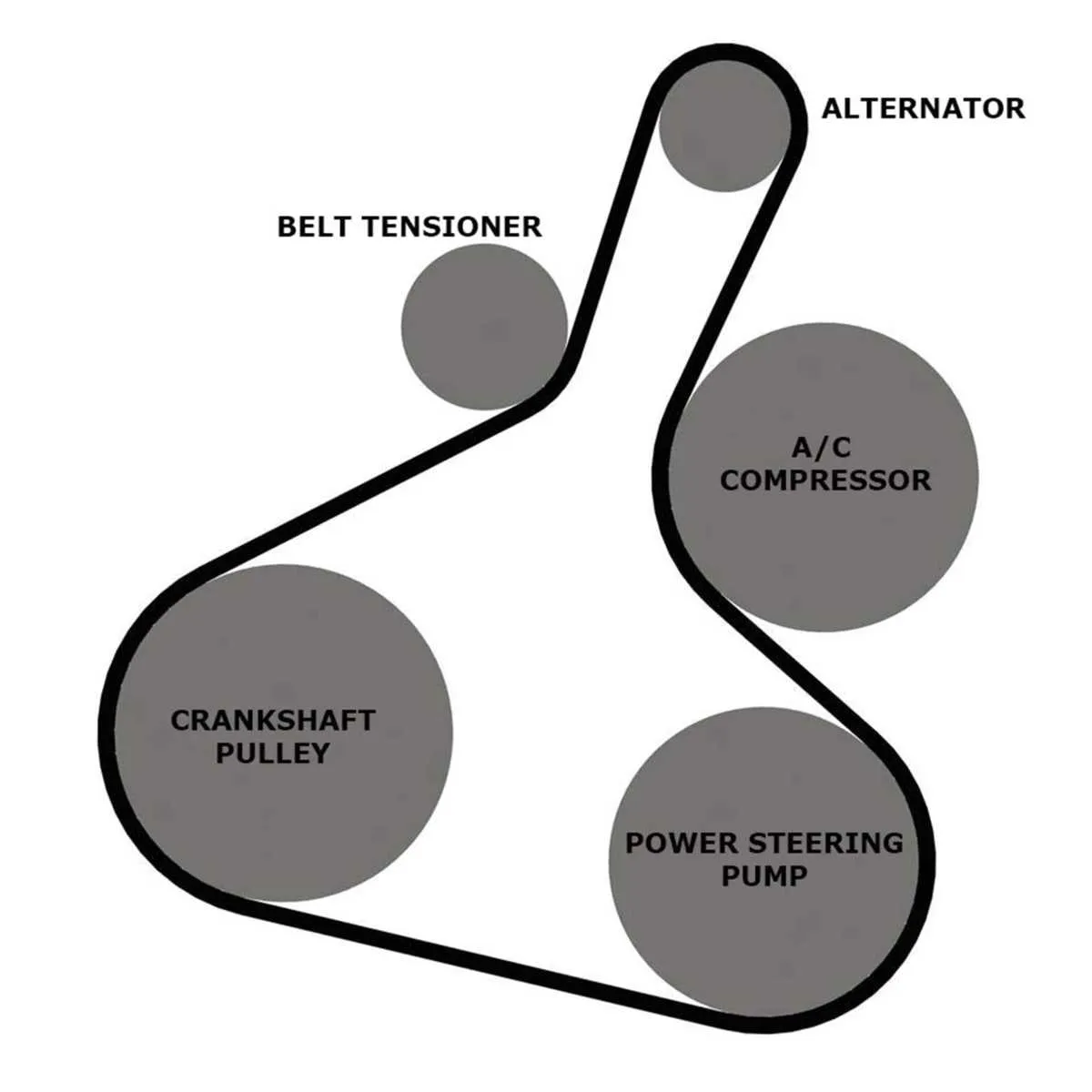

To replace or inspect the serpentine belt on your 2008 VW Jetta 2.5, it’s essential to follow the correct routing. The serpentine belt powers multiple components like the alternator, power steering pump, water pump, and air conditioning compressor.

Start by identifying the main components that the belt drives: the alternator, AC compressor, power steering pump, and the idler pulley. The belt is routed around these pulleys in a specific pattern, so referring to a diagram is crucial for proper installation.

The diagram shows the belt running over the crankshaft pulley, moving up to the tensioner, then looping around the alternator, AC compressor, power steering pump, and water pump pulleys. It ends back at the crankshaft pulley. The tensioner keeps the correct belt tension, ensuring smooth operation of all driven components.

Before starting the installation, release the tensioner to remove the old belt. Compare the new belt to the old one to ensure the correct size and length. Install the new belt following the same routing, checking that it fits snugly around all pulleys and that the tensioner maintains appropriate tension.

Double-check the belt’s alignment after installation. Misaligned or loose belts can cause excessive wear and affect engine performance.

Step-by-Step Guide to Identifying Serpentine Belt Components on a 2008 VW Jetta 2.5

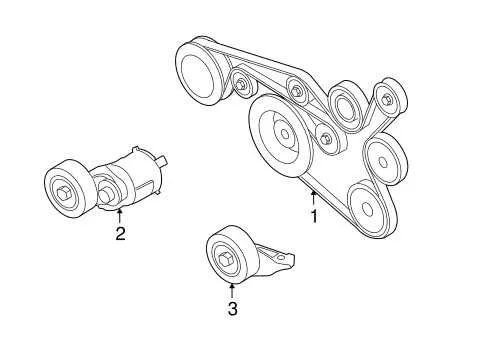

Start by locating the serpentine belt on your 2008 VW Jetta 2.5. It runs along the front of the engine and powers several components, including the alternator, power steering pump, and air conditioning compressor.

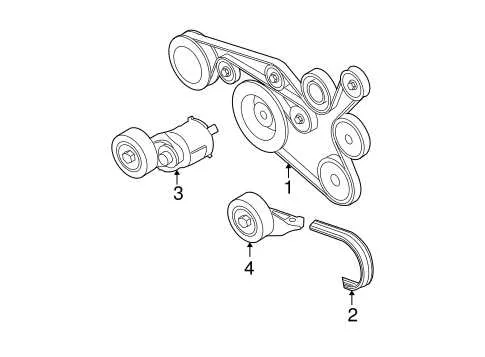

Check the belt tensioner. It’s a spring-loaded pulley that keeps the serpentine belt tight. You’ll notice a small arm attached to it, which allows for automatic tension adjustments. Next, identify the idler pulley; this is a smooth, non-driven pulley that redirects the belt to ensure it stays aligned across all components.

The alternator is usually the easiest to spot. It’s located towards the passenger side of the engine bay, with the serpentine belt running around it. The power steering pump is typically on the driver’s side, slightly above the alternator, and connected to the belt with another pulley.

The air conditioning compressor is found near the front of the engine, often under the alternator. It’s essential to confirm that the belt loops correctly around all components without any slack or misalignment. If the belt looks worn or cracked, it’s time for a replacement.

Finally, inspect the tensioner and pulleys for any unusual sounds, such as squeaking or grinding, which could signal a failing part. Regular checks will prevent further damage to the belt system.

How to Properly Route the Serpentine Belt on a 2008 VW Jetta 2.5

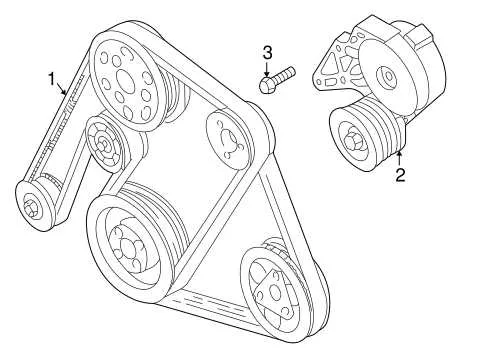

Start by positioning the serpentine belt around the crankshaft pulley. Ensure the belt runs clockwise and fits snugly over the pulley, without slack. Move on to the air conditioning compressor, sliding the belt over the compressor pulley. From there, guide the belt across the alternator pulley, making sure the grooves align correctly.

Next, route the belt over the power steering pump pulley. Make sure the belt rests within the grooves of each pulley to avoid slipping. After the power steering pump, move the belt to the water pump pulley, ensuring a secure fit. The belt should then be routed around the tensioner pulley. You’ll need a wrench to move the tensioner into place while securing the belt under the tensioner.

Finally, confirm that the belt is routed over the idler pulley, ensuring all pulleys are aligned. The tensioner should hold the belt in place, but double-check the tightness by releasing the tensioner slowly. The belt should remain taut but not overly tight, allowing smooth rotation on all pulleys.

Common Issues and Troubleshooting Tips for Serpentine Belt Problems on a 2008 VW Jetta 2.5

If your 2008 VW Jetta 2.5 is experiencing belt-related issues, here’s how to handle the most common problems:

• Squeaking or Chirping Noise: This sound usually indicates a worn or misaligned serpentine belt. Check for visible wear and cracks. If the belt shows signs of damage, replace it. Sometimes, an issue with the tensioner or pulley can cause improper tension, leading to noise.
• Belt Slipping or Poor Performance: A slipping serpentine belt can reduce the performance of accessories like the alternator or power steering pump. Ensure the tensioner is working correctly. If the tension is too loose, it could lead to slipping. In some cases, replacing the belt with a new one may be necessary.
• Unusual Vibrations or Squeals Under Acceleration: These symptoms point to a problem with the tensioner or pulley system. The tensioner may not be holding the proper tension, causing the belt to vibrate. Inspect all components of the serpentine drive system and replace any faulty parts.
• Belt Breakage: A broken serpentine belt will lead to immediate loss of power steering, air conditioning, and alternator charging. If you experience sudden loss of power steering, inspect the serpentine belt for breaks. Make sure to replace a damaged belt immediately to avoid further damage.
• Misaligned Belt Path: The serpentine belt should follow a smooth, straight path around pulleys. If the belt seems off-track, check the alignment of pulleys and tensioner. Misalignment may be due to a worn-out pulley or tensioner, which could cause uneven wear or even complete failure.

Always check the condition of the belt regularly, especially around the 60,000-mile mark, and replace it at the first sign of wear. Using the correct tension is key to preventing issues, so don’t ignore the tensioner and pulley system during your inspection.
