2012 Dodge Ram Serpentine Belt Diagram and Routing Guide

If you’re tackling a belt replacement or troubleshooting an issue with your 2012 Dodge Ram, a clear diagram is your best starting point. This guide provides a detailed layout of the serpentine belt system, ensuring you can follow the correct routing for a smooth operation. Having the correct diagram is key to avoiding confusion during installation or repair.

First, locate the belt tensioner, which plays a critical role in keeping the belt tight. Ensure you release tension properly before removing the belt to prevent damage. The diagram will help you identify the exact path the belt takes around the pulleys, from the crankshaft to the alternator, power steering pump, and other essential components.

It’s important to pay attention to the direction of the belt’s grooves, as the wrong orientation can cause wear or poor performance. The 2012 Dodge Ram’s belt system is designed for specific tension, so getting the routing and tension right is necessary for the engine to run smoothly.

Use the diagram as a reference while inspecting the pulleys for any signs of damage or wear. Once the new belt is installed, double-check its alignment and tension to ensure everything is in place before starting the engine.

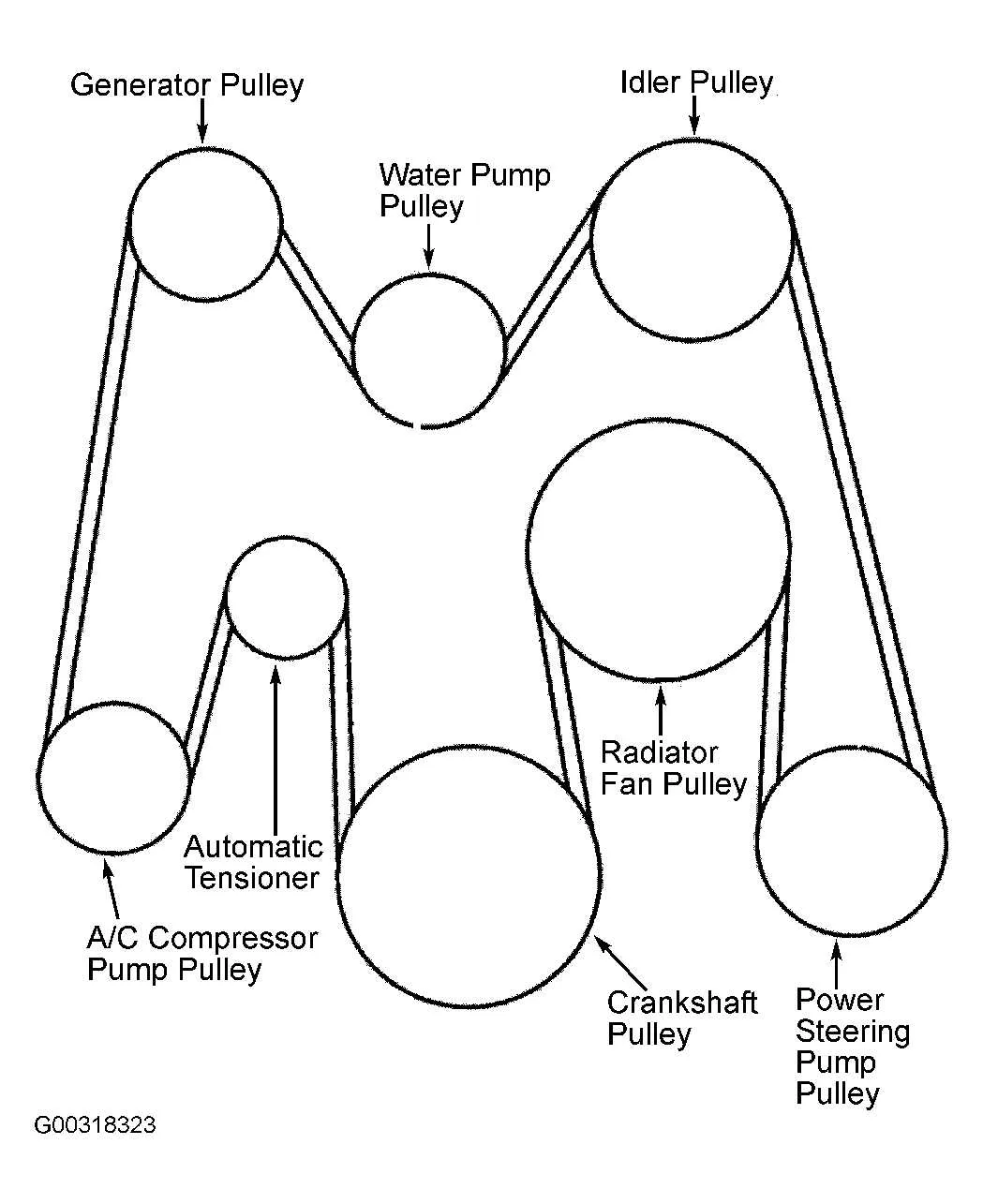

2012 Dodge Ram Belt Diagram

The 2012 Dodge Ram uses a serpentine belt system to drive multiple components in the engine, such as the alternator, power steering pump, and air conditioning compressor. The belt routing can vary depending on whether you have the 3.7L V6, 4.7L V8, or 5.7L V8 engine. Make sure to consult your vehicle’s manual for the exact belt diagram specific to your engine type.

For most models, the serpentine belt follows a straightforward path, looping around the crankshaft pulley, the tensioner, the alternator, and the water pump. The routing will pass over the power steering pump and air conditioning compressor, depending on the vehicle configuration.

To replace the serpentine belt on your 2012 Ram, first locate the tensioner pulley. Use a ratchet or wrench to relieve tension from the belt. Once the tension is released, remove the belt from the pulleys. Install the new belt by following the exact routing shown in the diagram. Double-check the belt’s path to ensure it aligns with all pulleys properly.

If you’re unsure about the belt tension, remember that it should be tight enough to avoid slipping, but not so tight as to cause strain on the pulleys or bearings. A good test is to press down on the belt with your thumb; it should move slightly, but not more than half an inch.

Finally, after installation, inspect the belt for any signs of wear, such as cracking or fraying, which may indicate that it needs to be replaced sooner than expected.

How to Identify Belt Routing on 2012 Dodge Ram

Start by locating the belt routing diagram, which is usually printed on a sticker near the front of the engine bay. If it’s not there, check the owner’s manual or repair manual for the diagram specific to your engine model.

Examine the serpentine belt closely. On the 2012 Dodge Ram, the belt typically loops around several pulleys: the alternator, power steering pump, water pump, idler pulley, and tensioner. The belt routes in a specific order, with each pulley playing a key role in driving engine accessories.

The tensioner pulley is a spring-loaded component that helps keep the belt tight. To relieve tension and remove the belt, use a socket wrench to rotate the tensioner in the direction indicated on the diagram. Once the tension is released, carefully slide the belt off the pulleys.

If replacing the belt, make sure to route it exactly as shown in the diagram, aligning it around each pulley in the correct order. A slight misalignment can cause the belt to wear prematurely or even snap.

For accuracy, refer to the diagram again once the new belt is installed. Double-check that it sits securely on each pulley, ensuring no twisting or improper routing. Start the engine to make sure the belt runs smoothly without any squeaking or slipping.

Common Issues with Belt Tension and Alignment

If your 2012 Dodge Ram is showing signs of belt tension or alignment issues, it’s important to address them early to avoid damage to the engine components. Here are the common problems and solutions:

• Loose Belt Tension: If the belt feels loose, it can slip or fail to drive components effectively. Check the tensioner pulley and adjust it as needed. A loose belt can also result in poor air conditioning performance and charging issues.
• Misaligned Pulley: Misalignment of the pulleys causes the belt to wear unevenly. This can lead to squeaking or chirping noises. Verify that the pulleys are straight and parallel to each other. If necessary, replace damaged pulleys.
• Worn Tensioner: Over time, the belt tensioner can lose its ability to maintain proper tension. If the tensioner fails, the belt can become too loose, causing slipping and potential damage to the alternator or water pump. Inspect and replace the tensioner if it’s faulty.
• Belt Wear: Check for cracks or fraying along the belt. Excessive wear could be a sign of misalignment or improper tension. Replace the belt if it shows any signs of damage.
• Incorrect Belt Routing: Ensure that the belt is routed according to the manufacturer’s specifications. An incorrect belt routing can strain the engine components and lead to premature wear.

Regularly inspect the belt system to avoid more costly repairs and ensure the longevity of your vehicle.

Step-by-Step Guide to Replacing the Serpentine Belt

1. Prepare Your Tools: You’ll need a socket set, a serpentine belt tool, and a new serpentine belt. Make sure the vehicle is off, and the engine is cool before starting.

2. Locate the Serpentine Belt: Open the hood and find the serpentine belt. You can use the belt diagram usually located on the radiator support or under the hood for reference.

3. Release Tension from the Belt: Use a serpentine belt tool or socket wrench to rotate the tensioner pulley. This will relieve tension on the belt, allowing you to remove it.

4. Remove the Old Belt: Slide the belt off the pulleys. Take note of the routing to ensure proper installation of the new belt. You can take a photo for reference.

5. Inspect Pulley and Tensioner: Before installing the new belt, check the condition of the pulleys and the tensioner. If there’s any wear or noise, replace them before continuing.

6. Install the New Belt: Starting from the pulleys closest to the engine, carefully loop the new serpentine belt around them. Refer to the belt routing diagram for accuracy.

7. Apply Tension: Use the serpentine belt tool or a socket wrench to move the tensioner back into place, tightening the belt. Make sure the belt is properly aligned on all pulleys.

8. Check Alignment: Rotate the engine by hand a few times to ensure the belt stays aligned. Check if the belt is sitting properly on each pulley without slipping off.

9. Test the Engine: Start the engine and observe the belt in motion. Listen for any unusual sounds. If everything runs smoothly, the replacement is complete.
