2008 Buick LaCrosse serpentine belt diagram with routing and replacement guide
Check the serpentine belt on your 2008 Buick LaCrosse by inspecting for cracks, fraying, or glazing on the ribbed side. A worn belt can cause squealing noises or accessory failure, so replace it as soon as you notice damage.
Follow the routing diagram under the hood or use a clear reference to guide the belt around the crankshaft pulley, alternator, power steering pump, and A/C compressor. Make sure the belt sits correctly in each pulley groove before releasing the tensioner.
Use a breaker bar or serpentine belt tool to rotate the tensioner counterclockwise, then slide the belt into place. Double-check alignment by running your hand along the pulleys to confirm proper seating. Starting the engine afterward helps verify smooth operation without slipping or noise.
Keep the diagram accessible for future maintenance, as proper routing prevents stress on pulleys and ensures reliable performance of all driven accessories.

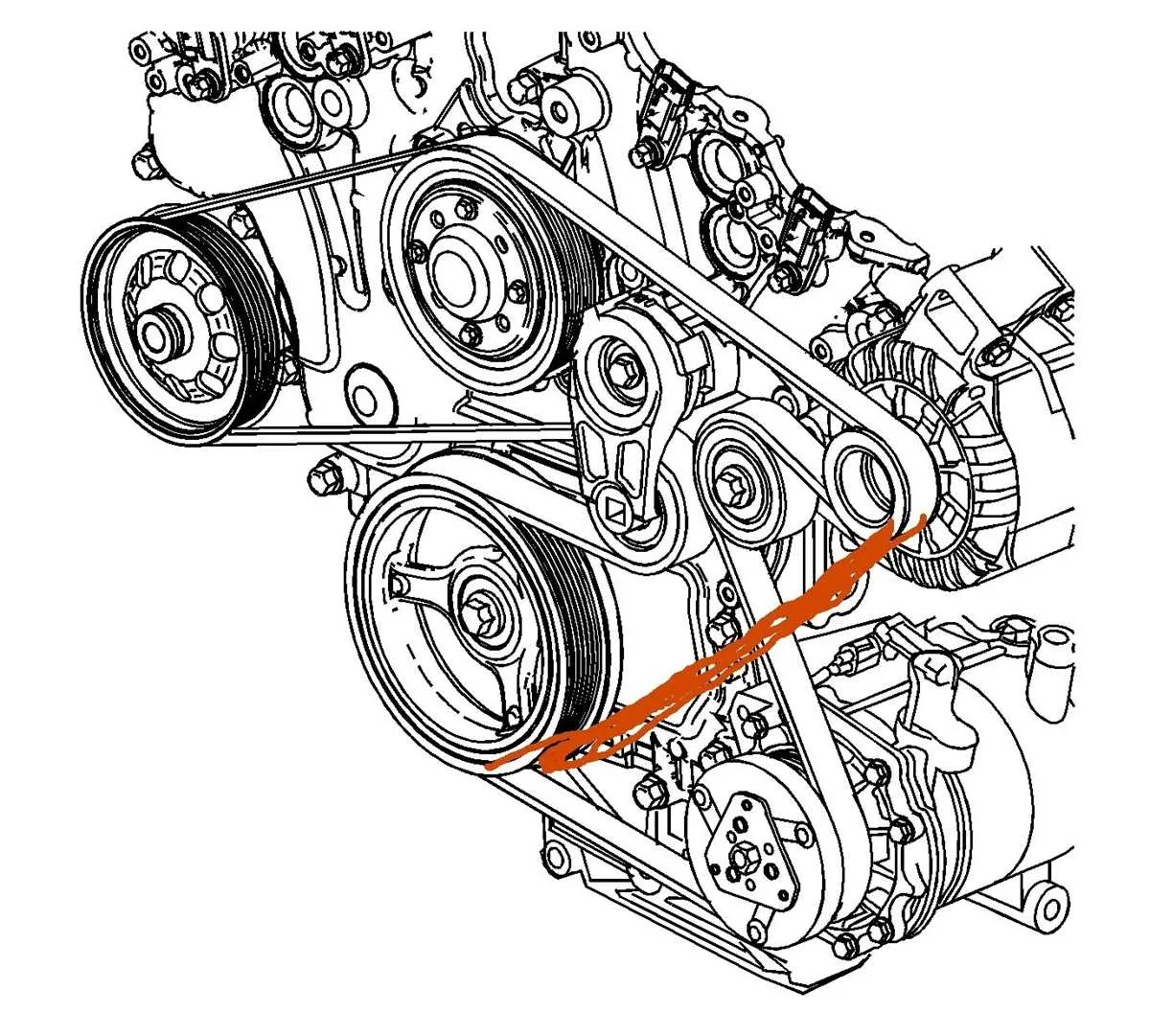

2008 Buick LaCrosse Serpentine Belt Diagram
Check the serpentine belt routing diagram under the hood before replacing the belt on the 2008 Buick LaCrosse. The diagram shows how the belt wraps around the alternator, power steering pump, water pump, crankshaft pulley, and the A/C compressor.
Follow the diagram closely to avoid incorrect routing. A misrouted belt can cause the engine accessories to stop working or produce noise. The belt must run smoothly along the tensioner and idler pulleys without slipping.
When installing a new belt, place it over the pulleys in the exact sequence shown in the diagram. Use a wrench on the tensioner to release pressure and slide the belt into place. Double-check alignment on each pulley before starting the engine to ensure proper function.
Correct Routing of the Serpentine Belt on a 2008 Buick LaCrosse
Route the serpentine belt on the 2008 Buick LaCrosse by placing it first around the crankshaft pulley, ensuring it sits evenly in the grooves. Continue by guiding the belt over the water pump pulley and then the power steering pump pulley. Keep the belt aligned in each groove to avoid slippage.
Next, wrap the belt around the alternator pulley and guide it under the idler pulley. From there, position the belt around the A/C compressor pulley, checking tension as you work through each step. The smooth side of the belt should run along smooth pulleys, while the ribbed side must match the grooved pulleys.
Finish by routing the belt around the tensioner pulley. Use a wrench on the tensioner arm to relieve pressure, slip the belt into place, and then release the tensioner slowly to secure proper tightness. Confirm the belt sits squarely on every pulley before starting the engine to prevent noise or premature wear.
How to Access and Remove the Old Serpentine Belt
Release the negative battery cable to prevent accidental electrical contact before working near the pulleys. Place the vehicle on a flat surface, set the parking brake, and open the hood fully for clear access.
Locate the serpentine belt routing diagram under the hood or keep a printed version nearby. This guide will help during reinstallation. On the 2008 Buick LaCrosse, the belt runs across the alternator, power steering pump, water pump, air conditioning compressor, and crankshaft pulley.
Use a 3/8-inch drive ratchet or serpentine belt tool to rotate the belt tensioner. Apply steady pressure to relieve tension from the belt. While holding the tensioner, slide the belt off the nearest pulley, usually the alternator or idler pulley.
- Insert the ratchet into the square hole on the tensioner arm.
- Rotate the tensioner clockwise to loosen the belt.
- Slip the belt off one pulley while maintaining control of the tool.
Once the belt is free from a single pulley, slowly return the tensioner to its resting position. Remove the belt from the remaining pulleys by hand, lifting it clear of the system step by step. Inspect each pulley for wear or misalignment before installing the replacement belt.
Installing a New Serpentine Belt with Proper Tension
Route the new serpentine belt according to the factory diagram, making sure every rib sits correctly in the grooves of each pulley. Place the belt over the crankshaft pulley first, then guide it around the alternator, power steering pump, and A/C compressor. Leave the tensioner pulley for last to simplify installation.
Rotate the tensioner clockwise with a breaker bar and hold it firmly while slipping the belt over the tensioner pulley. Release the tensioner slowly, allowing it to apply pressure against the belt. Do not release it suddenly, as this can damage the spring mechanism.
Check the alignment on all pulleys before starting the engine. A misaligned rib can cause squealing or premature wear. Press lightly on the belt’s longest span to confirm tension; it should flex about half an inch without feeling loose. If the belt sits unevenly or shows slack, recheck routing and reposition until proper tension is achieved.
