2008 Dodge Ram 4.7 Serpentine Belt Routing and Diagram

For accurate maintenance of your 2008 Dodge Ram 4.7 engine, understanding the serpentine belt layout is key. If you’re experiencing belt slippage or need to replace the belt, refer to the diagram for the correct routing. Proper belt alignment ensures smooth operation of the alternator, power steering pump, and air conditioning compressor.

First, inspect the serpentine belt for visible wear or cracks. If you notice any damage, it’s time for a replacement. Using the correct tools and following the layout will help prevent improper tension or misalignment. The diagram provides a clear overview of how the belt interacts with key components of the engine.

Ensure that the new belt matches the recommended specifications. Use a tensioner to secure the belt in place after installation. Double-check the alignment before starting the engine to avoid any potential damage to surrounding components.

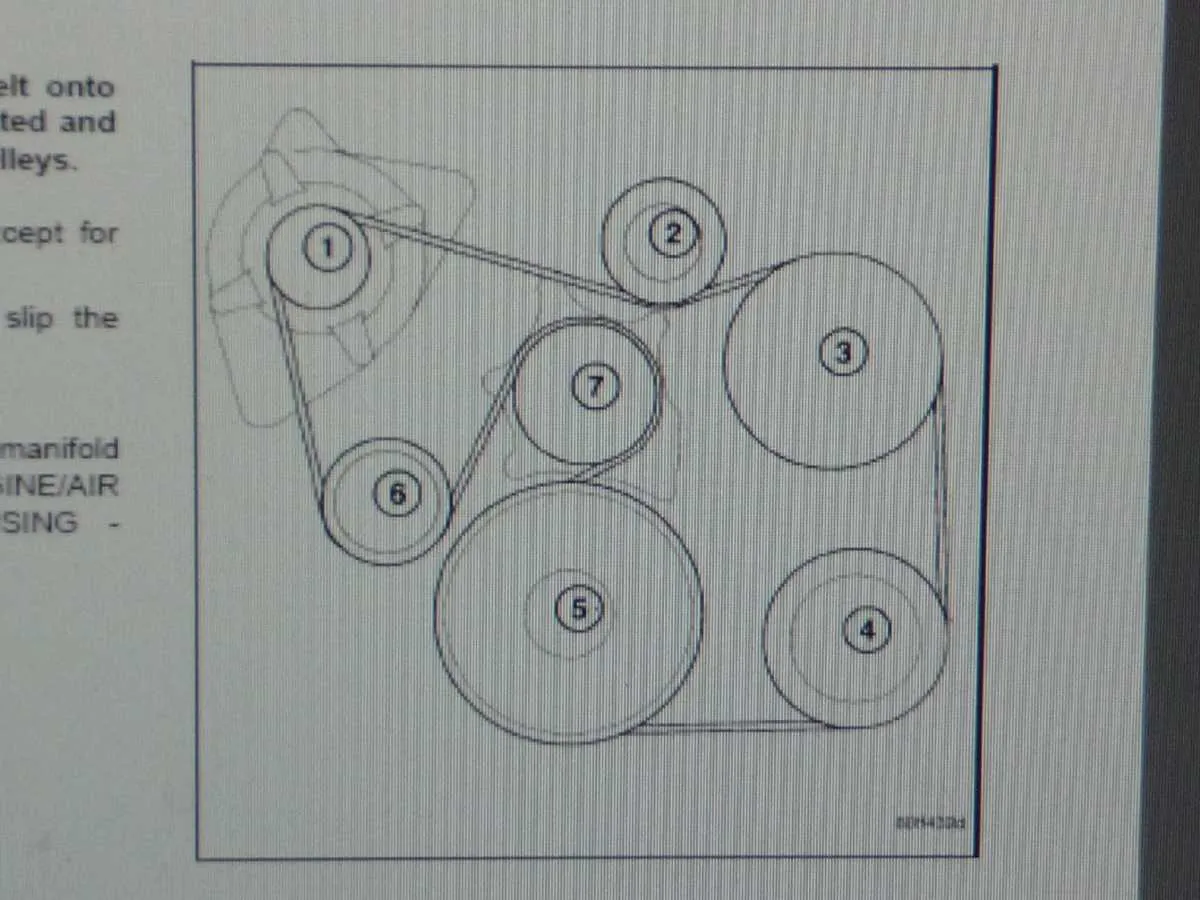

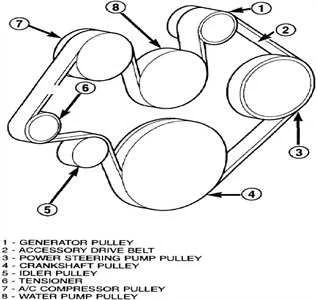

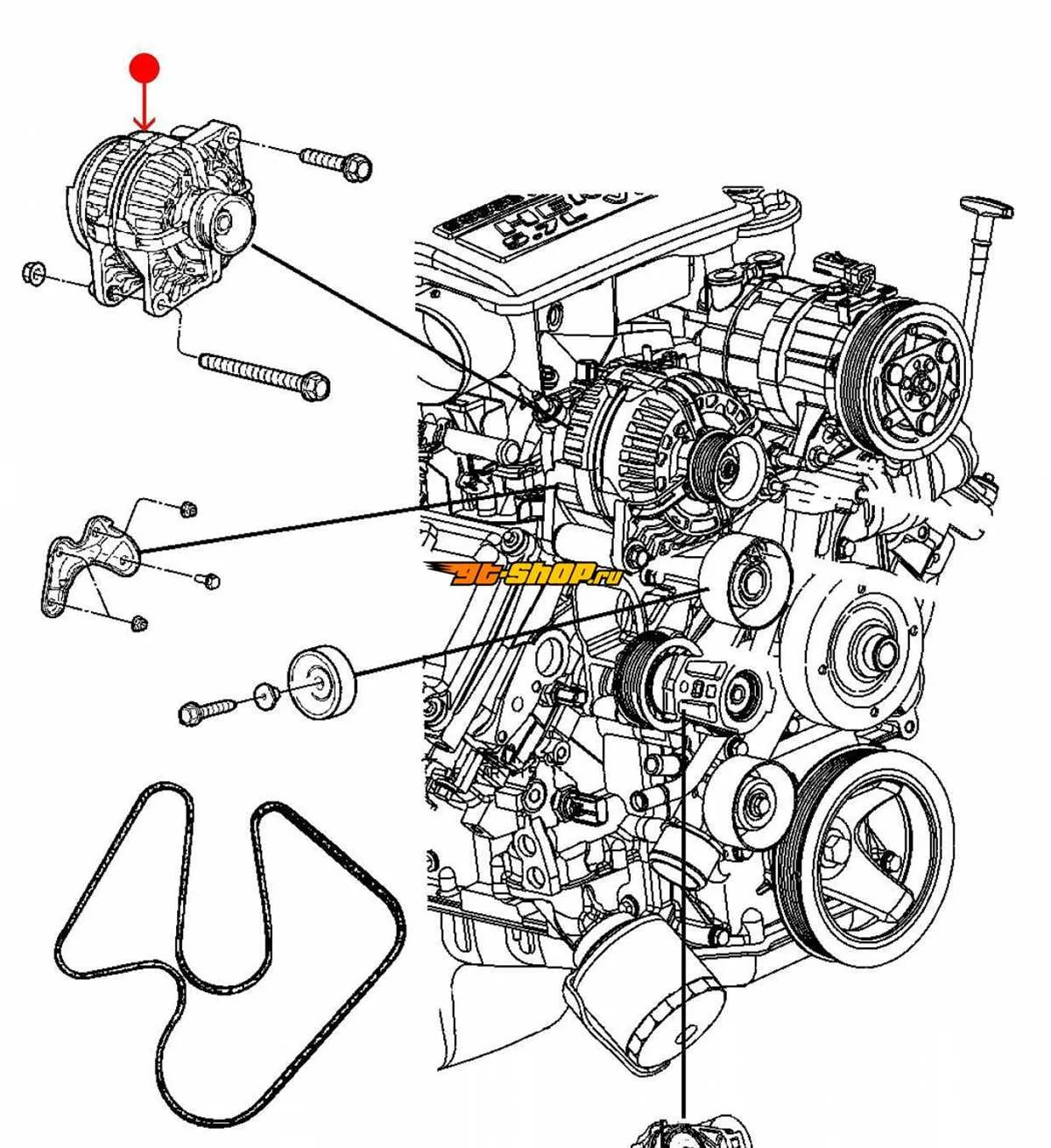

2008 Dodge Ram 4.7 Belt Diagram

The 2008 Dodge Ram 4.7 engine uses a serpentine belt to drive various components such as the alternator, power steering pump, and air conditioning compressor. Understanding the belt layout is crucial for maintenance and troubleshooting.

Start by inspecting the belt routing. The serpentine belt for the 2008 Ram 4.7 follows a clear path that ensures each component is powered efficiently. Refer to the engine diagram to confirm the correct positioning and tension.

• The belt should loop around the crankshaft pulley, then move to the power steering pump, followed by the alternator, air conditioning compressor, and finally the water pump.
• The tensioner pulley is a key component; it keeps the belt under proper tension. If the belt is too loose or too tight, it can cause premature wear or even failure.
• Check for any visible cracks or wear on the belt. A damaged belt can result in loss of power steering, charging issues, or overheating.

If you need to replace the belt, make sure to use a new one that matches the specifications of the 2008 Dodge Ram 4.7. A mismatch in belt size or type can cause further damage to the engine components.

For accurate replacement, follow the reverse order of removal when installing the new belt, ensuring all pulleys align properly. Tighten the tensioner pulley once the belt is in place and check its tension.

Step-by-Step Guide to Understanding the 2008 Dodge Ram 4.7 Serpentine Belt Layout

The 2008 Dodge Ram 4.7 serpentine belt layout involves several key components that drive essential systems such as the alternator, power steering pump, and air conditioning compressor. Proper understanding of this layout is necessary for maintenance and repair.

1. Identify the Main Belt Routing

The serpentine belt wraps around the crankshaft pulley, alternator, power steering pump, and air conditioning compressor. Make sure you understand the belt’s route before proceeding. The tensioner pulley is a critical part of maintaining proper tension and should be adjusted accordingly.

2. Inspect the Tensioner Pulley

Locate the tensioner pulley, which keeps the belt tight. Over time, the tensioner may wear out, leading to poor belt performance. Use a wrench to relieve tension on the pulley before removing the old belt.

3. Remove the Old Belt

Once the tension is released, remove the old serpentine belt. Check for signs of wear such as cracks or fraying, which could indicate the need for replacement.

4. Install the New Belt

Route the new serpentine belt according to the diagram on the engine bay or in the owner’s manual. Ensure the belt follows the exact same path as the old one. Once installed, use the tensioner pulley to ensure the belt is properly tightened.

5. Double-Check the Alignment

Verify that the belt is properly aligned on all pulleys. A misaligned belt can lead to uneven wear or cause components to malfunction.

6. Test the System

Start the engine and monitor the belt’s performance. Listen for any unusual sounds or vibrations that may indicate an issue with the installation. If everything runs smoothly, the serpentine belt is ready for use.

Common Problems with the 2008 Dodge Ram 4.7 Belt System and How to Fix Them

One common issue with the 2008 Dodge Ram 4.7 belt system is belt slippage. This usually occurs when the serpentine belt becomes loose due to wear or tensioner failure. If you notice unusual squeaking or squealing noises, inspect the belt tensioner and replace it if necessary.

Another frequent problem is a cracked or frayed belt. Over time, the rubber can deteriorate due to heat, exposure to engine fluids, or age. If you see visible signs of damage, it’s best to replace the belt to avoid it snapping while driving. The replacement should be done immediately to ensure the vehicle runs smoothly.

The pulley system can also fail, especially the idler or tensioner pulleys. A faulty pulley can cause belt misalignment, leading to further wear or even a broken belt. Inspect pulleys for signs of wear, and replace any that are damaged or worn out.

If the belt is not aligned correctly, check the pulleys for misalignment. In some cases, the alternator, water pump, or other components may be slightly off-center, causing the belt to slip or wear unevenly. Realign the pulleys or replace the faulty component to resolve this issue.

Regular inspection and maintenance of the belt system will help avoid costly repairs. It’s advisable to replace the belt every 60,000 to 100,000 miles, depending on your vehicle’s usage and conditions.

How to Properly Replace the Serpentine Belt on a 2008 Dodge Ram 4.7

To replace the serpentine belt on your 2008 Dodge Ram 4.7, begin by disconnecting the negative terminal of the battery. This prevents any electrical issues during the repair process.

Locate the serpentine belt tensioner. Use a wrench or a breaker bar to relieve tension on the belt by turning the tensioner clockwise. Once tension is released, remove the belt from the pulleys. Make a note of how the belt is routed to make installation easier later.

Inspect all pulleys and components for wear or damage. If any pulley appears worn or damaged, replace it before installing the new belt.

Install the new serpentine belt, following the same path as the old one. Ensure the belt fits snugly over each pulley and is aligned correctly. Once in place, use the tensioner to apply tension to the new belt.

Finally, reconnect the battery and start the engine to verify that the belt operates smoothly. Listen for any unusual noises and check the belt’s alignment to ensure it’s functioning properly.
