2008 Acura TL Serpentine Belt Diagram and Replacement Guide
The serpentine belt in the 2008 Acura TL is an integral part of the vehicle’s engine system. It drives several critical components, including the alternator, power steering pump, and air conditioning compressor. Understanding the layout and configuration of the serpentine belt is crucial for maintaining optimal vehicle performance and avoiding costly repairs.
To replace or troubleshoot the serpentine belt, refer to the diagram that shows the correct routing and tension. Incorrect installation can lead to belt slippage, premature wear, or damage to the engine components it drives. Ensure the belt is positioned correctly across pulleys, and check for any wear signs like cracks or fraying before proceeding with replacement.
If you notice unusual sounds such as squealing or squeaking from the belt area, it may indicate that the serpentine belt is loose or damaged. Regular inspection of the belt helps to detect such issues early, ensuring the longevity and efficiency of your engine’s accessories.

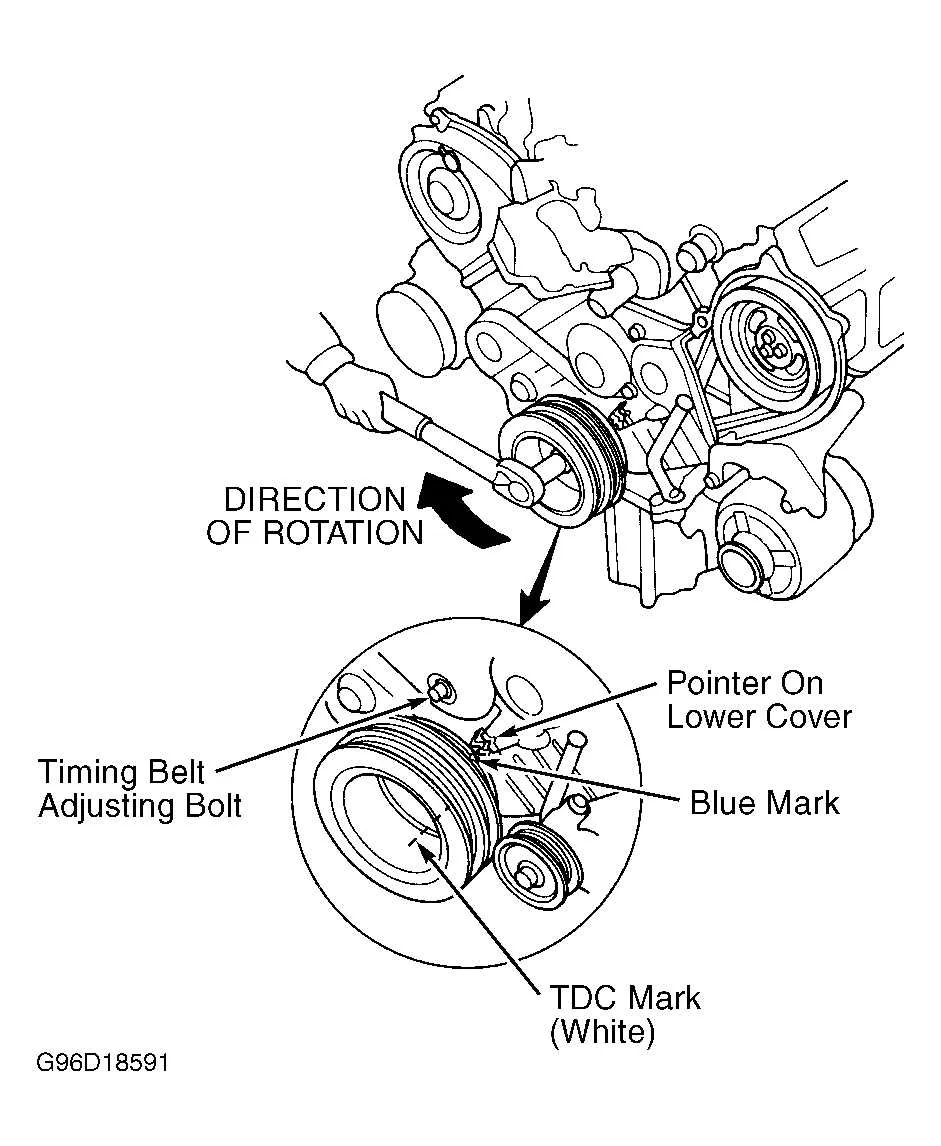

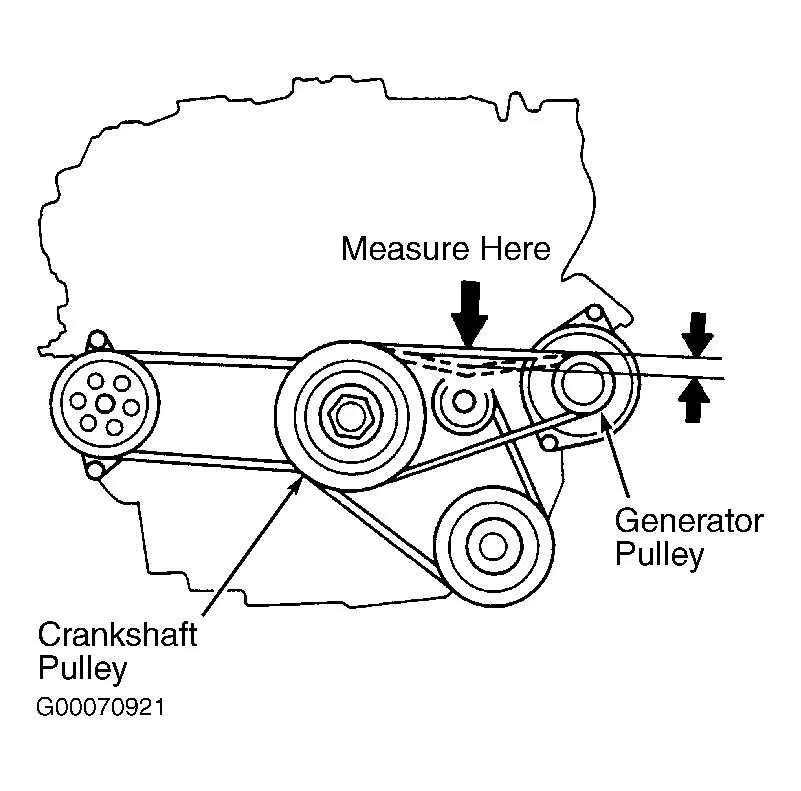

2008 Acura TL Serpentine Belt Diagram
The 2008 Acura TL uses a serpentine belt that drives multiple engine components, including the alternator, power steering pump, and air conditioning compressor. Understanding its routing is key to maintenance and replacement.

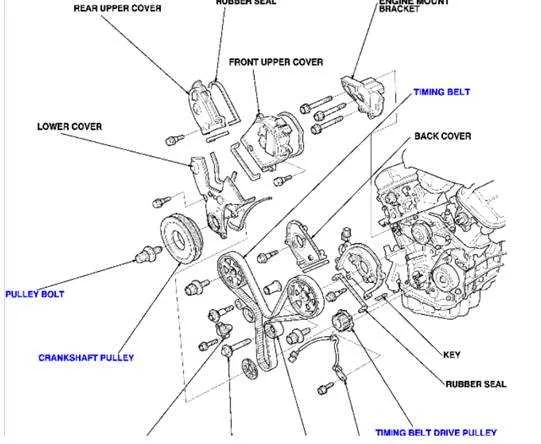

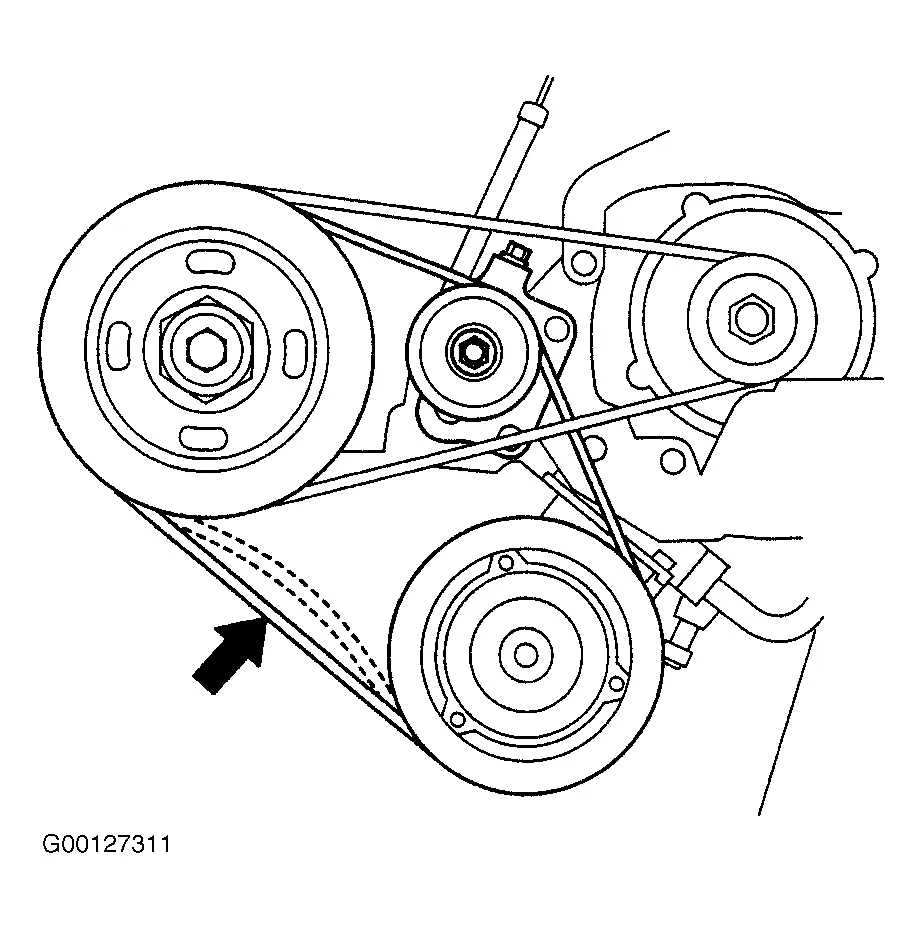

To replace or inspect the serpentine belt, begin by locating the belt tensioner. Use a wrench or socket to release the tension and remove the old belt. Ensure that the new belt follows the exact path as shown in the diagram. The routing typically loops over the alternator pulley, power steering pulley, and other components, depending on the engine configuration.
Check the belt for signs of wear, such as cracks, fraying, or glazing. If any of these issues are present, it’s time to replace the belt. Regular inspection every 30,000 miles is recommended to prevent potential issues.
Keep the tensioner in good working condition. A worn-out tensioner can cause the belt to slip, leading to poor performance and potential damage to other engine components.
How to Locate the Serpentine Belt on a 2008 Acura TL
To locate the serpentine belt on a 2008 Acura TL, follow these steps:
- Open the hood and secure it in place.
- Find the engine bay, and focus on the front of the engine block.
- Look for the accessory drive components, which are typically on the right side of the engine if you’re facing the vehicle.
- The serpentine belt will run along several pulleys, such as the alternator, power steering pump, and air conditioning compressor.
- Identify the belt routing diagram, usually located near the front of the engine or on the radiator support, which shows the specific path of the serpentine belt.
- If the diagram is missing, you can often find it in the vehicle’s service manual or online.
Once you’ve identified the belt’s route, inspect it for wear, damage, or misalignment while ensuring it runs smoothly over the pulleys.
Steps to Replace the Serpentine Belt on a 2008 Acura TL
Begin by locating the serpentine belt tensioner. Use a wrench or socket to relieve tension and remove the belt from the pulleys.
Next, take note of the belt’s routing path. It’s helpful to have a diagram of the belt configuration, or you can take a photo for reference before fully removing the belt.
Remove the old belt carefully, ensuring that no pulleys are damaged in the process. If the belt is worn or frayed, replace it with a new one that matches the specifications of your 2008 Acura TL model.
Install the new serpentine belt, following the routing diagram. Ensure it sits properly on each pulley, without any misalignments. Check that the belt fits snugly in place before moving on.
Once the belt is in place, use the wrench to release tension on the tensioner and ensure the belt is taut. Make sure the belt does not slip or come loose during this process.
Finally, rotate the engine by hand a few times to confirm the belt’s proper alignment and function. Check for any unusual sounds or movement. If everything is in place, close the hood and test drive the vehicle to ensure the system is working properly.
Troubleshooting Common Serpentine Belt Issues in 2008 Acura TL
If your 2008 Acura TL is experiencing issues with the serpentine belt, here are some common problems and how to address them. Start by inspecting the belt for signs of wear, such as cracks, fraying, or glazing. If the belt appears damaged, it’s time for a replacement.
Another issue could be a misaligned belt. Misalignment can lead to squealing noises and rapid wear. To fix this, check the belt tensioner and pulleys for any damage or misalignment. Ensure the tensioner is properly positioned, and replace any faulty pulleys if necessary.
Low tension can also cause the serpentine belt to slip, resulting in poor performance of engine components like the alternator and power steering pump. Adjust the tensioner to restore proper tension. If the tensioner itself is worn out, replace it immediately to avoid further damage.
If the belt squeals or vibrates, inspect the pulleys for debris, dirt, or wear. Clean the pulleys and ensure they spin freely. Any worn pulleys should be replaced to prevent further strain on the belt.
Finally, make sure the belt is routed correctly. A wrong routing can cause uneven wear and prevent the belt from functioning as it should. Refer to the service manual or the belt diagram for the correct routing order and configuration.
