2016 Ford F150 5.0 Serpentine Belt Diagram and Routing Instructions
When working on the 2016 Ford F150 with the 5.0 engine, having an accurate and clear belt diagram is critical for proper installation and maintenance. A correctly routed serpentine belt ensures optimal engine performance and prevents unnecessary wear on components.
The diagram for this model is straightforward but requires attention to detail. It features a serpentine belt that drives multiple engine accessories, including the alternator, power steering pump, and air conditioning compressor. The precise routing of the belt helps maintain tension, reducing strain on the pulleys and ensuring smooth operation across all systems.
Be sure to follow the diagram exactly as shown for proper belt tension and to avoid costly damage. Double-check the belt for wear or cracks before installing it. If you’re replacing the belt, it’s a good idea to inspect the pulleys and tensioner as well, as worn components can lead to premature failure.

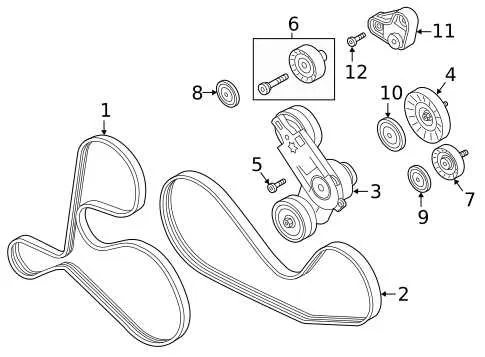

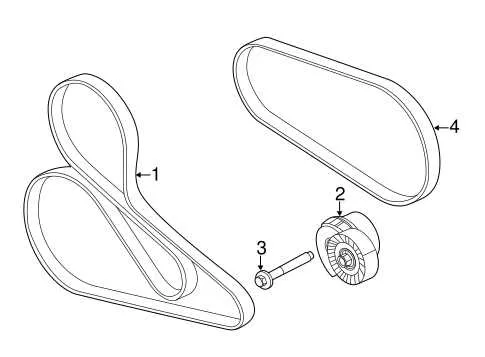

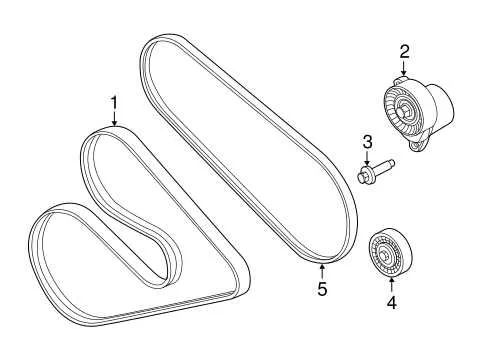

2016 Ford F150 5.0 Belt Diagram
To replace or inspect the serpentine belt on the 2016 Ford F150 5.0L engine, refer to the belt routing diagram for accurate installation. The diagram ensures correct positioning of the belt across all pulleys and tensioners.
Follow these steps for an efficient belt replacement:
- Locate the belt tensioner and use a wrench to relieve tension on the belt.
- Remove the old belt carefully, making sure to note the routing pattern for reinstallation.
- Compare the new belt with the old one to ensure it matches in length and width.
- Route the new belt according to the diagram, ensuring it is properly aligned with all pulleys.
- Re-engage the tensioner to secure the new belt in place.
The diagram shows the following components:
- Alternator pulley
- Power steering pump pulley
- Water pump pulley
- Air conditioning compressor pulley
- Crankshaft pulley
- Idler pulley
- Belt tensioner
Make sure to check for any wear or damage to the pulleys before installing the new belt. Proper alignment and tension will prevent premature wear and ensure the longevity of the belt system.
How to Read the 2016 Ford F150 5.0 Belt Diagram
The 2016 Ford F150 5.0 belt diagram provides a visual map of how the serpentine belt routes through various components. Start by locating the tensioner pulley, which adjusts the belt’s tightness. It’s often the most crucial part to identify first since it can help you determine the belt’s correct placement and potential wear points.
Next, identify the alternator, power steering pump, and air conditioning compressor. These components should be connected in a clear path that follows the diagram’s layout. The diagram will show a continuous loop starting from the crankshaft pulley, moving to each accessory in a set sequence.
Look for any arrows indicating the direction of rotation, which is essential for installing the belt correctly. These arrows typically appear next to pulleys or along the belt itself. It’s also helpful to pay attention to the number of ribs on the belt, which will align with the pulleys they drive.
Check the diagram for any alignment marks. These marks indicate where the belt should sit on each pulley, ensuring proper tension and preventing slippage. If any component or pulley appears to be out of alignment, it could affect the belt’s performance and cause premature wear.
Finally, compare the belt diagram with your truck’s layout under the hood. In some cases, there may be minor variations in components depending on the specific model or options installed. This step ensures that you’ve matched the diagram to your vehicle’s actual configuration.
Common Belt Routing Issues in the 2016 Ford F150 5.0
Incorrect belt routing can cause severe engine performance issues and premature wear on components. Ensure the serpentine belt is installed according to the correct diagram for smooth operation.
One common problem is improper tensioner alignment. If the belt is too tight or too loose, it may slip or wear out quickly. Always verify the tensioner’s proper function and adjust it if necessary.
Misrouted belts are another issue. Double-check the path using the correct diagram to avoid crossovers or twists. If the belt loops incorrectly around pulleys, it can cause significant damage to both the belt and engine components.
Another issue to watch for is a worn-out idler pulley or tensioner. These components wear down over time, and when they fail, the belt can derail, causing the engine to lose power or overheat. Regular inspection and replacement will prevent these failures.
Inconsistent belt wear also signals problems with routing or pulley alignment. If the belt shows uneven wear or cracks, investigate whether the routing has deviated from the manufacturer’s specifications. Damaged pulleys or misalignment can create friction points that damage the belt.
Check the routing diagram and compare it to the physical installation. Ensure that the serpentine belt runs smoothly across all pulleys and is not subject to stress due to incorrect alignment or routing errors. Regular maintenance and checks can prevent major issues down the line.
Step-by-Step Guide to Replacing the Serpentine Belt on 2016 Ford F150 5.0
Start by disconnecting the battery to avoid any electrical accidents. Use a 10mm wrench to loosen the negative terminal on the battery and remove it.
Next, locate the serpentine belt tensioner on the front of the engine. It’s typically a large pulley. Use a socket wrench and a long handle to rotate the tensioner counterclockwise to release tension from the belt. Once the tension is off, carefully slide the belt off the pulleys.
Before installing the new serpentine belt, compare it to the old one to ensure the size is correct. Take note of the belt routing, which is critical for proper installation. A diagram of the serpentine belt routing can usually be found under the hood of the truck or in the vehicle’s manual.
With the new belt in hand, begin threading it around the pulleys. Start from the bottom, working your way up, following the belt routing pattern. Make sure the belt sits correctly in each pulley groove and does not slip off or kink.
Once the belt is in place, rotate the tensioner counterclockwise again and slip the belt over the tensioner pulley. Slowly release the tensioner to apply tension to the belt.
Double-check the belt’s alignment on all pulleys and ensure it’s seated properly. Reconnect the battery, start the engine, and inspect the belt for any irregularities or noises.
If everything looks good, you’ve successfully replaced the serpentine belt on your 2016 Ford F150 5.0!
