2007 Ram 1500 Serpentine Belt Diagram and Routing Guide for Easy Maintenance
If you’re replacing or inspecting the serpentine belt on your 2007 Ram 1500, having a reliable diagram can make the process much smoother. The serpentine belt system plays a crucial role in powering components like the alternator, air conditioning compressor, and power steering pump. A proper understanding of the routing and components can save you time and frustration during installation.
Begin by locating the belt tensioner on the passenger side of the engine bay. You’ll see the serpentine belt wrapped around several pulleys, each with a specific function. The diagram for the 2007 Ram 1500 typically shows the belt looping around the crankshaft pulley, the water pump, the power steering pump, and the alternator, among others. Pay attention to the direction of the belt’s grooves to ensure proper fitment.
Once you’ve confirmed the correct routing, it’s essential to check the condition of the belt and pulleys. Over time, belts can wear down, causing cracks, fraying, or slipping. The diagram also shows how the belt interacts with the tensioner, which keeps the belt tight and prevents slipping. If the belt is damaged, replacing it and inspecting other related components is recommended for optimal performance.
2007 Ram 1500 Serpentine Belt Diagram

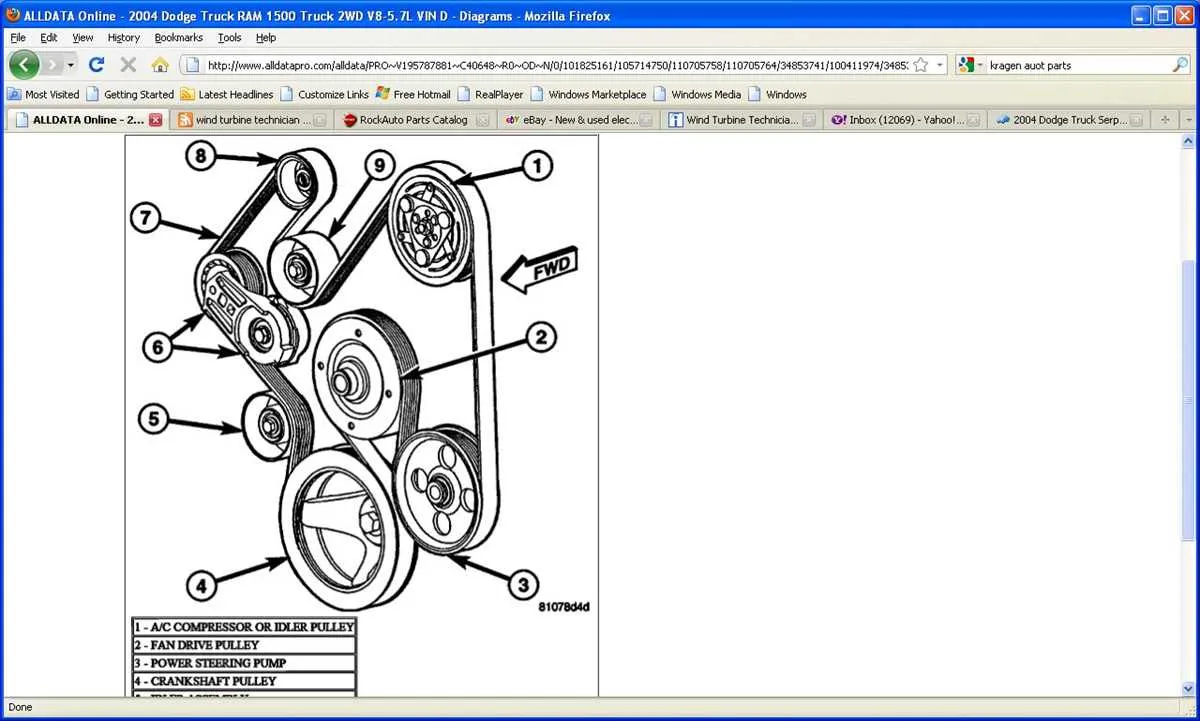

The serpentine belt on a 2007 Ram 1500 is responsible for driving multiple components, such as the alternator, power steering pump, air conditioning compressor, and water pump. To replace or inspect the belt, follow the correct routing outlined in the diagram. Here’s how the belt should be arranged:

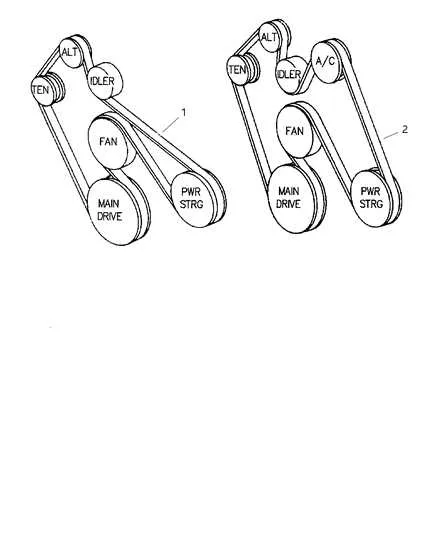

The belt runs from the crankshaft pulley, over the idler pulley, to the power steering pump, then continues to the alternator. From there, it moves to the air conditioning compressor and back to the water pump. The tensioner pulley ensures proper tension on the belt to keep it running smoothly.
Before starting, make sure the engine is off and the battery is disconnected. Use a serpentine belt tool to release tension from the tensioner pulley, allowing you to remove the old belt. For installation, route the new belt according to the diagram, ensuring it sits properly on each pulley. Double-check the belt’s alignment before tightening the tensioner pulley to prevent slipping.
If you’re unsure about the correct routing, consult the vehicle’s owner’s manual or a repair manual specific to your 2007 Ram 1500. Replacing the serpentine belt as part of regular maintenance will help keep your truck running smoothly for years to come.
How to Read the Serpentine Belt Diagram for a 2007 Ram 1500
Start by identifying the components that the serpentine belt connects, such as the alternator, power steering pump, and air conditioning compressor. The diagram shows the routing of the belt and the direction it should follow around these parts. Pay attention to the rotation arrows, as they indicate the belt’s path.
Look for the tensioner pulley, which maintains the correct tension on the belt. This pulley is usually the last part in the diagram and often includes an arrow showing which direction to rotate it to release tension.
Each line in the diagram corresponds to the belt’s route, and pulleys are represented as circles. The tensioner pulley will often be depicted with a unique label, like “T”, to help you distinguish it from other pulleys. Check the number of grooves on the pulleys to ensure the belt size matches the diagram.
If you have trouble understanding the diagram, use a reference like your vehicle’s manual or a repair guide specific to the 2007 Ram 1500. It’s crucial that the belt follows the exact path shown in the diagram to avoid misalignment and ensure all components function properly.
Once you’ve reviewed the diagram, double-check that the belt is routed correctly before starting the engine. Misrouting can lead to severe engine damage, so make sure the diagram is clear and all components are accessible for proper installation.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2007 Ram 1500
1. Prepare the Necessary Tools and Parts: Before starting, gather the following: a new serpentine belt for the 2007 Ram 1500, a ratchet wrench with a 3/8-inch drive, a socket set, a belt tensioner tool (or a breaker bar), and safety gloves.
2. Locate the Serpentine Belt and Tensioner: Open the hood and identify the serpentine belt running through various pulleys. The belt tensioner is typically located near the front of the engine, often above the alternator.
3. Relieve Tension on the Belt: Use the belt tensioner tool to rotate the tensioner pulley clockwise. This will loosen the tension on the belt, allowing you to remove it from the pulleys. Once tension is released, carefully slide the belt off the pulleys.
4. Remove the Old Serpentine Belt: With the tension relieved, take off the belt completely. Pay attention to how the old belt is routed through the pulleys, as you will need to replicate this path when installing the new belt.
5. Inspect the Pulleys: Before installing the new serpentine belt, check the pulleys for wear or damage. Rotate each pulley by hand to make sure they move freely without noise or resistance. Replace any faulty pulleys if necessary.
6. Install the New Serpentine Belt: Refer to the belt diagram for the 2007 Ram 1500. Starting with the crankshaft pulley, follow the exact routing path of the new serpentine belt. Ensure it’s properly seated in all grooves of the pulleys.
7. Tighten the Tensioner: Use the belt tensioner tool to rotate the tensioner pulley back into its original position, applying tension to the belt. Make sure the belt is securely in place on all pulleys.
8. Check the Belt Alignment: Inspect the belt to ensure it is aligned correctly. The ribs of the belt should sit snugly in the grooves of each pulley. A misaligned belt can cause damage to the pulleys over time.
9. Start the Engine: Start the engine and observe the serpentine belt while the engine runs. Listen for any unusual noises and watch for proper belt movement. The belt should run smoothly without slipping or making squeaking sounds.
10. Double-Check the Installation: After running the engine for a few minutes, recheck the belt’s positioning. Ensure everything is tight, and no pulleys are misaligned or wobbling.
Replacing the serpentine belt on a 2007 Ram 1500 is straightforward, but paying close attention to detail ensures smooth engine operation and prevents premature wear on components. Always refer to the vehicle’s service manual for the exact routing diagram for the serpentine belt.
Troubleshooting Common Serpentine Belt Issues in a 2007 Ram 1500
If your serpentine belt on the 2007 Ram 1500 is slipping or squealing, the first thing to check is its tension. A loose belt can cause poor performance or even damage other components. Tighten or replace the belt if it’s too worn out. It’s important to inspect the belt for any visible cracks, frays, or wear patterns, as these signs indicate it’s time for a replacement.
Another common issue is belt misalignment. If the belt appears to be off-center or misaligned with the pulleys, the tensioner or pulleys may need adjustment or replacement. A misaligned belt can cause uneven wear and lead to premature failure. Use a straightedge to verify alignment across pulleys and the belt. If alignment issues persist, inspect the tensioner pulley for wear or malfunction.
Noisy belts, especially those that squeak or chirp, often result from a lack of lubrication or a damaged pulley. Check the pulleys for any sign of damage, including cracks, corrosion, or wobbling. Ensure that each pulley rotates smoothly when turned by hand. Replacing a damaged pulley or using a belt dressing can sometimes reduce noise, but if the issue continues, replace the affected pulley or belt.
A vibrating belt is another symptom that may indicate an issue with the belt’s routing or the condition of the tensioner. A worn-out tensioner can cause the belt to vibrate excessively, leading to poor performance and possible failure. If the belt isn’t routed correctly through the pulleys or the tensioner is not providing the proper force, replace the tensioner assembly and reroute the belt as per the factory diagram.
Lastly, check for debris build-up around the belt and pulleys. Dirt, leaves, or other foreign objects can interfere with the belt’s operation and cause wear or damage. Cleaning around the pulleys and belt is a simple yet effective preventive measure that can help avoid unnecessary repairs.
