2013 Dodge Durango 5.7 Belt Routing Diagram and Installation Guide

The 2013 Dodge Durango 5.7 belt diagram is key for ensuring proper alignment and functionality of the vehicle’s belt system. If you’re replacing the serpentine or drive belts, referencing the correct diagram can save you time and avoid potential damage to engine components.

First, make sure the engine is off and cool before attempting any maintenance. Familiarize yourself with the layout of the serpentine belt system, including the location of the alternator, power steering pump, air conditioning compressor, and other driven accessories. This diagram is particularly useful when replacing worn belts or when a belt has slipped off the pulley system.

Once you have identified the components on the belt diagram, follow the specific path outlined for your model. The tensioner pulley plays a critical role in keeping the belt tight, and knowing its location is vital for any adjustments. If you notice unusual wear or damage on the belt, consider replacing it immediately to avoid further engine complications.

Understanding the layout of the 2013 Dodge Durango 5.7 belt system will allow you to replace or adjust the belts with confidence and precision. Be sure to consult the diagram for accurate installation to maintain engine performance and longevity.

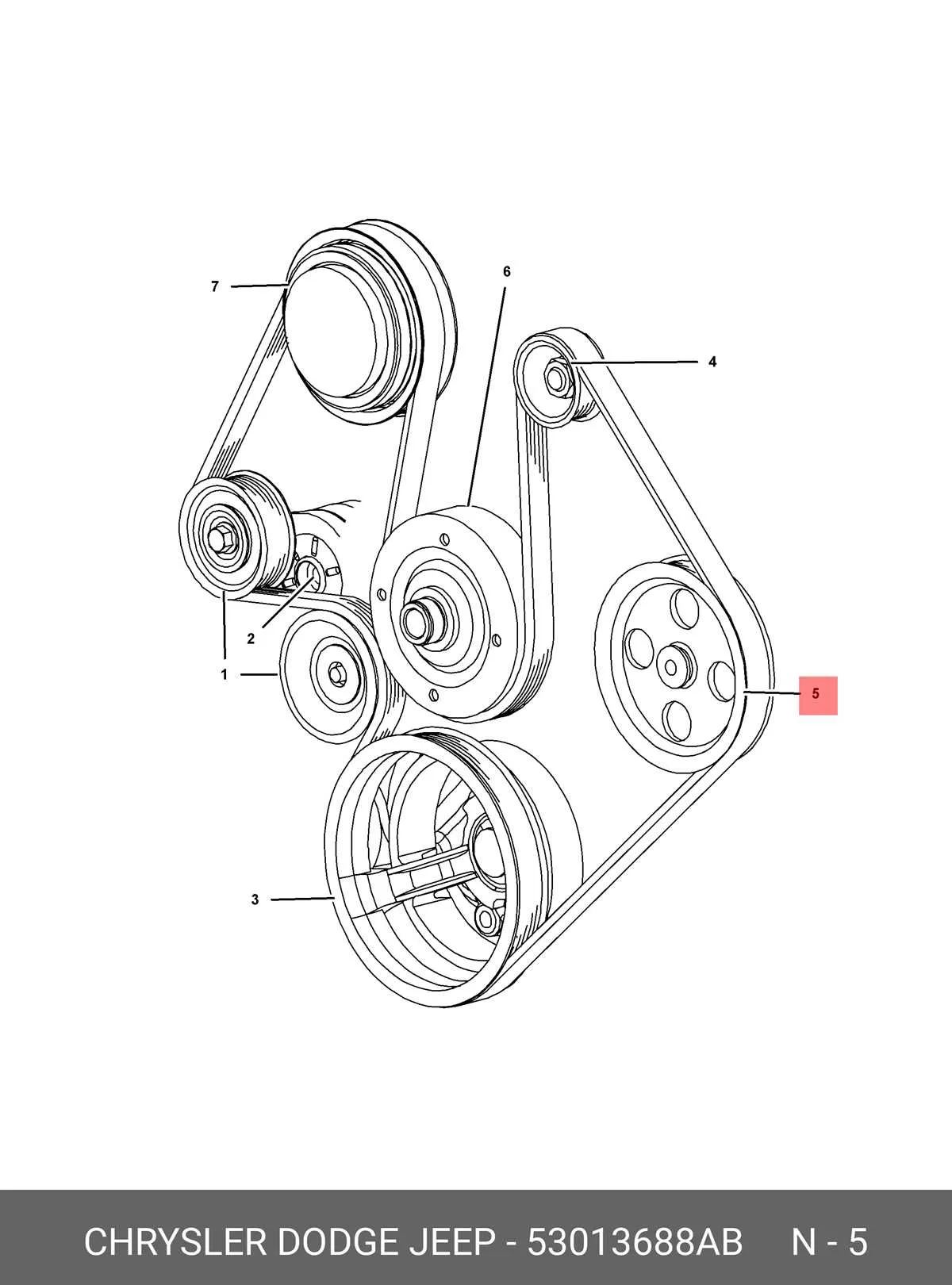

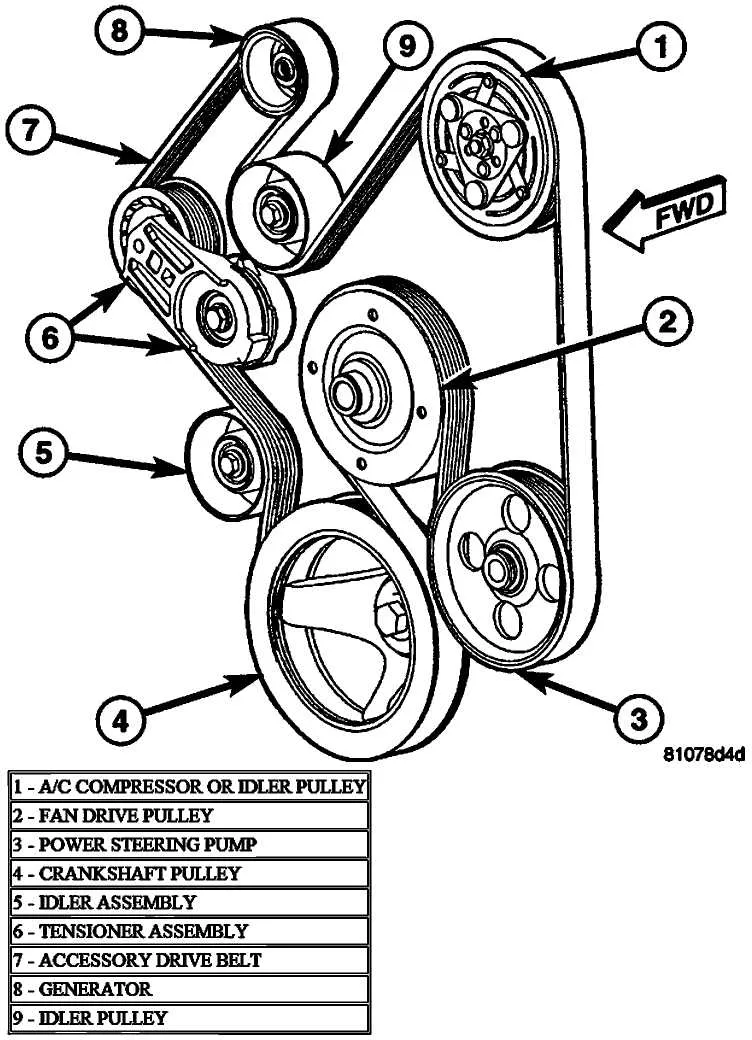

2013 Dodge Durango 5.7 Belt Diagram

The belt diagram for the 2013 Dodge Durango 5.7 is crucial for understanding the proper alignment and tension of the drive belts. To ensure smooth operation of the engine components, it’s important to follow the correct belt routing as outlined in the diagram. This includes ensuring that the serpentine belt runs through the right pulleys, including the alternator, power steering pump, air conditioning compressor, and the water pump.

Start by positioning the belt around the crankshaft pulley and follow the route as shown in the diagram. Pay special attention to the tensioner pulley; it needs to maintain adequate pressure on the belt to prevent slippage. If the belt is too loose, the alternator and power steering may not function properly. On the other hand, excessive tightness can cause undue wear on the pulleys and the belt itself.

If you’re replacing the belt, double-check the pulley alignment before installing the new one. Ensure that the tensioner is functioning correctly and providing the appropriate tension. It’s also a good practice to inspect all pulleys for wear or damage before fitting the new belt. If any component appears worn, it may be worth replacing it to avoid future issues.

Refer to the manufacturer’s specifications for the exact belt size and tension values. Keep in mind that this diagram is specific to the 5.7L V8 engine in the 2013 Dodge Durango. If your vehicle has different engine specifications or accessories, the belt configuration may differ. Always consult the service manual for your particular model to ensure you’re following the right procedure.

How to Identify the Correct Belt Routing for 2013 Dodge Durango 5.7

To identify the correct belt routing for your 2013 Dodge Durango 5.7, start by locating the belt routing diagram. This diagram is often found on the engine compartment, typically near the radiator support or on the underside of the hood.

Next, check the components that the belt will pass through. These typically include the alternator, power steering pump, water pump, and the crankshaft pulley. The belt must loop around each component in the correct order to ensure proper function.

Ensure the belt follows the tensioner pulley path. The tensioner keeps the belt under the right amount of pressure. Make sure the routing follows the manufacturer’s specifications for tension and alignment.

For added accuracy, use a diagram from a reliable service manual or a trusted online source. Cross-check the components and the routing path with the visual guide to confirm you’re on track. Once the belt is properly routed, inspect the condition of the belt for any wear or damage.

Step-by-Step Guide for Replacing the Drive Belt on 2013 Dodge Durango 5.7

To replace the drive belt on a 2013 Dodge Durango 5.7, start by locating the belt tensioner. Use a wrench to relieve the tension by rotating the tensioner pulley counterclockwise. This will loosen the belt, allowing you to remove it from the pulleys.

Next, carefully remove the old belt from the engine bay, taking note of its routing. If necessary, consult a diagram to ensure the new belt is installed correctly.

Align the new belt with the pulleys, starting from the crankshaft and following the correct routing pattern. Ensure the belt fits snugly over each pulley. Check for any misalignment or incorrect positioning.

Once the belt is in place, rotate the tensioner pulley again to apply tension. Double-check the belt’s alignment and make sure it is securely fitted on each pulley.

Finally, inspect the belt for any signs of wear or damage, and start the engine to confirm that the new belt is running smoothly.

Troubleshooting Common Belt Issues in 2013 Dodge Durango 5.7

If you experience issues with the drive belt on your 2013 Dodge Durango 5.7, it’s important to address them immediately to prevent further damage. Here are some common belt problems and how to troubleshoot them:

• Worn or Cracked Belt: Inspect the belt for visible cracks or fraying. A worn belt can slip or break, leading to engine overheating or failure of accessories. If you notice wear, replace the belt immediately.
• Loose Belt: A loose belt may not maintain proper tension, causing slipping and poor performance. Check the belt tensioner for proper alignment. If it’s malfunctioning, replace it or adjust the tension accordingly.
• Noisy Belt: A squealing or chirping noise can indicate a misaligned or loose belt. Check the belt’s alignment and ensure the pulleys are free of debris or corrosion. Tighten or replace the belt if necessary.
• Belts Jumping off Pulleys: If the belt keeps jumping off the pulleys, inspect the pulleys for wear or damage. Ensure they are properly aligned and not clogged with debris. A faulty pulley may need to be replaced to avoid further issues.
• Burnt or Glazed Belt: A belt that appears shiny or has a burnt smell indicates overheating. Check for proper tension and alignment of the pulleys. Excessive heat can be caused by misalignment or a damaged tensioner.
• Slipping Belt: Slipping can occur if the belt is too loose or if there is insufficient tension. Check the tensioner and pulleys for wear and make necessary adjustments or replacements.

Regularly inspect the belt and its components for signs of damage. Address any issues as soon as they arise to avoid more expensive repairs or complete failure of the drive system.
