2006 Mercedes C230 Serpentine Belt Routing Diagram and Installation Guide
If you need to replace or inspect the serpentine belt on your 2006 Mercedes C230, you’ll want to follow the correct routing to ensure everything runs smoothly. The serpentine belt in this model controls several components, including the alternator, power steering pump, air conditioning compressor, and water pump. A properly routed belt keeps these systems functioning optimally and prevents damage to engine components.
The diagram for the 2006 C230 serpentine belt is straightforward, but accuracy is key. Start by positioning the belt on the crankshaft pulley, following the specific sequence to guide it through the tensioner and various accessories. Pay attention to the direction of the belt’s grooves, as they must align with the pulleys for efficient operation. Incorrect installation can lead to premature wear, slipping, or complete failure of the belt.
To ensure correct installation, use a diagram as a reference. Check the alignment of each component before tightening the tensioner. If you’re unsure, consulting the vehicle’s manual or seeking professional help is a smart move. A well-installed serpentine belt contributes to the longevity and performance of your engine, keeping your 2006 Mercedes C230 running smoothly for years to come.

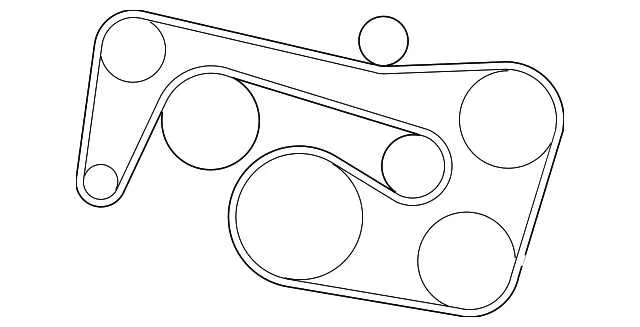

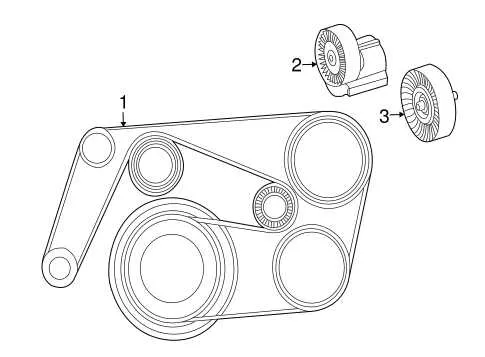

2006 Mercedes C230 Serpentine Belt Diagram
The serpentine belt on the 2006 Mercedes C230 plays a key role in powering various engine accessories, such as the alternator, power steering pump, air conditioning compressor, and water pump. Refer to the diagram below for the correct routing of the serpentine belt to avoid any misalignment or damage to the components.
Ensure the belt is routed correctly around the pulleys to maintain proper tension. The belt follows a specific pattern, passing through the crankshaft pulley, idler pulleys, and the tensioner. It is important to follow the exact path to avoid issues with belt slippage or wear.
If you’re replacing the serpentine belt, check for any signs of cracks or excessive wear before installation. Also, inspect the tensioner and pulleys for proper function. If the belt is too loose or too tight, it may lead to component failure or poor engine performance.
When installing the new belt, apply the proper tension to avoid premature wear. Use a tension gauge if available, or follow the vehicle’s service manual for the correct tension setting.
Refer to the vehicle’s service manual for further details on the belt replacement procedure and ensure all components are correctly aligned before reassembling the engine bay.
How to Locate the Serpentine Belt Routing on a 2006 Mercedes C230
The serpentine belt routing diagram for the 2006 Mercedes C230 is located on the underside of the hood. You will find a sticker with the routing instructions on the radiator support or near the engine bay. If the sticker is missing or damaged, refer to the vehicle’s service manual for a detailed diagram.
For a quick visual reference, inspect the front of the engine where the serpentine belt wraps around pulleys. Start by identifying the components driven by the serpentine belt: the alternator, power steering pump, air conditioning compressor, and the water pump. These components should be in the path of the belt’s routing.
Ensure the belt goes through the tensioner pulley last, as it adjusts the belt’s tightness. Pay attention to the direction of the arrows on the belt, as they indicate the proper orientation for installation. Follow the pattern carefully, ensuring the belt fits snugly on all pulleys without slack.
If you’re replacing the serpentine belt, make sure the new belt matches the length and width of the original. If the belt is improperly routed, the components may not function correctly, leading to overheating or power steering failure.
For further guidance, you can also check online resources or video tutorials specific to the 2006 Mercedes C230 model.
Step-by-Step Guide to Replace the Serpentine Belt on Your 2006 Mercedes C230
Before you start, make sure the engine is cool and the vehicle is parked on a level surface with the parking brake engaged. You’ll need basic tools: a socket set, a serpentine belt tool or breaker bar, and a new serpentine belt.
- Locate the Serpentine Belt
The serpentine belt is located at the front of the engine, wrapped around several pulleys. To make the replacement easier, remove the engine cover if present.
- Release Tension on the Belt
Find the tensioner pulley. Use the serpentine belt tool or a breaker bar to relieve tension by rotating the tensioner clockwise or counterclockwise. Once tension is released, carefully remove the belt from the pulleys.
- Remove the Old Belt
With the tension released, slide the belt off the remaining pulleys. Pay attention to how the belt is routed, as this will help when installing the new belt.
- Inspect the Pulleys
Check each pulley for any wear, damage, or wobbling. If any pulleys are damaged or not spinning smoothly, replace them before proceeding.
- Install the New Serpentine Belt
Refer to the diagram for your 2006 Mercedes C230 to ensure the belt is routed correctly. Start by placing the new belt around the crankshaft pulley and work your way around the other pulleys.
- Apply Tension
Rotate the tensioner pulley again to apply tension to the new belt. Ensure the belt is tight, but not overly stretched. Double-check the belt’s alignment on each pulley.
- Test the Belt
Start the engine and observe the belt’s operation. Listen for any unusual noises and ensure the belt is moving smoothly over all pulleys. If everything is working properly, turn off the engine.
- Reassemble the Engine
Replace the engine cover, if removed, and tidy up your tools. Check the belt’s position after a short test drive.
With these steps, you’ll have successfully replaced the serpentine belt on your 2006 Mercedes C230. Regular maintenance of the serpentine belt helps ensure your engine’s components run smoothly.
Common Issues with Serpentine Belt Tension and Fixes for a 2006 Mercedes C230
If your 2006 Mercedes C230 is experiencing unusual noises or poor performance, the serpentine belt tension could be the culprit. Here are common tension-related issues and how to address them.
A worn-out or faulty tensioner is one of the most frequent causes of tension issues. Over time, the spring in the tensioner weakens, leading to insufficient tension on the serpentine belt. This can result in slippage, squeaking, or even the belt coming off. If you notice these symptoms, replace the tensioner immediately. It’s a simple fix that restores proper belt tension and prevents further damage to components like the alternator or water pump.
Another issue arises from incorrect belt routing. If the serpentine belt isn’t properly aligned, it can cause excessive wear on the tensioner and other components. Refer to the belt routing diagram for your 2006 C230 and double-check the alignment. Ensure the belt is installed according to the correct path, and replace any worn-out pulleys.
Sometimes, a faulty pulley can cause irregular tension. A damaged or misaligned pulley can interfere with belt movement, affecting tension. Inspect each pulley for signs of damage or wear, such as cracks, wobbling, or excessive heat. If any pulleys are faulty, replace them to ensure smooth operation of the serpentine system.
Finally, incorrect belt size can also lead to tension issues. Make sure the serpentine belt you’re using matches the specifications for your C230. A belt that is too long or too short will not maintain proper tension, leading to potential slippage or even premature wear. Always verify the correct size with your vehicle’s manual or a trusted parts supplier.
