2014 Buick LaCrosse Engine Belt Routing Diagram and Component Layout Guide
Check the serpentine belt routing before attempting any repairs on a 2014 Buick LaCrosse. The belt drives the alternator, power steering pump, and AC compressor, so correct installation prevents engine damage. The diagram shows the tensioner location and the proper path around each pulley, ensuring smooth operation.
Use the belt diagram to identify the idler pulleys and tensioner arm. For the V6 engine, the belt wraps around the crankshaft pulley, alternator, water pump, and AC compressor in a specific sequence. Misalignment can cause squealing or premature wear, so following the diagram exactly is critical.
Before removing the old belt, release tension by rotating the tensioner clockwise using a 3/8-inch ratchet. Slide the belt off carefully, then compare it with the diagram to confirm the new belt matches length and rib count. Installing the belt incorrectly can lead to engine overheating or battery charging issues.
Keep a printed or digital copy of the 2014 Buick LaCrosse belt diagram in your tool kit. It saves time during maintenance and helps spot routing errors quickly. Double-check that all pulleys rotate freely after installation, ensuring the belt moves without obstruction or excessive slack.
2014 Buick LaCrosse Belt Diagram Guide
Locate the serpentine belt routing on the front of the engine for the 2014 Buick LaCrosse. Follow the belt path carefully to ensure correct installation and prevent slippage or premature wear.

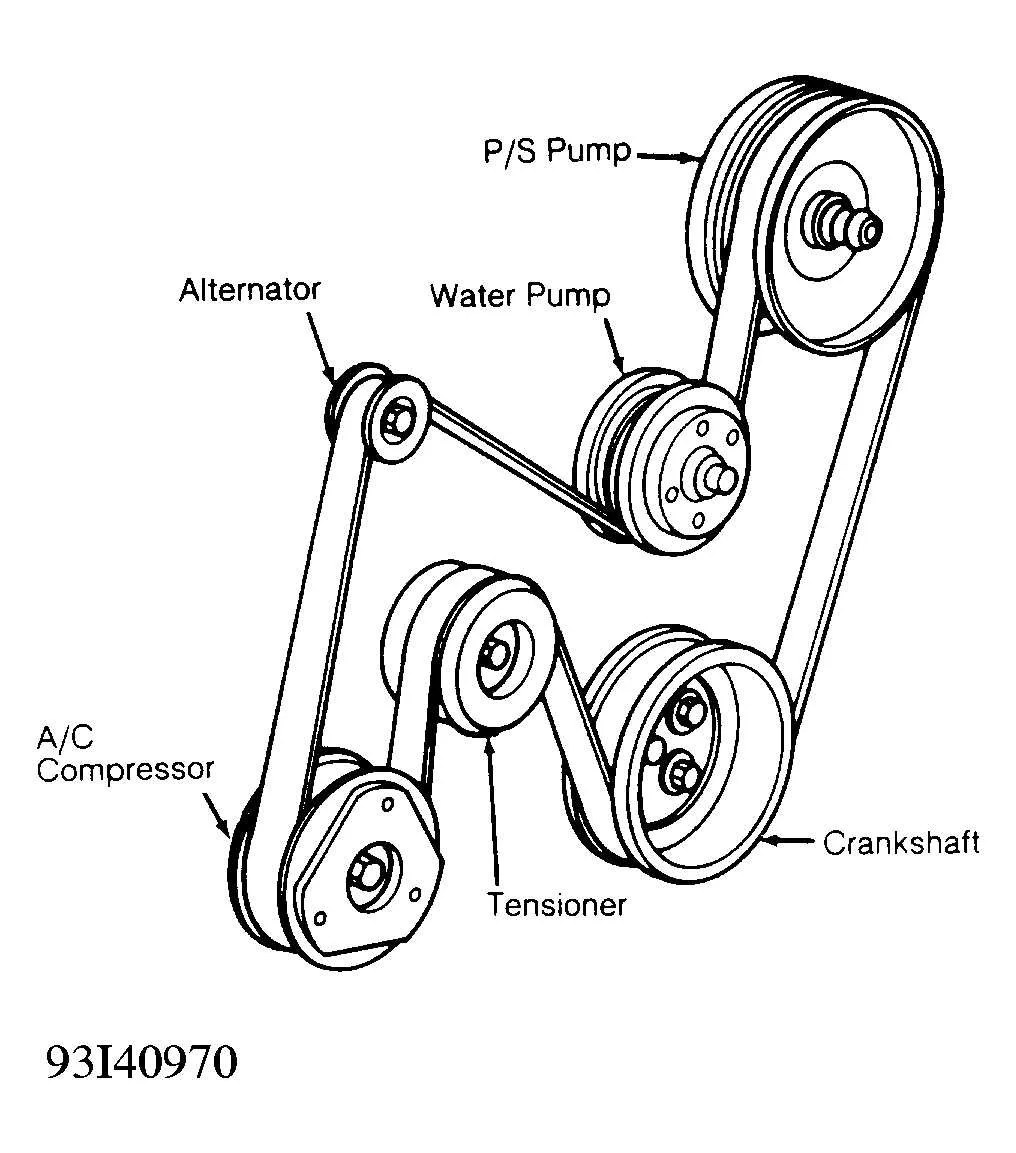

The routing begins at the crankshaft pulley, moves around the alternator, then passes the power steering pump, air conditioning compressor, and tensioner pulley. Always verify tensioner alignment before finalizing installation.
- Crankshaft Pulley: Drives all accessory components. Confirm the groove alignment matches the belt width.
- Alternator: Loop the belt around the alternator pulley, ensuring smooth contact on all grooves.
- Power Steering Pump: Position the belt without twisting; check for correct pulley engagement.
- Air Conditioning Compressor: Wrap the belt to maintain proper tension across the system.
- Tensioner Pulley: Apply slight pressure to seat the belt fully; verify tensioner moves freely and returns to resting position.
Refer to the belt diagram sticker located under the hood for confirmation. Using a long-handled wrench on the tensioner can make installation easier. Inspect the belt for cracks, fraying, or glazing before reassembly to extend service life.
For models with a V6 3.6L engine, the routing differs slightly: the belt loops over the water pump before the alternator. Double-check each pulley path to avoid misalignment and unnecessary engine strain.
After installation, start the engine and watch the belt for smooth operation. Listen for any squealing or vibration, which may indicate misrouting or improper tension. Adjust the belt as needed for a secure fit.
Locating and Identifying Each Belt in the Engine Compartment
Lift the hood and focus on the front of the engine. The 2014 Buick LaCrosse typically has two main belts: the serpentine belt and the accessory belt. The serpentine belt snakes around the alternator, power steering pump, water pump, and air conditioning compressor, making it easy to trace from the tensioner pulley. The accessory belt, smaller in width, often drives components like the air conditioning and alternator on certain engine configurations.
Identify each belt by following its routing from the crankshaft pulley. The serpentine belt will wrap around multiple pulleys in a continuous loop, while the accessory belt usually forms a simpler path. Look for labeling on the belt diagram sticker, usually attached to the radiator support or under the hood, which matches the belt to its pulleys.
Check the tensioner position to distinguish between belts. A spring-loaded tensioner indicates the serpentine belt path, while a manual adjuster often accompanies the accessory belt. Visual inspection of wear patterns can help; serpentine belts often show ribbed sides worn evenly across all pulleys, whereas accessory belts may have uneven wear due to fewer contact points.
Use a flashlight to highlight hidden pulleys near the engine block. The crankshaft, idler, and tensioner pulleys create a clear path to follow. Confirm each pulley’s function by matching it to the diagram, ensuring accurate identification before performing any maintenance or replacement.
Label each belt with masking tape and a marker before removal. This prevents confusion during reinstallation and guarantees the correct routing for optimal performance. Keep a printed diagram nearby to cross-reference every pulley and belt connection as you work.
Step-by-Step Visual Reference for Serpentine and Accessory Belts
Locate the serpentine belt routing diagram printed under the hood or in the vehicle’s manual to confirm the correct path for the 2014 Buick LaCrosse. Identify the tensioner pulley and use a wrench to rotate it clockwise, relieving tension before removing the old belt.
Follow the diagram to position the new serpentine belt, ensuring it sits fully in each pulley groove. Begin routing around the crankshaft pulley, then continue over the alternator, water pump, power steering, and A/C pulleys. Double-check that the ribbed side aligns with the grooves on ribbed pulleys, while the smooth side contacts smooth idler pulleys.
Release the tensioner slowly to apply pressure to the belt, then inspect each pulley contact point for proper alignment. Manually rotate the crankshaft twice to verify smooth movement and proper seating on all accessory components.
Use a visual inspection from multiple angles to confirm the belt sits flush in the grooves without twisting or overlapping. Tighten any accessory bolts if necessary, and ensure the tensioner moves freely without binding. Record the routing diagram with a photo for future reference during maintenance.
Troubleshooting Belt Alignment and Tension Issues
Check the serpentine belt for visible signs of wear, fraying, or cracks. Misalignment often produces a squealing noise during engine start or acceleration. Use a straightedge across the pulleys to confirm they are flush. If the belt rides high or low on a pulley, adjust the tensioner until the belt sits evenly.
Inspect the tensioner pulley for smooth rotation and absence of wobble. A tensioner with excessive play can allow the belt to slip, reducing accessory performance. Measure the belt deflection at the longest span using a ruler; for a 2014 Buick LaCrosse, standard deflection under moderate pressure should be about 1/4 inch (6–7 mm).
Check the alignment of idler pulleys by measuring the offset from the engine block. Even a 2 mm deviation can cause noise and uneven wear. Replace any pulleys that show lateral movement or bearing roughness. Apply a small amount of silicone spray to metal contact points if you notice minor squeaks, avoiding over-application that attracts debris.
| Symptom | Likely Cause | Action |
|---|---|---|
| Squealing on startup | Loose or misaligned belt | Check tensioner, realign pulleys, adjust belt tension |
| Visible belt wear | Pulley misalignment or worn tensioner | Replace belt, inspect pulleys, tighten tensioner |
| Belt slipping under load | Weak tensioner spring | Replace tensioner, verify proper belt routing |
| Uneven pulley wear | Pulley misalignment | Reposition pulleys, replace damaged ones |
After adjustments, rotate the engine manually two full turns to ensure the belt tracks correctly. Monitor for noise or vibration over the next few miles. Re-check deflection and pulley alignment if any irregular movement is detected.
