2005 Camry Serpentine Belt Routing and Diagram Guide

The 2005 Toyota Camry’s serpentine belt system is crucial for powering several vital components of the engine, such as the alternator, power steering pump, and air conditioning compressor. If you are replacing the serpentine belt or diagnosing issues, having a clear diagram is invaluable.

The serpentine belt routing diagram for the 2005 Camry provides a straightforward guide for proper belt placement. It’s important to ensure the belt is installed with the correct tension to avoid slippage or premature wear. Check the belt regularly for signs of damage such as fraying or cracking, which could indicate it needs replacement.

For maintenance, always follow the recommended specifications from the vehicle’s manual, including the correct belt tension and routing. Refer to the diagram to confirm proper alignment of the belt with the pulleys and other components to ensure smooth operation.

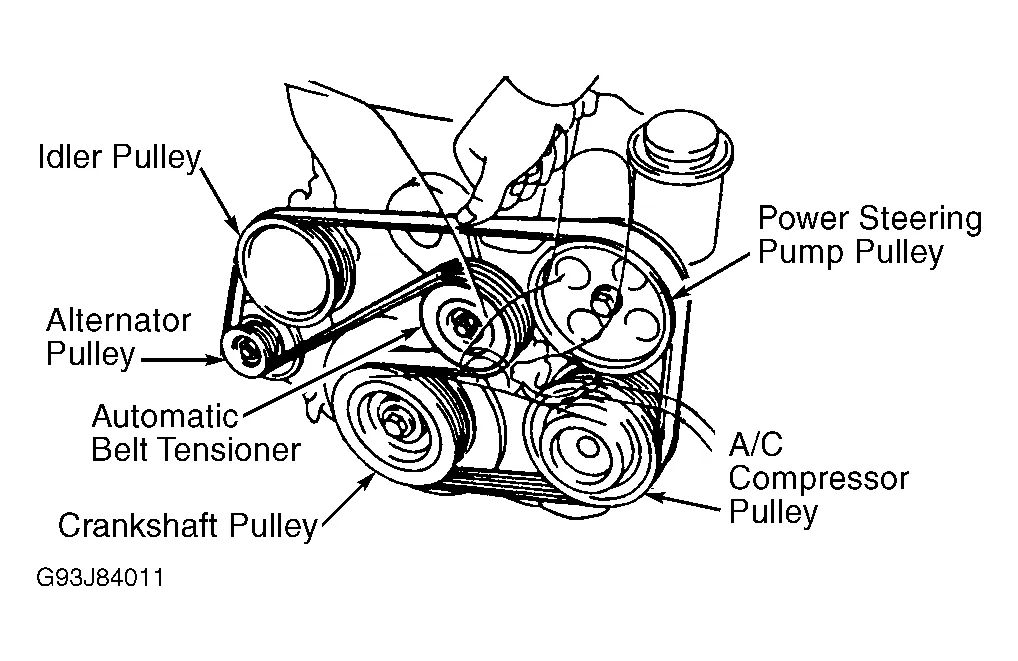

2005 Camry Serpentine Belt Diagram

To properly replace or inspect the serpentine belt on a 2005 Toyota Camry, first locate the belt routing diagram, typically found on the engine bay or the owner’s manual. The serpentine belt runs through several pulleys, including the alternator, power steering pump, and air conditioning compressor. Ensure the belt is correctly positioned to avoid damage and misalignment.

Before starting the replacement, check the belt for any visible signs of wear such as cracks, fraying, or glazing. If any of these are found, replacing the belt is necessary. Use a belt tensioner tool to relieve the tension on the old belt and slide it off the pulleys. Install the new belt by following the routing diagram closely, ensuring it’s seated properly on each pulley and the tensioner is applied correctly.

If you notice any unusual squeaks or belt slippage after installation, inspect the tensioner for proper function. A worn-out tensioner can cause improper belt tension, leading to further damage. Always refer to the vehicle’s manual for any torque specifications or additional instructions to guarantee the replacement is done correctly.

How to Identify the Correct Serpentine Belt for 2005 Camry

To choose the right serpentine belt for a 2005 Toyota Camry, check the following specifications:

• Length: The serpentine belt for the 2005 Camry typically measures 89.5 inches (227 cm). Ensure you select a belt of the same length for proper fit and function.
• Width: The width of the belt should be approximately 0.8 inches (2 cm). Check the width on the new belt to avoid any fitment issues.
• Grooves: The 2005 Camry uses a 6-rib serpentine belt. Make sure the belt has the correct number of grooves to match the pulleys on the engine.
• Material: Choose a belt made from high-quality rubber or synthetic materials designed for durabilit


  Step-by-Step Guide to Replacing the Serpentine Belt on a 2005 Camry



  1. Gather Necessary Tools and Parts

  Ensure you have the correct serpentine belt for your 2005 Camry. You’ll also need a socket wrench, a ratchet, a serpentine belt tool, and a pry bar. Check the condition of the tensioner and pulleys while you’re at it to avoid additional repairs later.

  2. Locate the Serpentine Belt

  The serpentine belt on a 2005 Camry is located at the front of the engine, connected to various pulleys like the alternator, power steering pump, and air conditioning compressor. It should be visible and easy to access.

  3. Relieve Tension on the Belt

  Using the serpentine belt tool or a socket wrench, rotate the tensioner pulley clockwise to release tension from the belt. This will allow you to easily remove the belt without damaging any components.

  4. Remove the Old Serpentine Belt

  Once the tension is relieved, carefully slide the serpentine belt off the pulleys. It may help to note the routing path before removal, or take a photo for reference.

  5. Inspect the Pulleys

  Before installing the new belt, check the condition of the pulleys. Look for wear or any unusual sounds when rotating them by hand. If a pulley feels rough, replace it before proceeding.

  6. Install the New Serpentine Belt

  Refer to the belt routing diagram for your 2005 Camry. Carefully route the new belt over each pulley, ensuring it fits snugly. Make sure the belt is properly aligned with each groove on the pulleys.

  7. Apply Tension to the Belt

  Using the serpentine belt tool or a socket wrench, rotate the tensioner pulley back into position to apply tension to the new belt. Double-check that the belt is seated correctly and tightly on all pulleys.

  8. Test the Installation

  Start the engine and observe the new belt while it’s running. Listen for any abnormal sounds and check that the belt moves smoothly. If everything seems fine, turn off the engine.

  9. Reassemble and Clean Up

  Once you’re sure the belt is properly installed, replace any components you had to remove for access. Close the hood and clean up your work area.

  Troubleshooting Common Serpentine Belt Issues in 2005 Camry



  If you notice unusual sounds or performance issues, the serpentine belt might be the culprit. A squeaking or squealing noise often indicates belt slippage, typically caused by wear or misalignment. Inspect the belt for visible signs of damage like cracks, fraying, or glazing. Replace it if any of these are found.

  In some cases, the belt may stretch over time, leading to loose tension. Check the belt tensioner. If it seems weak or doesn’t hold the belt tightly, the tensioner may need replacement. A worn-out tensioner will fail to maintain proper belt tension, affecting the efficiency of the vehicle’s accessories.

  Check for misalignment issues if the belt appears to be rubbing against other components. Misalignment can cause premature wear and eventual belt failure. Ensure that all pulleys are correctly positioned and that no debris or foreign objects are obstructing their movement.

  Another common problem is belt contamination. Oil or coolant leaks can damage the belt material, leading to slippage or breakdown. Inspect the engine components for leaks and address them before replacing the belt. Contaminated belts should be replaced immediately to prevent further damage to the engine.

  If the car’s power steering or air conditioning isn’t functioning properly, it may be related to the serpentine belt’s failure to drive these components. In these cases, check the belt for proper routing, as incorrect installation can result in operational issues with these systems.

  To prevent recurring issues, make sure to replace the serpentine belt at the recommended intervals outlined in your vehicle’s maintenance schedule. Regular inspection and prompt replacement can help avoid costly repairs down the road.
