2005 Acura TL Serpentine Belt Diagram and Routing Guide for Easy Repair
If you’re tackling the serpentine belt replacement on your 2005 Acura TL, it’s critical to have the correct diagram to ensure proper installation. The serpentine belt drives several vital components of your engine, including the alternator, power steering pump, and air conditioning compressor. A misaligned or incorrectly installed belt can cause serious damage to your engine’s performance.

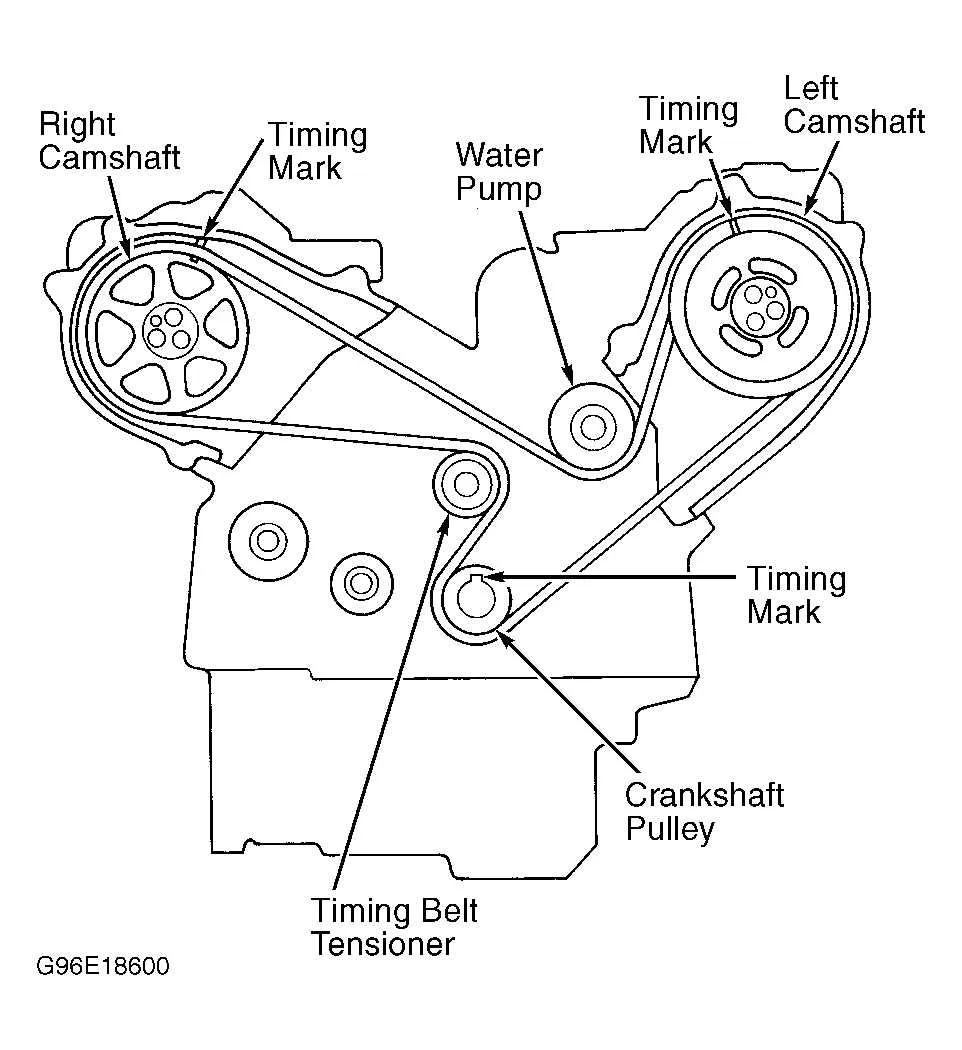

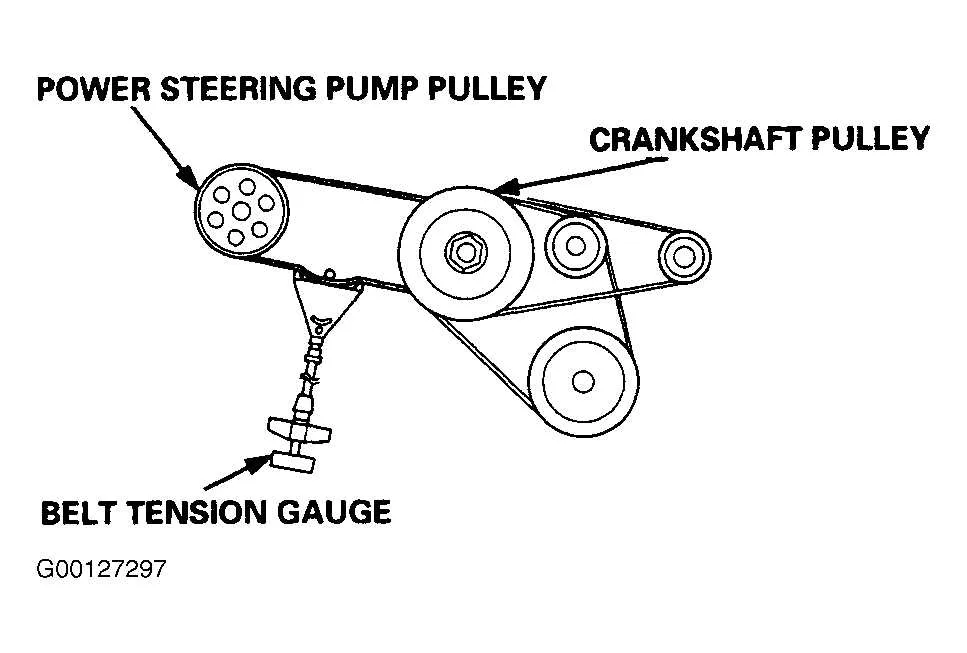

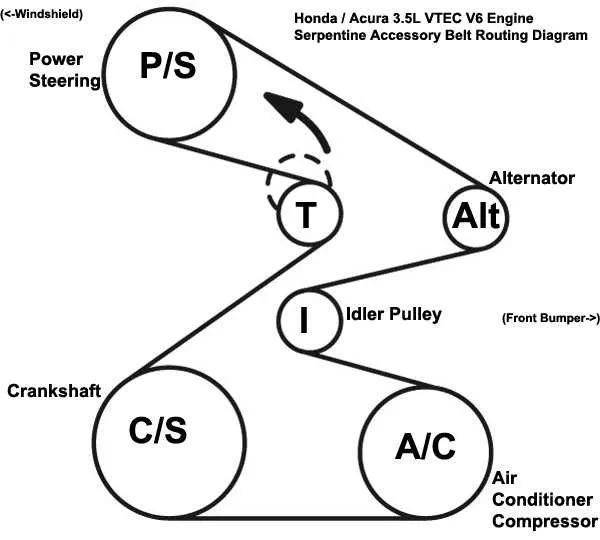

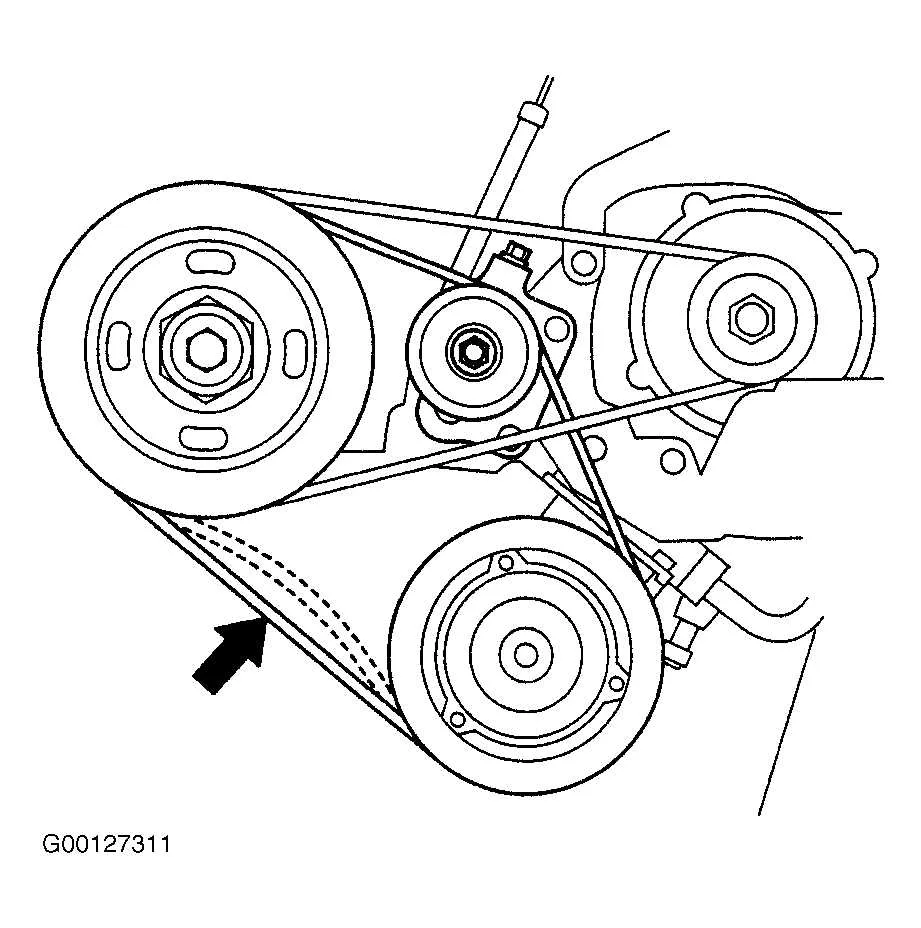

To make your repair process easier, here’s a detailed diagram showing the correct routing of the serpentine belt for the 2005 Acura TL. This diagram highlights each pulley and the direction the belt should travel. Start by verifying the tensioner’s position, as it plays a key role in keeping the belt tight. After confirming the belt routing, check for any signs of wear on the pulleys and the belt itself before reinstallation.
Make sure to use the correct belt length and tension specifications. If you’re unsure, refer to your vehicle’s manual for the exact measurements or consult a trusted auto parts store. Proper belt installation ensures smoother operation and prevents unnecessary strain on your engine components.
2005 Acura TL Serpentine Belt Diagram
To replace or inspect the serpentine belt on a 2005 Acura TL, follow the layout in the vehicle’s serpentine belt diagram. This diagram shows the exact routing of the belt around various pulleys, ensuring that it runs properly to drive components like the alternator, power steering pump, water pump, and air conditioning compressor.
For the 2005 Acura TL, the serpentine belt routing is relatively straightforward. The belt runs from the crankshaft pulley, over the water pump pulley, under the tensioner pulley, around the alternator, and then loops over the power steering pump, finishing around the air conditioning compressor. The tensioner pulley maintains the proper tension to prevent slippage. Always ensure the belt follows this exact pattern for proper functioning.
If you need to replace the belt, ensure the engine is cool and use a belt tensioner tool to relieve the tension on the old belt. Remove the belt carefully, noting the path it follows. Before installing the new belt, verify that it matches the size and specifications for your 2005 Acura TL. The new belt should fit snugly and smoothly around the pulleys without excessive slack or tightness.
After installing the new serpentine belt, manually rotate the pulleys to check the belt’s movement and ensure it is correctly routed. Double-check that the belt is aligned with all pulleys before starting the engine. A misrouted or improperly tensioned belt can cause severe damage to engine components.
How to Read the 2005 Acura TL Serpentine Belt Diagram
Start by identifying the components on the diagram. The serpentine belt connects various engine parts, including the alternator, power steering pump, water pump, and air conditioning compressor. Look for labeled components to understand their position relative to the belt’s routing.
Next, locate the direction arrows. These indicate the path the serpentine belt should follow across the pulleys. Pay close attention to the routing, ensuring that the belt wraps around the pulleys in the right order. Any deviation could lead to malfunction or damage.
The diagram will also show the tensioner pulley, which keeps the belt taut. Identify this pulley, as it plays a key role in maintaining the correct belt tension. You’ll usually see a spring-loaded tensioner, which can be adjusted manually to tighten or loosen the belt as needed.
Check for any notes or special instructions. Some diagrams include details like the belt size or part numbers, which can be useful when replacing the serpentine belt. If there are multiple diagrams available, compare them to verify the correct one for your specific engine model.
Lastly, refer to the tension specification for the belt, which ensures it’s neither too tight nor too loose. An improperly tensioned belt may cause premature wear or failure. Follow the guidelines for setting the right tension, usually found in the service manual or along with the diagram.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2005 Acura TL
Begin by gathering the necessary tools: a ratchet wrench, serpentine belt tool (or a long-handled socket wrench), and a 15mm socket. You’ll also need a replacement serpentine belt that matches the specifications for your 2005 Acura TL. Ensure the car is parked on a flat surface and the engine is cool.
Next, locate the serpentine belt. It runs along the front of the engine, looping around multiple pulleys. To access it, remove any covers blocking the belt’s view, such as the engine cover or plastic panels.
Find the tensioner pulley, usually located near the top of the engine. Use a serpentine belt tool or the ratchet wrench with the 15mm socket to rotate the tensioner counterclockwise. This releases the tension on the belt. Hold the tensioner in place and slide the belt off the pulleys. Make a note of how the belt is routed around each pulley for reference when installing the new one.
Remove the old serpentine belt completely. Before installing the new one, inspect the pulleys and tensioner for damage or wear. If any pulley is loose, worn, or damaged, replace it before proceeding. Also, check that the tensioner is functioning properly, as it plays a critical role in maintaining the correct tension on the belt.
Take the new serpentine belt and begin routing it through the pulleys according to the diagram for your vehicle. Ensure it sits properly in the grooves of each pulley, without being twisted or misaligned.
Once the belt is in place, return to the tensioner pulley and rotate it counterclockwise again to allow the belt to fit into its proper position. Carefully release the tensioner to apply tension to the new belt. Ensure the belt is seated correctly on all pulleys, and verify that it runs smoothly without any slack or misalignment.
Finally, inspect the belt routing one more time to confirm everything is properly installed. Replace any covers or panels you removed earlier, start the engine, and observe the belt in action. Listen for any unusual noises or signs of improper tension, such as squealing or slippage. If everything runs smoothly, you’re done!
Troubleshooting Common Serpentine Belt Issues in the 2005 Acura TL
If your 2005 Acura TL’s serpentine belt is malfunctioning, inspect these common problems to get your vehicle running smoothly again.
- Wear and Tear: The most frequent issue with serpentine belts is gradual wear. If you hear squealing noises, the belt may be cracked, glazed, or stretched. Inspect the belt’s surface for visible damage. Replace it immediately if there are any signs of deterioration.
- Misalignment: If the belt appears to be shifting or slipping off pulleys, check for misalignment. This could be caused by a worn or damaged pulley, or a malfunctioning tensioner. Ensure the belt runs in a straight line across all components.
- Incorrect Tension: A belt that’s too tight or too loose can cause problems. A tight belt puts excessive pressure on the pulleys, while a loose one might slip off or fail to drive components efficiently. Use a tension gauge to check and adjust the belt’s tightness to manufacturer specifications.
- Noisy Operation: A squealing or chirping sound often indicates friction, which could be due to a misaligned pulley or insufficient belt tension. If the noise persists after adjusting tension, inspect the pulleys for wear and replace them if necessary.
- Pulley Damage: Check each pulley for signs of rust, dirt buildup, or wear. A damaged pulley can cause the belt to slip or wear out prematurely. Make sure each pulley spins freely and smoothly.
- Worn Tensioner: The tensioner is crucial in maintaining proper belt tension. If the belt keeps slipping or is too tight despite adjustments, the tensioner could be worn or failing. Replace the tensioner if it appears faulty.
Regularly inspect the serpentine belt for signs of damage and check tension and alignment. Catching issues early prevents further damage to other components, saving time and money on repairs.
