Jeep Wrangler Serpentine Belt Diagram and Installation Guide
For proper maintenance of your Jeep Wrangler, it’s crucial to understand the serpentine belt system. If you’re replacing the serpentine belt or diagnosing issues with it, a clear diagram will make the process significantly easier. It’s important to ensure the belt is routed correctly to avoid unnecessary wear on the components it powers.
The serpentine belt in your Jeep Wrangler runs through several pulleys, driving critical accessories like the alternator, power steering pump, and air conditioning compressor. Understanding the exact path of this belt is essential when performing any maintenance or repairs. An incorrect belt routing can cause engine damage or reduce the efficiency of the vehicle’s systems.
Use the diagram to check if the belt routing matches the factory specifications. Each pulley must align perfectly to ensure proper function. If you notice any squealing noises or difficulty steering, a misrouted or damaged serpentine belt could be the culprit.
Once the belt is routed correctly, check for tension. A properly tensioned belt will not be too loose or too tight, which is key to preventing premature wear on both the belt and the pulleys. If you’re unsure about the condition of your serpentine belt, always replace it before it fails. The diagram provides an accurate guide for both installation and maintenance tasks.

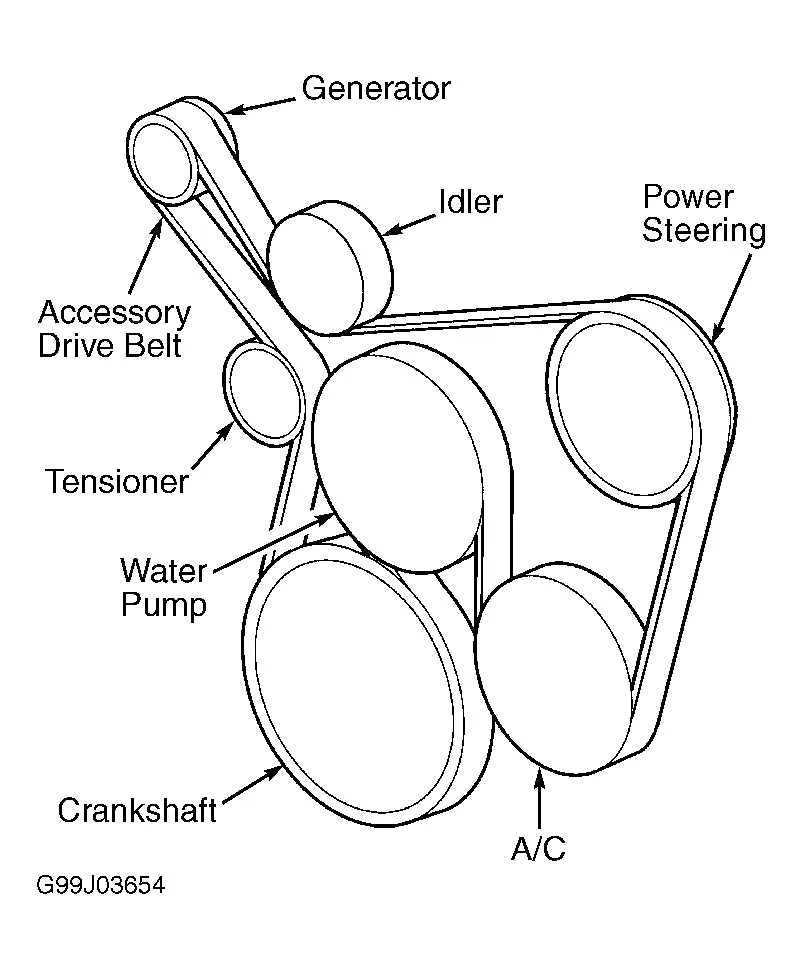

Jeep Wrangler Serpentine Belt Diagram

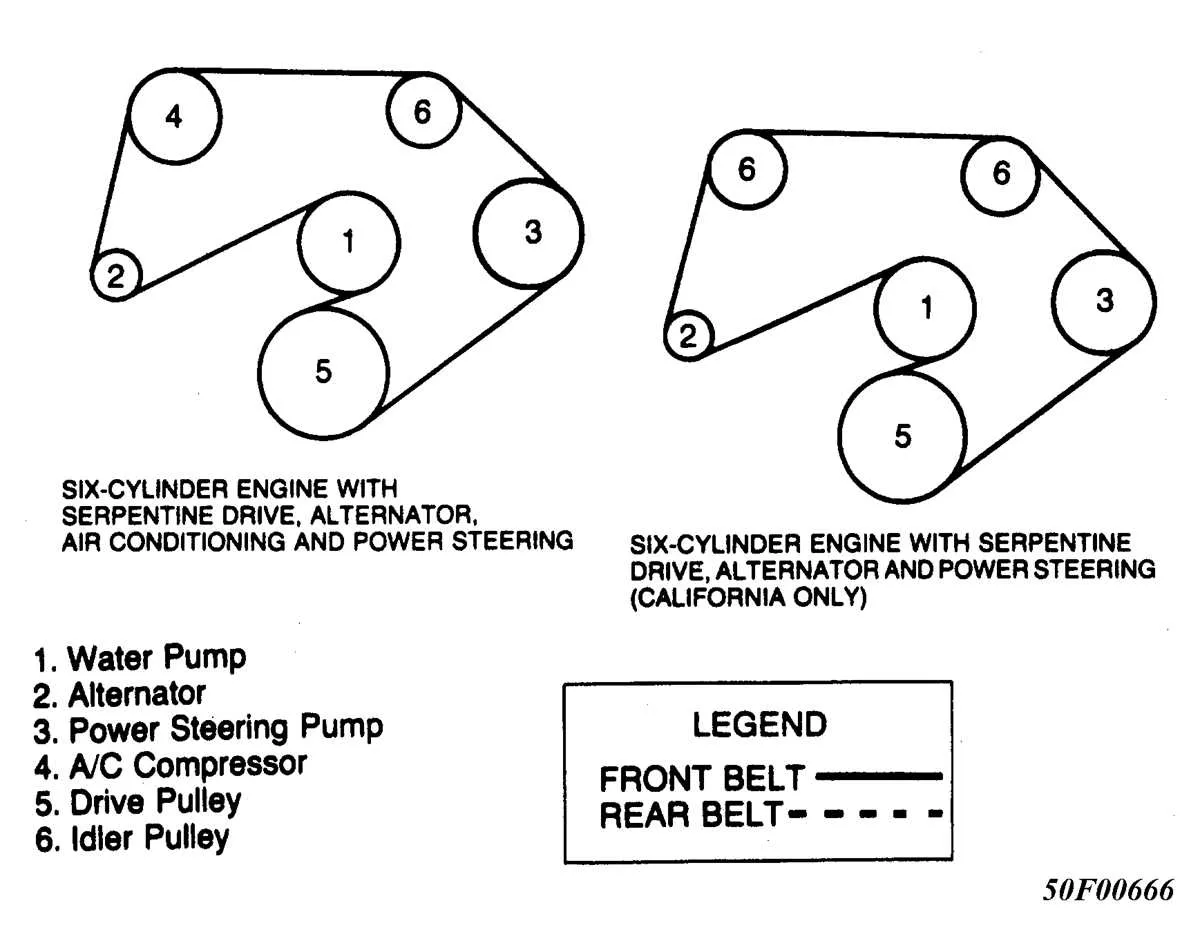

For proper installation and maintenance, consult the serpentine belt diagram specific to your Jeep Wrangler model. This diagram outlines the correct routing of the serpentine belt, ensuring that each component–alternator, power steering pump, air conditioning compressor, and water pump–functions smoothly.
To replace or inspect the serpentine belt, start by locating the tensioner pulley. Use a wrench or socket to release the tension, allowing the belt to be removed. Ensure the new belt follows the exact routing shown in the diagram. Pay special attention to belt alignment on each pulley to avoid premature wear.
Common issues related to the serpentine belt include squeaking noises or difficulty with steering and air conditioning, indicating a worn or misaligned belt. Regularly check for signs of cracking or fraying on the belt, especially if you notice any performance issues with your vehicle.
For your convenience, you can usually find the diagram either on the radiator support or inside the hood, sometimes near the front of the engine bay. Double-check the specifications for your particular year and model to ensure you’re referencing the correct diagram.
How to Read the Jeep Wrangler Serpentine Belt Diagram

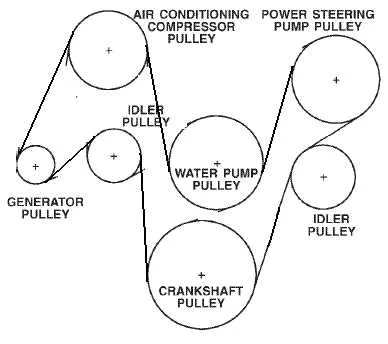

To read the Jeep Wrangler serpentine belt diagram, first locate the belt routing path. The diagram will show how the belt loops around various pulleys and components, including the alternator, power steering pump, and air conditioning compressor. Focus on the direction of the arrows in the diagram, which indicate the movement of the belt and the rotation of the pulleys.

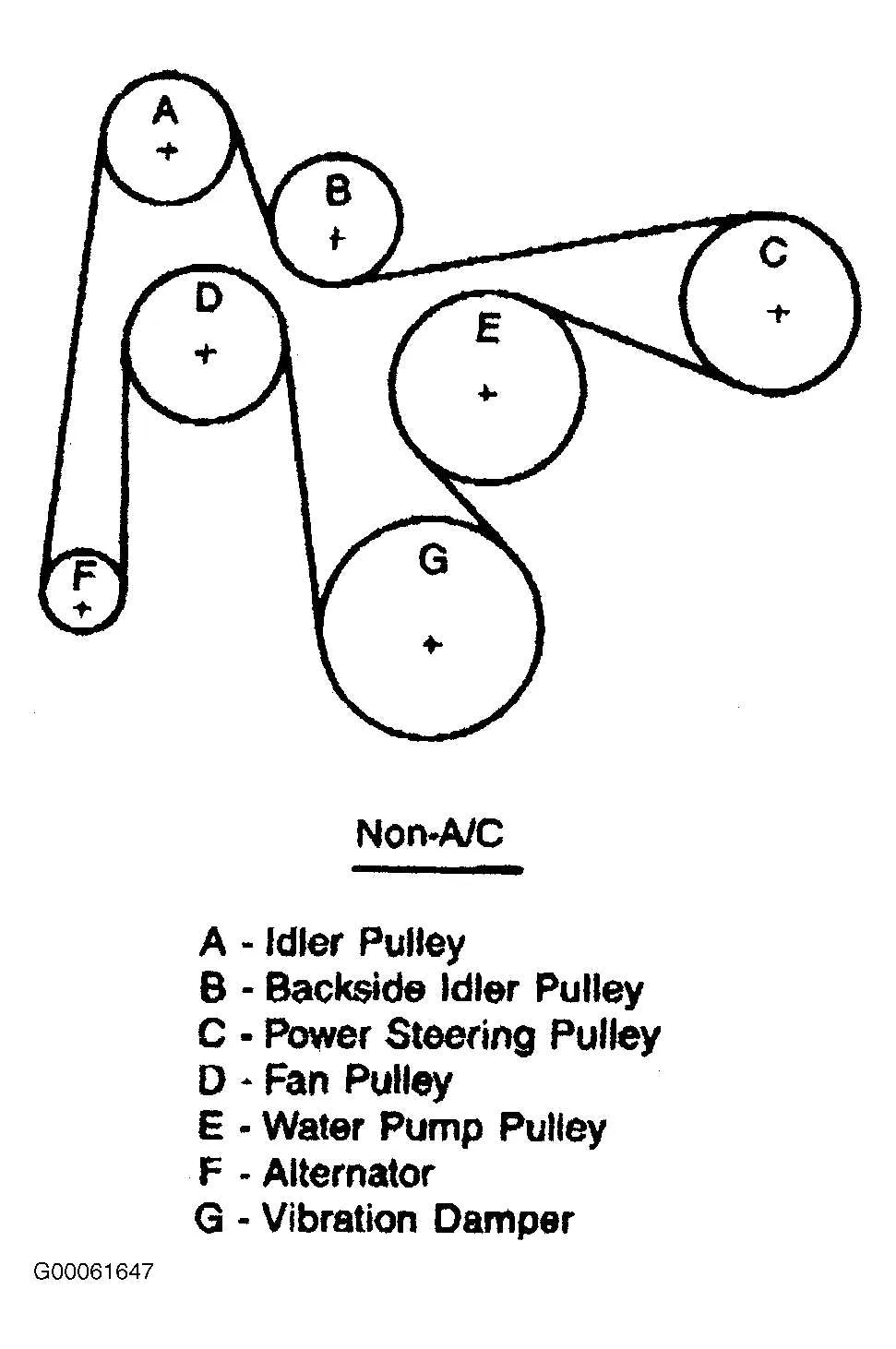

Identify the tensioner pulley, often marked clearly on the diagram. This pulley is responsible for keeping the belt tight. When inspecting the diagram, check for the idler pulleys, which guide the belt along the correct path without being powered by the engine directly. These are often the easiest to miss but are critical to ensure the belt functions properly.
Check the layout for any special instructions. Some diagrams include notations for which pulleys are driven by the engine, while others may highlight specific service points, like the tensioner adjustment. These notes can provide clarity on how to perform maintenance or troubleshooting tasks.
When replacing the serpentine belt, make sure to compare the new belt with the diagram. Double-check that the routing matches perfectly. If you’re unsure, turning the engine over by hand can help confirm the belt’s path before starting the engine.
Lastly, always verify the belt’s condition regularly. If the diagram shows an excessively worn or cracked belt, it’s time for a replacement. This simple step will help maintain your vehicle’s performance and avoid unexpected breakdowns.
Common Issues with Jeep Wrangler Serpentine Belt Routing
Incorrect routing of the serpentine belt can cause various issues with your Jeep Wrangler’s engine performance. A misaligned or improperly routed belt might result in poor engine operation or damage to other components. Here are some common problems to look out for:
- Belt Slippage: If the serpentine belt isn’t routed properly, it may slip off or lose tension. This can lead to squealing noises and reduced efficiency in power transfer to critical components like the alternator, power steering pump, or air conditioning compressor.
- Friction and Heat Build-up: Improper belt routing can cause excessive friction, leading to overheating. This can significantly shorten the life of the serpentine belt and other parts it interacts with, such as pulleys or tensioners.
- Misalignment of Pulleys: When the serpentine belt is not routed correctly, the pulleys may become misaligned. This can cause uneven wear on the belt and prevent components from working correctly, such as the water pump, alternator, and power steering pump.
- Increased Wear on Tensioner: A poorly routed belt puts extra strain on the tensioner, leading to premature failure. If the belt moves out of its optimal alignment, it may require the tensioner to work harder, which can lead to it wearing out sooner than expected.
- Unusual Noises: An incorrectly routed serpentine belt can lead to a variety of noises, including squeaking or grinding. This often indicates that the belt is rubbing against other engine components, leading to excessive wear.
Ensure the serpentine belt is routed according to the correct diagram for your Jeep Wrangler model. A small mistake in routing can lead to costly repairs and reduce the lifespan of critical components.
Step-by-Step Guide to Replacing the Serpentine Belt in Jeep Wrangler
1. Prepare Your Tools and Workspace
Make sure you have a socket set, a belt tensioner tool, a wrench, and a new serpentine belt that matches your Jeep’s specifications. Park your vehicle on a flat surface, and engage the parking brake for safety.
2. Locate the Serpentine Belt
Open the hood and find the serpentine belt. It runs through several pulleys and is usually located at the front of the engine. Take a picture or make a diagram of the belt’s routing before removing it.
3. Release the Tension on the Belt
Use a belt tensioner tool or socket wrench to rotate the tensioner pulley. This will relieve the pressure on the serpentine belt. Once the tension is released, slip the belt off the pulleys carefully.
4. Remove the Old Belt
After loosening the tension, remove the old belt from the engine. Take note of how the belt fits around the pulleys to help with the installation of the new belt.
5. Install the New Serpentine Belt
Route the new serpentine belt around the pulleys, following the diagram you made earlier. Ensure the belt is properly seated in all grooves. Check that it is aligned correctly before applying tension.
6. Tighten the Tensioner
Once the new belt is in place, use the tensioner tool to move the tensioner pulley back into position, applying proper tension to the new belt. Verify that the belt has the right amount of slack by pushing on it with your finger.
7. Double-Check the Belt Routing
Take a moment to check that the belt is properly routed and tightly secured. Verify that it is seated correctly on all pulleys and that there are no twists or misalignments.
8. Start the Engine
Turn on your engine and let it idle for a few minutes. Listen for any unusual noises or signs of improper installation. Check the belt again to ensure it’s running smoothly.
9. Test Drive
Take your Jeep for a short drive to ensure that everything is working as expected. Pay attention to the performance and check that the serpentine belt is not slipping or making noise.
10. Final Check
After the test drive, inspect the belt one more time to ensure it’s running properly. If everything looks good, your serpentine belt replacement is complete.
