2004 Grand Prix Serpentine Belt Diagram and Correct Routing Instructions
Consult the 2004 Grand Prix serpentine belt diagram to identify the correct routing for the alternator, power steering pump, air conditioning compressor, and crankshaft pulley. Using the diagram ensures proper tension and prevents premature belt wear.
Check the belt for cracks, fraying, or glazing before installation. Replace any worn components, including the tensioner and idler pulleys, to maintain smooth operation and reduce the risk of engine accessory failure.
Follow the diagram step by step during installation. Loop the belt around each pulley according to the specified path, making sure the ribbed side aligns with grooved pulleys. Use a wrench to adjust the tensioner, confirming the belt maintains consistent tension across all pulleys.
After installation, run the engine at idle and observe belt alignment. Ensure the belt tracks smoothly without slipping or jumping off pulleys. Double-check that all accessories function correctly before completing the procedure.
2004 Grand Prix Serpentine Belt Diagram Detailed Guide for Maintenance and Replacement
Inspect the serpentine belt for cracks, fraying, or glazing every 30,000 miles. Use the diagram specific to the 2004 Grand Prix to identify the routing around the alternator, power steering pump, water pump, and AC compressor.
Before removing the old belt, release tension using a 3/8-inch ratchet on the tensioner pulley. Rotate the tensioner clockwise to relieve pressure and slide the belt off the pulleys. Keep track of the belt path by referencing the factory diagram to avoid misrouting.
Clean the pulleys with a cloth to remove dirt and residue. Check for misaligned or worn pulleys, which can shorten belt life. Replace any pulley showing wobble or rough rotation before installing the new belt.
Position the new belt according to the diagram, ensuring all grooves align with pulley ribs. Rotate the tensioner again to slip the belt over the last pulley, then release tension slowly. Verify the belt sits properly on each pulley and spins smoothly without slipping.
After installation, run the engine for one to two minutes and observe the belt operation. Listen for squealing or irregular movement. Adjust tension if needed by repeating the tensioner procedure, ensuring optimal performance and extending belt life.
Locating and Identifying Serpentine Belt Components on 2004 Grand Prix
Begin by positioning yourself at the front of the engine with the hood open and the battery disconnected. Identify the alternator on the passenger side; it is typically mounted high with a visible pulley at the front. Trace the belt from the alternator to the power steering pump, located lower and slightly to the driver side, featuring a larger pulley.
Locate the air conditioning compressor near the bottom front of the engine. Its pulley is usually smaller and connected via a clutch mechanism. Follow the belt to the water pump, centrally positioned, often behind the fan, which directs the belt toward the crankshaft pulley at the lowest point. The crankshaft pulley is the largest and drives all accessory components.
Find the idler pulley and tensioner pulley along the belt path; the idler pulley redirects the belt while the tensioner maintains proper tension. The tensioner is spring-loaded and can be adjusted with a ratchet or breaker bar. Verify each component by spinning the pulley manually to confirm smooth rotation and check for wear or misalignment.
Trace the complete serpentine belt route using the diagram printed on the radiator support or in the owner’s manual. Confirm that the belt sits correctly in each pulley groove and aligns with all accessory pulleys before reassembling any covers or reconnecting the battery.

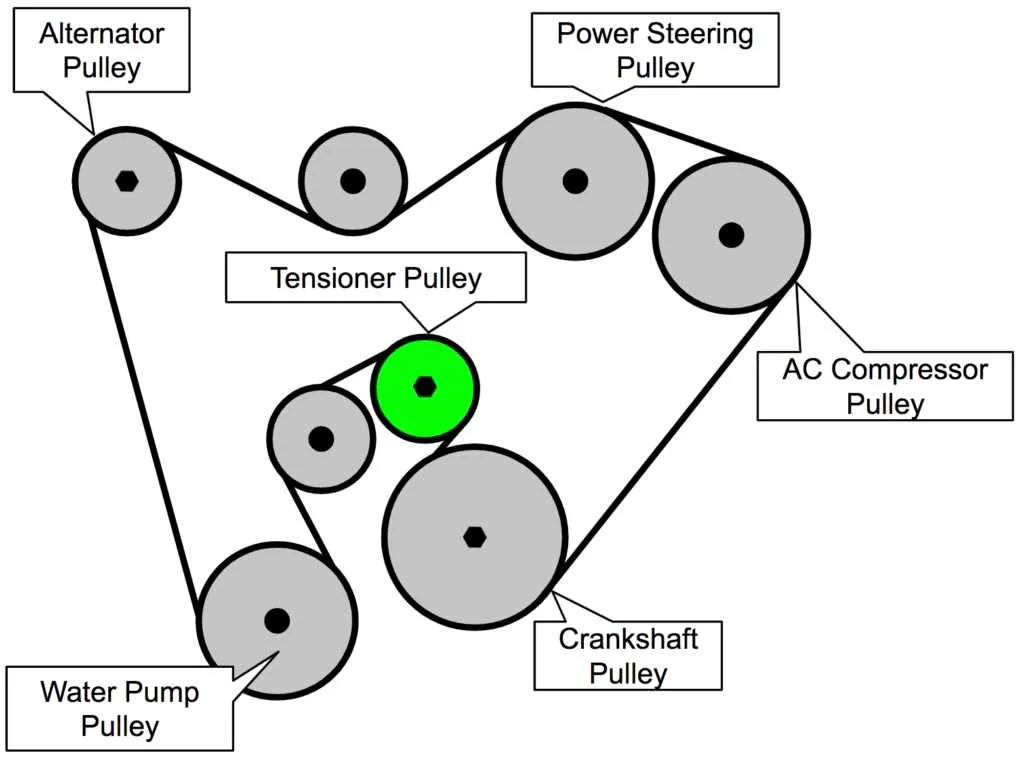

Step-by-Step Belt Routing Diagram for 2004 Grand Prix Engines
Begin by locating the crankshaft pulley at the bottom center of the engine. Loop the serpentine belt around the crankshaft pulley first, ensuring it sits securely in the grooves.
Next, route the belt clockwise around the alternator pulley positioned at the top left of the engine bay. Keep tension on the belt to prevent it from slipping off adjacent pulleys.
Guide the belt over the power steering pump pulley, located on the right side of the engine. Ensure the belt aligns with the pulley’s ribs for proper grip.
Continue routing the belt under the idler pulley near the center of the engine. This pulley maintains tension and prevents belt flutter.
Wrap the belt around the water pump pulley above the crankshaft. Verify that the belt sits evenly across the entire pulley width to avoid misalignment.
Finally, loop the belt over the tensioner pulley and adjust the tensioner to apply proper tension. Rotate the tensioner slowly to release it, allowing the belt to settle into place securely.
Double-check that the belt follows the correct path and that all pulleys are properly engaged. Run the engine at low speed for a few seconds and inspect belt tracking to ensure smooth operation without slipping or noise.
Troubleshooting Common Serpentine Belt Issues and Tension Adjustments
Inspect the serpentine belt for visible signs of wear, including cracks, fraying, glazing, or missing ribs. Check both the ribbed and smooth sides to ensure complete assessment.
Listen for squealing or chirping noises while the engine runs. High-pitched sounds often indicate belt slippage or misalignment.
- Check belt alignment across all pulleys. Misaligned pulleys can cause uneven wear and noise.
- Verify that the tensioner maintains proper belt tension. A weak or stuck tensioner can lead to slipping or premature wear.
- Inspect accessory pulleys for binding or rough rotation, which may strain the belt.
To adjust belt tension on the 2004 Grand Prix, locate the automatic tensioner. Use a 3/8″ ratchet or breaker bar to rotate the tensioner arm, relieving pressure and allowing belt installation or removal.
- Position the belt according to the routing diagram, ensuring ribs fit properly into pulley grooves.
- Rotate the tensioner arm clockwise (or as specified) to allow the belt to slide fully onto the tensioner pulley.
- Slowly release the tensioner, letting it apply the correct tension automatically.
- Spin each pulley by hand to confirm smooth rotation and proper belt seating.
If the belt continues to slip or make noise, measure belt deflection by applying moderate pressure midway between pulleys. Typical deflection should be around 1/4 to 1/2 inch for a correctly tensioned belt. Replace worn belts or faulty tensioners to maintain optimal performance.
