Husqvarna yth24v54 drive belt diagram with routing details and installation guidance

The drive belt on a Husqvarna YTH24V54 lawn tractor plays a critical role in ensuring smooth operation. If you’re experiencing issues with the belt, refer to the diagram for accurate guidance on positioning and installation. Replace the belt if it appears worn, cracked, or frayed to maintain optimal performance.

Start by locating the drive belt on the mower. It connects the engine to the transmission, transmitting power to the wheels. Understanding its path is crucial for both replacement and troubleshooting. The diagram will help you visualize the route the belt follows, allowing for precise alignment during installation.

When replacing the drive belt, make sure to disconnect the battery and elevate the mower for easy access. Carefully remove any debris or objects blocking the belt path. If you’re unsure about the diagram, ensure that each section of the belt is routed as shown, particularly around pulleys and guides, to prevent misalignment and unnecessary wear.

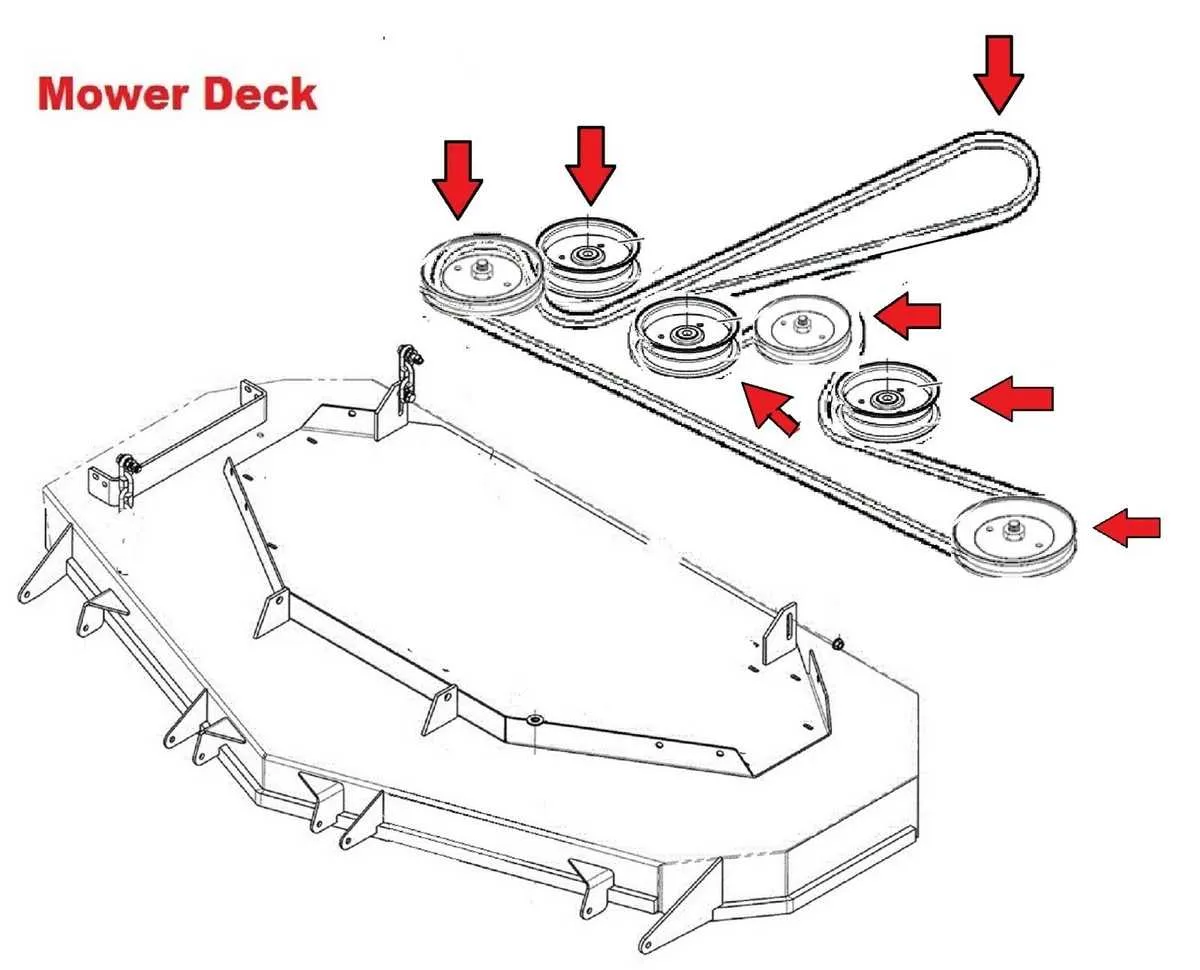

Husqvarna YTH24V54 Drive Belt Diagram

To replace or troubleshoot the drive belt on the Husqvarna YTH24V54, follow this diagram for proper routing. The belt ensures smooth operation of the transmission and cutting deck. Ensure the mower is turned off and disconnected from any power source before starting the replacement process.

Start by positioning the front of the mower toward you. The drive belt loops around the engine pulley, the idler pulley, and the transmission pulley. The belt then extends to the cutting deck. Check the belt’s path, ensuring it’s routed around the engine pulley on the right, around the tensioner pulley, and towards the transmission pulley on the left side.

The diagram clearly illustrates the following key points:

– The belt should fit snugly within the pulley grooves.

– Avoid twisting the belt, as this can lead to premature wear.

– Ensure the tensioner pulley is set at the correct tension for optimal performance.

After confirming the correct belt routing, adjust the idler pulleys to ensure the belt remains taut. Double-check all pulley connections before tightening any bolts. Once the belt is properly installed, test the mower by engaging the transmission to check for smooth operation.

For detailed maintenance, inspect the belt regularly for signs of wear or cracks. Replace it if any damage is visible to maintain smooth operation and prevent damage to the mower’s components.

Correct Belt Routing on Husqvarna YTH24V54

Ensure the belt is routed around the pulley system as shown in the diagram for proper performance and longevity of your Husqvarna YTH24V54. Begin by threading the drive belt over the engine pulley and then route it under the deck pulleys. The belt should pass over the deck idler pulley and wrap around the main drive pulley with the smooth side facing the pulley. Verify that the belt tension is correct, ensuring it is neither too tight nor too loose. If any part of the belt shows signs of wear or damage, replace it immediately to avoid further complications. Double-check the routing before reassembly to ensure the belt aligns with the diagram’s path and remains secure under normal operation.

Confirm that the belt does not interfere with other components or shift out of place during operation. For consistent function, check the belt regularly, especially after long periods of use or after mowing on uneven terrain. Pay attention to the routing near the tensioner pulley to avoid excessive wear on the belt and pulleys.

Steps to Remove and Replace the Drive Belt

1. Lift the Mower Deck

Use a jack or lift to raise the mower deck to a comfortable height, ensuring it is stable before proceeding.

2. Remove the Mower Deck

Detach the deck from the mower frame by loosening the mounting bolts and any fasteners securing the deck. Carefully slide the deck out from under the mower.

3. Disconnect the Battery

For safety, disconnect the battery terminals. Start with the negative terminal to avoid any electrical issues while working.

4. Locate the Drive Belt

Identify the belt routing diagram on the mower or consult the manual. This will help you understand the exact path the belt takes around the pulleys.

5. Loosen the Tensioner

Locate the tensioner pulley. Use a wrench or socket to relieve the tension on the drive belt. This will allow you to easily remove the belt from the pulleys.

6. Remove the Old Belt

Carefully remove the old belt from the pulleys, noting the routing as a reference for installing the new belt.

7. Install the New Belt

Place the new drive belt around the pulleys according to the belt routing diagram. Ensure the belt sits properly on each pulley and is not twisted.

8. Reapply Tension

Once the new belt is in place, re-tighten the tensioner pulley to ensure proper belt tension. The belt should have slight tension but should not be overly tight.

9. Reinstall the Mower Deck

Slide the deck back into place under the mower. Secure it with the mounting bolts and any other fasteners that were previously removed.

10. Reconnect the Battery

Reconnect the battery terminals, starting with the positive terminal first. Ensure the connections are tight and secure.

11. Test the Mower

Start the mower and engage the drive system to check for any unusual noises or issues. Make sure the belt is functioning properly and the mower operates smoothly.

Common Issues Caused by Incorrect Belt Installation

Incorrect belt installation can lead to several problems that affect the performance and longevity of your Husqvarna YTH24V54 mower. Pay attention to these common issues to avoid unnecessary repairs:

• Slipping Belt: A misaligned or improperly tensioned belt often slips, reducing power transfer from the engine to the wheels. This can result in poor performance and slower mowing speeds.
• Excessive Wear: A poorly installed belt may rub against surrounding components, causing rapid wear. This not only shortens the belt’s lifespan but also leads to damage in the surrounding parts.
• Noise: If the belt is not positioned correctly, it may produce squealing or grinding noises. This is usually a sign of misalignment or incorrect tensioning.
• Broken Belt: If a belt is installed too tightly or too loosely, it can snap under pressure. Over time, incorrect tension causes strain, leading to premature breakage.
• Decreased Efficiency: A poorly installed belt can reduce the mower’s overall efficiency. The engine may work harder than necessary, leading to overheating and fuel wastage.

To prevent these issues, follow the manufacturer’s instructions carefully when installing the belt. Double-check the alignment, tension, and routing before reassembling the mower. Regular maintenance and belt inspections can also help catch problems early.
