07 Toyota Camry Serpentine Belt Routing Diagram and Installation Guide
To replace the serpentine belt on your 2007 Toyota Camry, knowing the exact routing diagram is key. The serpentine belt drives multiple engine components, including the alternator, power steering pump, and air conditioning compressor. A proper belt diagram ensures you don’t miss any steps and avoids misalignment when installing the new belt.
The diagram below shows how the belt should be routed over the various pulleys, starting from the crankshaft pulley and looping through the alternator, power steering, and other components. Pay close attention to the tensioner pulley, which will need to be loosened to remove the old belt and install the new one.
To make the job easier, use a belt tensioner tool or a socket wrench to relieve the tension. Make sure the new belt follows the exact pattern shown in the diagram to prevent any issues with belt wear or damage. If you’ve done this right, you’ll notice smoother engine performance once the new serpentine belt is installed.

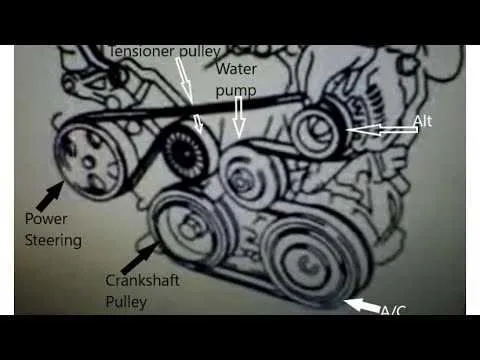

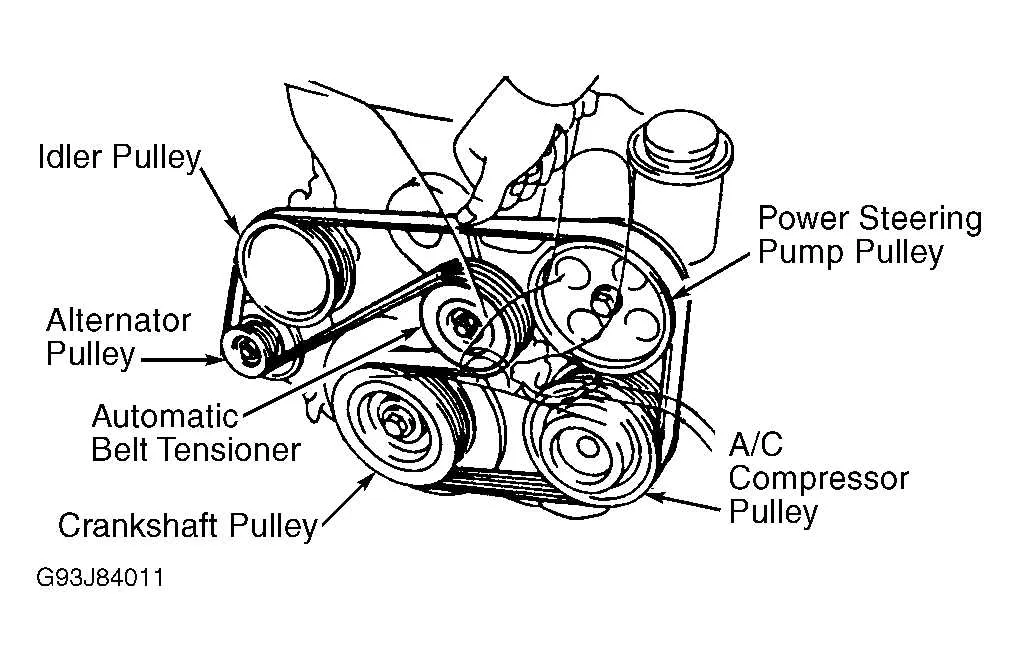

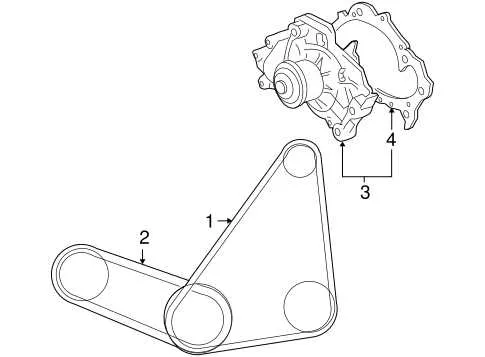

07 Camry Serpentine Belt Diagram
If you’re looking to replace the serpentine belt on a 2007 Toyota Camry, it’s crucial to understand the belt routing and components involved. The diagram shows a single serpentine belt that drives several essential components like the alternator, power steering pump, water pump, and air conditioning compressor.
The belt routing begins at the crankshaft pulley, moves around the tensioner pulley, and continues through various other pulleys. Make sure to check the correct belt tensioner position, which ensures the belt stays tight and functional over time. Look for wear signs like cracking, fraying, or squeaking, as these are common indicators that the belt needs replacing.
When replacing the belt, always use a quality replacement that matches the original part number. Avoid shortcuts–incorrect installation or using subpar parts can lead to premature failure. The belt should sit flush on all pulleys and should not have any slack. If there’s any slack, the tensioner might need to be replaced as well.
To get a visual reference for proper installation, refer to the diagram, making sure the belt is routed exactly as shown. Double-check the path around each pulley before tensioning the belt to ensure there are no misalignments.
How to Identify Serpentine Belt Routing for 07 Camry
For the 2007 Toyota Camry, the serpentine belt routing is straightforward once you know where the components are located. Follow these steps to identify the correct routing:
1. Locate the Tensioner: The tensioner pulley maintains the proper tension on the serpentine belt. It’s usually located near the top center of the engine bay. Make sure it’s able to move freely by using a wrench or ratchet to relieve tension.
2. Identify the Components: The serpentine belt in the Camry drives several key components, including the alternator, power steering pump, air conditioning compressor, and water pump. Check each of these parts to ensure you’re routing the belt correctly around them.
3. Check the Belt Routing Diagram: A diagram is usually found on the engine bay, often near the radiator or on the timing cover. This diagram outlines the exact path the serpentine belt should follow, showing where it wraps around each pulley.
4. Route the Belt Properly: Begin with the crankshaft pulley at the bottom. From there, route the belt around the tensioner pulley, following the diagram. Ensure the belt is in the grooves of each pulley and that it doesn’t slip off during rotation.
| Component | Location |
|---|---|
| Crankshaft Pulley | Bottom of the engine, drives the serpentine belt |
| Alternator | Front passenger side of the engine |
| Power Steering Pump | Near the alternator on the driver’s side |
| Air Conditioning Compressor | Passenger side, next to the alternator |
| Water Pump | Driver’s side, towards the bottom of the engine |
| Tensioner Pulley | Top center of the engine bay |
5. Inspect for Correct Tension: Once the belt is in place, check for proper tension. The belt should not be too tight or loose. A slack belt can cause slipping, while an overly tight one can lead to premature wear of components.
6. Test the System: Start the engine and observe the serpentine belt in motion. If the belt is routing correctly, it should run smoothly without skipping or making noise. If you hear squealing or the belt appears misaligned, stop and recheck the routing.
Step-by-Step Guide to Replacing the Serpentine Belt on 07 Camry
Begin by disconnecting the car battery to avoid any electrical issues. Use a 10mm socket to remove the negative terminal. Make sure the car is off and parked on a level surface. Lift the front of the vehicle using a jack and secure it with jack stands for safety.
Locate the serpentine belt. It runs through the engine, connecting the alternator, power steering pump, water pump, and other components. Check the belt’s tensioner, which is used to adjust its tightness. Use a ratchet and socket to rotate the tensioner clockwise to relieve tension on the belt, allowing you to slide it off the pulleys.
Before removing the belt, take note of the serpentine belt routing. You can refer to the diagram typically found on the engine bay’s radiator support or on the underside of the hood. This will guide you in installing the new belt correctly.
Once the belt is removed, compare the new serpentine belt to the old one to ensure they are the same size. If they match, install the new belt by following the same routing pattern. Make sure the belt sits properly on all pulleys without twisting. Reapply tension to the belt by rotating the tensioner counterclockwise and locking it back into position.
Before finishing, manually rotate the engine’s crankshaft pulley with a wrench to ensure the belt is seated properly. Reconnect the battery terminal and start the engine to check for smooth operation. If everything runs smoothly, lower the car back to the ground.
Double-check for any noise or belt slippage, as these could indicate improper installation. If the belt runs quietly and smoothly, you’re done.
Troubleshooting Common Serpentine Belt Issues in 07 Camry
If your 2007 Camry’s serpentine belt is showing signs of wear or malfunction, quick diagnosis can save you time and money. Start by checking for the following issues:
- Squealing or Chirping Noise: This usually happens when the belt is slipping. Inspect the belt for cracks, fraying, or oil contamination. If the belt is worn out, replace it. A tensioner that’s too loose can also cause the belt to slip, so check the tensioner’s spring and pulley.
- Belt Wear or Cracking: Over time, belts can crack or fray. Check for visible signs of wear, especially on the ribbed side. If the belt looks damaged, replace it immediately to avoid engine overheating or failure of auxiliary components.
- Belt is Misaligned: A misaligned belt may indicate issues with pulleys or the belt tensioner. Use a straight edge to check if the pulleys are aligned. Misalignment can cause the belt to wear unevenly or break prematurely.
- Loss of Power Steering or AC: A slipping serpentine belt can prevent accessories like the power steering pump or air conditioning compressor from functioning correctly. Test these systems to see if the belt is affecting their performance. In some cases, a worn-out belt or pulley can reduce the efficiency of these components.
- Unusual Vibration or Shaking: If you notice the engine vibrating excessively, inspect the belt and pulleys for damage. A broken or loose belt can cause instability. Check the condition of the pulleys and tensioner to ensure they’re operating smoothly.
For best results, regularly inspect the belt’s condition and replace it according to the manufacturer’s recommended intervals. A functional serpentine belt is crucial for smooth operation, so addressing these issues early will keep your Camry running smoothly.
