2005 6.0 Powerstroke Serpentine Belt Diagram and Routing
The 2005 6.0 Powerstroke belt diagram is critical for proper engine maintenance and repairs. Start by locating the engine’s belt routing diagram, which is often found on the radiator support or under the hood. This diagram shows the exact path the serpentine belt follows, ensuring all components, like the alternator, power steering pump, and air conditioning compressor, are powered correctly.
If you’re replacing the belt, make sure to use a new one that matches the original specifications. A belt that is too tight or too loose can cause damage to the engine components. To remove the old belt, use a 3/8-inch ratchet wrench to release the tensioner. Carefully work the belt off the pulleys, and make sure you take note of the belt routing for easy installation of the new one.
After installing the new belt, double-check the alignment of all pulleys. The belt should sit in the grooves of the pulleys without slipping. Ensure the tensioner is functioning properly and is keeping the belt tight enough to avoid slippage. A correctly installed belt can significantly extend the life of your engine components.

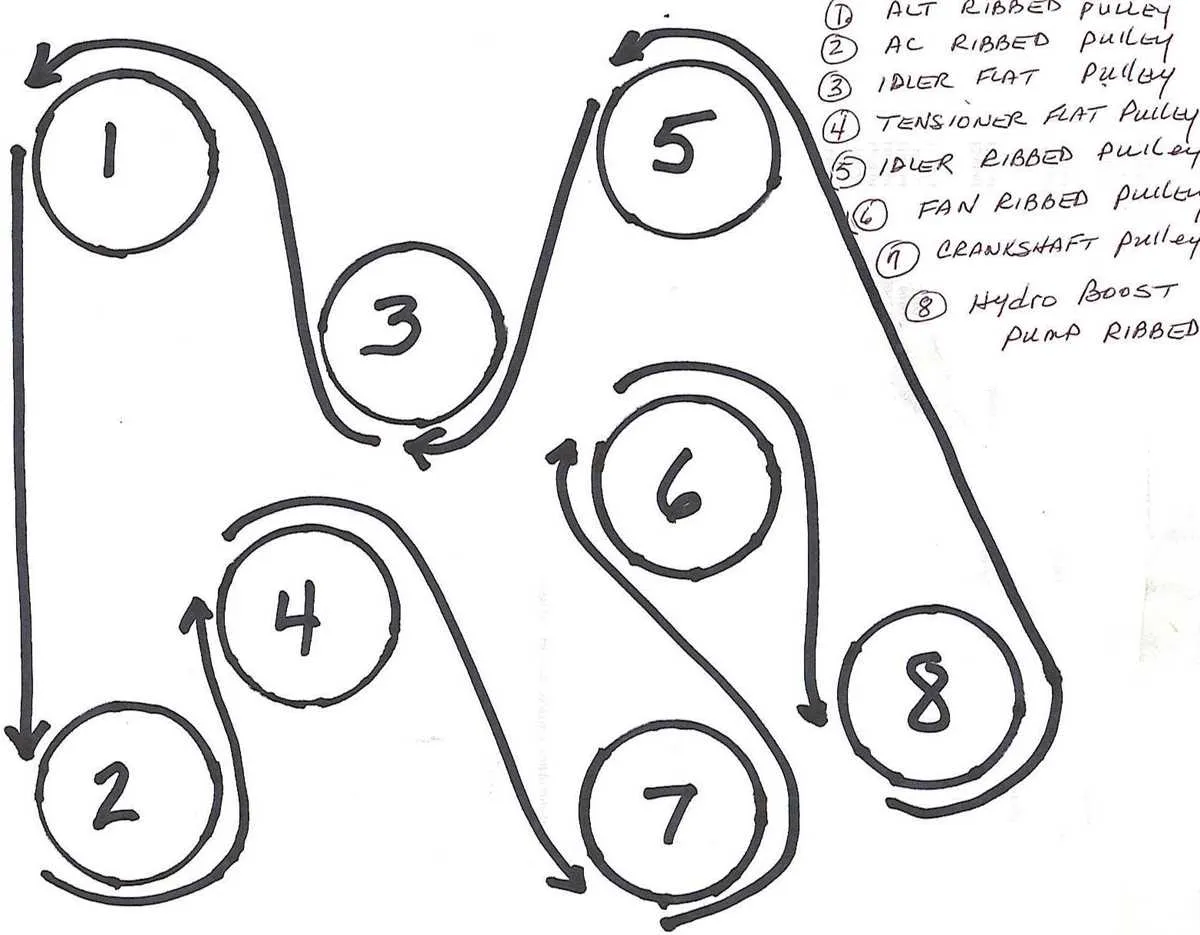

2005 6.0 Powerstroke Belt Diagram
To ensure your 2005 6.0 Powerstroke engine operates smoothly, it’s important to follow the correct routing for the serpentine belt. A faulty belt setup can lead to engine overheating or malfunctioning accessories. Here’s a detailed overview of the correct belt configuration for your vehicle.
Start by ensuring you have the proper replacement belt with the right length and specifications for your 2005 6.0 Powerstroke. The belt should have the following characteristics:
- Length: 148.5 inches
- Width: 1 inch
- Grooves: 6
To install or replace the serpentine belt:
- Locate the tensioner pulley. It’s on the driver’s side of the engine bay.
- Use a socket wrench to rotate the tensioner clockwise, releasing tension from the belt.
- Remove the old belt and install the new one by following the diagram. Ensure the belt is routed over all pulleys correctly.
- Double-check the alignment of the belt on each pulley to avoid misplacement.
- Release the tensioner to secure the new belt in place.
Verify the belt operates smoothly by starting the engine. Listen for any unusual noises and check the belt for proper tension.
Proper maintenance of the serpentine belt is crucial. Replace it every 60,000 to 100,000 miles, or sooner if you notice any signs of wear such as cracking or fraying.
How to Interpret the 2005 6.0 Powerstroke Belt Diagram
To correctly interpret the 2005 6.0 Powerstroke belt diagram, start by locating the key components shown in the diagram: the alternator, power steering pump, air conditioning compressor, and water pump. Each part is represented by a specific symbol or label, making it easy to identify their positions and connections within the system.
Focus on the direction of the arrows, which indicate how the serpentine belt moves through the components. The belt’s path is crucial to ensuring proper tension and preventing slippage. Always check that the arrows point in the correct direction for efficient belt movement. If the diagram shows a tensioner pulley, make sure it’s positioned correctly, as this will maintain the proper belt tension.
Next, note any additional pulleys or idlers included in the diagram. These components help guide the belt and ensure its alignment. Some diagrams may highlight the correct order in which each component must be installed to avoid errors during reassembly.
Make sure to compare the belt diagram with the actual setup in your engine bay. Double-check if the belt routing and pulley positions match the diagram exactly. Any deviation may result in improper function, causing premature wear or even damage to the components.
If you’re replacing the belt, take note of the belt length and type specified in the diagram to ensure compatibility with your engine. Some diagrams also include recommended torque settings for specific components, such as the tensioner or idler pulleys, which is critical for proper installation.
Common Issues with the Belt System in the 2005 6.0 Powerstroke
One of the most common issues with the 2005 6.0 Powerstroke belt system is premature wear on the serpentine belt. This often happens due to improper tension, which causes the belt to slip or become misaligned. Regular inspection and adjustment of the belt tension can prevent this from happening.
The idler pulleys are another weak point. Over time, the bearings in these pulleys wear out, leading to squealing noises or even a complete pulley failure. Inspecting the idler pulleys and replacing them at the first sign of wear will help keep the system functioning smoothly.
Another issue is belt routing. Incorrect routing during a previous replacement or repair can cause the belt to rub against components, leading to premature failure. Always refer to the manufacturer’s belt diagram for proper routing to avoid such issues.
Heat is a significant factor that affects the longevity of the belt system. The 6.0 Powerstroke engine generates a lot of heat, which can degrade the belt material over time. Installing heat shields around sensitive components can help reduce this impact and extend the life of the belt.
Finally, be mindful of any oil or coolant leaks in the engine bay. These fluids can damage the belt and cause it to slip, leading to performance issues. Regularly checking for leaks and addressing them promptly will help maintain the integrity of the belt system.
Step-by-Step Guide to Replacing the Belt on a 2005 6.0 Powerstroke
First, make sure the engine is off and has cooled down. Disconnect the negative battery cable to prevent any electrical issues during the process.
Locate the serpentine belt tensioner. Use a ratchet or breaker bar to relieve tension from the belt. Rotate the tensioner clockwise and slide the belt off the pulleys. Keep track of the belt routing, as this will help during reinstallation.
Inspect the belt for signs of wear, cracking, or fraying. If the belt is damaged, it is time for a replacement. Compare the old belt with the new one to ensure correct size and fit.
Place the new belt over the pulleys, following the exact routing pattern as before. Make sure the belt is seated properly on each pulley, especially the idler pulleys and the crankshaft pulley.
Rotate the tensioner again with the breaker bar to relieve tension, and slip the belt into place. Slowly release the tensioner to apply pressure to the belt, ensuring it is tightened correctly.
Double-check the belt’s alignment and tension by manually rotating the engine’s crankshaft pulley. If the belt seems misaligned, remove it and reinstall, ensuring it sits properly on all pulleys.
Reconnect the battery cable and start the engine. Observe the belt for proper operation. Listen for any unusual noises or signs of slippage. If everything runs smoothly, you’ve successfully replaced the serpentine belt.
