Scag Turf Tiger 72 Inch Deck Belt Diagram and Routing Guide
Understanding the belt routing on the Scag Turf Tiger 72-inch deck is crucial for maintaining optimal performance. A well-maintained belt ensures smooth operation and reduces wear on components. To correctly replace or inspect the belt, follow the exact routing pattern as shown in the diagram.
The diagram clearly indicates the positioning of the belt over pulleys, ensuring proper tension and alignment. Pay close attention to the direction of the pulleys and the specific points where the belt must loop to avoid operational issues. Incorrect routing can cause excessive wear and even premature belt failure.
Regular inspection of the belt is recommended. Check for signs of wear such as cracks, fraying, or uneven tension. Replace the belt if it shows significant damage. A proper diagram helps identify the correct belt replacement procedure, making maintenance simpler and more efficient.

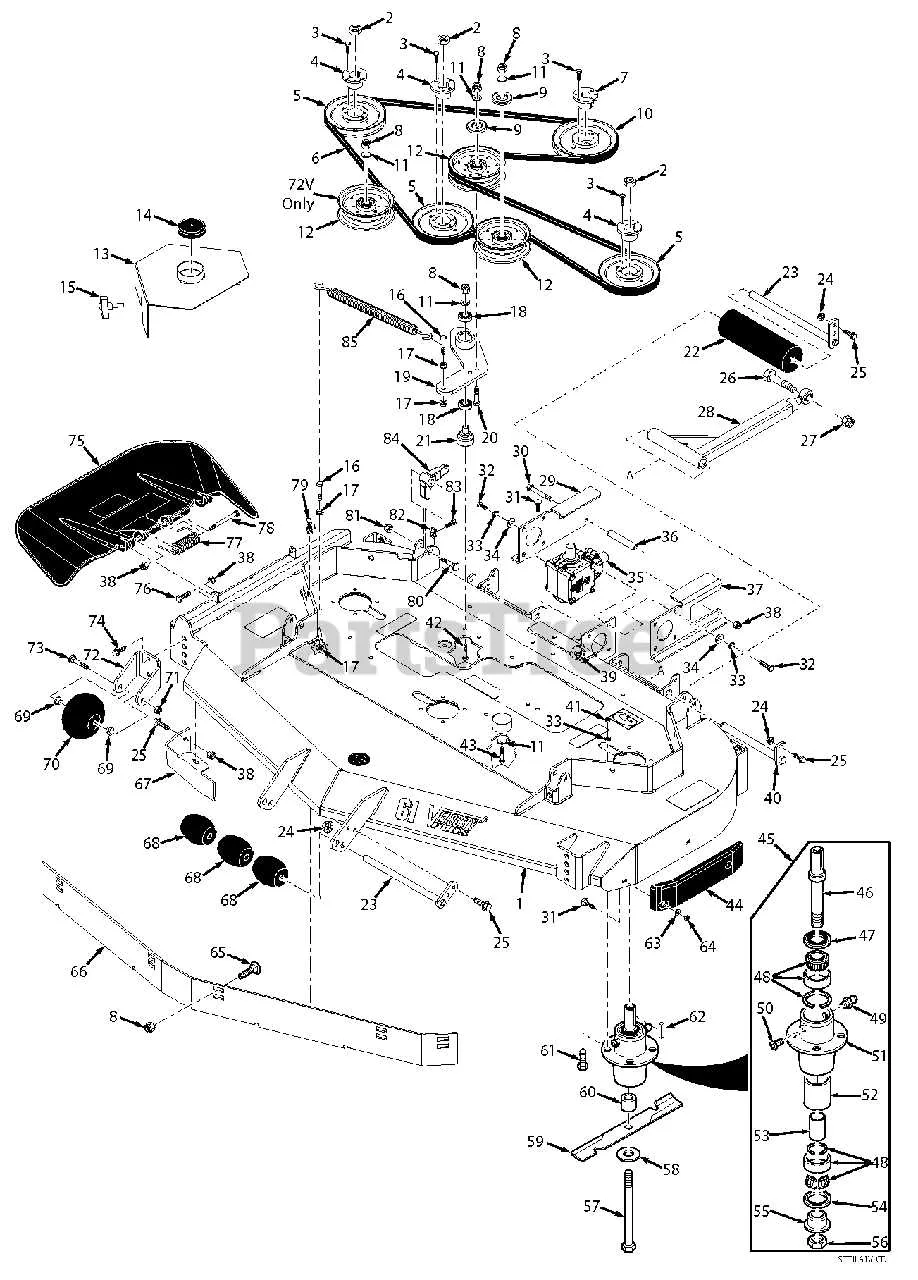

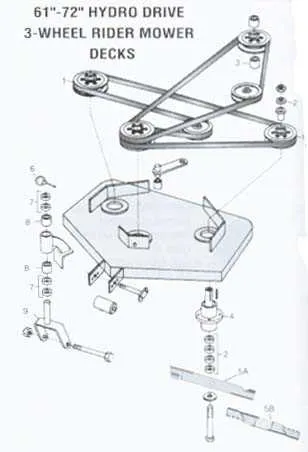

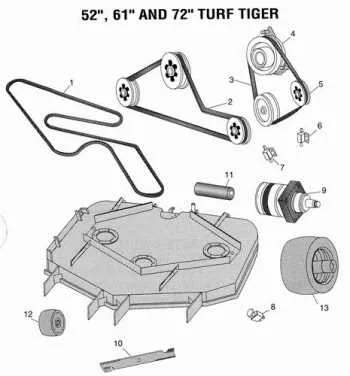

Scag Turf Tiger 72 Inch Deck Belt Diagram
To ensure the proper operation of the Scag Turf Tiger 72-inch deck, it’s important to follow the correct belt routing. A clear understanding of the belt layout will help in performing maintenance and replacing the belt with ease. Below is the step-by-step guide for the belt diagram.
- Start by locating the primary deck pulley on the right side. This pulley is the anchor point for the belt loop.
- The belt moves from the primary deck pulley towards the front, passing over the spindle pulleys. Ensure the belt runs cleanly over all pulleys without excessive slack.
- After crossing the spindles, the belt loops around the tensioner pulley. The tensioner will keep the belt tight, preventing slippage during operation.
- Finally, the belt moves around the secondary deck pulleys before reconnecting back to the primary deck pulley on the left side.
Refer to the diagram to ensure all components are in place. Misalignment of the belt can cause damage to the deck or reduce cutting efficiency. Regular checks and adjustments are necessary to maintain optimal performance.
How to Replace the Deck Belt on Scag Turf Tiger 72 Inch Model
To replace the deck belt on the Scag Turf Tiger 72-inch model, start by raising the deck to its highest setting to allow easy access to the components.
Disconnect the negative terminal of the battery to prevent accidental engagement of the mower while working on the belt.
Remove the belt cover by loosening the bolts securing it in place. This will expose the belt and pulleys. Take note of the belt routing for reinstallation; a diagram can be helpful for this step.
Next, relieve tension on the belt by loosening the idler pulley. This will make it easier to remove the worn belt. Once tension is removed, slide the old belt off the pulleys and discard it.
Install the new belt by following the original routing. Begin with the large pulleys and work your way around the smaller ones. Make sure the belt is seated properly in each pulley groove.
Once the belt is in place, adjust the tension by tightening the idler pulley. Ensure the belt has proper tension, allowing it to move freely without slack.
Reattach the belt cover and secure it with the bolts. Double-check the belt alignment and tension before reconnecting the battery.
Finally, test the mower to ensure the new belt operates smoothly without any slipping or unusual sounds.
Step-by-Step Belt Routing Instructions for Scag Turf Tiger 72 Inch Deck
First, locate the deck’s tension arm and move it to release any tension on the belt. This will make routing the new belt easier. Ensure that the mower deck is raised for better accessibility.
Next, follow the specific routing path outlined below for the 72-inch deck model. Refer to the diagram for exact positioning and belt placement around pulleys and spindles.
| Step | Action |
|---|---|
| 1 | Start by routing the belt over the front pulley located on the mower’s deck. |
| 2 | Move the belt behind the tensioner pulley, ensuring it’s properly seated. |
| 3 | Route the belt around the spindle pulleys on both sides of the deck, making sure it’s positioned correctly. |
| 4 | Pass the belt over the idler pulley on the opposite side of the deck from the tensioner. |
| 5 | Check that the belt is securely routed over all pulleys and the tensioner, and that it has the correct slack. |
| 6 | Re-engage the tensioner arm to apply the necessary tension to the belt. |
Finally, test the belt by manually rotating the blades to ensure smooth operation. Adjust the tension if needed to avoid slipping or misalignment.
Common Issues with the Scag Turf Tiger 72 Inch Deck Belt and How to Fix Them
One of the most frequent problems with the Scag Turf Tiger 72-inch deck belt is premature wear. This often occurs due to misalignment or a lack of tension. If you notice the belt slipping or fraying, check for proper tension and alignment. If the tension is too loose, adjust the idler pulley to ensure the belt is tight enough to engage the pulleys properly.
Another common issue is belt stretching. Over time, the belt may lose its original size and no longer grip the pulleys effectively. Inspect the belt for signs of stretching or elongation. Replacing the belt with a new one is the best solution in this case. Always ensure you’re using the correct part number for the 72-inch deck to avoid fitment problems.
Belt routing mistakes can also cause operational issues. Incorrect routing can lead to belt slippage, uneven deck operation, or even breakage. Refer to the deck belt diagram for the correct routing procedure. If you find the belt routed incorrectly, adjust it as per the diagram to restore proper functionality.
Excessive vibration can be a sign of worn or damaged pulleys. Inspect the pulleys for wear or cracks. If a pulley is damaged, it should be replaced immediately to prevent further damage to the belt and surrounding components. Additionally, ensure that the pulleys spin freely without any obstruction or rust.
Lastly, debris buildup is a common culprit in reducing belt lifespan. Grass, dirt, and other debris can accumulate around the pulleys, causing friction that accelerates wear. Clean the deck regularly to remove any buildup, and inspect the belt for any foreign materials stuck in the grooves.
