Cub Cadet ZT1 50 Deck Belt Diagram and Maintenance Guide

If you’re replacing the belt on your Cub Cadet ZT1 50, having a clear diagram can make the process much smoother. The deck belt drives the blades and ensures efficient cutting. Without the proper routing, the mower won’t function correctly. Below is a detailed diagram to guide you through the belt replacement process.

Start by confirming the belt size–make sure you have the correct replacement for the ZT1 50 model. The belt should be routed around the pulleys and tensioner in a specific way to ensure optimal performance. A diagram simplifies this step, showing the exact pulley sequence and how the belt fits into place.

Once you have the diagram in hand, lift the mower deck and remove any parts that may obstruct the belt’s path. Pay attention to the direction of the belt and the tension adjustments to avoid premature wear. With the diagram, you can easily identify the correct path and tighten the belt properly for smooth operation.

Using the right tools and following the diagram will save time and effort, ensuring your Cub Cadet mower runs like new. Refer to the specific model details for any adjustments that may apply to your machine, but with the correct belt and diagram, this repair will be straightforward.

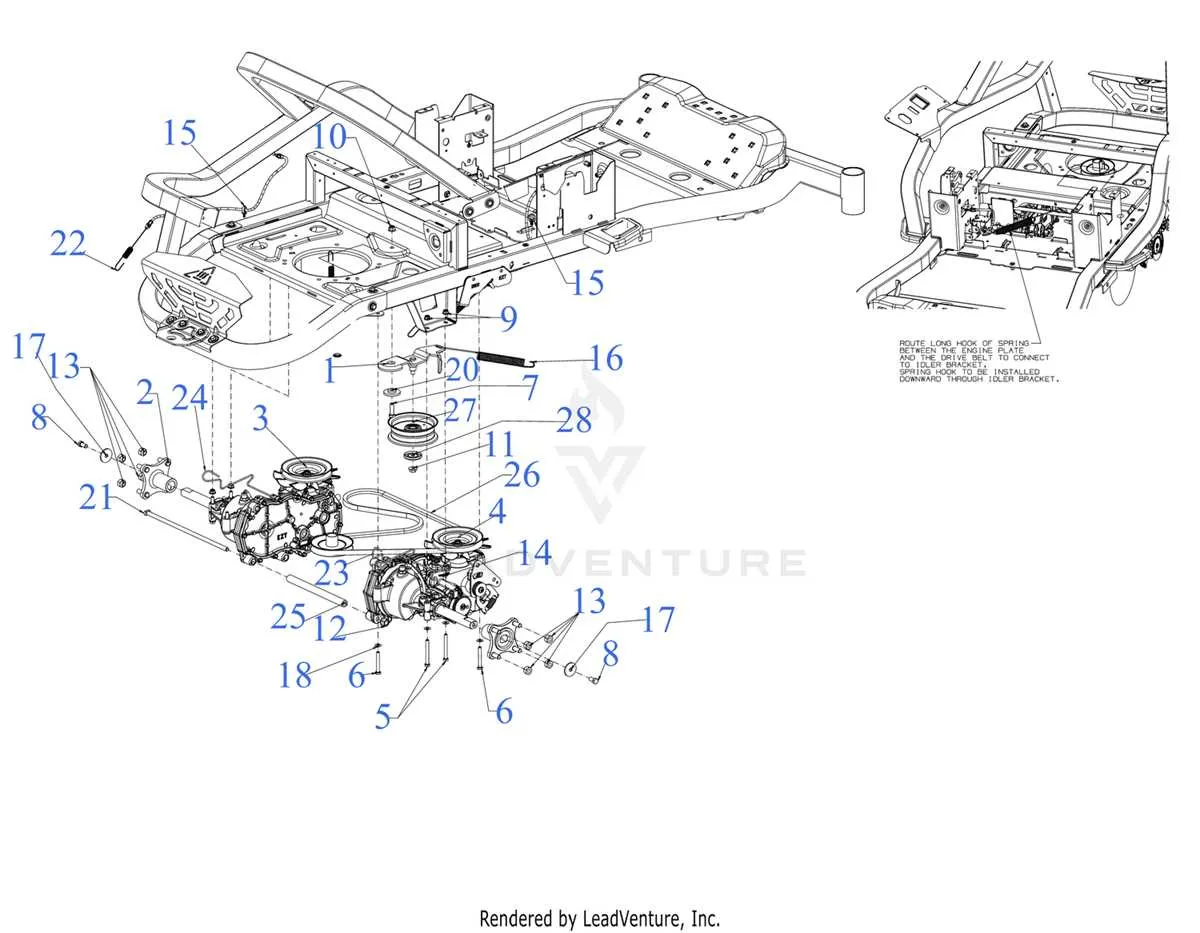

Cub Cadet ZT1 50 Deck Belt Diagram

For accurate belt routing on your Cub Cadet ZT1 50 mower, follow this diagram to ensure proper functionality and efficiency. Below are the steps and details for a correct setup.

• Start by placing the belt over the engine pulley.
• Route the belt towards the spindle pulleys under the deck.
• Ensure the belt wraps around the deck pulleys properly, avoiding any slack.
• Check that the belt passes through the tensioner pulley and is snug but not overly tight.
• Ensure the belt is properly aligned with the idler pulley to avoid wear.

Refer to the diagram to make sure the belt is routed around the spindles and pulleys without interference. Double-check the path for any contact points that could cause friction or damage during operation.

After routing the belt, manually rotate the deck to check for any binding. If you notice any tight spots or the belt slipping, adjust the tension and realign the pulleys.

By following these steps, you’ll ensure smooth and reliable performance from your Cub Cadet ZT1 50 mower’s deck system.

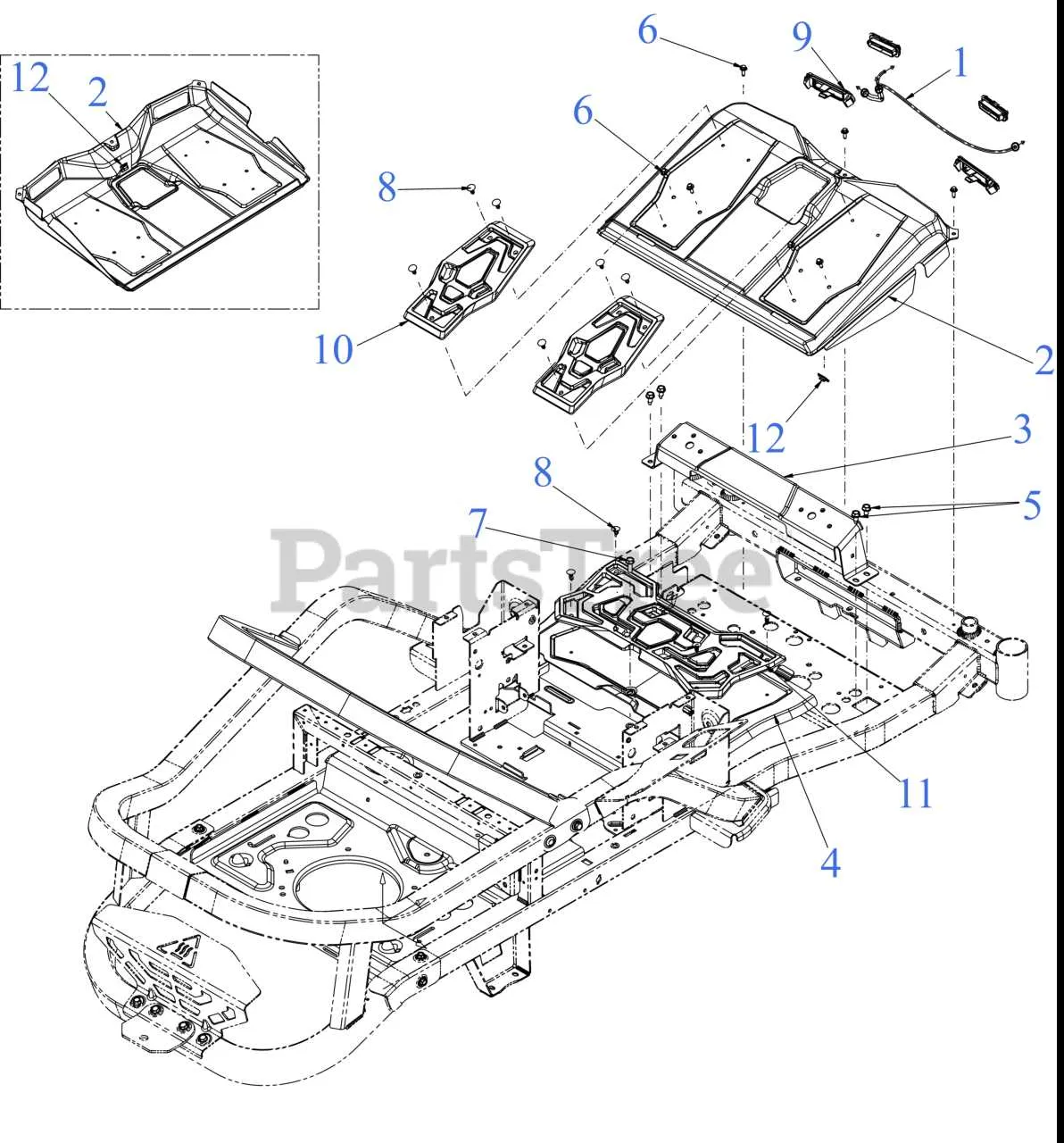

How to Read the Cub Cadet ZT1 50 Deck Belt Diagram

First, locate the diagram on your Cub Cadet ZT1 mower. The diagram is often found near the deck or in the user manual. It shows the precise path of the deck belt and its connections to pulleys, ensuring smooth operation of the blades. Make sure you’re looking at the correct diagram for your specific model, as variations can exist across different configurations.

The belt diagram will typically feature two main parts: the routing path and pulley placement. Start by identifying the engine pulley, as this is where the belt begins. Follow the line from the engine to the idler pulleys and then to the deck pulleys. Pay close attention to the direction of the arrows and the path of the belt around each pulley. This is crucial for avoiding misrouting, which can lead to belt wear or failure.

Next, focus on the tensioning system. The diagram will indicate how the idler pulleys and spring mechanisms are set up to maintain proper belt tension. The spring is responsible for adjusting the belt’s tension, ensuring that the blades operate at the correct speed and prevent unnecessary slippage. Make sure the spring is connected correctly to the designated mounting point for optimal performance.

If you’re replacing the belt, use the diagram as a guide for the new belt’s size and routing. Double-check the belt’s length and width to confirm compatibility with your model before installation. Refer to the user manual for the recommended replacement belt part number.

Finally, after the belt is installed, manually rotate the pulleys to verify that the belt is correctly seated and moves freely without obstruction. Test the mower by engaging the blades and checking the function to ensure everything runs smoothly.

Step-by-Step Instructions for Replacing the Deck Belt on a Cub Cadet ZT1 50

To replace the deck belt on your Cub Cadet ZT1 50, follow these detailed steps to ensure a smooth and safe repair.

1. Disconnect the Battery

Before starting, disconnect the negative terminal of the battery to avoid any electrical accidents during the process.

2. Lift the Mower Deck

Using the deck lift lever, raise the mower deck to its highest position. This gives you enough space to access the belt and pulleys.

3. Remove the Deck from the Mower

Loosen the deck’s mounting bolts and slide the deck out from beneath the mower. Keep the bolts safe as you’ll need them later.

4. Locate the Old Deck Belt

Find the old deck belt running through the pulleys. Carefully take note of its routing for reassembly. Take a photo if necessary for reference.

5. Remove the Old Belt

Release any tension on the belt by loosening the idler pulley or removing any tensioners. Once the tension is off, slide the belt off the pulleys and discard it.

6. Install the New Deck Belt

Place the new belt over the pulleys following the same routing as the old belt. Ensure the belt fits snugly around the pulleys and is not twisted.

7. Adjust the Belt Tension

Ensure the tension on the new belt is correct by adjusting the idler pulley or tensioner. The belt should have a little slack but not be too loose.

8. Reattach the Deck

Slide the mower deck back into place and secure it by tightening the mounting bolts. Make sure the deck is level for optimal performance.

9. Reconnect the Battery

Reconnect the negative terminal of the battery and check the deck belt by manually rotating the blades. Make sure the belt moves smoothly and the pulleys spin freely.

10. Test the Mower

Start the mower and engage the blades to ensure everything is functioning properly. Listen for any unusual noises or signs of misalignment.

By following these steps, you can replace the deck belt on your Cub Cadet ZT1 50 quickly and efficiently.

Troubleshooting Common Issues with the Cub Cadet ZT1 50 Deck Belt

If your Cub Cadet ZT1 50 deck belt isn’t working as expected, the first step is to check for any visible damage. Inspect the belt for signs of wear, cracks, or fraying. If you find any, replace it immediately to avoid further damage to the mower’s mechanism.

Next, verify that the belt is properly aligned. A misaligned belt can slip off or wear out prematurely. Check the path and ensure that the belt is seated correctly in all pulleys and guides. If necessary, adjust the tension or alignment of the pulleys to ensure the belt moves smoothly without obstruction.

If the belt continues to slip, inspect the belt tension. A loose or improperly tensioned belt will not transfer power efficiently, causing issues with the mower’s operation. Refer to the manufacturer’s specifications for the correct tension and make adjustments as needed.

Another common issue is a worn-out pulley or idler arm. A damaged or corroded pulley can cause the belt to slip or fray. Check the pulleys for signs of wear, and replace any parts that are not functioning properly. Make sure the idler arm is moving freely and not obstructed.

Lastly, verify the condition of the drive system. If the belt is still having trouble staying in place, the drive system might be out of alignment or have faulty components. Look for any loose bolts or parts that might be causing misalignment or excessive wear. Tighten any loose parts and replace worn components to keep the system running smoothly.
