Scag Tiger Cat 52 Deck Belt Diagram and Maintenance Guide

If you’re looking to replace or troubleshoot the deck belt on your Scag Tiger Cat 52, having the right diagram is key. Understanding the exact routing and tensioning of the belt can save time and prevent mistakes. The deck belt connects the engine to the blades, allowing the mower to function properly. Referencing the correct diagram helps ensure the belt is installed correctly, maintaining optimal performance.

Start by locating the diagram specific to the 52-inch deck model. You can usually find it in the mower’s manual or online, but it’s important to verify that it matches your mower’s specific year and configuration. The diagram will show the belt routing, including which pulleys the belt must pass over and under. Check for any tensioning springs that need to be adjusted or replaced. If the belt appears worn or damaged, replacing it at the right moment prevents further issues down the line.

After obtaining the diagram, carefully remove the old belt, noting its path as you go. This will be useful when installing the new one, ensuring a smooth process. If you encounter any unusual wear patterns on the pulleys or other components, they should be inspected or replaced to avoid premature wear on the new belt.

Scag Tiger Cat 52 Deck Belt Diagram

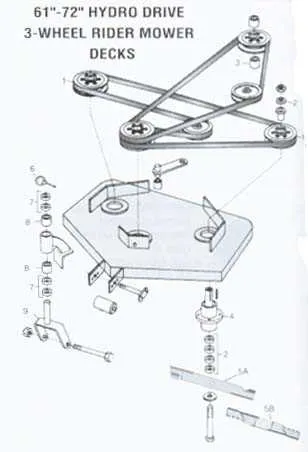

For quick reference, follow this diagram to ensure proper installation of the belt system on your Scag Tiger Cat 52-inch deck. The correct routing of the deck belt ensures smooth operation and maximizes efficiency during mowing.

The belt travels through a series of pulleys, ensuring the blades receive the necessary power from the engine. To replace or adjust the belt, first disconnect the spark plug to prevent accidental starting, and raise the deck to a comfortable working height.

• The engine pulley is the starting point. From here, the belt runs to the primary drive pulley.
• It then moves to the idler pulley, which keeps the belt tensioned.
• Next, the belt passes around the blade pulleys, powering each mower blade.
• Finally, the belt returns to the tensioner pulley, completing the loop.

Ensure the belt is routed precisely as shown in the diagram to avoid any misalignment, which could cause the belt to wear out prematurely. Pay attention to the belt’s tension, as too much slack can result in poor performance or excessive wear on the components.

If the belt appears worn, frayed, or damaged, replace it with a genuine Scag replacement belt to maintain the mower’s performance and reliability.

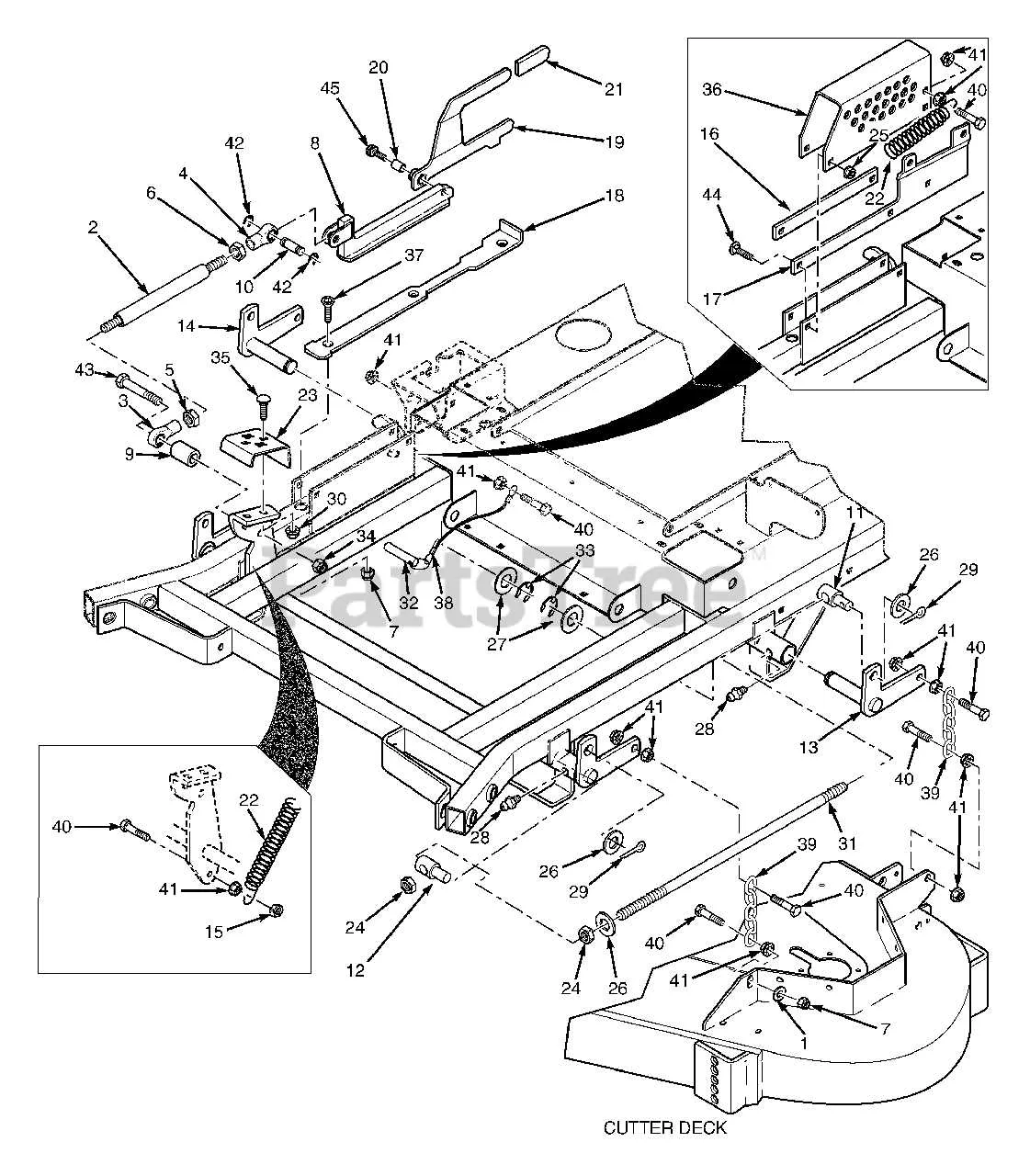

Understanding the Layout of Scag Tiger Cat 52 Deck Belt

The Scag Tiger Cat 52 deck belt layout ensures smooth power transmission from the engine to the mower deck, driving the blades with precision. The belt routing follows a clear path that reduces friction and wear while maintaining optimal cutting performance.

Start by identifying the deck’s idler pulleys and the main drive pulley. The deck belt runs from the engine’s drive pulley to the main pulley located under the deck. The path goes around multiple idler pulleys, which guide the belt and provide tension. These pulleys prevent the belt from slipping and keep it securely in place during operation.

Pay attention to the belt’s position on each pulley. The deck belt should sit firmly in the grooves of the pulleys. If the belt is off-center or worn, it can slip, causing a loss of power and reduced cutting efficiency. Regularly check for signs of wear, such as cracking or fraying, and replace the belt as needed to avoid malfunction.

Additionally, make sure the belt is routed correctly through the idler arm and tension spring. A misrouted belt can cause uneven tension, leading to performance issues. Follow the diagram precisely to ensure the belt runs correctly, as shown in the manufacturer’s guide.

For maintenance, release the tension on the idler pulley to remove the belt. Once replaced, adjust the tension to match the specifications provided in the manual. Proper belt tension is key to ensuring smooth operation and prolonging the life of the belt and pulleys.

How to Identify and Replace the Deck Belt on Scag Tiger Cat 52

Inspect the deck belt for wear and tear by looking for fraying, cracks, or stretching. If the belt is loose or slipping, it likely needs replacement. A worn belt will not provide enough tension to turn the blades efficiently, leading to uneven cutting.

To replace the deck belt on your Scag Tiger Cat 52, first ensure the mower is powered off, and the ignition key is removed. Raise the deck to its highest setting and secure it in place. Loosen the tension on the belt by either adjusting the tensioner or releasing the spring-loaded idler pulley. This will allow you to slide the belt off the pulleys.

Carefully remove the old belt, noting the path it follows around the pulleys. It’s important to refer to the Scag Tiger Cat 52 belt diagram for correct routing. Place the new belt along the same path, ensuring it fits snugly around the pulleys and the tensioner. Once the belt is in place, restore the tension by re-engaging the tensioner or spring-loaded idler pulley.

Double-check the belt’s alignment and tension. A correctly installed belt should be centered on each pulley and should have minimal slack. Test the mower by starting it up and engaging the blades. If the belt operates smoothly without slipping, the replacement is successful.

Common Issues with Scag Tiger Cat 52 Deck Belt and How to Fix Them

Worn or damaged belts are a frequent issue with the Scag Tiger Cat 52. If the deck belt is slipping or breaking, check for fraying or signs of wear along the edges. Replace the belt if it’s visibly damaged to ensure smooth operation.

If you hear a squealing noise while the mower is running, the belt might be too loose. Check the tensioning system, and adjust the spring tension to bring the belt to the proper tightness. A loose belt will slip, causing poor blade performance.

Another common problem is the belt coming off the pulleys. This often happens if the pulleys are misaligned or if debris has built up around them. Clear the area around the pulleys and inspect their alignment. Adjust if necessary, and ensure all pulleys are in proper working order.

If the belt isn’t tracking properly, it could be due to a worn-out idler pulley. Inspect the idler pulley for wear or damage, and replace it if it doesn’t spin freely. A faulty idler pulley will cause uneven belt tension, leading to poor cutting results.

Sometimes, a stiff or damaged belt will cause the mower to stop functioning altogether. If this happens, check for any obstructions, like grass clippings or twigs, that may be preventing the belt from moving smoothly. Regular cleaning can help prevent these issues from arising.
