2006 Nissan Altima Serpentine Belt Diagram and Installation Guide

If you’re working on your 2006 Nissan Altima, understanding the serpentine belt layout is crucial for proper maintenance and repairs. The serpentine belt plays a key role in driving multiple engine components, including the alternator, power steering pump, and air conditioning compressor. Without a properly functioning belt, these systems can fail, leading to potential engine problems.

To replace or inspect the serpentine belt, you first need to identify its correct path. Follow the diagram closely, ensuring the belt is routed properly around the pulleys. It’s also important to check the belt tension and alignment regularly to avoid unnecessary wear and tear. A misaligned or loose belt can cause the system to malfunction.

Keep in mind that the serpentine belt should be inspected for wear and cracks regularly. If you notice any damage, it’s time to replace it. Following the correct diagram will help you avoid costly repairs in the future.

2006 Nissan Altima Serpentine Belt Diagram

For the 2006 Nissan Altima, the serpentine belt is responsible for driving multiple accessories, such as the alternator, power steering pump, air conditioning compressor, and water pump. To replace or inspect the belt, it’s crucial to understand its correct routing and tension specifications.

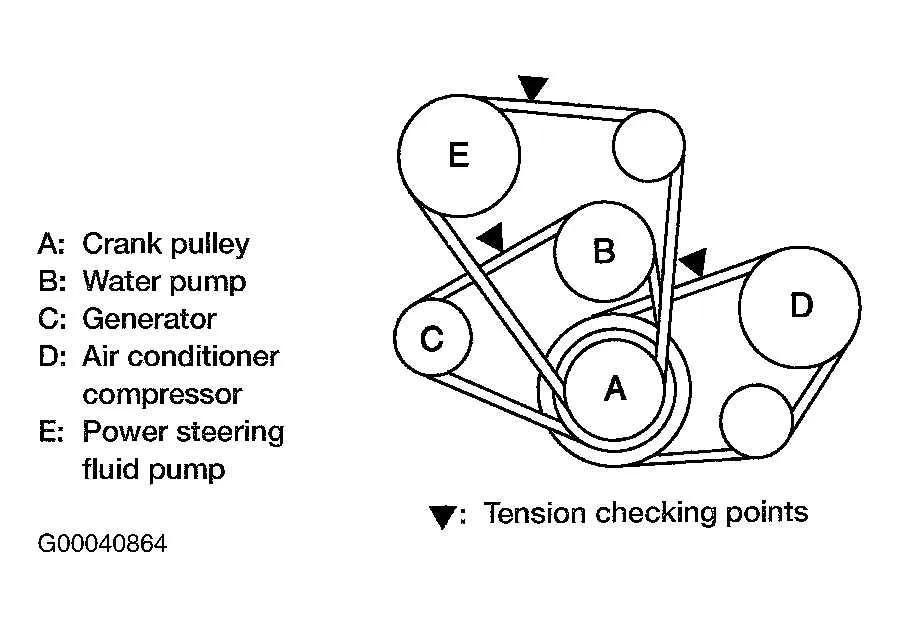

The serpentine belt diagram for the 2006 Nissan Altima shows the path that the belt takes across the various pulleys. Referencing the diagram ensures that the belt is installed correctly, which prevents malfunction and damage to engine components. To remove or install the belt, you must first locate the tensioner pulley. Using a wrench or a belt tool, release the tension on the belt, which allows for its removal or replacement.

Typically, the belt is routed around the crankshaft pulley, driven by the engine, then loops around the alternator, air conditioning compressor, power steering pump, and the water pump. Check the diagram in the engine bay or consult the vehicle’s manual for a detailed visual guide.

If you notice any signs of wear, such as cracks or fraying, the serpentine belt should be replaced immediately. A damaged belt can cause overheating or loss of power steering, which can lead to costly repairs. Proper installation ensures the components work in harmony, optimizing the vehicle’s performance.

Ensure the belt is properly tensioned after installation. An over-tightened or loose belt can cause excessive wear or failure. Consult the vehicle’s manual for the recommended tension specifications to achieve the optimal fit.

How to Identify the Correct Serpentine Belt Routing for 2006 Nissan Altima

Check the engine bay for a belt routing diagram, usually located on a sticker near the radiator or on the engine cover. If missing, use a service manual or online resources specific to the 2006 Nissan Altima for accurate information.

Ensure the belt’s direction follows the correct path across each pulley. Start by aligning the belt with the alternator, crankshaft, and power steering pulleys, confirming the belt passes around the tensioner and idler pulleys. Double-check that the grooves on the belt align perfectly with the pulleys to avoid improper wear.

Visually confirm that the belt fits snugly, with no slack, and is routed around the pulleys as per the diagram or manual instructions. A common mistake is misrouting the belt around the alternator or air conditioning compressor, which can lead to malfunction or premature wear.

If you’re replacing the serpentine belt, make sure the replacement is the correct length and matches the specifications for the 2006 Nissan Altima. A belt that is too short or long can result in misalignment and damage to engine components.

Lastly, after installation, manually rotate the engine or start it briefly to ensure the belt moves freely without slipping or making unusual noises. This confirms proper routing and tension for optimal performance.

Step-by-Step Guide to Replacing the Serpentine Belt on 2006 Nissan Altima

1. Begin by ensuring the engine is off and the vehicle is parked on a level surface with the parking brake engaged.

2. Open the hood and locate the serpentine belt. For easier access, remove any covers or components blocking the belt, such as the engine cover or air filter box.

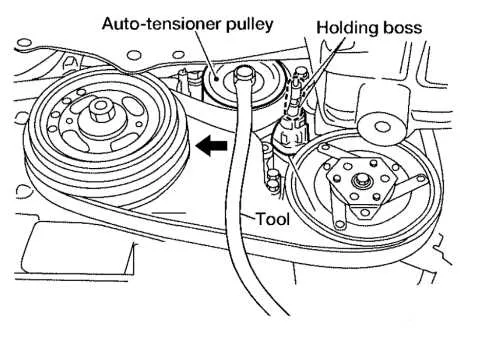

3. Use a ratchet and socket to rotate the tensioner pulley counterclockwise. This will relieve the tension on the serpentine belt, allowing you to remove it. Be cautious as the tensioner may spring back quickly.

4. Once the tension is released, carefully remove the serpentine belt from the pulleys. Take note of the routing path or refer to the vehicle’s service manual for the correct pattern. This will be helpful when installing the new belt.

5. Before installing the new serpentine belt, inspect the pulleys for any signs of wear or damage. Ensure they spin freely and smoothly. Replace any damaged pulleys as needed.

6. Install the new serpentine belt by following the same routing path as the old one. Begin with the longest span and work your way around the pulleys, ensuring the belt is properly aligned and seated in each groove.

7. Once the belt is in place, rotate the tensioner pulley again with the ratchet to allow the belt to fit into place under tension. Double-check that the belt is aligned properly on all pulleys.

8. Start the engine and observe the belt’s operation. Ensure it runs smoothly and that no squeaking or slipping occurs. If you notice any issues, stop the engine and recheck the installation.

9. If everything looks good, replace any components you removed earlier, close the hood, and test drive the vehicle to confirm the belt is functioning correctly.

Common Issues with Serpentine Belt Alignment in 2006 Nissan Altima and How to Fix Them

Misalignment of the serpentine belt in the 2006 Nissan Altima can cause several issues, including poor engine performance, increased wear on components, and potential engine damage. Common problems include improper belt tension, worn-out pulleys, and a damaged tensioner. Below are the most frequent alignment issues and practical solutions for fixing them.

• Incorrect Belt Tension: A loose or tight serpentine belt can slip off or cause excessive wear on the belt and pulleys. Check the tension by pressing on the belt; it should deflect slightly but not too much. If the tensioner is faulty, replace it.
• Worn or Damaged Pulleys: Worn pulleys can lead to belt misalignment. Inspect each pulley for signs of wear, such as cracks or damage to the grooves. If pulleys are worn, replace them to ensure proper belt routing.
• Faulty Tensioner: A malfunctioning tensioner can lead to improper belt tension. If the tensioner is not maintaining the right pressure, replace it with a new one to restore correct belt alignment.
• Misaligned Components: Over time, engine components like the alternator or power steering pump may shift or loosen, causing the belt to misalign. Ensure all components are securely mounted and check the belt routing against the diagram to ensure everything is in the correct position.
• Incorrect Belt Routing: If the serpentine belt is installed incorrectly, it can cause excessive wear or even lead to it slipping off. Always double-check the routing diagram to make sure the belt is correctly placed around all pulleys.

To prevent further issues, regularly inspect the serpentine belt and components, especially if you notice any unusual noises or vibrations from the engine. Keep your belt tension within specifications and replace worn parts promptly to maintain smooth engine operation.
