Scag Tiger Cat 2 Belt Diagram and Maintenance Guide

If you’re facing issues with the drive belt on your Scag Tiger Cat 2, it’s important to refer to the correct belt diagram to ensure proper installation and function. This diagram shows the exact routing of the belts, which is key to maintaining your mower’s performance. Without it, you may encounter problems such as poor traction or inefficient operation.

Start by checking the condition of the belts. If they appear worn or damaged, replacing them will be necessary. Refer to the diagram for specific part numbers and routing instructions. It’s crucial to replace belts with the correct specifications to avoid further damage to the mower’s system.

Once the belts are replaced, follow the diagram precisely to route them around the pulleys. This ensures the optimal tension and smooth operation. Make sure all components, including the idler pulleys, are aligned properly to avoid unnecessary strain on the belts.

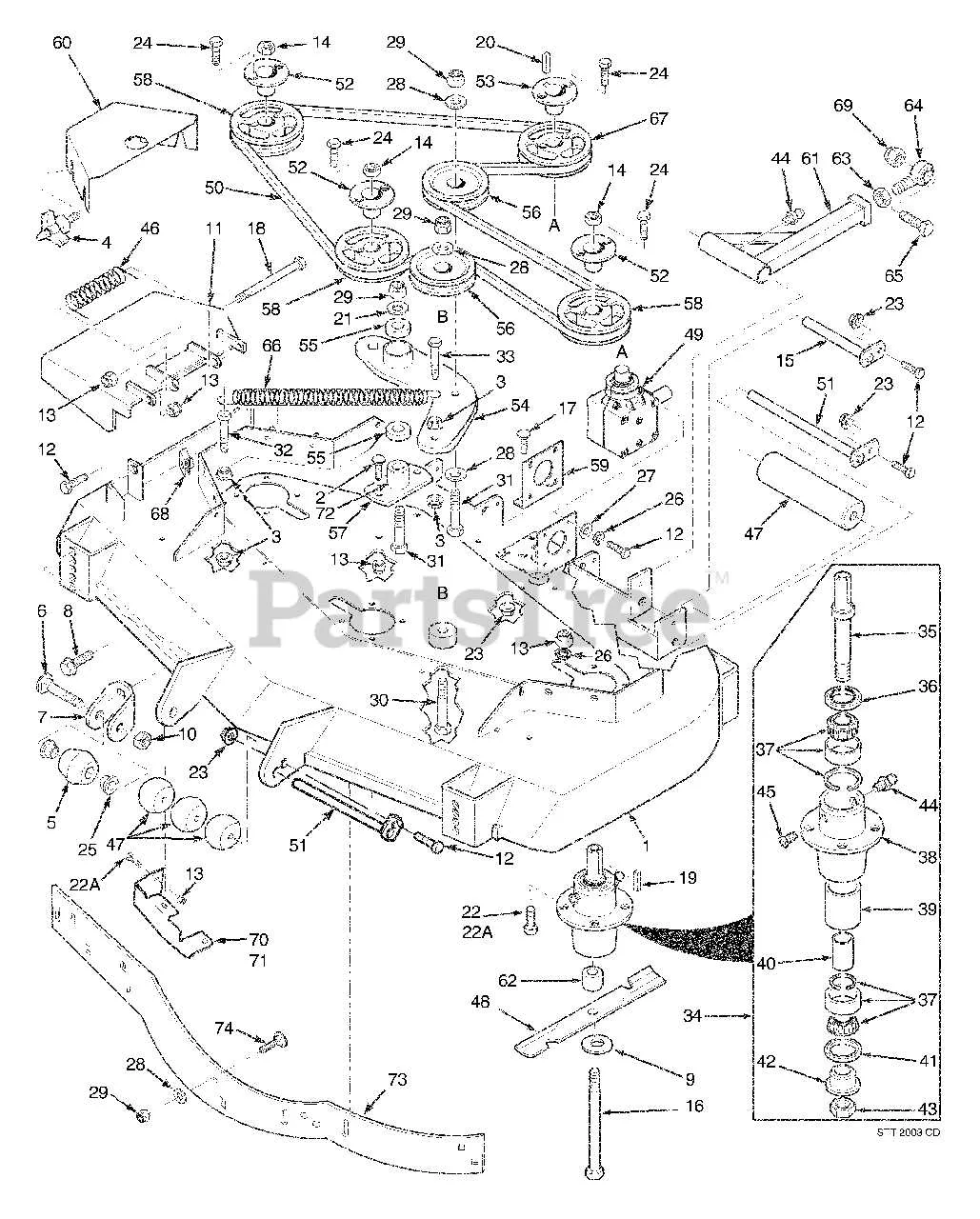

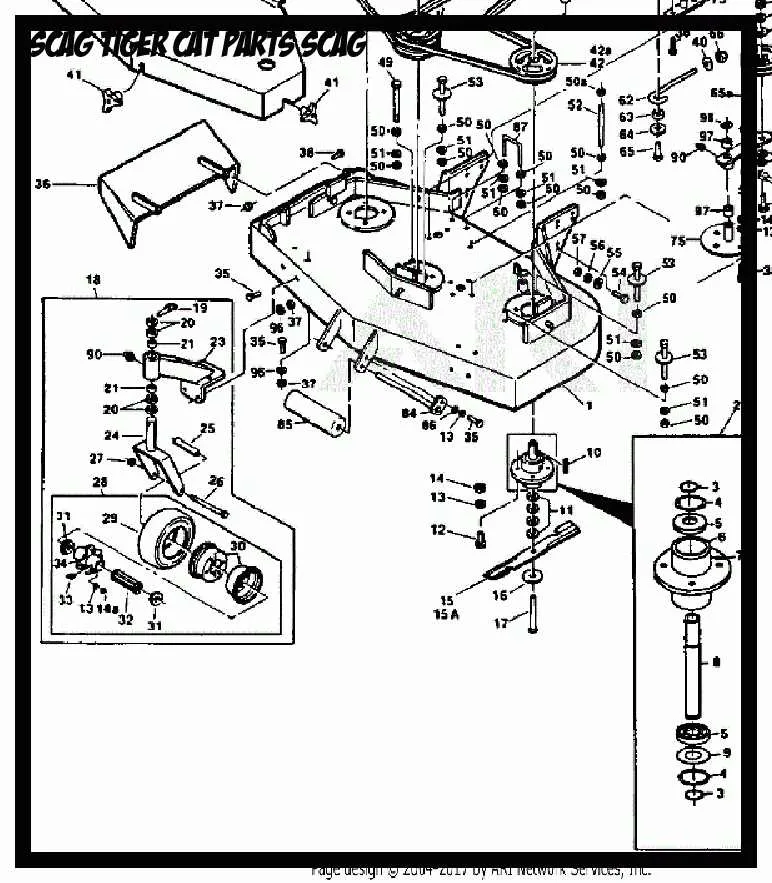

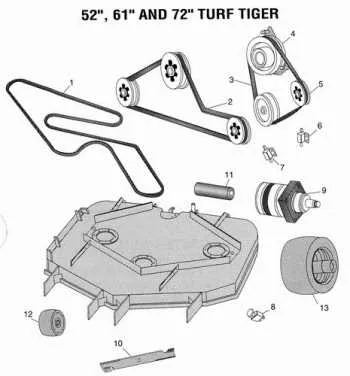

Scag Tiger Cat 2 Belt Diagram

To replace the belts on a Scag Tiger Cat 2, follow these steps for the correct routing and installation:

• Start by disconnecting the battery to ensure safety while working on the machine.
• Remove the mower deck and locate the primary drive belt. This is the larger belt running from the engine to the transmission.
• For the deck belt, carefully remove the belt from the pulleys and check for any signs of wear or damage. The diagram shows the proper alignment of the belt on the deck pulleys.
• Install the new belts, making sure they are routed according to the diagram. Pay close attention to the direction of the pulleys and the belt tension.

Make sure the belts are properly tightened but not too tight, as this can cause unnecessary strain on the components. Adjust the tension according to the manufacturer’s recommendations for optimal performance.

Refer to the Scag Tiger Cat 2 belt diagram for exact routing details. This diagram will show the paths for both the drive and deck belts. The belts should be routed in such a way that they maintain a consistent tension and prevent slipping. Proper installation reduces wear and ensures smooth operation.

• After installing the belts, manually rotate the pulleys to check for proper alignment.
• Reassemble the mower deck, reconnect the battery, and test the mower at low speed to ensure everything is functioning correctly.

By following the Scag Tiger Cat 2 belt diagram and installation tips, you can easily replace and maintain the belts on your mower, ensuring it runs efficiently and smoothly.

Understanding the Belt Routing for Scag Tiger Cat 2

Check the routing diagram before starting the belt replacement process. The correct belt routing ensures smooth operation and prevents unnecessary wear. Follow the diagram carefully to avoid installation mistakes that could lead to premature damage or decreased performance.

The Scag Tiger Cat 2 uses a complex belt system, including both drive and mower belts. The drive belt runs from the engine pulley to the transmission pulley, while the mower belt drives the cutting deck. Pay special attention to the idler pulleys and tensioners, as they help maintain correct belt tension and alignment.

When installing the belts, begin by disconnecting the battery to avoid accidental starts. Remove the mower deck first if necessary. Then, work your way through the engine, ensuring the drive belt is positioned around the engine pulley and transmission pulley. For the mower deck, ensure the belt loops around the correct pulleys on the deck and any idler pulleys present.

Make sure to check the tension after installation. A loose belt can slip, causing poor cutting performance, while a belt that’s too tight can wear out quickly. Regularly inspect belts for wear and replace them at the first sign of cracks or fraying.

Finally, double-check the routing against the diagram once more to confirm that everything is in the correct position. A small misalignment can lead to significant issues, including belt failure or uneven cutting.

Step-by-Step Guide to Replacing the Belt on Scag Tiger Cat 2

Before starting, ensure the mower is on a flat surface and the engine is turned off. For safety, remove the key and disconnect the battery.

1. Raise the mower deck to its highest setting. This will give you enough room to work under the machine.

2. Locate the belt covers. These are typically secured with bolts or screws. Use a wrench or screwdriver to remove them, exposing the drive belts.

3. Identify the worn or damaged belt. Take note of its routing. You can refer to the diagram on the belt cover for a clear guide on the belt’s path.

4. To remove the belt, loosen the tension by releasing the spring-loaded idler pulley. Use a wrench to unbolt the idler pulley, allowing the belt to come off the pulleys and spindles.

5. Slide the old belt off the pulleys and spindles. Be cautious not to damage any of the components during removal.

6. Before installing the new belt, check the pulleys for wear or debris. Clean them if necessary and inspect for any signs of damage that may affect the new belt’s performance.

7. Install the new belt following the same routing as the old one. Double-check that the belt is correctly aligned on each pulley, ensuring no twists or misplacements.

8. Once the belt is in place, reattach the idler pulley. Tighten the bolt or nut that holds it in position, ensuring there is enough tension to keep the belt in place without excessive slack.

9. Reinstall the belt covers, securing them with the screws or bolts you removed earlier.

10. Reconnect the battery and start the engine. Check that the belt runs smoothly without any unusual noises or movement.

If the belt is functioning properly, lower the mower deck and test the machine on the ground. If everything runs smoothly, the replacement is complete.

Common Issues with Scag Tiger Cat 2 Belts and How to Fix Them

Check the belt tension regularly. If the belt is too loose, it can slip off the pulleys, causing uneven cuts or a lack of power. Tighten the tension using the adjustment bolts, but make sure not to over-tighten, as it can wear down the belt prematurely.

Inspect the belt for visible signs of damage. Cracks, fraying, or missing sections can indicate that the belt is too old or has been subjected to excessive wear. Replace the belt immediately if you notice any of these issues to avoid further damage to your mower.

Examine the pulleys for alignment and smooth rotation. Misaligned or damaged pulleys can cause the belt to slip or fray. Adjust or replace any worn pulleys to ensure the belt operates smoothly.

If you hear squealing noises during operation, the belt may not be properly aligned or it may be too tight. Check both the tension and alignment. If the noise persists after adjustments, the belt might need to be replaced.

Be mindful of belt routing. Refer to the Scag Tiger Cat 2 belt diagram to ensure the belt is correctly routed through the pulleys. An incorrect routing can cause the belt to come off or wear unevenly.

Lastly, clean the pulleys regularly. Dirt and debris can cause the belt to slip or wear out faster. A quick wipe with a cloth after each use can help maintain proper function and extend the life of the belt.
