Cub Cadet 1045 Belt Diagram and Installation Guide for Smooth Operation

If you need to replace or adjust the belt on your Cub Cadet 1045, referring to a clear and accurate belt diagram will save you time and effort. The right diagram outlines the exact routing and specifications for the belt, ensuring that everything functions as it should without unnecessary wear or damage.

The Cub Cadet 1045 uses a specific routing pattern for its drive belt, which is key for the machine’s efficiency. First, make sure the mower deck is disengaged and the engine is off before attempting any adjustments or replacements. Check the diagram to confirm the correct placement of the belt around pulleys and spindles.

Look for any visible wear or damage on the belt, such as cracks or fraying. If any part of the belt appears compromised, it’s better to replace it immediately to avoid causing damage to other parts. The diagram will show where tension should be applied to ensure proper operation of the mower.

When installing the new belt, follow the diagram step by step, paying attention to the direction of the belt and its position in relation to the pulleys. Double-check that all components are aligned before reattaching any covers or panels.

Cub Cadet 1045 Belt Diagram: A Practical Guide

Replacing or adjusting the drive belt on a Cub Cadet 1045 is simple with the right guidance. First, ensure the engine is off and the parking brake is engaged. Start by locating the belt and examining its condition before removing it.

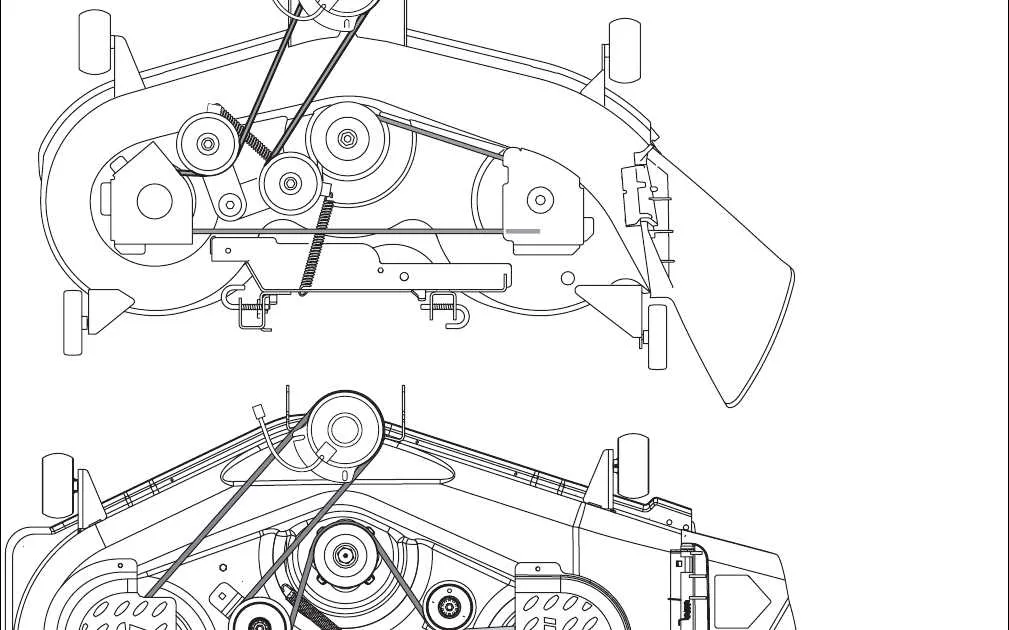

Follow the diagram to ensure correct routing. The belt should loop over the engine pulley, around the tensioner pulley, and across the transmission pulley. The tensioner pulley applies the necessary pressure to keep the belt tight. Make sure the belt fits snugly in its grooves–if it’s loose or frayed, replace it with the correct part number, typically found in the manual.

Pay close attention to the direction the belt travels. For the Cub Cadet 1045, the routing path follows a specific sequence that allows the mower to operate at optimal performance. Missing a step can lead to improper operation or premature wear on components.

After re-routing the belt, double-check the tensioner to confirm it is engaged correctly. The pulley should provide enough tension to avoid slipping but not be too tight. If adjustments are needed, the spring-loaded tensioner may be moved for fine-tuning.

Lastly, perform a test run to ensure everything is working properly. Listen for any abnormal sounds, and check if the mower operates smoothly without excessive vibration. This quick inspection will ensure your belt is correctly installed and ready for reliable service.

Understanding the Layout of the Cub Cadet 1045 Belt System

The Cub Cadet 1045 belt system consists of a series of belts that transfer power from the engine to various components, such as the transmission and the cutting deck. Pay attention to the layout for smooth operation and to avoid unnecessary wear. Start with the drive belt that connects the engine’s crankshaft to the transmission pulley. This belt is key to controlling the mower’s speed and movement. Ensure it runs smoothly without twists or slack.

The second belt, often called the deck belt, connects the transmission pulley to the cutting deck. It powers the blades, so check for proper tension to maintain blade speed. The routing of this belt can be tricky, especially around the idler pulleys, so refer to the specific belt diagram for your model. Any misalignment can cause the belt to slip or even snap under stress.

Make sure all the pulleys are in good condition. They guide the belts and ensure that the tension is just right. Over time, pulleys may become worn or damaged, which can affect performance. Also, examine the idler pulleys that maintain belt tension. If any of them are loose or malfunctioning, the entire system may suffer, causing uneven movement or slower speeds.

Regularly inspect your belts for fraying, cracks, or wear. Even a small issue can lead to major problems down the road. If you replace a belt, ensure it matches the original size and specifications to avoid damaging the system. Keeping your Cub Cadet 1045 belt system properly aligned will prolong its life and ensure smoother operation.

Step-by-Step Instructions for Replacing the Belt on a Cub Cadet 1045

Before you begin, ensure the engine is turned off and the ignition key is removed. Wear gloves for safety.

1. Lift the Tractor

Use a jack or lift to raise the front of the Cub Cadet 1045. Secure it properly to prevent any accidents while working underneath.

2. Remove the Deck

Detach the mower deck by loosening the bolts that hold it in place. Slide the deck out from underneath the tractor, making sure to disconnect any drive belts that are attached.

3. Locate the Old Belt

The drive belt is typically located beneath the tractor. Identify the belt routing diagram (often found on the tractor frame) to understand how the belt is positioned.

4. Remove the Old Belt

Release the tension on the belt by loosening the spring-loaded idler pulley. Carefully slide the belt off the pulleys. If the belt is worn or damaged, replace it immediately with a new one.

5. Install the New Belt

Start by routing the new belt according to the diagram. Ensure the belt sits correctly on all pulleys and the idler tensioner. Make sure it is properly aligned before moving to the next step.

6. Tighten the Tensioner

Reattach the spring-loaded tensioner to ensure the belt remains tight. Double-check the belt’s tension to avoid slipping or uneven wear.

7. Reattach the Mower Deck

Slide the deck back into position under the tractor. Secure it by tightening the bolts and reconnecting any drive belts or linkage that were disconnected earlier.

8. Test the Belt

Turn the tractor’s engine on and engage the mower deck. Observe the belt’s movement to ensure it is running smoothly without slipping or causing excessive vibration.

If any issues arise, recheck the belt alignment and tension to ensure everything is properly secured.

Common Belt Issues and How to Troubleshoot Them on a Cub Cadet 1045

If your Cub Cadet 1045 is experiencing belt problems, start by checking for the most common issues that can affect performance. Follow these troubleshooting tips to address typical belt-related concerns.

• Loose or Slipping Belt: If the belt slips or feels loose, it often means it’s worn or stretched. Check the tensioner to see if it is applying the correct amount of pressure. Adjust the tension if necessary or replace the belt if it shows signs of wear.
• Damaged Belt: Inspect the belt for cuts, frays, or missing chunks. Any visible damage requires a replacement. Make sure to match the new belt size exactly to the specifications for the Cub Cadet 1045.
• Belt Off Track: A belt that’s come off its pulleys can be caused by misalignment or an issue with the pulley system. Ensure the pulleys are properly aligned, and the belt is routed correctly according to the diagram.
• Excessive Vibration: Unusual vibrations often occur when the belt is not properly aligned or there’s debris caught around the pulleys. Check for debris and make sure all components are clean and the belt is securely in place.
• Noise: Squealing or grinding noises typically indicate a worn belt or pulley. Inspect both and replace parts that show signs of damage or excessive wear. Make sure the belt isn’t overtightened as this can also cause noise.
• Worn Pulleys: Worn-out pulleys can contribute to improper belt function. Check for cracks, rust, or excessive wear. Replace any damaged pulleys and ensure they rotate freely.

Regular maintenance checks can prevent most belt issues. Always refer to the owner’s manual for belt tension specifications and installation instructions.
