6.7 Powerstroke Dual Alternator Belt Routing Diagram and Guide
The 6.7 Powerstroke engine with a dual alternator setup requires careful attention to belt routing to ensure proper function. The serpentine belt system in these engines powers critical components like the alternators, air conditioning, and power steering. When replacing or maintaining the belt, follow the specific diagram to avoid issues such as incorrect tension or damage to other components.
To begin, always ensure the vehicle is off and the battery is disconnected. The diagram for the 6.7 Powerstroke dual alternator system shows a complex route due to the additional alternator. Carefully examine the tensioner and pulley alignment as these affect belt wear and the performance of the entire system.
When installing the new serpentine belt, align it according to the specific path outlined in the diagram. Pay close attention to the alternator pulleys, as misalignment can lead to early wear and premature failure of the belt. Make sure to check the tension and adjust if necessary using the tensioner tool designed for this system.
Powerstroke Dual Alternator Belt Diagram

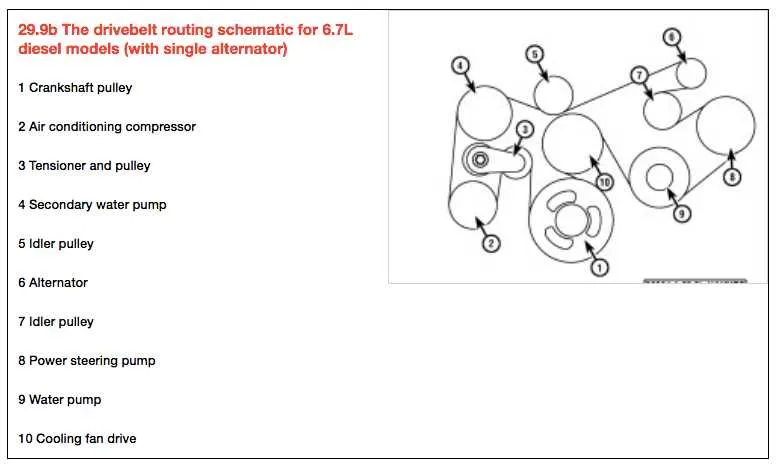

To replace or inspect the dual alternator belt on the 6.7 Powerstroke engine, refer to the belt routing diagram for accurate installation. This diagram helps in understanding the precise path the belt should follow, ensuring smooth operation of both alternators. The belt typically runs over the crankshaft pulley, tensioner, alternators, and other key components such as the water pump and air conditioning compressor.
Start by locating the primary tensioner, which is responsible for maintaining proper belt tension. Use a suitable tool to relieve tension from the belt before removing it. Pay close attention to the specific positioning of each pulley, especially the alternator pulleys, which are often connected by a separate belt system for redundancy in the dual alternator setup.
Before installation, check the belt for any signs of wear or damage. A new belt should be routed according to the manufacturer’s specifications to avoid slippage or premature wear. Ensure that all pulleys are aligned properly to prevent strain on the belt. Tighten the tensioner until the belt has the correct amount of slack, and verify the belt runs smoothly without deviations.
Refer to the service manual for any specific torque values or additional steps that may be required for your model. Double-check all components after installation to ensure the system is operating correctly.
How to Identify Belt Routing for Dual Alternators in 6.7 Powerstroke
Start by locating the two alternators on the 6.7 Powerstroke engine. The main alternator is typically mounted on the driver’s side, while the secondary alternator is on the passenger side. Both alternators are driven by the serpentine belt, which must be routed correctly to ensure proper functionality.
Check the tensioner pulleys and idler pulleys to identify the path of the belt. The serpentine belt will loop around both alternators, the crankshaft, water pump, and power steering pulley. It’s important to verify that the belt follows the correct sequence, as improper routing can lead to slippage or failure.
Consult the engine’s belt routing diagram, typically located on the radiator support or in the vehicle’s service manual. This diagram will show the exact path the belt should take, including the specific pulleys each segment should pass over.
As you check the routing, ensure that the belt maintains proper tension. The tensioner should hold the belt tight enough to prevent slipping but not too tight to cause excessive wear on the pulleys. If necessary, adjust the tensioner to correct any slack.
If the belt shows signs of wear or cracking, replace it immediately. A damaged belt can disrupt the power supply to the alternators and other essential systems in the engine.
Double-check the alignment of the belt on the pulleys after installation. Make sure it sits evenly and doesn’t jump or skip over any pulleys, which could indicate improper routing or a misaligned pulley.
Troubleshooting Common Belt Issues in 6.7 Powerstroke Dual Alternator Systems
If the serpentine belt on your 6.7 Powerstroke dual alternator system shows signs of wear, inspect it closely for cracks or fraying. A worn-out belt can lead to poor alternator performance and insufficient charging. Replace the belt immediately if any damage is found.
Another common issue is belt slippage. If the alternators aren’t charging properly, check the tension of the belt. If it feels loose or the tensioner isn’t holding the belt tight, replace the tensioner assembly to restore proper belt pressure and ensure optimal alternator performance.
Noise from the belt can indicate misalignment. Inspect the pulleys for wear or misalignment. A pulley out of alignment will cause the belt to wear unevenly and may eventually lead to failure. If you find any misaligned pulleys, adjust or replace them as necessary.
Inconsistent charging is often linked to belt issues. If your system is not charging properly, check the belt routing against the manufacturer’s diagram. Incorrect routing or improper belt installation can cause poor performance and premature belt failure. Correct any discrepancies to ensure the belt runs smoothly.
If you notice a burning smell, it could be due to a slipping belt. This usually happens when there’s too much tension or if the pulleys aren’t operating smoothly. Inspect all pulleys for debris or damage and clean or replace them as necessary. Also, verify the belt tension is within the recommended range.
Finally, inspect the alternators themselves. A faulty alternator can put additional strain on the belt, causing it to wear out prematurely. Test the alternators for proper voltage output and replace any malfunctioning units. Regular maintenance and periodic inspections will help prevent these issues from becoming major problems.
Step-by-Step Guide to Replacing the Serpentine Belt in 6.7 Powerstroke Dual Alternator Setup
Before starting, ensure the engine is off and the vehicle is safely secured. You’ll need a set of tools including a socket wrench, serpentine belt tool, and a new serpentine belt. Follow these steps to replace the serpentine belt:
- Locate the Serpentine Belt and Tensioner: Identify the serpentine belt routing in the engine bay. The belt runs around multiple pulleys, including the dual alternators, power steering pump, and the water pump. Find the tensioner pulley–it typically has a bolt or a square hole for the tool to release tension.
- Release Tension on the Belt: Insert the serpentine belt tool into the tensioner and rotate it to relieve tension. This will allow you to remove the belt easily. Be sure to rotate the tool clockwise or counterclockwise based on the tensioner’s design.
- Remove the Old Serpentine Belt: Once the tension is released, carefully remove the belt from the pulleys. Make a note of the routing to ensure you install the new belt correctly. It’s a good idea to take a picture or refer to the vehicle’s service manual for the correct routing.
- Install the New Serpentine Belt: Place the new belt over the pulleys according to the routing diagram. Ensure that the belt is properly seated in the grooves of each pulley, paying special attention to the alternator pulleys.
- Reapply Tension: Use the serpentine belt tool again to rotate the tensioner and place the belt onto the tensioner pulley. Release the tensioner slowly to apply tension to the belt. Double-check that the belt is aligned correctly on all pulleys.
- Check Belt Alignment: Inspect the belt to ensure it sits properly in all pulleys. A misaligned belt can lead to premature wear or even failure.
- Test the System: Start the engine and observe the belt in motion. Listen for any unusual noises such as squealing or squeaking, which could indicate improper installation. Make sure the belt runs smoothly without slipping.
If the belt is properly installed, the dual alternator system will function as intended, providing reliable power for your 6.7 Powerstroke engine.
