Dixie Chopper Silver Eagle Belt Diagram Guide for Maintenance and Repair

Check the belt diagram on your Dixie Chopper Silver Eagle to ensure the correct installation and operation of the belt system. Refer to the diagram for the exact routing of the belts and pulleys to avoid any performance issues.

Each belt in the system has a specific path that must be followed. Incorrect routing can cause belts to slip or wear out prematurely. Inspect the diagram carefully to verify that all components are aligned and tensioned properly for optimal performance.

For troubleshooting, use the diagram to identify any potential misalignments or damaged parts. Regularly check the belt tension and make necessary adjustments to avoid further complications. Proper maintenance based on the diagram will prevent costly repairs and improve the mower’s longevity.

Dixie Chopper Silver Eagle Belt Diagram

The Dixie Chopper Silver Eagle belt system consists of a series of belts that are crucial for transmitting power throughout the mower’s components. Ensure the belts are correctly installed for optimal performance. Check the belt routing diagram frequently to avoid any misalignment that could lead to wear or premature failure.

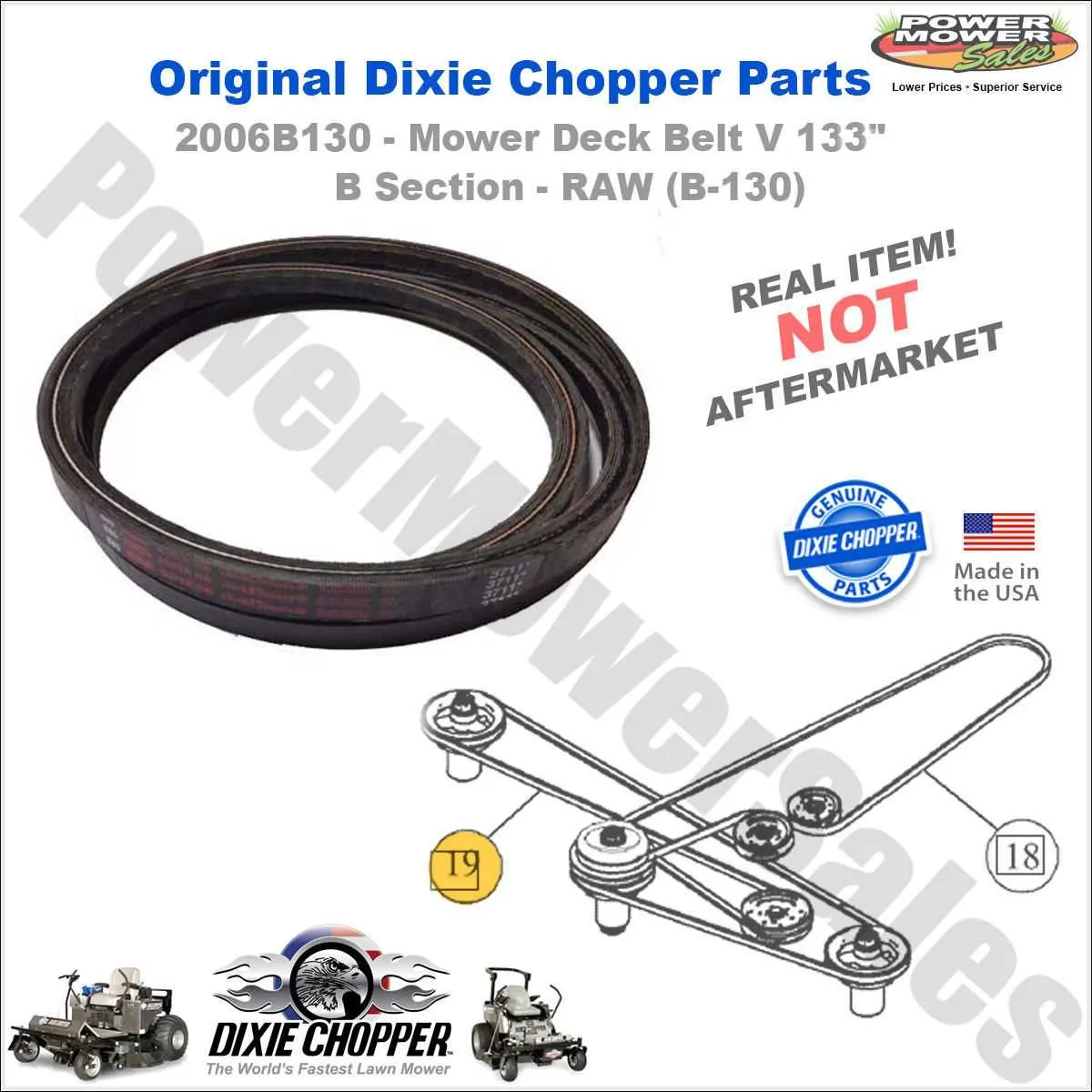

The primary belt connects the engine pulley to the deck pulleys. This is typically the largest belt in the system and requires careful inspection for cracks or signs of wear. Refer to the diagram to ensure that the belt runs through all the necessary pulleys without any slack or tension issues.

Smaller belts, such as those for the drive system or blade engagement, must be routed according to the diagram as well. These belts often experience higher friction and need more frequent maintenance. Replace them promptly when signs of damage or stretching appear.

To properly maintain your Silver Eagle mower, it’s recommended to regularly check the tension of each belt. Over time, belts can stretch and lose their ability to grip pulleys, reducing efficiency. Tightening or replacing the belts can restore full functionality. If a belt begins to slip, it could be due to incorrect routing or misalignment–refer to the belt diagram for adjustments.

Make sure to inspect all the pulleys for smooth operation. A worn-out or damaged pulley can cause uneven wear on the belts, leading to premature failure. Keep all pulleys well-lubricated to avoid excessive wear on the belts.

Identifying the Components of the Dixie Chopper Silver Eagle Belt System

Start by locating the drive belt on the Dixie Chopper Silver Eagle, which connects the engine to the mower deck. It runs across the pulleys, transmitting power to the blades. The primary components of this system include the engine pulley, blade pulleys, and idler pulleys.

The engine pulley is typically the largest, positioned on the engine shaft. It drives the system by rotating the belt, which in turn powers the blade pulleys. These pulleys are directly linked to the mower blades and control their rotation. Make sure to check for any wear on the grooves of the pulleys, as this can affect the belt’s performance.

The idler pulleys maintain the tension on the belt. Their role is to ensure the belt stays tight enough to transmit power effectively but not too tight, which could cause premature wear. Inspect the idler pulley bearings for any signs of wear or damage that could hinder belt movement.

Next, focus on the belt itself. Check for any fraying, cracking, or other signs of damage. The belt should sit properly in the grooves of the pulleys without slipping or appearing loose. Misalignment of the belt can also lead to uneven wear, so it’s important to verify its path and adjust if necessary.

Finally, confirm that the tension adjustment mechanism, often found near the idler pulley, is functioning correctly. This helps maintain the proper tension, preventing slippage or excessive strain on the system. Regular maintenance and timely replacement of worn components will ensure the belt system runs smoothly.

Step-by-Step Guide to Installing the Belt on the Dixie Chopper Silver Eagle

First, ensure the machine is off and the ignition switch is in the “off” position. Lift the deck for easier access to the belt system.

Locate the belt tensioner and loosen it by turning the tensioning bolt counterclockwise. This will reduce the tension on the belt and make it easier to remove.

Next, remove the old belt by carefully slipping it off the pulleys. Take note of its path for reference during installation.

Place the new belt around the appropriate pulleys, ensuring it follows the same path as the old one. Start from the engine pulley and move towards the deck. Check the direction of the belt to ensure it is installed correctly.

Once the belt is in place, adjust the tension by tightening the tensioning bolt clockwise. Make sure the belt is snug but not overly tight.

Inspect the belt to ensure it is seated properly on all pulleys. Spin the pulleys manually to confirm smooth movement.

Lower the deck back to its normal position, and check the belt once again for any signs of misalignment.

Finally, start the machine and test the belt under load. Ensure it operates smoothly without any unusual noise or slipping.

Troubleshooting Common Issues with the Belt on Dixie Chopper Silver Eagle

If you notice unusual sounds or the mower isn’t operating at full power, the belt system might be the cause. Here are steps to troubleshoot common issues:

• Belt Slippage: Inspect the tension of the belt. If it’s too loose, it may slip during operation. Adjust the tension by tightening the idler pulley or replacing worn-out pulleys.
• Belt Misalignment: Check the belt alignment with pulleys. A misaligned belt may cause uneven wear and poor performance. Ensure the belt is routed correctly as per the diagram.
• Frayed or Cracked Belt: Look for visible signs of damage. A frayed or cracked belt can affect power transmission. If you find any damage, replace the belt immediately.
• Noisy Belt: Excessive noise may indicate a worn pulley or damaged belt. Lubricate pulleys if necessary, and replace any parts showing signs of wear.
• Frozen Pulleys: If the pulleys don’t rotate smoothly, they might be clogged with debris or damaged. Clean them thoroughly and check for any wear or damage.

By addressing these issues, you’ll ensure smoother operation and extend the life of your Dixie Chopper Silver Eagle mower.
