Toro LX500 Belt Diagram and Maintenance Guide

Replacing or troubleshooting the belts on your Toro LX500 lawn mower requires a clear understanding of its belt diagram. The belt system drives the mower’s key components, such as the blades and wheels, ensuring smooth operation. Familiarizing yourself with the diagram simplifies belt replacement and adjustments, saving time and effort.

The Toro LX500 uses a serpentine belt system, which loops through various pulleys, providing the necessary tension and motion for different functions. Ensure you follow the diagram carefully when replacing the belt to prevent misalignment or malfunction. It’s also crucial to check belt tension regularly to avoid slippage or wear.

Before starting any repairs, make sure to disconnect the battery and raise the mower deck. Use the belt diagram as your guide to remove the old belt and install the new one in the correct orientation. Always use the manufacturer-recommended replacement belts to ensure proper fit and durability.

Toro LX500 Belt Diagram Guide

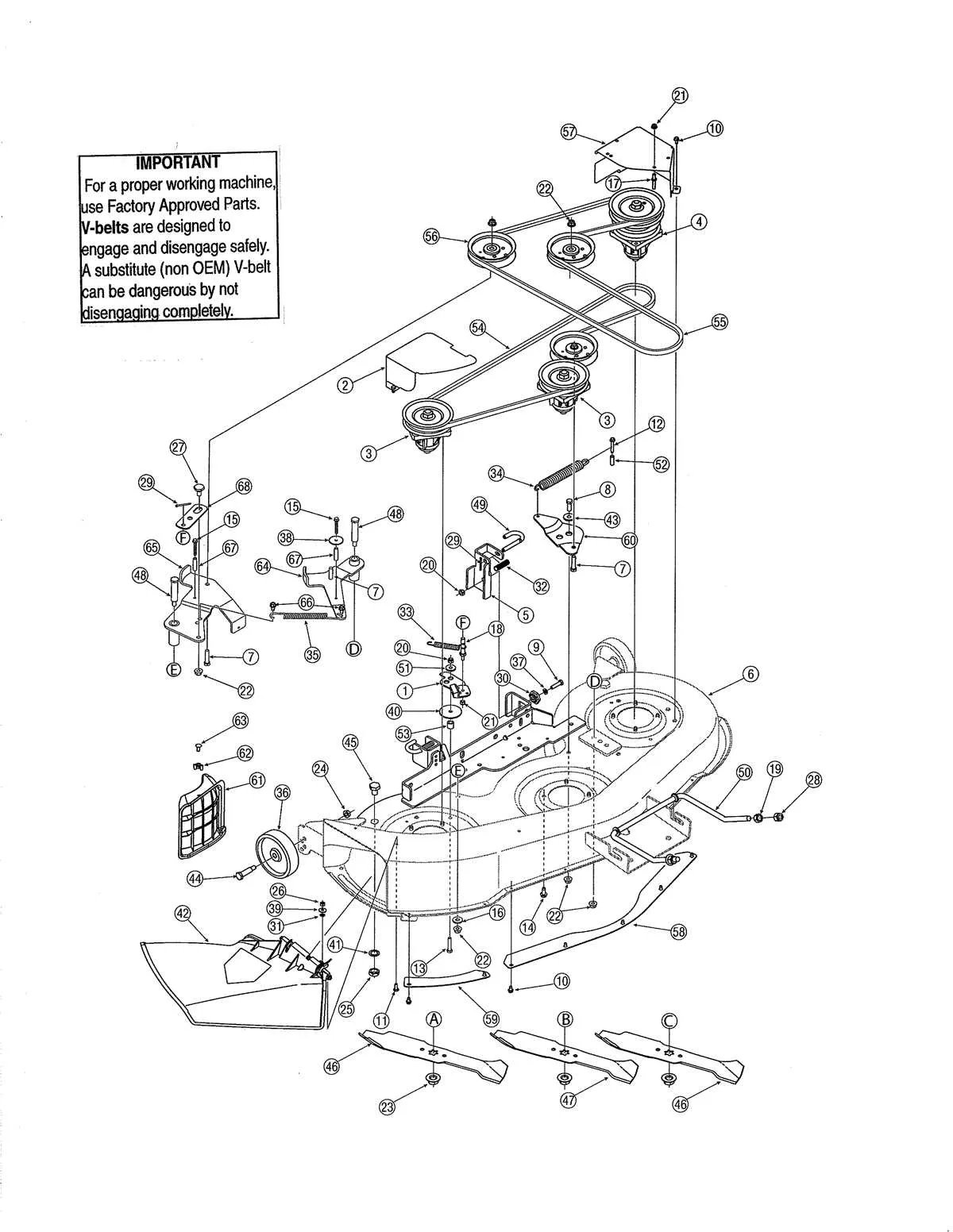

To replace or maintain the belts on your Toro LX500, start by understanding the specific layout of the drive system. The diagram clearly illustrates how each belt routes around the pulleys and components. Pay attention to the tensioner’s role, as it keeps the belts properly tightened for optimal operation.

1. Check the Engine Specifications

Before working with the belts, verify your Toro LX500 model and engine type. This will ensure you’re working with the correct diagram. The configuration may differ slightly depending on the year or engine model.

2. Identify the Key Components

The main components involved are the engine pulley, the transmission pulley, and the tensioner. The diagram will show how the main drive belt connects these parts and how smaller belts may be routed to various accessories like the mower deck.

3. Inspect the Belt Routing

Ensure the belts are routed according to the diagram. Incorrect routing can lead to poor performance or even damage. Check that the belt is positioned correctly on all pulleys, ensuring there’s no slack or over-tightening.

4. Replace the Belts

If you’re replacing any belt, make sure to use the manufacturer-recommended part. A worn belt can cause slipping, loss of power, or breakage. Align the new belt with the pulleys according to the diagram and tighten it properly to the specified tension.

5. Test the System

After replacing the belt, manually rotate the pulleys to ensure everything moves smoothly. Start the engine and monitor the belts for any signs of slippage or misalignment.

By following this guide and using the Toro LX500 belt diagram, you can ensure proper belt installation and maintenance for continued performance.

How to Identify Key Components in the Toro LX500 Belt Diagram

Start by locating the engine pulley and the deck pulley. These two components are the primary sources of power transmission in the belt system. The engine pulley drives the belt, which then moves to the deck pulley, powering the cutting deck.

The tensioner pulley plays a crucial role in maintaining proper belt tension. It is typically located along the path of the belt and should be inspected for any signs of wear or damage. A worn tensioner pulley can cause the belt to slip, reducing performance.

Next, identify the idler pulleys. These are secondary pulleys that guide the belt along its path. Check each one for alignment and smooth movement. Misaligned or stuck idler pulleys can cause the belt to come off or wear unevenly.

Inspect the belt itself for signs of damage such as cracks, fraying, or glazing. If the belt appears compromised, it’s best to replace it to avoid further damage to the system.

• Engine Pulley: Drives the belt from the engine.
• Deck Pulley: Powers the cutting deck.
• Tensioner Pulley: Maintains proper belt tension.
• Idler Pulleys: Guide the belt along its path.

Ensure that the belt is properly routed according to the manufacturer’s diagram. This will ensure optimal performance and prevent premature wear. Always replace any worn pulleys at the same time as the belt to maintain the system’s integrity.

Step-by-Step Instructions for Replacing the Toro LX500 Belt

Begin by ensuring the Toro LX500 is on a flat surface and the ignition is turned off. Disconnect the battery to prevent accidental starts during the replacement process.

Lift the mower deck using the height adjustment lever to gain access to the belt area. Position the deck high enough for easy access to the pulleys and belt.

Locate the belt tensioner and use a wrench to relieve tension on the belt. Rotate the tensioner arm clockwise to slacken the belt.

Carefully remove the old belt from the pulleys, noting its routing for reference. If the belt is damaged, replace it with an identical part to ensure proper operation.

Route the new belt over the pulleys, following the original belt path. Make sure the belt sits properly in the grooves of each pulley.

Once the new belt is in place, rotate the tensioner arm counterclockwise to apply tension. Double-check that the belt is aligned correctly and the tension is secure.

Lower the mower deck back to its original position and reconnect the battery. Test the mower by engaging the blades and checking for smooth operation.

Common Belt Issues and How to Troubleshoot Them on Toro LX500

If the belt on your Toro LX500 is slipping or squealing, check for wear and tear. Inspect the belt for fraying or cracks. If you notice any damage, replace the belt immediately. A damaged belt can cause poor performance or even break during operation.

Loose or misaligned belts can also lead to issues. To troubleshoot, ensure that the belt is properly aligned with the pulleys. If it’s too loose, you may need to adjust the tension using the tensioner bolt. Over time, the tensioner can wear out, so check its condition and replace it if necessary.

Another common issue is a noisy belt. This could be due to improper lubrication or dirt buildup on the pulleys. Clean the pulleys with a cloth and check for any debris. If the problem persists, check the pulleys for wear. Damaged pulleys may need to be replaced to prevent further damage to the belt.

If the belt keeps coming off, ensure that all the pulleys are securely attached and that there’s no obstruction preventing smooth movement. Check the drive system for any misalignments or damaged components. Realign or replace damaged parts as needed.

Lastly, if you experience poor cutting performance, it could be due to a worn-out belt slipping during operation. A new belt should restore proper functionality. Regularly inspect the belt to avoid premature wear and maintain optimal performance.
