Yard Machine 46 Inch Deck Belt Diagram and Installation Guide
To replace or repair the belt on a Yard Machine 46-inch deck, begin by identifying the correct routing and orientation of the belt. Refer to the manufacturer’s diagram, which shows the proper path the belt follows through the pulleys and spindles.
The first step is to disconnect the spark plug to ensure safety while working on the machine. Once that’s done, raise the deck to an accessible height for easier handling. Remove any components that might block access to the belt area, such as the deck shield or the belt guard.
Next, carefully inspect the belt for signs of wear or damage. If the belt is in poor condition, it’s crucial to replace it with a new one of the same size and type as specified in the owner’s manual. The diagram helps to verify the correct belt size, which is vital for optimal performance.
When installing the new belt, follow the exact routing pattern shown in the diagram. Pay attention to the tensioner pulley’s position to ensure proper tension. Once the belt is in place, rotate it manually to make sure it moves freely and is correctly aligned.
After confirming the belt’s position and tension, reassemble any parts removed during the process. Test the mower on a small section of grass to verify that the belt operates smoothly without any slipping or unusual noises.

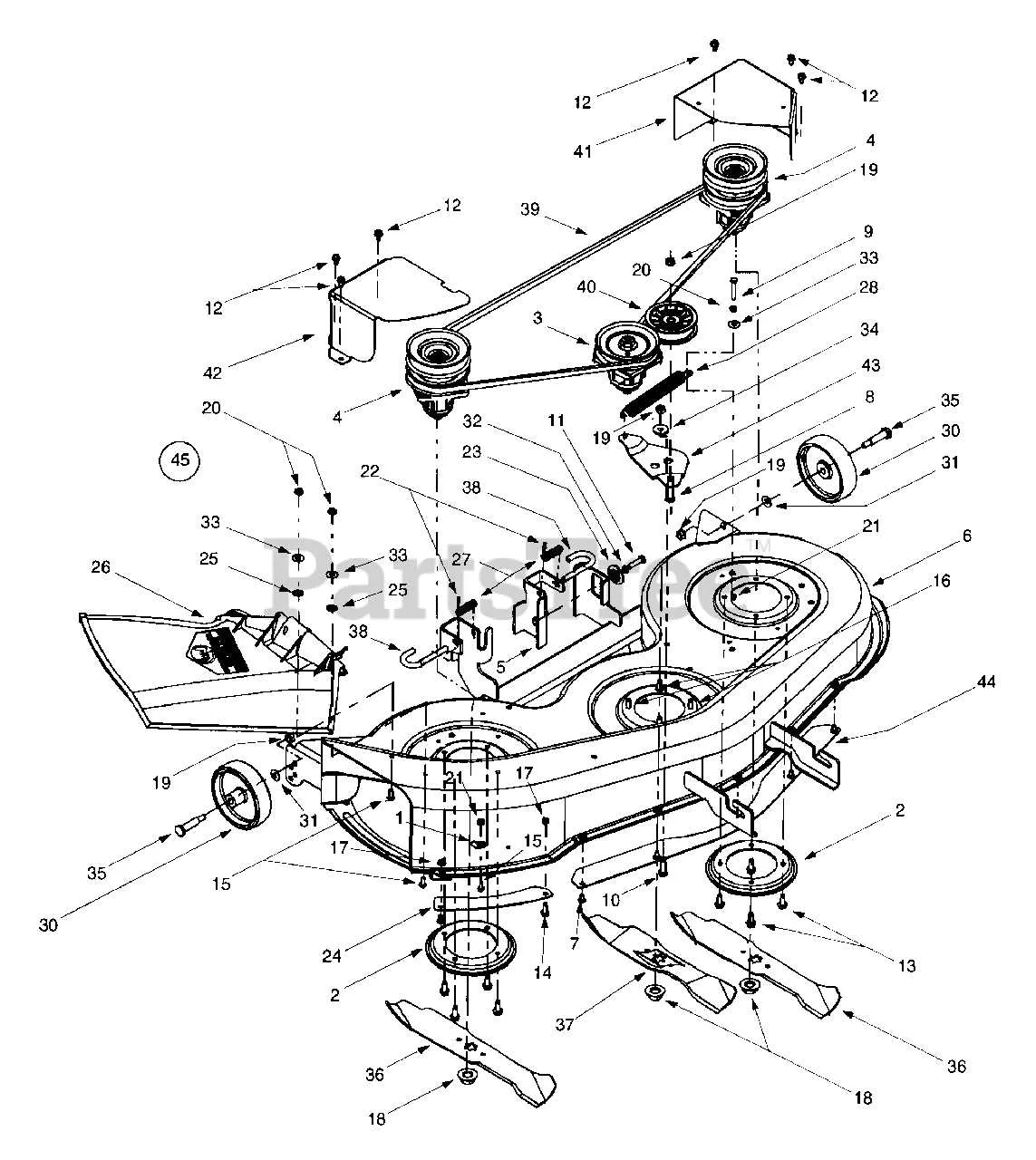

Yard Machine 46 Inch Deck Belt Diagram
The Yard Machine 46-inch deck belt diagram shows the correct routing of the mower’s belt system. Follow the diagram carefully to ensure proper installation and avoid any misalignment that could lead to damage or inefficient operation.
First, remove any debris or dirt from the mower deck to gain clear access to the belt system. Ensure the engine is off and the key is removed before proceeding with any maintenance.
Refer to the diagram to identify the path of the belt. The belt runs over pulleys and the tensioner. It’s important to check the condition of each pulley and the tensioner to ensure they are functioning correctly.
To replace or reinstall the belt, start by detaching the old one from the pulleys and routing the new belt according to the diagram. Ensure the belt is aligned properly on each pulley, and avoid any twisting that could cause it to slip off during operation.
Once the belt is in place, check its tension. The belt should have some slack but should not be overly loose. If the tension is incorrect, adjust the tensioner to achieve the proper tightness.
Finally, rotate the deck manually to confirm that the belt moves smoothly along its path without slipping or binding. If everything is aligned properly, reassemble the mower and test it to ensure smooth operation.
- Ensure the belt follows the diagram exactly.
- Check each pulley for wear or damage before installing the new belt.
- Verify belt tension after installation to prevent slipping.
Identifying the Correct Belt Routing for a 46 Inch Deck
To ensure proper operation, follow these steps to identify the correct belt routing for the Yard Machine 46-inch deck:
1. Start by checking the engine side of the deck. The belt should loop around the main pulley, which is located near the engine. This section requires careful observation as the belt will need to stay aligned with the spindle pulleys that control the blades.
2. Pay close attention to the tensioning system. The belt will pass over a spring-loaded idler pulley that provides the necessary tension to keep the belt in place. This pulley typically sits between the main drive pulley and the spindle pulleys.
3. Make sure the belt travels around each spindle pulley correctly. These pulleys are responsible for turning the blades. Each spindle pulley has a specific position along the routing path, ensuring that the blades rotate efficiently. Incorrect routing here can lead to insufficient cutting performance.
4. Refer to the diagram specific to your model for the final step. While most Yard Machine models share similar routing paths, some variations exist, particularly in the placement of the idler and tensioner pulleys. A diagram will help confirm the correct path and pulley positions.
| Pulley | Position |
|---|---|
| Main Drive Pulley | Near engine, driving the belt |
| Idler Pulley | Between main drive pulley and spindle pulleys |
| Spindle Pulleys | Located on the deck, driving the blades |
Once the belt is routed correctly, double-check for proper tension. A loose belt can lead to slipping, while a too-tight belt may cause premature wear.
Common Issues with the Yard Machine 46 Inch Deck Belt
One common problem is belt slippage, often caused by incorrect tension. A loose belt may not engage properly with the pulleys, leading to poor performance. Ensure the tension is adjusted to the manufacturer’s specifications to avoid this issue.
Another frequent issue is belt wear and tear. Over time, the belt can become frayed or cracked, especially if it has been exposed to extreme temperatures or improper routing. Regularly inspect the belt for signs of damage and replace it if necessary.
Belt misalignment is also a common cause of malfunction. If the belt is not routed correctly around the pulleys, it can cause uneven wear and premature failure. Always refer to the Yard Machine 46-inch deck belt diagram to ensure proper alignment during installation.
Sometimes, debris accumulation can also cause belt issues. Grass, dirt, and other materials can build up around the belt and pulleys, leading to excessive friction and wear. Clean the area around the belt regularly to maintain optimal performance.
Lastly, the pulley system itself can contribute to belt issues. Worn or damaged pulleys may not allow the belt to function correctly. Inspect the pulleys for any signs of damage and replace them if they are not turning freely or are visibly damaged.
Steps for Replacing the Deck Belt on a Yard Machine
Start by raising the front of the mower using a jack or lifting device. Ensure the mower is stable before proceeding.
Locate the deck belt tensioner and relieve the tension by loosening the tension spring. This step is necessary to remove the old belt without resistance.
Carefully detach the old belt from the pulleys and idler arms. Pay attention to the belt’s routing to make it easier to install the new one.
Install the new deck belt by routing it according to the diagram or your notes from the old belt’s positioning. Ensure it is properly aligned with the pulleys and all components are correctly seated.
Reattach the tension spring to apply proper tension to the belt. Double-check the tension to make sure the belt is neither too tight nor too loose.
Lower the mower back to its normal position and test the belt by engaging the blades. Listen for any unusual noises or signs of improper tension.
If everything functions smoothly, you’ve successfully replaced the deck belt. Regularly inspect the belt for wear and proper tension to avoid future issues.
