E46 Alternator Belt Diagram for BMW Cars and Its Proper Installation

To replace or inspect the alternator belt on your BMW E46, it’s important to understand the layout and the necessary components involved. The alternator belt, also known as the serpentine belt, is responsible for powering several critical components, including the alternator itself. Refer to the E46 alternator belt diagram to ensure you understand the correct routing before starting your work.

Diagram Overview: The diagram typically shows the belt’s path around the engine pulleys, indicating the tensioner and idler pulley locations. Make sure the tensioner is properly aligned and the belt is installed with the correct tightness to avoid slipping or undue wear.

Step-by-Step Installation: Start by loosening the tensioner pulley. Once you relieve the tension, you can easily remove the old belt. Carefully compare the new belt with the diagram before fitting it around the pulleys. Ensure the belt is seated properly in each groove and that it runs in a smooth, even line.

Before finishing, inspect the pulleys for any signs of wear or damage. A worn pulley can lead to premature belt failure. After installing the new belt, test the system by turning the engine on and checking for any abnormal sounds or movement. If the belt is aligned and tensioned correctly, the system should function smoothly without any issues.

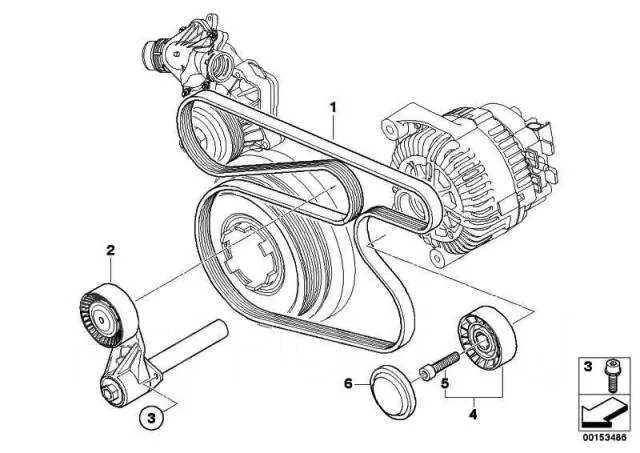

E46 Alternator Belt Diagram

To properly install or replace the alternator belt on your BMW E46, follow the belt routing depicted in the diagram. This belt drives not only the alternator but also other critical components like the power steering pump and water pump. Ensuring correct alignment is key to preventing wear and premature failure.

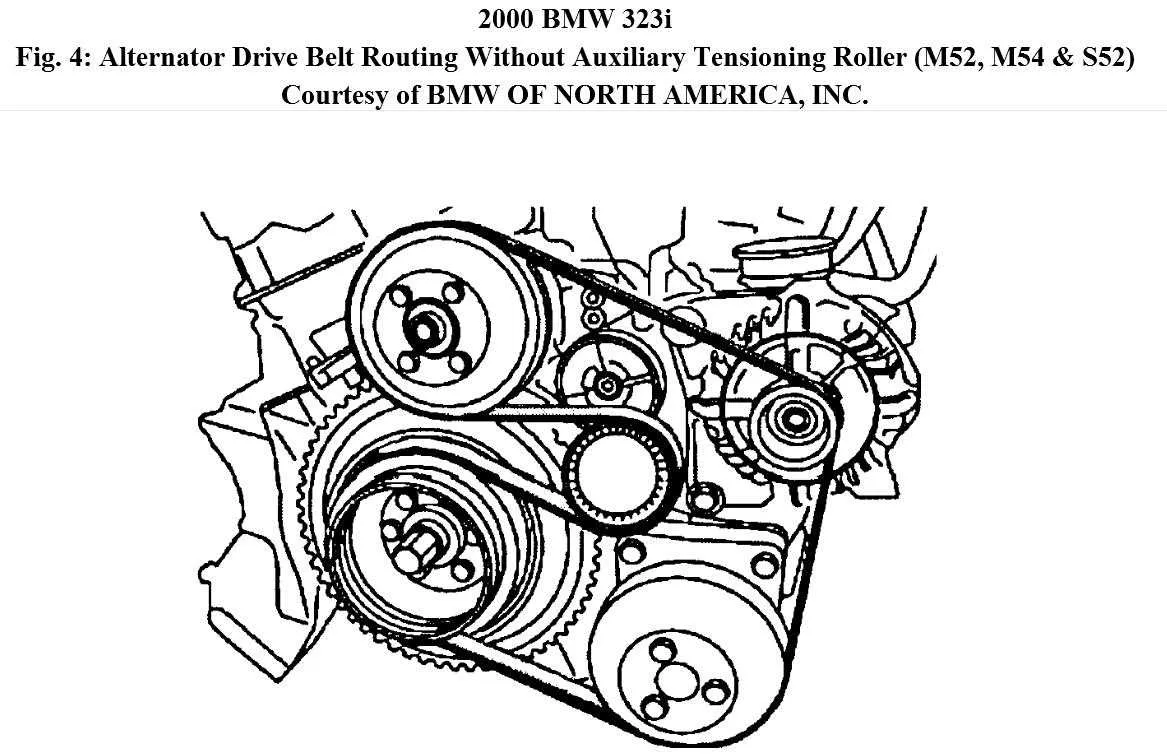

The diagram shows a serpentine belt system with the alternator positioned near the top right of the engine, typically alongside the tensioner and idler pulleys. The belt should loop around the crankshaft pulley, alternator, power steering pump, and water pump, with the tensioner pulley maintaining the required belt tension.

When replacing the alternator belt, double-check that the belt routing matches the diagram. Misalignment can cause slipping, leading to belt damage or failure. A properly tensioned belt will provide reliable operation for all connected components.

If the belt appears worn or cracked, it’s a good idea to replace it along with the tensioner. Over time, the tensioner can lose its ability to maintain proper belt tension, causing the belt to wear unevenly or slip off its path.

Remember, correct installation is critical to the long-term reliability of your BMW’s engine. A quick visual inspection of the belt’s condition and the tensioner can save you from future breakdowns.

How to Identify the Correct E46 Alternator Belt Layout

Check your vehicle’s service manual first. It contains the most accurate diagram for your specific model. Ensure the alternator belt routing matches the factory diagram provided for your E46. Pay attention to the direction of the grooves on the belt and how it interacts with pulleys and tensioners. A common mistake is misplacing the belt on a pulley, which can lead to improper belt tension and early wear.

Verify the number of ribs on the belt. E46 models often use a multi-ribbed serpentine belt. Match the belt to the diagram, ensuring it has the correct number of ribs to fit all pulleys. Incorrect rib alignment could cause slipping or wear faster than expected.

Inspect the belt tensioner. If it’s not aligned with the belt’s routing diagram or the tensioner feels loose, you may need to replace it. An improper belt tensioner will prevent the correct tension, affecting alternator performance.

Always check that the belt path does not interfere with other components. The E46 alternator belt is part of a system that includes the power steering, water pump, and air conditioning. Ensure the belt follows the precise layout shown in the manual to avoid interference between components.

If you’re unsure, seek advice from a professional or use an online diagram for comparison. Misalignment or incorrect routing can result in engine damage, so confirming the correct layout is critical.

Step-by-Step Guide to Replacing the E46 Alternator Belt

Begin by gathering the necessary tools: a socket wrench set, a tensioner tool, and a replacement belt that matches your E46 model.

1. Locate the alternator belt. It’s positioned near the front of the engine, running over pulleys. The diagram will help you identify the correct routing.

2. Disconnect the negative terminal of the battery. This prevents any electrical accidents while working on the engine.

3. Use the tensioner tool to relieve tension on the belt. This may require turning the tensioner clockwise or counterclockwise, depending on your engine configuration.

4. Remove the old belt carefully. Take note of the belt’s routing around pulleys to ensure the new one is installed correctly.

5. Install the new alternator belt. Route it around the pulleys exactly as the diagram shows. Make sure the belt is properly seated in each groove of the pulleys.

6. Reapply tension to the new belt using the tensioner tool. Ensure the belt has enough tension but isn’t too tight, as this can cause premature wear.

7. Double-check the belt’s positioning and tension. The belt should move slightly with moderate force but shouldn’t slip off the pulleys.

8. Reconnect the negative terminal of the battery and start the engine to confirm the belt is functioning correctly. Listen for any unusual noises.

9. If everything is running smoothly, you’ve successfully replaced the alternator belt. Check the belt’s tension after a few days to ensure it remains secure.

Troubleshooting Common Issues with the E46 Alternator Belt Setup

If your E46 alternator belt shows signs of wear, squealing, or slippage, it may be time to inspect the tension and alignment. Check the belt for cracks or fraying–any visible damage could be a sign that the belt needs replacing.

Start by ensuring the belt tension is correct. A loose belt can lead to poor charging performance and cause the alternator to work inefficiently. Use a tension gauge to check the proper tightness. If you don’t have one, a simple push test with moderate force should reveal if the belt moves too much. If it does, tighten the tensioner pulley until the desired tension is achieved.

Misalignment is another frequent issue. If the belt runs off-center or makes an uneven noise, the pulleys might not be aligned properly. This can happen due to worn or damaged components like the alternator, power steering pump, or water pump. Inspect the pulleys for any signs of wear, and check for any loose bolts or broken mounts. Replacing the faulty components can prevent further damage to the belt and other accessories.

Excessive noise from the belt could also be caused by a misaligned or failing tensioner pulley. If the pulley shows signs of wear, such as wobbling or uneven rotation, replace it promptly to avoid further complications.

Lastly, check the alternator for any signs of bearing failure. If you notice a grinding or screeching sound when the engine is running, this could indicate that the alternator bearings are damaged, leading to more strain on the belt. Replacing the alternator or repairing the bearings will resolve the issue.
