Troy-Bilt 50 Inch Deck Belt Diagram and Maintenance Guide

To replace the deck belt on your Troy-Bilt 50-inch lawn mower, first ensure you have the correct diagram at hand. This visual guide will make the process much easier and help avoid confusion during installation. The belt must be routed precisely through the pulleys to ensure proper tension and mower function.

Step 1: Remove the Old Belt

Before you begin, make sure the mower is powered off, and disconnect the spark plug to prevent any accidental starts. Raise the deck to its highest setting and remove the belt from the pulleys. This step might require removing the deck or loosening certain components, depending on your mower model.

Step 2: Refer to the Diagram

The diagram shows the exact path the belt needs to take. Follow it carefully to route the new belt through each pulley. Pay close attention to the direction of the pulleys and the belt’s orientation to avoid any misalignment that could cause excessive wear or damage.

Step 3: Install the New Belt

After positioning the new belt according to the diagram, make sure it sits properly on each pulley. Adjust the tension as needed and test by manually rotating the deck pulleys to ensure smooth operation.

Step 4: Reassemble and Test

Once the new belt is correctly installed, reassemble any components you had removed. Test the mower by starting it up and engaging the blades to verify everything is functioning smoothly. If the belt seems too loose or tight, you may need to adjust the tension further.

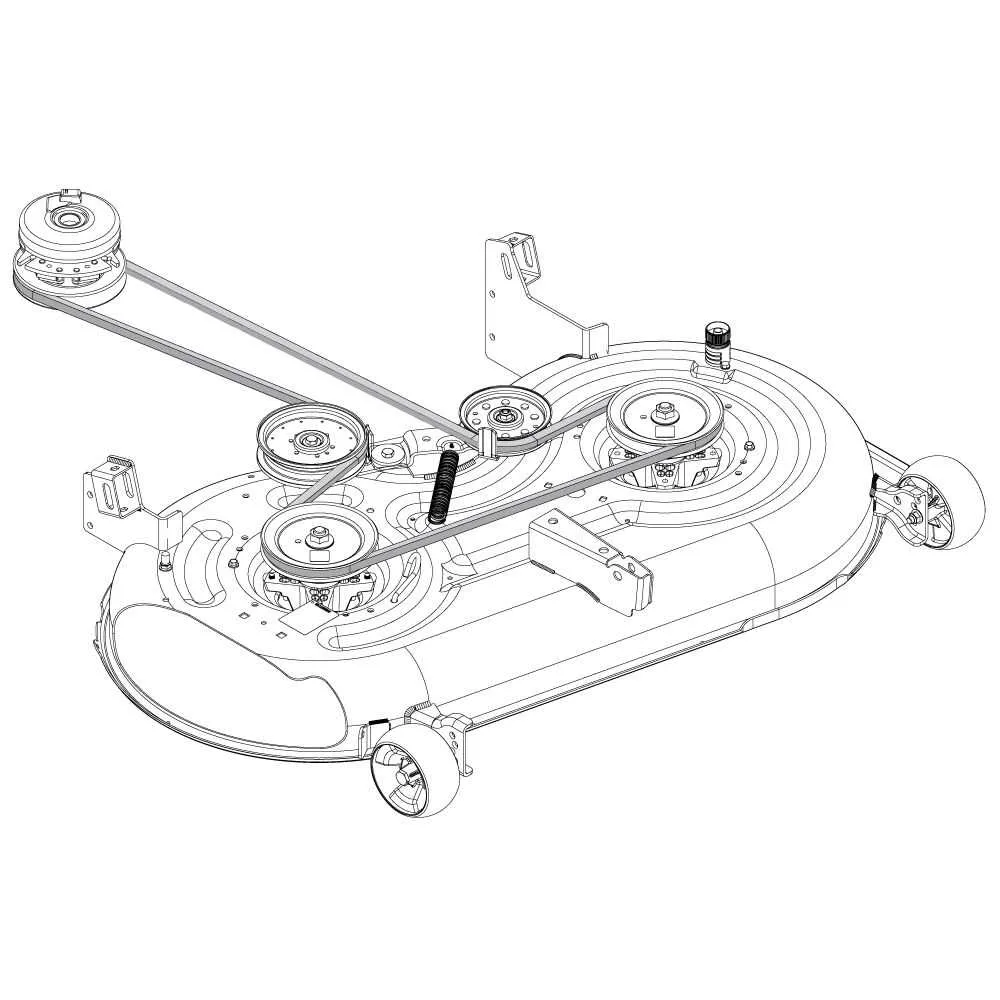

Troy-Bilt 50 Inch Deck Belt Diagram

For proper installation or replacement of the deck belt on a Troy-Bilt 50-inch lawn mower, refer to the diagram below. The belt routing is a key element in ensuring smooth operation of the deck blades. Here’s the correct belt routing process:

1. Start by threading the belt through the pulleys on the deck. The belt must pass over the main deck pulleys, the tensioner pulley, and the idler pulley without any twists.

2. Ensure that the belt is aligned correctly on the drive pulleys. The belt should sit firmly in the grooves of all pulleys to avoid slippage or damage during use.

3. The tensioner pulley plays a crucial role in maintaining the right tension on the belt. Make sure it is correctly positioned to keep the belt taut, preventing it from becoming too loose or too tight.

4. Double-check that the belt is routed under the deck’s lift arms, ensuring there is enough clearance to avoid obstruction when the mower deck moves up or down.

5. After the belt is installed, manually rotate the pulleys to verify that the belt moves freely without binding. The system should run smoothly, with no abnormal friction or noises.

6. Always refer to the manufacturer’s specific belt diagram, as deviations can lead to malfunctioning or premature wear of the belt and pulleys.

How to Interpret the Troy-bilt 50 Inch Deck Belt Diagram for Proper Installation

Carefully follow the diagram to ensure a smooth installation of the belt. Start by identifying the components shown, including pulleys, spindles, and the belt path.

• Locate the main drive pulley, which connects to the engine. The diagram will highlight its placement.
• Understand the routing path for the deck belt. It typically follows a loop around the pulleys, including idler pulleys that provide tension to the belt.
• Identify the tensioning system, usually shown as an adjustable idler pulley. This pulley must maintain the proper tension to prevent the belt from slipping or wearing prematurely.
• Ensure the belt’s path aligns with the diagram. Make sure that it passes over the correct pulleys in the order specified, especially around the deck spindles.
• Check the orientation of the belt. Many Troy-Bilt models require the belt to be installed with a specific side facing out for optimal performance.

Once all components are correctly positioned, double-check the belt tension. Too loose or too tight a belt can cause issues with the mower’s performance, leading to premature wear or slippage. If necessary, adjust the tensioning pulley according to the manufacturer’s instructions.

Finally, rotate the pulleys by hand to ensure smooth movement. There should be no binding or excessive resistance in the system. If everything moves freely, the installation is complete and ready for testing.

Common Issues with the Troy-Bilt 50 Inch Deck Belt and How to Troubleshoot Them

If your Troy-Bilt mower’s 50-inch deck belt is slipping or breaking frequently, inspect the tension spring. A worn or improperly adjusted spring can cause the belt to lose proper tension, leading to slippage and wear. Adjust or replace the spring to maintain adequate tension and prevent belt issues.

Another common problem is misalignment. If the belt isn’t tracking straight across the pulleys, it may wear unevenly or snap. Check all pulleys and idlers for signs of wear or damage. Misaligned pulleys can cause the belt to shift off track, so realign or replace any damaged parts to correct the issue.

Look for any debris caught in the pulleys or belt. Grass, twigs, or other debris can hinder the belt’s movement, increasing friction and causing premature wear. Clean the deck regularly to remove buildup and inspect the belt after every use to avoid this problem.

If you notice that the belt is fraying or showing signs of cracking, it’s likely time for a replacement. Check the manufacturer’s guidelines for the correct belt specifications and install a new one to restore optimal performance.

Finally, excessive wear on the belt could indicate a malfunctioning pulley or tension system. Inspect the drive system for wear on components like bearings or pulleys. If any parts are damaged, replacing them will keep the belt running smoothly and prevent further damage.

Step-by-Step Guide to Replacing the Belt on Your Troy-bilt 50 Inch Deck

Begin by ensuring the mower is turned off and the engine is cool. Disconnect the spark plug wire to prevent accidental starts during the process.

Raise the deck to its highest position using the deck lift lever. This will give you the necessary clearance to access the belt area.

Next, locate the belt covers on the mower deck. Remove any screws or bolts holding the covers in place, then set them aside. These covers protect the belt, so take care not to damage them.

Once the covers are removed, examine the existing belt for any signs of wear or damage. Note how the belt is routed around the pulleys to ensure the new belt is installed correctly. A diagram of the belt routing can be found in the owner’s manual, or you can search for a Troy-bilt 50 inch deck belt diagram online.

Release the tension on the belt by loosening the tension spring or bolt that holds the tension pulley in place. Carefully slide the belt off the pulleys. Take note of how the belt fits over each pulley to ensure proper alignment with the new belt.

Take the new belt and carefully loop it around the pulleys, following the same path as the old one. Be sure the belt is seated properly on each pulley, without any twists or kinks.

Reattach the tension pulley by tightening the spring or bolt to restore belt tension. The belt should have some slack but still maintain a firm grip on the pulleys. Adjust the tension if needed to ensure the belt is snug but not overly tight.

Once the new belt is in place and properly tensioned, replace the belt covers and secure them with the screws or bolts you removed earlier.

Finally, reconnect the spark plug wire, lower the deck, and test the mower to ensure the belt is functioning correctly. Run the mower for a few minutes to check for any unusual noises or slipping, which may indicate the belt needs further adjustment.
