Dr Trimmer Belt Diagram and Its Components for Proper Maintenance and Function

Understanding the layout and function of the Dr Trimmer belt system is critical for maintaining its performance. The diagram provides a clear visual representation of how the various components work together, ensuring the trimmer operates smoothly and efficiently. A well-maintained belt system prevents unnecessary wear and tear, improving the longevity of the device.

The diagram showcases the precise positioning of the belt relative to other parts, such as the pulleys and gears. These elements must align correctly to guarantee proper tension and optimal power transmission. If the belt is misaligned, it could lead to slipping, poor trimming performance, or even damage to the motor.

When examining the Dr Trimmer belt diagram, focus on the tension adjustments. A belt that’s too tight or too loose can affect the overall operation of the trimmer. Regular checks of the belt tension, especially after extended use, can save time and money by preventing major issues.

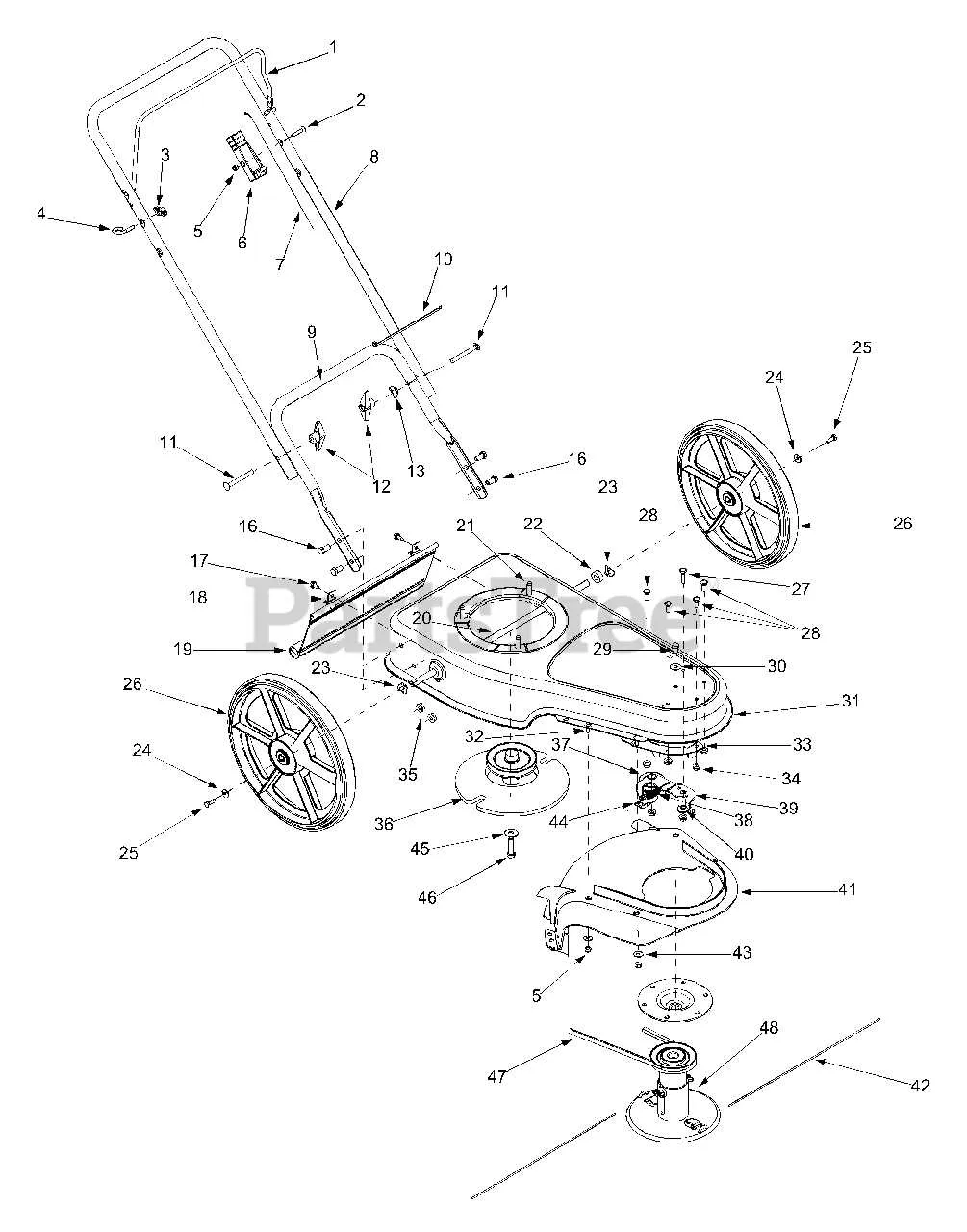

Dr Trimmer Belt Diagram

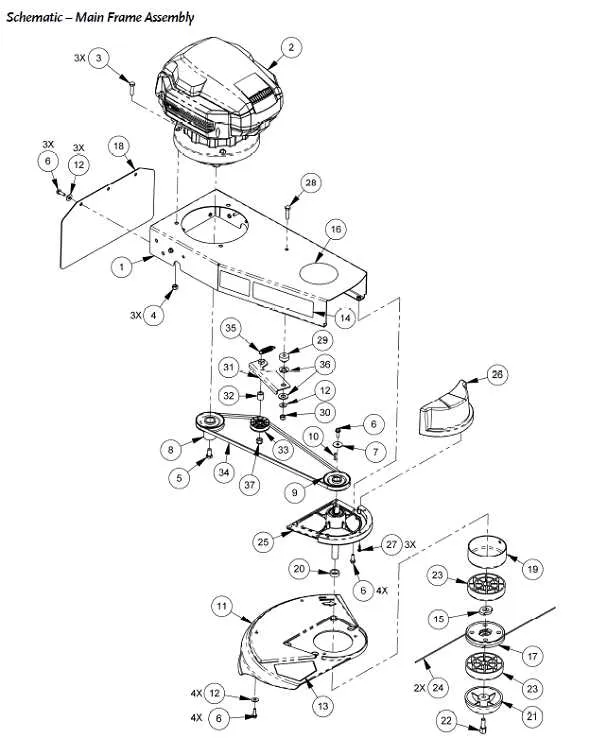

The Dr Trimmer belt diagram clearly illustrates the correct configuration of the drive system for optimal performance. To ensure your machine operates smoothly, follow the diagram closely, aligning each component as shown. Pay attention to the tension and direction of the belt, as improper installation can cause inefficiency or damage. The diagram typically shows how the belt loops around the pulleys, and where the tensioners are located to maintain proper tightness.

Before starting, inspect the belt for wear. If it shows signs of cracking or fraying, replace it before installation. Make sure to clean the pulleys to avoid debris that could cause friction or misalignment. Always refer to the model-specific diagram, as slight variations can exist between different Dr Trimmer models.

After aligning the belt according to the diagram, manually rotate the pulleys to check for smooth movement. The diagram should indicate the proper tension to prevent the belt from slipping or over-stretching. Incorrect tension can lead to premature belt wear or reduced cutting efficiency.

To adjust the tension, locate the tensioner pulley, which can be shifted to increase or decrease the pressure on the belt. A correctly tensioned belt will run quietly and efficiently, ensuring the motor drives the blades effectively. If the belt does not track properly, double-check the alignment with the diagram to make sure all components are in place.

Understanding the Dr Trimmer Belt Layout for Proper Assembly

Ensure the belt is routed according to the specific diagram for the Dr Trimmer model. Pay close attention to the direction of the belt and the placement on each pulley. Incorrect assembly may lead to improper tension, resulting in decreased performance or potential damage.

Start with the primary drive pulley. The belt should be positioned so it wraps securely around the pulley without excessive slack. Check the alignment carefully; the belt must run straight through the assembly without twisting or deviating from the prescribed path.

Next, examine the tensioner pulley. This component plays a crucial role in keeping the belt tight, so it should be positioned to apply the right amount of pressure. Over-tightening can lead to premature wear, while under-tightening may cause slipping and reduced efficiency.

Ensure the belt doesn’t overlap or become misaligned during installation. Take note of the belt’s teeth and how they mesh with the pulleys, as the proper fit is key to smooth operation. Adjust the tension and verify that the belt maintains consistent contact with each pulley, with no significant gaps or shifts.

Lastly, double-check the final configuration against the provided diagram. Any deviation from the layout can result in uneven wear and operational issues. Once confirmed, secure the belt in place and perform a test run to confirm smooth motion across all components.

How to Identify Belt Tension and Adjust It Correctly

Check belt tension by pressing on the belt with your thumb. A properly adjusted belt should deflect about half an inch to an inch when moderate pressure is applied. If the belt is too loose, it will deflect more than an inch, leading to inefficient performance and possible slipping. A tight belt, on the other hand, should not deflect much at all and may cause excess wear on both the belt and the pulleys.

To adjust the tension, first, locate the tension adjustment mechanism. This is typically a bolt or screw positioned near the motor or tensioner pulley. Loosen the bolt slightly to relieve pressure on the belt, then either tighten or loosen the adjustment to achieve the desired tension. After making adjustments, check the belt deflection again to ensure it’s within the correct range. Tighten the bolt securely once the tension is set.

If you notice that the belt deflects unevenly or makes squeaking sounds, it may indicate that the tension is not evenly distributed, or the belt itself is worn. In such cases, inspect both the belt and the pulleys for any signs of damage or wear and replace components if necessary.

Remember to check the belt tension periodically. Over time, belts stretch and can lose their effectiveness, which impacts machine performance. Regular tension checks will help prevent unnecessary wear and prolong the lifespan of your equipment.

Common Issues with Dr Trimmer Belts and Troubleshooting Tips

If your Dr Trimmer belt isn’t functioning properly, the issue is likely tied to one of the common problems below. Check each one to save time and avoid unnecessary repairs.

• Belt Slippage: This often happens if the belt is too loose. Tighten the belt slightly and ensure it fits securely around the pulleys. Over time, belts can stretch, so replacing them may be necessary.
• Broken or Frayed Belt: A frayed or snapped belt means it’s no longer able to transfer power. Inspect the belt for signs of wear and replace it immediately to avoid further damage.
• Noisy Operation: Squealing or grinding sounds usually signal that the belt is misaligned or too tight. Check for obstructions and make sure the belt runs smoothly along the pulleys. Adjust the tension as needed.
• Insufficient Cutting Power: If the trimmer is losing efficiency, the belt may be slipping, worn out, or incorrectly tensioned. Adjusting the belt tension or replacing the belt can restore full power.
• Pulley Misalignment: Check if the pulleys are aligned properly. If they are out of position, the belt might not work efficiently. Realign the pulleys and check if the belt tracks properly on them.

Regular maintenance, including keeping the belt and pulleys clean, can prevent most of these issues. Always use the correct replacement parts for optimal performance and longevity of your Dr Trimmer.
