Scotts 1642H Drive Belt Diagram and Maintenance Guide

For efficient operation of your Scotts 1642H lawn tractor, a clear understanding of its drive belt system is key. The diagram below will guide you through the correct routing and installation of the drive belt, ensuring smooth performance. Pay close attention to belt placement and tension to avoid wear and unnecessary damage.

The drive belt connects various components like the engine, transmission, and drive wheels. Proper alignment is critical to prevent slippage and maintain consistent power delivery. Refer to the diagram for the specific path the belt should follow, and double-check that each pulley is aligned correctly. A misrouted belt can cause unnecessary strain, leading to premature failure.

When replacing the drive belt, make sure the new one matches the manufacturer’s specifications. Check for any debris or obstructions that might hinder the belt’s movement. After installation, manually rotate the pulleys to ensure smooth operation before using the mower. If you notice any issues with tension or alignment, adjust accordingly to maintain optimal performance.

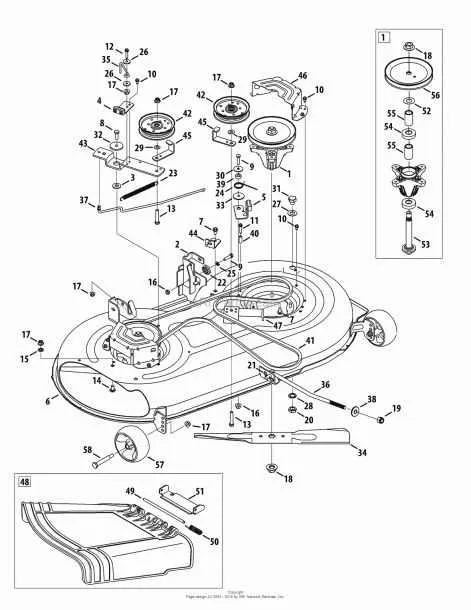

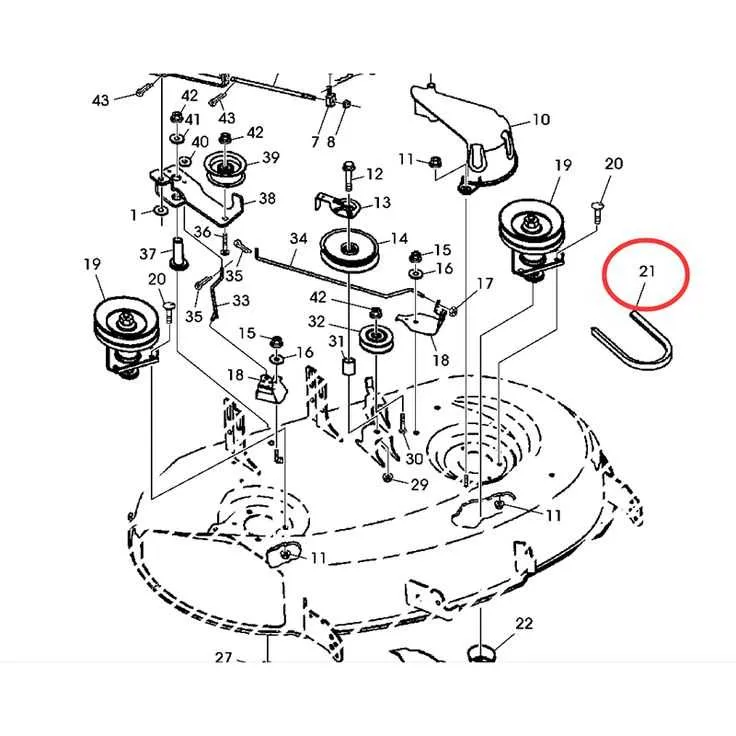

Scotts 1642H Drive Belt Diagram

For quick replacement or maintenance of the drive belt on your Scotts 1642H, refer to the diagram to understand the belt routing and components involved. Make sure to follow the correct path to avoid damage to the mower and ensure smooth operation.

The drive belt connects the engine to the transmission, enabling the mower to move forward or backward. It’s critical to maintain the proper tension and alignment of the belt. If the belt is too loose or damaged, it can cause slipping or even complete failure of the drive system. Follow the diagram carefully to ensure it’s routed correctly.

Start by removing the mower deck and locate the belt around the engine pulley. Check for wear, cracks, or stretching in the belt. The diagram will show how the belt should loop around the pulleys, ensuring the correct alignment. The belt goes over the drive pulley, around the idler pulleys, and under the engine pulley. Ensure the belt runs smoothly through all the rollers and pulleys.

Check the tension of the belt by pressing gently on the middle section. It should have some slack but should not feel too loose. If it’s tight, it could be under strain, which might cause premature wear. After confirming the belt’s path, reassemble the mower deck, making sure the belt is properly routed and aligned before securing everything back in place.

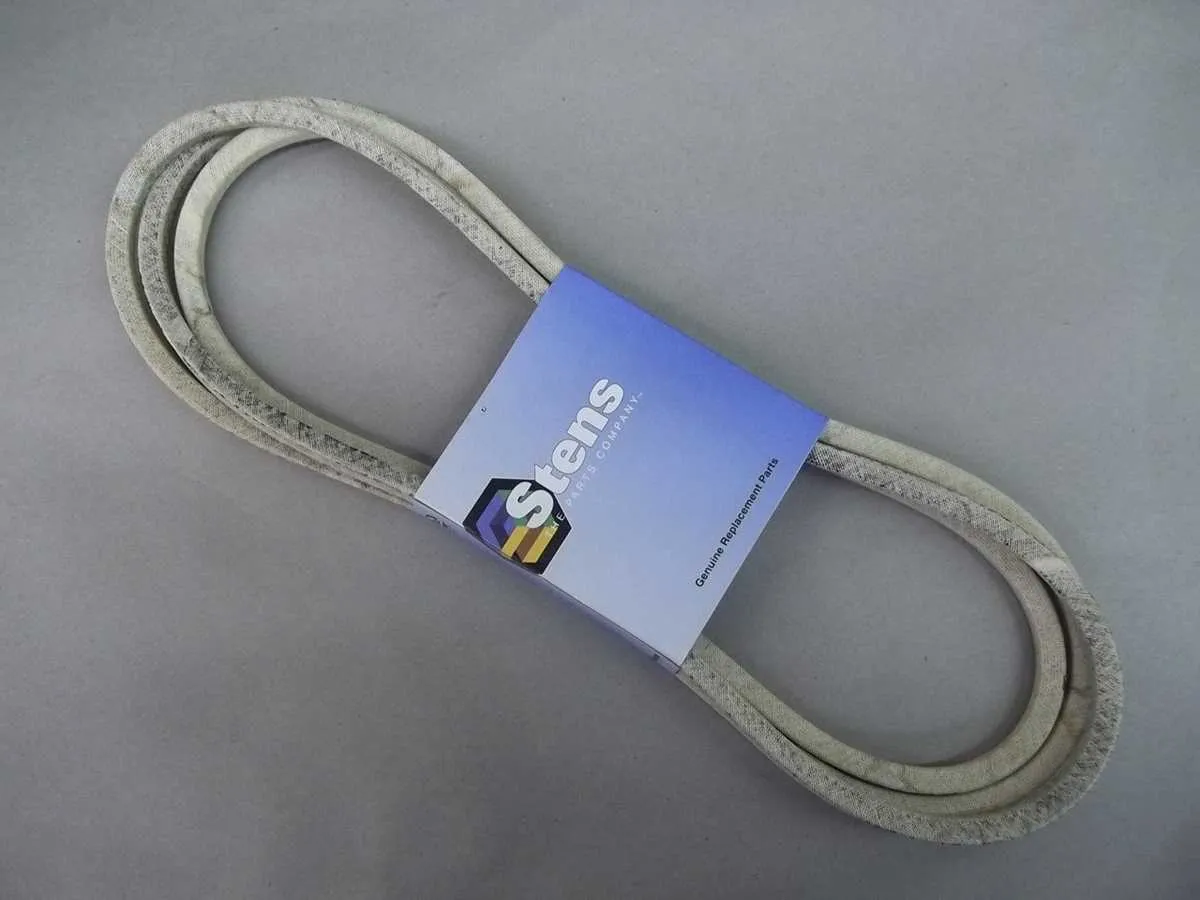

If you notice any issues, it’s best to replace the belt with a genuine part for your Scotts 1642H. Using the wrong size or type of belt can lead to poor performance or damage to the mower’s drive system.

How to Identify and Locate the Drive Belt on the Scotts 1642H

To locate the drive belt on the Scotts 1642H, first, raise the mower deck by using the height adjustment lever. This will give you clear access to the components underneath the machine.

The drive belt is positioned between the engine and the transmission. Look for the belt running from the engine pulley to the rear axle pulley. It’s typically located on the right side of the mower under the frame. You’ll see the belt secured by pulleys on either side, which help transfer power to the wheels.

If the belt is loose or damaged, it may appear off-center or worn. Inspect the belt for any visible signs of fraying, cracking, or tearing. You can also check for any objects obstructing the belt’s path.

For a more detailed look, remove the mower’s deck by loosening the bolts that secure it. This will provide a better view of the entire drive belt system, making it easier to inspect or replace the belt if necessary.

Once you’ve located and assessed the condition of the drive belt, you can proceed with maintenance or replacement as needed.

Step-by-Step Guide to Replacing the Drive Belt on a Scotts 1642H

First, disconnect the battery to avoid accidental starts while working on the mower.

Lift the mower deck using the jack or the lift mechanism. Make sure it’s stable before proceeding.

Locate the drive belt on the Scotts 1642H. It’s typically positioned around the pulleys under the mower deck. Identify any bolts or fasteners holding the deck in place and remove them to allow for easy belt access.

Remove any covers or shields that may be obstructing the belt. This will give you a clear view of how the belt is routed through the pulleys.

Loosen the tension on the old drive belt by releasing the spring tensioner or any adjusters. If the belt has a spring-loaded tensioner, simply pull it back to release the pressure.

Once the tension is released, carefully slide the old belt off the pulleys. Be mindful of the routing, as this will help you install the new belt correctly.

Before installing the new belt, compare it to the old one to ensure it matches in size and shape. If the new belt is different, double-check that you have the correct replacement.

Install the new belt, starting by threading it around the pulleys as shown in the belt diagram for the Scotts 1642H. Ensure the belt fits snugly in the grooves of each pulley.

Once the belt is in place, reapply tension by adjusting the tensioner or spring. Verify the belt is taut but not overly tight.

Reassemble any components you removed earlier, such as the deck fasteners or covers, making sure everything is securely in place.

Lower the mower deck, reconnect the battery, and test the mower to ensure the new drive belt is functioning correctly.

Troubleshooting Common Drive Belt Issues on the Scotts 1642H

If your Scotts 1642H isn’t operating smoothly, the drive belt might be the culprit. Here’s how to quickly diagnose and fix common belt problems.

1. Belt Slippage

• If the mower is sluggish or the wheels aren’t turning as expected, check for slippage. A loose or worn belt might not maintain proper tension, leading to a lack of power transmission.
• Inspect the belt for signs of wear, such as cracks or fraying. If damaged, replace the belt.
• Ensure the tensioner spring is properly adjusted to maintain adequate tension on the belt. If the spring is weak or broken, it might not keep the belt tight enough to function properly.

2. Misalignment

• Drive belts can misalign over time, especially if pulleys or guides are worn or damaged. Misalignment can cause the belt to slip off or wear unevenly.
• Check the pulley system for any debris or rust. Clean or replace pulleys as needed to ensure they are rotating freely and aligned correctly.
• Verify that all components, including the idler pulley and tensioner, are securely in place and functioning as designed.

3. Noisy Belt

• A squeaky or noisy belt usually indicates friction or wear. If the noise persists after lubrication, the belt might need replacement.
• Lubricate pulleys and any moving parts with a silicone-based lubricant. However, do not lubricate the belt itself.

4. Excessive Wear

• Inspect the belt regularly for signs of excessive wear, including visible cracks, tears, or fraying. If the belt is showing significant damage, it’s time for a replacement.
• Check the alignment of all pulleys. Misaligned pulleys will cause uneven wear on the belt and reduce its lifespan.

5. Belt Breaking or Snapping

• If the belt breaks, immediately check for debris lodged in the pulley system or any damaged components that could be causing excess strain on the belt.
• Install a new belt of the proper size and ensure it is routed correctly according to the diagram in your owner’s manual.

By addressing these common issues early, you can extend the life of your drive belt and ensure your Scotts 1642H operates smoothly for years to come. Regular maintenance and timely repairs will save you time and money in the long run.
