Corolla 2005 Serpentine Belt Diagram and Routing Guide

Refer to the 2005 Toyota Corolla belt diagram to ensure proper installation and maintenance of the engine belts. It provides a clear view of the serpentine belt routing, which is crucial for the smooth operation of the alternator, power steering pump, air conditioning compressor, and other essential components.

The diagram highlights the correct path and alignment for the serpentine belt, helping prevent issues like slippage or wear. It also shows the location of the tensioner pulley, which should be inspected periodically to avoid belt tension problems.

If you’re replacing the belt, make sure to check the condition of all pulleys and replace any worn-out components. Using the correct belt length and type is critical for maintaining engine efficiency and avoiding costly repairs.

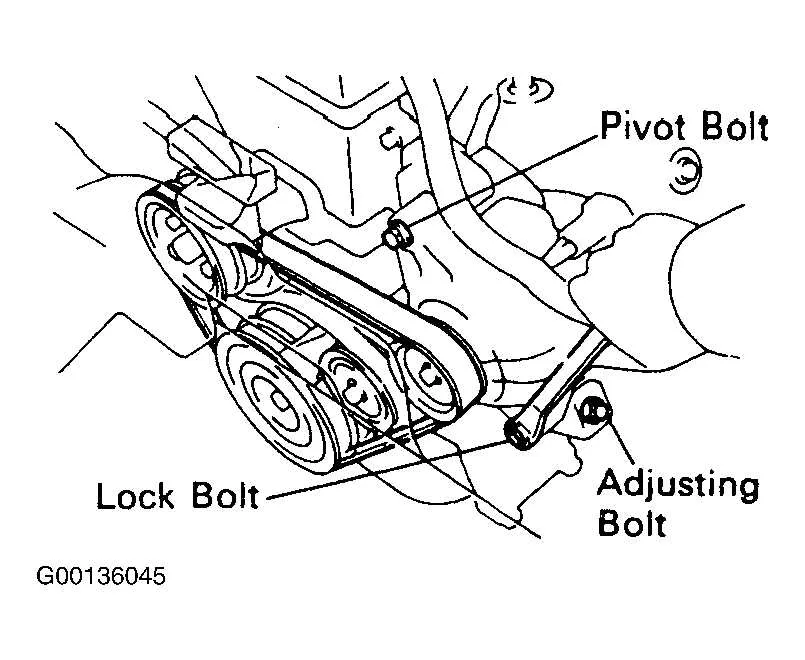

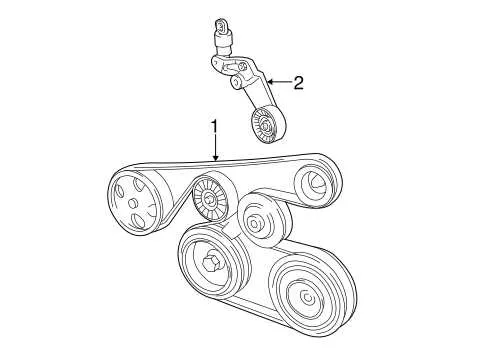

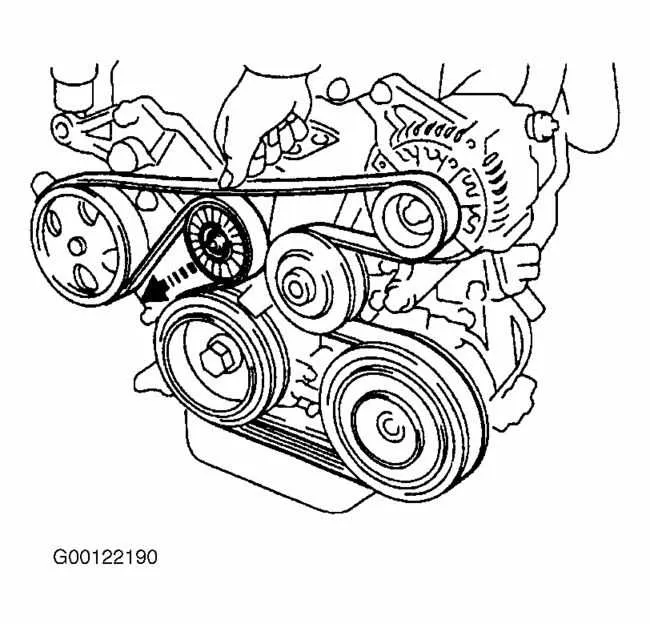

Corolla 2005 Belt Diagram

To replace or inspect the belts on a 2005 Toyota Corolla, refer to the following belt diagram for accurate positioning. Make sure to follow each step to ensure proper belt installation and maintenance.

• The serpentine belt should be routed through the alternator, power steering pump, air conditioning compressor, and water pump.
• Ensure the belt is tight enough to avoid slipping but not too tight to cause wear on the components.
• The timing belt, if applicable, must align correctly with the camshaft and crankshaft pulleys to maintain the engine’s proper timing.
• Check for any visible damage to the belts, including cracks, fraying, or glazing, which may indicate they need replacement.

For belt replacement, use a wrench to relieve tension from the tensioner pulley, then remove the old belt and replace it with the new one. Be sure to inspect the pulleys for wear, and replace them if needed to avoid premature belt wear.

Consult the owner’s manual for specific torque values for pulleys and other related components to avoid damaging them during reinstallation.

Understanding the Timing Belt and Its Routing

Inspect the timing belt routing carefully before any replacement. For the 2005 Corolla, the belt routes from the crankshaft pulley to the camshaft sprockets, maintaining synchronized movement between the engine’s components. Misrouting or improper installation can lead to engine damage, so verify that each component is correctly aligned.

Ensure the timing belt is aligned with the marks on the crankshaft and camshaft sprockets. The correct alignment guarantees proper valve timing, preventing interference between the pistons and valves. A misaligned belt can result in costly engine repairs.

Replace the timing belt at intervals recommended by the manufacturer, typically every 60,000 to 100,000 miles. Over time, the belt wears, losing its ability to maintain proper tension and alignment. Inspect the belt’s condition regularly for cracks, fraying, or signs of oil contamination, as these can indicate the need for immediate replacement.

When replacing the timing belt, check all related components, including the tensioner and idler pulleys. A failing tensioner can cause the belt to lose tension, leading to skipped teeth and improper timing. Ensure that the new belt is routed according to the service manual’s diagram to avoid installation errors.

After installation, manually rotate the engine a few times by hand to check for smooth movement and confirm that the belt is correctly seated. If any resistance is felt or the belt slips, recheck the alignment and routing before starting the engine.

How to Replace the Serpentine Belt on Corolla 2005

Start by raising the front of the car and securing it with jack stands. Remove the wheel on the driver’s side for better access to the serpentine belt. Use a 14mm socket to loosen the tensioner pulley and relieve pressure on the belt. With the tension off, carefully remove the belt from the pulleys, noting its routing for reinstallation.

Inspect the new serpentine belt before installation. Make sure it matches the original in length, width, and rib count. Begin by placing the belt around the crankshaft pulley, followed by the other pulleys in the correct sequence. Ensure the belt sits properly on each pulley without twisting or misalignment.

Once the belt is in place, use the socket wrench to move the tensioner pulley and allow the belt to settle into position. Double-check the routing and belt tension to confirm it is aligned correctly. Reinstall the wheel, lower the car, and start the engine to verify proper operation. Listen for unusual sounds that may indicate misalignment or improper tension.

Common Issues with Belt Alignment and Tension

Misalignment of the serpentine belt is a common issue that leads to uneven wear and premature failure. If the belt does not sit properly on the pulleys, it can cause excessive friction, resulting in belt damage or loss of performance. Regularly inspect the alignment of the belt relative to the pulleys to ensure it runs straight. If misalignment is detected, check for damaged or worn-out pulleys that could be causing the issue.

Incorrect belt tension can lead to slipping or squealing sounds, reduced power transmission, or even belt breakage. A loose belt will not grip the pulleys effectively, while a too-tight belt can stress the components, leading to premature wear. Use a tension gauge to verify the proper tension. If the tension is too high or low, adjust the tensioner to match the manufacturer’s specifications.

Pulley wear is another factor that affects belt alignment and tension. As pulleys age, they can develop grooves or become misaligned, causing the belt to wear unevenly. Inspect each pulley for signs of wear and replace any that show signs of damage. If the tensioner is faulty, it will not maintain proper tension, leading to issues with belt operation.

Improper installation of the serpentine belt can also contribute to misalignment. Always follow the manufacturer’s belt routing diagram to ensure the belt is installed correctly. Double-check the routing to prevent twists or incorrect placements that can lead to performance issues.
