Craftsman T2400 Drive Belt Diagram and Assembly Instructions

If you’re experiencing issues with the drive belt on your Craftsman T2400, a detailed diagram can help you resolve the problem quickly. The drive belt is a key component in ensuring your mower runs smoothly, and understanding its path will save you time during repair or replacement.

The diagram of the Craftsman T2400 drive belt shows how the belt loops through pulleys, connecting the engine to the wheels. Be sure to check the tension of the belt before reassembling to avoid unnecessary strain. Refer to the diagram for a clear view of each pulley’s position. Make sure to align the belt correctly around the tensioner and the idler pulleys. Misalignment can cause wear or even breakage.

When replacing the belt, inspect other components like the pulleys and tensioner springs. Any sign of wear should be addressed immediately to prevent further damage. If you have the correct diagram in hand, replacement becomes straightforward and avoids common mistakes like improper tension or incorrect routing.

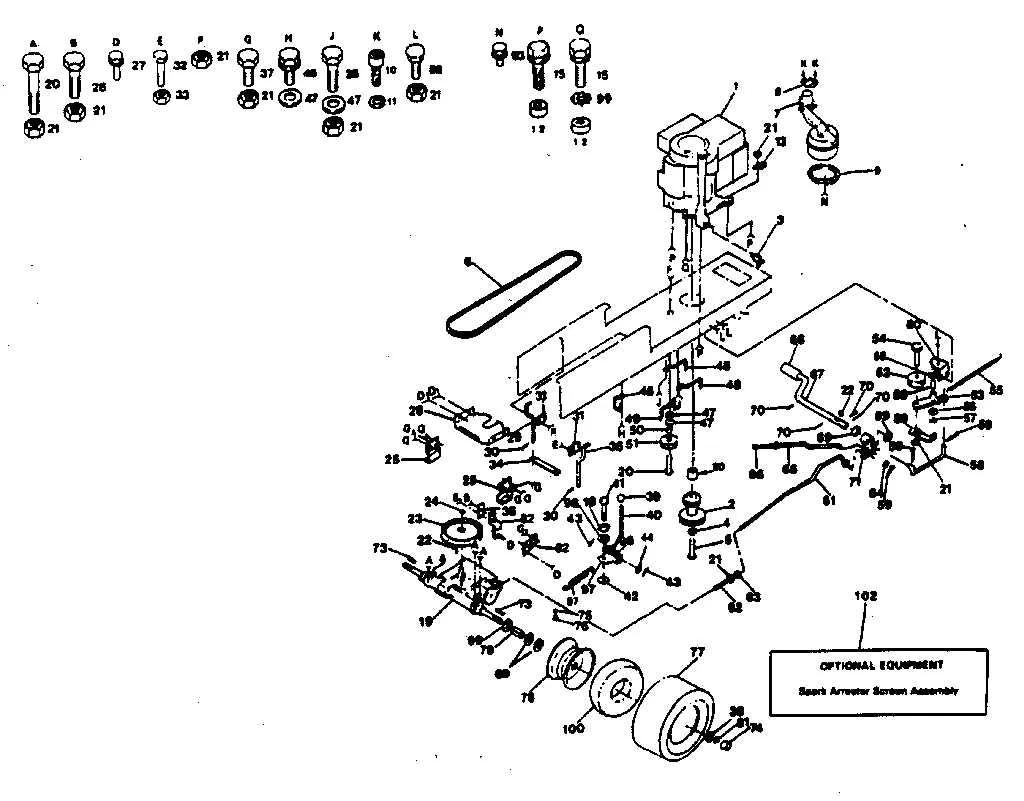

Craftsman T2400 Drive Belt Diagram

To replace or inspect the drive belt on your Craftsman T2400, follow the diagram carefully for proper installation. The drive belt is crucial for powering the mower’s wheels and engine. Ensure the belt is positioned exactly as shown in the diagram to avoid misalignment or premature wear.

Step 1: Begin by lifting the mower deck and securing it in place. Locate the drive belt, which runs from the engine pulley to the transmission pulley. Make sure the belt is not damaged or excessively worn.

Step 2: Remove the existing belt by loosening the tensioner pulley. This will relieve tension and allow you to slide the belt off. If installing a new belt, carefully follow the diagram, ensuring the belt runs in the correct direction through the pulleys.

Step 3: Once the new belt is positioned, reattach the tensioner pulley and adjust its tension. The belt should have minimal slack but should not be overly tight. Test the belt’s movement by manually rotating the mower wheels or engine pulley to ensure smooth operation.

Step 4: Double-check all pulleys and components for proper alignment. Any misalignment can cause the belt to slip off during use.

Refer to the Craftsman T2400 drive belt diagram for a clear visual representation of pulley connections. This ensures accuracy and avoids unnecessary troubleshooting down the line.

How to Identify and Locate the Correct Drive Belt in Craftsman T2400

To locate the correct drive belt for the Craftsman T2400, follow these steps:

• Check the Model Number: Verify the model number of your Craftsman T2400. The belt specifications vary depending on the exact model, and the model number is typically located on the frame or engine.
• Consult the Owner’s Manual: Refer to the manual for the exact belt size and specifications. The manual often includes a diagram of the drive belt’s path and dimensions.
• Locate the Belt Path: The drive belt is located beneath the mower deck, connected to the engine pulley and the transmission pulley. Make sure the belt is securely in place and properly routed.
• Inspect the Belt: Look for any visible signs of wear, fraying, or damage. If the belt appears worn or broken, it will need to be replaced.
• Measure the Belt: If you’re unsure about the belt’s size, use a measuring tape to determine the length and width of the current belt before purchasing a new one.
• Order a Replacement: Once you have the correct size and specifications, order a replacement belt. Use the manufacturer’s part number or consult a local retailer for a compatible replacement.

After identifying and obtaining the correct belt, carefully install it by following the path indicated in the diagram from the manual. Ensure the belt is tensioned correctly for optimal performance.

Step-by-Step Guide to Replacing the Drive Belt in Craftsman T2400

1. Prepare Your Tools and Workspace

Before you start, gather the necessary tools: a socket wrench, screwdriver, pliers, and a new drive belt compatible with your Craftsman T2400 model. Make sure the machine is on a flat surface and turn off the engine to ensure safety.

2. Lift the Deck

Using the lift lever, raise the mower deck to its highest position. This will give you easy access to the drive belt and other components.

3. Remove the Belt Cover

Locate the belt cover on the side of the mower. Use a screwdriver or wrench to remove the screws or bolts securing the cover. Set it aside for reinstallation later.

4. Disconnect the Battery

For safety, disconnect the mower’s battery by removing the negative terminal. This prevents any electrical hazards while you work on the mower.

5. Release the Tension on the Old Belt

Find the belt tensioner pulley and use a wrench or pliers to release the tension on the old belt. Carefully remove the belt from the pulleys, taking note of its routing for reference when installing the new one.

6. Remove the Old Belt

With the tension released, slide the old drive belt off the pulleys. Be cautious of any sharp edges on the components.

7. Install the New Belt

Place the new drive belt around the pulleys, following the same routing as the old one. Ensure it fits securely in place and that it is aligned properly with each pulley.

8. Adjust the Tension

Reattach the belt tensioner pulley and adjust it so that the new belt has the correct amount of tension. The belt should not be too loose or too tight.

9. Reinstall the Belt Cover

Once the belt is properly installed, replace the belt cover and secure it with the screws or bolts you removed earlier.

10. Reconnect the Battery

Reconnect the battery by attaching the negative terminal. Check that everything is secure before turning the mower on.

11. Test the Mower

Start the mower and test it to ensure the new drive belt is functioning correctly. Listen for any unusual noises and check that the belt operates smoothly. If everything seems fine, lower the deck and begin mowing.

Common Drive Belt Issues and How to Troubleshoot Them on Craftsman T2400

If your Craftsman T2400 isn’t moving properly, a worn or damaged drive belt might be the culprit. Start by inspecting the belt for visible signs of wear like cracks or fraying. If you notice these, replace the belt immediately to avoid further damage.

Another common issue is a loose drive belt. A loose belt can cause the mower to lose power or slip during operation. Check the belt tension by pressing on the belt. If it feels too loose or if you can easily deflect it more than half an inch, it’s time to adjust the tension. Refer to your owner’s manual for instructions on adjusting the tension properly.

A misaligned belt can also affect performance. If the belt doesn’t sit correctly in its pulleys, it can slip or wear unevenly. Inspect the pulleys for any signs of damage or misalignment. Realign the pulleys and ensure that they are clean of debris to keep the belt running smoothly.

In some cases, the drive belt might get stuck or bind due to a foreign object or debris trapped in the pulleys. Shut off the mower and inspect the area around the pulleys and belt for any blockages. Remove any debris and test the system to see if it runs more smoothly.

Lastly, if the belt has become excessively loose after repeated use, it might be stretching. Over time, this can happen, especially if the belt isn’t replaced at regular intervals. Regularly check the belt’s condition to prevent issues before they affect performance.
